4X4-5600U

ASRock Industrial 4X4-5600U AMD Ryzen 5 5600U 4X4 Motherboard

4X4-5600U

  • AMD Ryzen 5 5600U
  • 2 x 260-pin SO-DIMM up to 64GB DDR4 3200 MHz
  • 4 x USB 3.2 Gen2, 4 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA3
  • 1 x Realtek 1 Gigabit LAN (support DASH), 1 x Realtek 2.5 Gigabit LAN
  • Supports Quad display, 1 x HDMI 2.0, 3 x DP 1.2a (2 from Type C)
  • TPM 2.0 onboard IC
  • 12V~19V DC-In

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

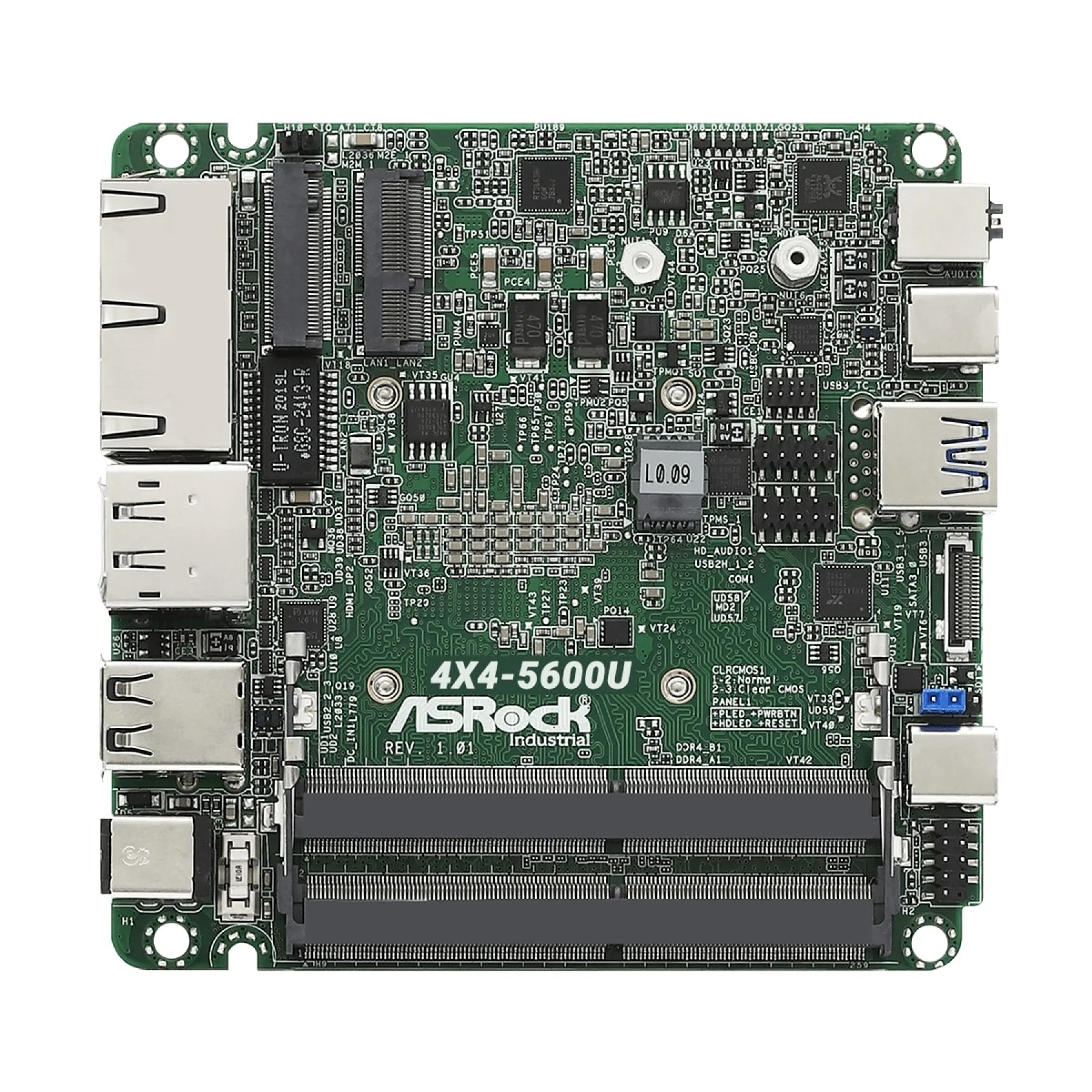

The ASRock Industrial 4X4-5600U is a 4X4 Motherboard powered by AMD Ryzen 5 5600U processor. The 4X4-5600U contains rich I/O including: 8 x USB, 2 x LAN and 1 x COM Port.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Processor Type AMD Ryzen: Up to 6 Cores
Memory Type DDR4
COM Ports 1x RS-232/422/485
LAN Ports 1x 2.5GB, 1x 1GB
USB Ports 4x USB 2.0, 4x USB 3.2
Video Ports 1x HDMI, 3x DisplayPort
Storage 1x M.2 PCIe, 1x SATA, 1x M.2 SATA
Operating Temperature 0°C to 60°C

Delivery Information

Orders dispatched from Assured Systems USA will be delivered using FedEx.

Payment Methods & Options

Accepted payment methods for US customers include bank transfer, VISA or Mastercard in USD.

ASRock Industrial: Warranty and Service Information

Assured Systems, founded in 2011, are an official EMEA Partner of ASRock Industrial. For all ASRock Industrial products supplied we are proud to offer a comprehensive 2 year warranty, with optional extensions available upon request. Our warranty also covers systems that have been customised by Assured Systems.
