Name: Arbor Technology iTC-1101C 10.1" Intel Elkhart Lake Industrial Touch Panel PC
SKU: iTC-1101C

ARBOR Technology

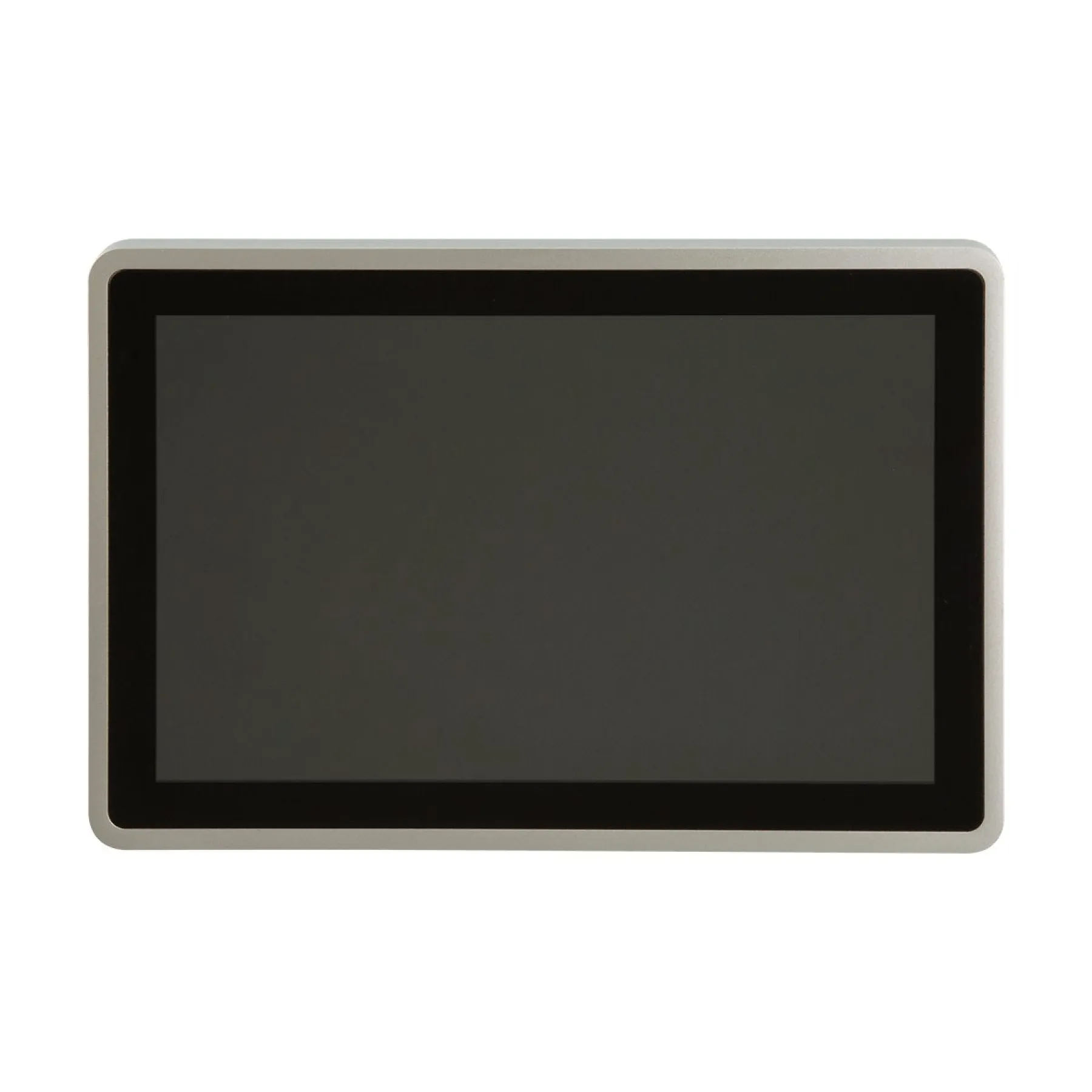

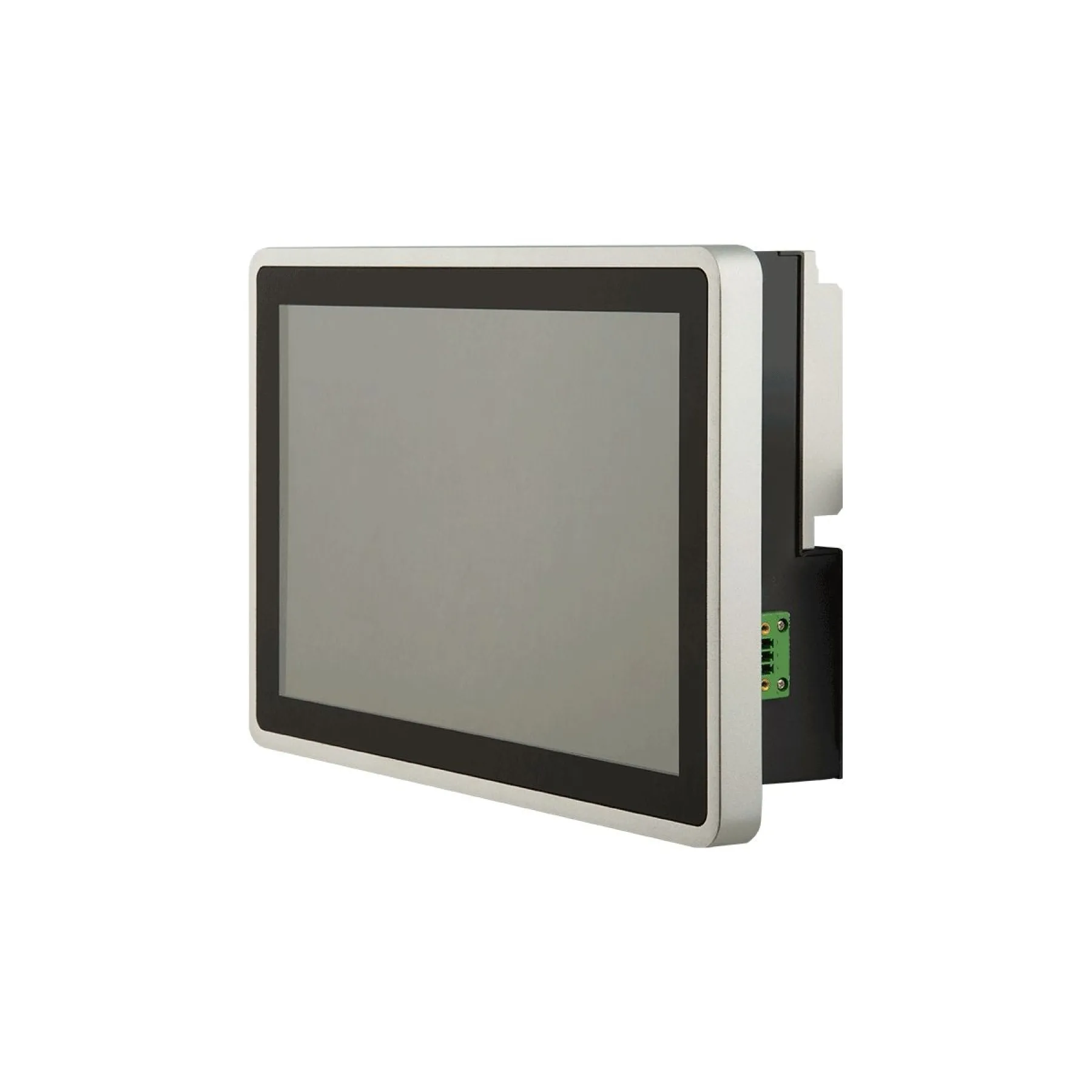

Arbor Technology iTC-1101C 10.1″ Intel Elkhart Lake Industrial Touch Panel PC

iTC-1101C

Intel Celeron Processor J6413 (1.5M Cache, up to 3.00 GHz)
10.1″ 1280 x 800 WXGA LCD display
Fanless design w/ aluminum front bezel
Flush front panel w/ IP65 waterproof compliant
Support 2.5GbE LAN and USB 3.2 Gen1 (5Gbps)

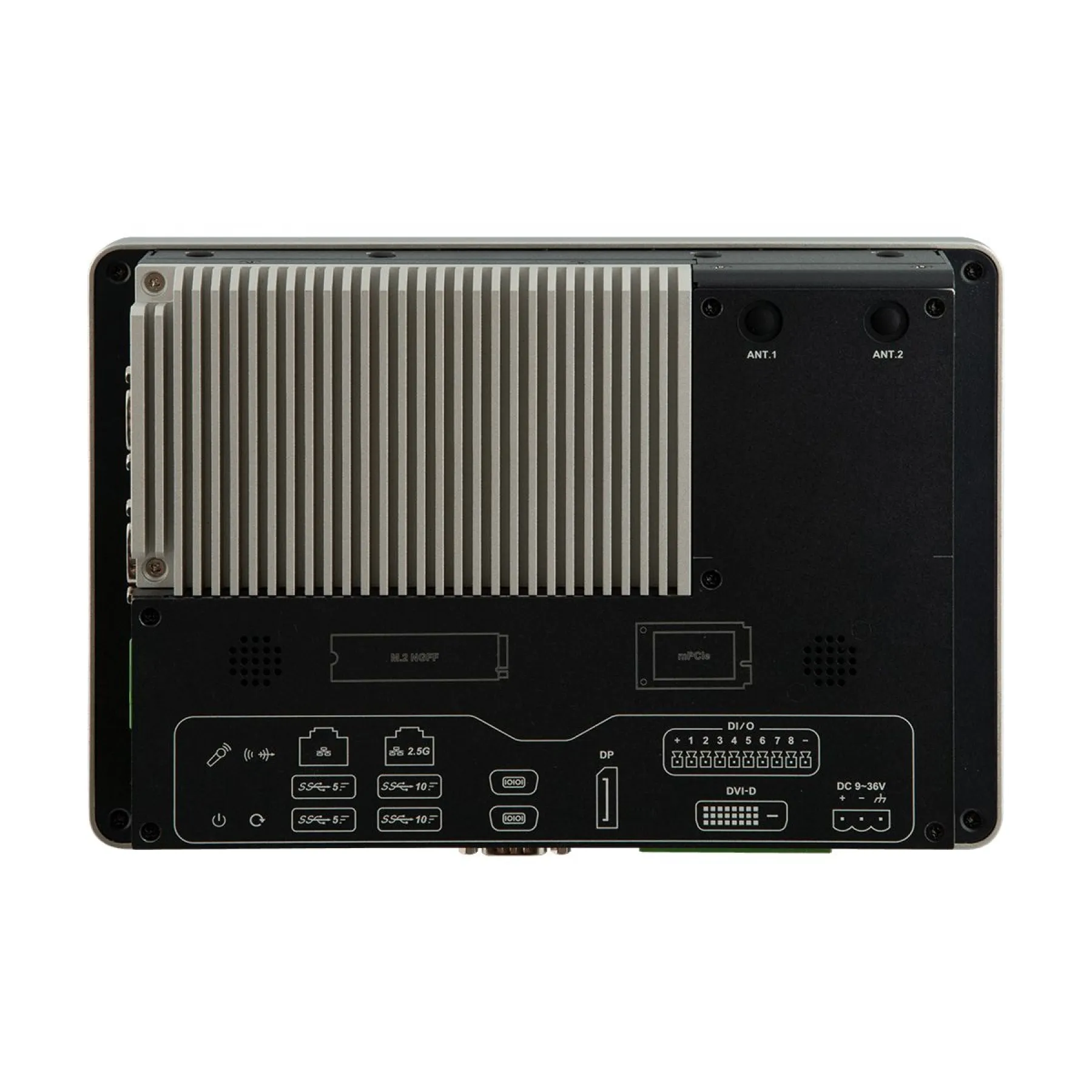

Rich I/O: 2 x COM/ 2 x LAN/ 4 x USB3.2 (5Gbps) / 8-bit DI/O & dual video output: DisplayPort and DVI-D
Easy-accessible expansion for storage and wireless module
9~36V wide-range DC input with reverse protection

Product Code: iTC-1101C

Categories: Arbor Panel PCs, ARBOR Technology, Industrial Touchscreen Computers, IP65 Panel PCs, Panel Mount Panel PCs

Range: ARBOR Technology

Details

The Arbor Technology iTC-1101C is a 10.1" Fanless Industrial Panel PC powered by Intel Celeron J6413 processor. The iTC-1101C provides a flush front panel with IP65 waterproof protection, alongside rich I/O including: 2x Serial, 2x Ethernet and 4x USB ports.

Downloads

Arbor Technology iTC-1101C Datasheet (PDF)

1.03MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

System	CPU	Intel Celeron J6413 Quad-Core Processor 1.80GHz
	Memory	1 x 260 pin DDR4 SO-DIMM socket, supporting 3200MHz SDRAM up to 32GB (4GB DDR4 SO-DIMM pre-installed)
	LAN Chipset	1 x Intel 225LM controller, 1 x Intel i211AT controller
	Watchdog Timer	1~255 levels reset
LCD Display	Size / Type	10.1″ TFT LCD Panel
	Max. Resolution	1280 x 800 WXGA
	Max. Colors	16.7M
	Luminance	350 cd/m²
	Touch Screen	Projected Capacitive Touch
	View Angle (U/D/R/L)	85° / 85° / 85° / 85°
External I/O	Serial Ports	Default: 2 x DB-9 connectors for RS232 / 422 / 485 (Optional: 2 x DB-9 connectors for RS232 via cables)
	USB Ports	4 x Type-A USB 3.2 Gen 1 (5Gbps)
	LAN	1 x RJ-45 port for GbE LAN 1 x RJ-45 port for 2.5 GbE LAN
	Video Ports	1 x DVI-D connector, supporting Full HD resolution 1 x DisplayPort 1.4 connector, supporting 4K2K resolution
	Digital I/O	8 bit Digital I/O
Storage	1st Device	1 x M.2 M-key 2242 / 2280 (SATA III only)
Audio	Type	1 x Mic-in / 1 x Line out
Audio	Speaker	2 x 1.5W speakers (optional)
Button & Indicator	Button	Power on & Reset
Button & Indicator	LED	Power-on status / HDD status / RTC battery status
Power System	Power Input	DC 9 ~ 36V
	Power Consumption	Typical 19W (w/o I/O cards)
	Remote Control	1 x 3-pin terminal block for remote control and PWR LED output
Mechanical	Mounting Type	Panel mount (clamps & brackets are provided) VESA-75 / 100 mount (optional)
	Chassis	Aluminum front bezel and steel-metal chassis
	Weight (Net)	2.35 kg
	Dimensions (W x H x D)	255 x 175 x 62.8 mm
Environmental	Operating Temp.	-10 ~ 55ºC (14 ~ 131ºF)
	Storage Temp.	-20 ~ 70ºC (-4 ~ 158ºF)
	Operating Humidity	10 ~ 95% @ 55°C (non-condensing)
	Vibration	5 ~ 500Hz, 1Grms X,Y,Z axis (with SSD)
	Shock	Operating 10G, 11ms X,Y,Z axis (with SSD)
Qualification	Certification	CE, FCC Class A
Expansion	Expansion Bus (for Wireless connection)	1 x Mini PCIe slot (PCIe x1+ USB2.0, Full size) w/ 1 x SIM card slot
OS Support	System	Windows10 (64bit)

Touch Technology	Projected Capacitive
Ingress Protection	IP65
Brightness	350nit, Standard
Resolution	1280x800, HD
GPU	Integrated GPU
Memory Capacity	Up to 32GB
Cooling Type	Fanless, Yes
Serial Ports (COM)	2 Ports, 2 Ports, RS-232/422/485
USB Ports	4 Ports, 4 Ports, USB 3.2
Ethernet Ports (LAN)	1 Port, 1x 1G, 2 Ports, 2.5G
Wireless	Cellular, Wi-Fi
Audio	Yes
Video Ports	1x DisplayPort, 1x DVI, 2 Ports
Digital I/O	8 DIO
Storage Type	1, M.2 SATA
Expansion Type	1, Any Expansion Type, Mini PCI Express
Input Voltage	9-36 VDC
Mounting Options	Panel-mount, VESA-mount
Operating Temperature	-10°C to 55°C, Wide
Certifications	CE/FCC
OS Support	Windows 10, Windows 10 IoT, Windows 10 Pro
