FPC-9108-L2U4-G3

Name: Arbor Technology FPC-9108-L2U4-G3 Intel 10th Gen Xeon Rugged Edge Al Computer
SKU: FPC-9108-L2U4-G3

Arbor Technology

Arbor Technology FPC-9108-L2U4-G3 Intel 10th Gen Xeon Rugged Edge Al Computer

FPC-9108-L2U4-G3

Intel 10th Gen (Comet Lake-S) with W480E chipset
Supports NVIDIA RTX-30 series up to 350W GPU (up to 334.6mm length)
Wide range DC power input (12~36V)
HDMI x 1 + VGA x1 (2 independent displays)
Power on/off delay control/ Configurable ignition power control
TPM 2.0 support
2 x outside accessible SATA SSD, supporting RAID 0,1
2 x USB3.2 supports up to 10Gbps data transfer rate

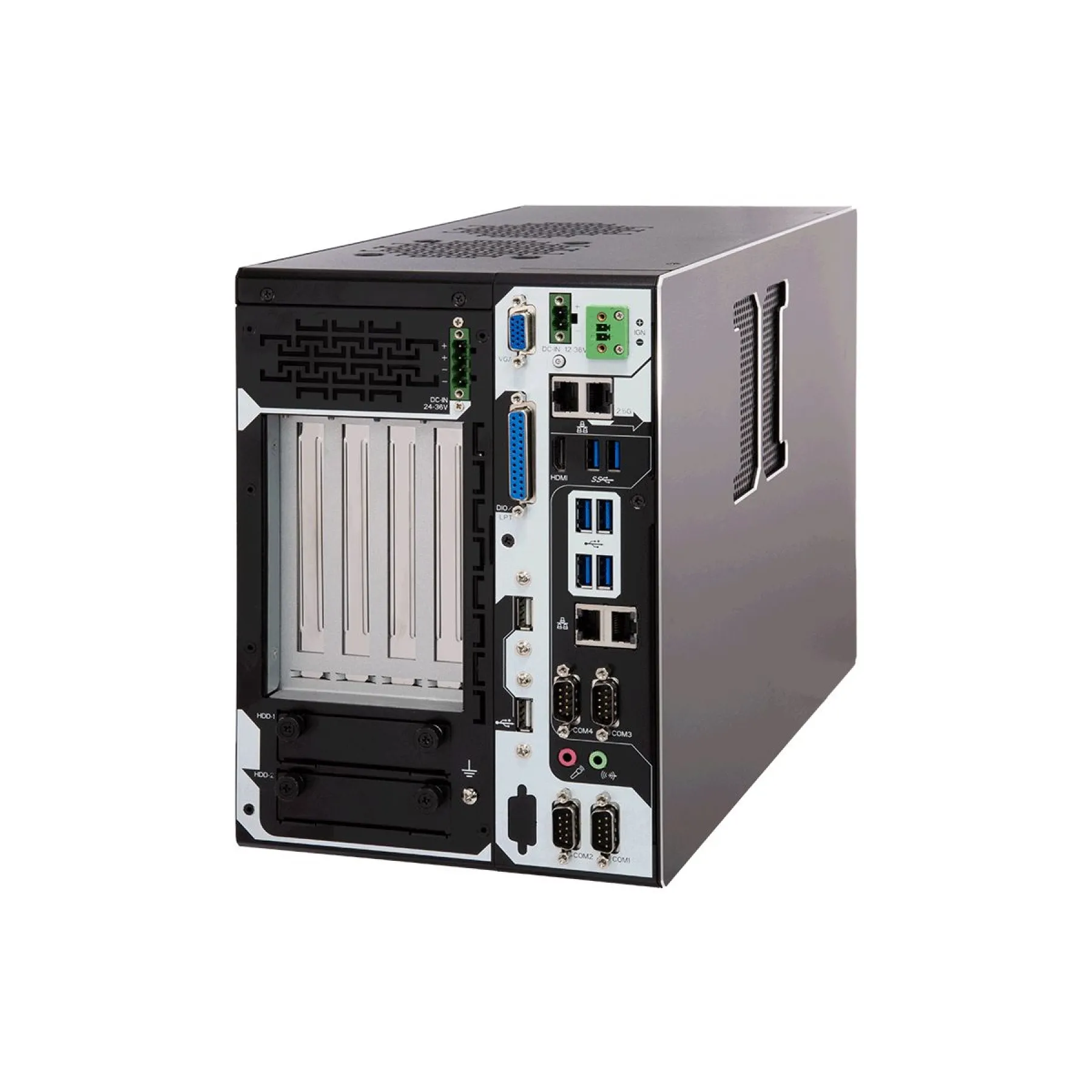

Front-accessible I/O support
PWM FAN control support
1 x M.2 (NGFF) B-Key(2242/3052/2280) socket for storge or 5G / LTE
1 x M.2 (NGFF) E-Key(2230) socket for Wi-Fi / BT

Choose FPC-9108 Series Model:

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: FPC-9108-L2U4-G3

Categories: Arbor Technology, Edge AI GPU Computing Platforms, Embedded Box PCs, Rugged AI Computers, Rugged Computers

Range: Arbor Technology

Details

The Arbor Technology FPC-9108-L2U4-G3 is a Ruggedized Edge AI Computing Platform Supporting NVIDIA RTX-3090 GPU Card, Intel 10th Gen Xeon Core Processor.

Downloads

Arbor Technology FPC-9108-L2U4-G3 Datasheet (PDF)

1.55MB

Datasheet (FPC-9108-L2U4-G3) ()

0MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

CPU	10th generation Intel Xeon Core i9 / i7 / i5 / i3 processor in LGA1200 socket
Memory	2 x 260-pin DDR4 SO-DIMM sockets, supporting 2933 (i9/ i7 CPU)/2666( i5/ i3 CPU)/ 2400 MHz (Pentium/ Celeron CPU) SDRAM up to 64GB (ECC / Non-ECC)
Chipset	Intel W480E
Graphics	Integrated Intel HD Graphics
ATA	2 x Serial ATA ports with 600MB/s HDD transfer rate
LAN Chipset	1 x Intel WGI225LM 2.5GbE LAN 1 x Intel WGI219LM PCIe controller w/ iAMT 14.0 2 x Intel WG82583V PCIe controllers
Watchdog Timer	1~255 levels reset
Serial Port	2 x RS-232 / 422 / 485 configurable (default RS-232) 2 x RS-232
USB Port	2 x USB 3.2 Gen 2 (10Gbps) / 2.0 ports 4 x USB 3.2 Gen1 (5Gbps) / 2.0 ports 2 x USB 2.0 ports
LAN	3 x RJ-45 ports for GbE, 1 x RJ-45 port for 2.5 GbE
Video Port	1 x HDMI 1 x DB-15 female connector for analog RGB
Expansion Bus	1 x mini-PCI Express slots interconnected with SIM card sockets for optional Wi-Fi / BT / 3G / LTE / GPS (PCIe x1 + USB 2.0, full size) 1 x M.2 E key (2230) with PCIe x1 + USB2.0, for wireless 1 x M.2 B key (2242 / 3052 / 2280) w/ (PCIe x2 + USB 3.0 + SATA) interconnected with SIM for 5G / LTE expansion or for storage (either one) 1 x PCIe x16 slot for 350W GPU card 3 x PCI slots
Digital I/O Port	1 x DB25 connector for DIO (8 in / 8 out) port
Audio	Mic-in / Line-out
Operating Temp.	80W TDP CPU : -20 ~ 50°C (-4 ~ 122°F), 65W TDP CPU : -20 ~ 55°C (-4 ~ 131°F), 35W TDP CPU : -20 ~ 70°C (-4 ~ 158°F), w/ NVIDIA RTX-3090 : -20 ~ 45°C (-4 ~112°F)
Storage Temp.	-40 ~ 85°C (-40 ~ 185°F)
Operating Humidity	10 ~ 95% @ 50°C (non-condensing)
Vibration	Comply with MIL-STD-810G, Method 514.6, Category 4 w/ SSD
Shock	Comply with MIL-STD-810G, Method 516.6,Procedure I,Table 516.6-II, 20G
System	Windows 10 IOT Enterprise 2019, Linux (Kernel: 4.9)
Type	2 x 2.5” drive bays (outside accessible) 1 x M.2 B key (2242 / 3052 / 2280) w/ (PCIe x 2 + USB3.0 + SATA ) interconnected with SIM for 5G / LTE expansion or storage (either one)
Certification	CE, FCC Class A
Main Power Input	DC 9~36V input (w/ 2-pin DC input terminal block)
Secondary Power Input	DC 24-36V input (w/ 4-pin DC input terminal block for graphic cards power support)
Ignition Switch	2-pin terminal block: IGN, GND
Construction	Metal
Mounting	Wall-mount
Weight	7.4kg (16.31Ib)
Dimensions (W x D x H)	181 x 320 x 250 mm

Processor Type	Intel Xeon, up to 6 Cores, Intel Core, up to 10 Cores
Memory Capacity	Up to 64GB
Serial Ports (COM)	2x RS-232/422/485, 2x RS-232
USB Ports	2x USB 2.0, 6x USB 3.2
Ethernet Ports (LAN)	1x 2.5G, 3x 1G
Wireless	Cellular, Wi-Fi
Video Ports	1x HDMI, 1x VGA, 1x DB-15, DB-15
Digital I/O	16 DIO
Audio	Yes
Storage Type	1x M.2 SATA, 1x M.2 PCIe, 2x 2.5"
Expansion Type	1x Mini PCI Express, 1x PCI Express, 2x M.2, 3x PCI
Input Voltage	12-36 VDC, 24-36 VDC
Mounting Options	Wall-mount
Operating Temperature	Wide OT: -20°C to 45°C, Wide OT: -20°C to 50°C, Wide OT: -20°C to 55°C, Wide OT: -20°C to 70°C
Market Certifications	CE/FCC, MIL-STD
OS Support	Linux, Windows 10
