FR FPC-9000-V1
Arbor Technology FPC-9000-V1 Intel Xeon 6th&7th Gen Core i7/i5/i3 In-Vehicle Box
FPC-9000-V1
- Fanless design
- Wide range DC power input (9~36V)
- Wide temperature ranges from -40°C to +70°C
- 2 x RS-232/422/485 and 8-bit isolated DIO
- 4 x 802.3af Gigabit PoE ports by M12 connectors
- RTC battery service windows support
- 3 x mPCIe slots for optional Wi-Fi / BT / 3G / 4G / GPS Modules
- 1 x M.2 (NGFF) B-Key (2242) socket for optional LTE module
- 3 x SIM card sockets
- 2 x reserved DB9 connectors (CN1/2) for optional serial ports or CAN BUS
FPC-9000-V1
ARBOR Technology, Arbor Transportation Systems, Embedded Box PCs, Fanless Embedded PCs, Fanless Industrial PCs, Industrial Computing, POE Computers, Rugged Computers
Details
The Arbor Technology FPC-9000-V1 is an In-Vehicle Box PC powered by Intel Xeon E3/ 6th & 7th Generation Core i7/i5/i3Ordering Info
| FPC-9000-V1 | Barebone Fanless In-Vehicle BOX PC for Xeon E3/ 6th & 7th Gen. Core/i7/i5/i3 35W CPU, w/o expansion(CPU-RAM-SSD-OS by CTOS*) |
|---|
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| CPU | Intel Xeon E3/6th & 7th generation Core i7 / i5 / i3 processor in LGA1151 socket |
| Memory | 2 x 260-pin DDR4 SO-DIMM sockets, supporting 2400 MHz SDRAM up to 32GB |
| Chipset | Intel C236 |
| Graphics | Integrated Intel HD Graphics |
| ATA | 3 x Serial ATA ports with 600MB/s HDD transfer rate |
| LAN Chipset | 1 x Intel i219LM PCIe controller w/ iAMT 11.0(except i3) 2 x Intel WGI211AT GbE controllers 4 x Intel WGI211IT GbE controllers for PoE |
| Watchdog Timer | 1~255 levels reset |

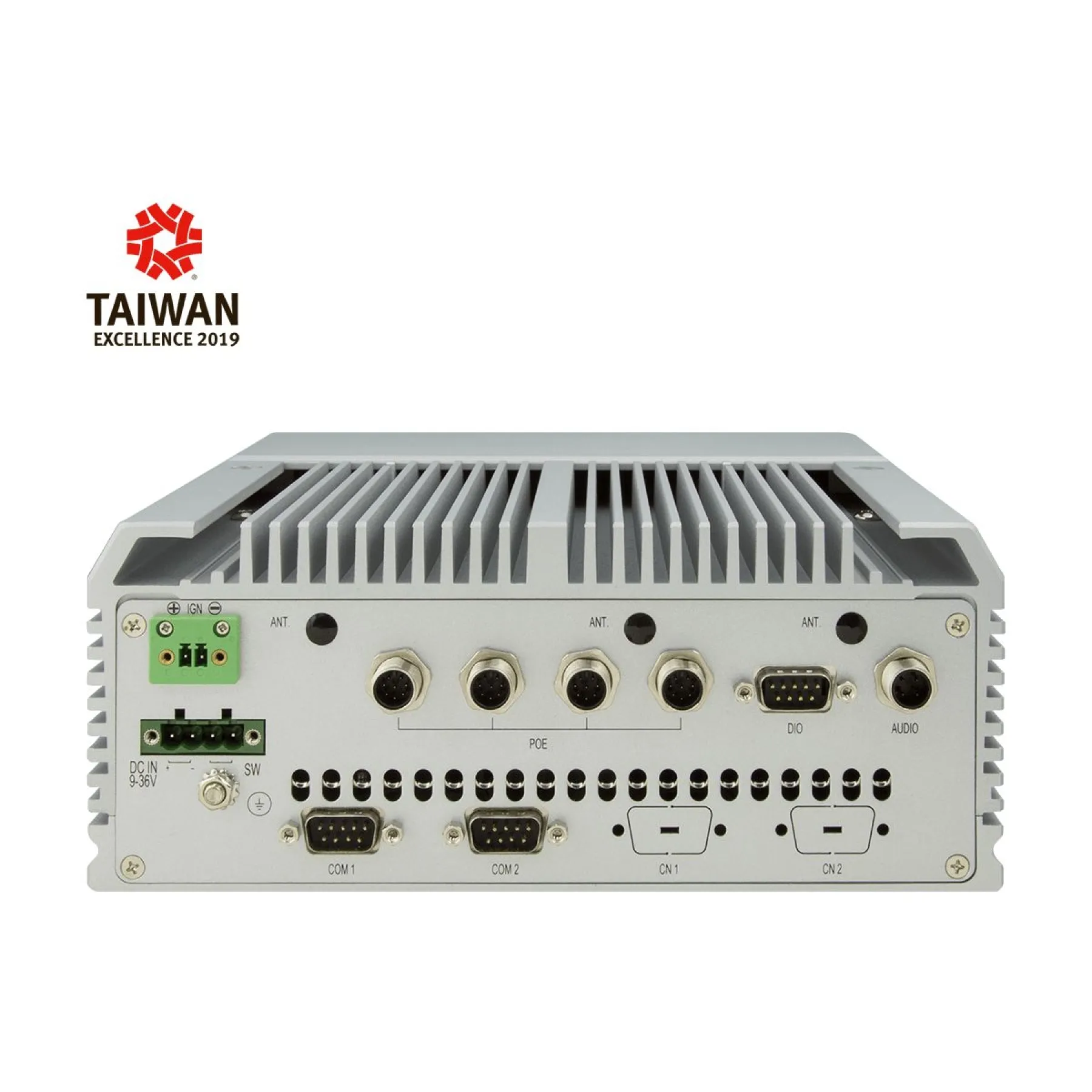

| Serial Port | 2 x DB-9 male connectors (2 x RS-232/422/485), rear side |

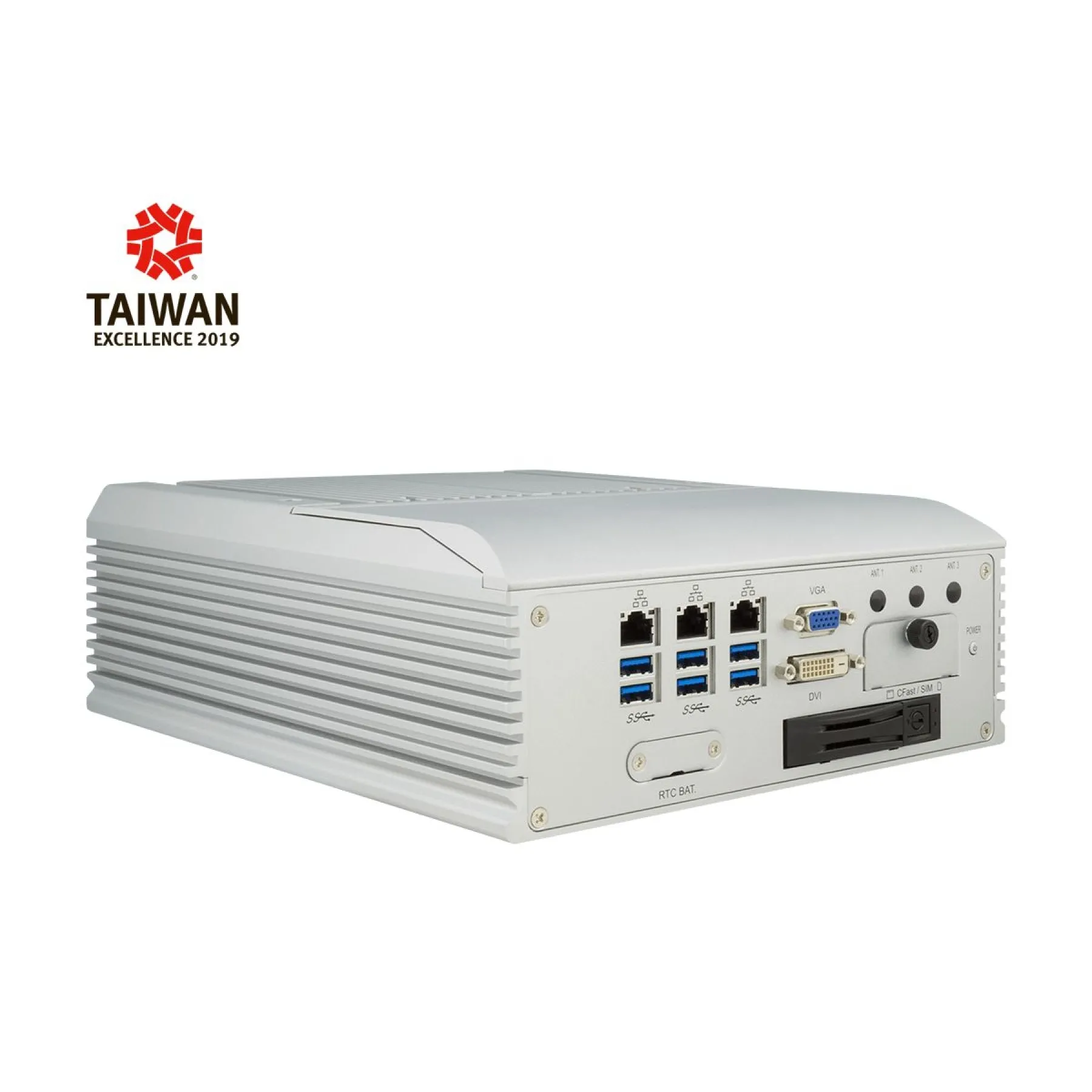

| USB Port | 6 x USB 3.0 ports, front side |
| LAN | 3 x RJ-45 ports for GbE, front side 4 x M12-male 8P connector, IP67 for PoE, A-coded, rear side (with total 30W power budget) |
| Video Port | 1 x DB-15 female connector for analog RGB, Max. resolution : 1920 x 1080 @ 60Hz 1 x DVI-D female connector for digital video output, Max. resolution : 1920 x 1080 @ 60Hz |
| Antenna | 6 x SMA-female connectors’ holes for external antennas |
| Expansion Bus | 2 x mini-PCI Express slots interconnected with SIM card sockets for optional Wi-Fi/BT/3G/LTE/GPS (PCIex1 + USB2.0, full size) 1 x mini-PCI Express slot for optional Wi-Fi/BT/GPS (PCIex1 + USB2.0, half size) 1 x M.2 (NGFF) B-Key(2242) socket interconnected with SIM card socket for optional LTE module |
| Digital I/O Port | 8-bit digital I/O, 4-in/4-out w/ 1 x DB-9 male connector, 2KV isolated protection, rear side |
| Audio | 1 x M12-male 4P connector, D-code |
| Storage Temp. | -40 ~ 85°C (-40 ~ 185°F) |
| Operating Humidity | 10 ~ 95% @ 70°C (non-condensing) |
| Vibration | 3 Grms/5~500Hz/random operation w/ SSD |
| Shock | Operating 40G (11ms), Non-operating 60G with SSD |
| System | Windows 10 IOT (For 6th/7th Gen Intel CPU) |
| Windows 7 / Windows8.1 ( For 6th Gen Intel CPU) | |
| Linux (Kernel: 4.x) | |
| Type | 1 x CFast socket, can be outside accessible |
| 1 x external 2.5” SATA3 6Gb/s Drive Bay | |
| 1 x internal 2.5” SATA3 6Gb/s Drive Bay | |
| Certification | CE, FCC Class A, E13 Mark |
| Main Power Input | DC 9~36V input (w/ 4-pin DC input terminal block,combining remote power on/off switch) |
| Ignition Switch | 2-pin terminal block: IGN, GND |
| Power Consumption | Max. 120W (w/o I/O card) |
| Construction | Aluminum Alloy |
| Mounting | Support wall-mount |
| Weight | 6.4kg (16.31Ib) |
| Dimensions (W x D x H) | 225 x 292 x 90 mm (8.86″ x 11.50″ x 3.54″) |
| Operating Temp. | -40 ~ 60°C, ambient w/ air flow, w/ 35W TDP CoreTM i CPU |
| -40 ~ 60°C, ambient w/ air flow, w/ 35W TDP CoreTM i CPU | |
| Processor Type | Intel Core, up to 4 Cores, Intel Xeon, up to 4 Cores |
|---|---|
| Memory Capacity | Up to 32GB |
| Cooling Type | Fanless |
| Serial Ports (COM) | 2x RS-232/422/485 |
| USB Ports | 6x USB 3.0 |
| Ethernet Ports (LAN) | 3x 1G |
| Power Over Ethernet (PoE) | PoE Ports |
| Wireless | Cellular, Wi-Fi |
| Video Ports | 1x DVI, 1x DB-15, DB-15 |
| Digital I/O | 16 DIO |
| Audio | Yes |
| Storage Type | 1x Cfast, 2x 2.5" |
| Input Voltage | 9-36 VDC |
| Mounting Options | Wall-mount |
| Operating Temperature | Extra-Wide OT: -40°C to 60°C, Extra-Wide OT: -40°C to 70°C |
| Market Certifications | CE/FCC |
| OS Support | Linux, Windows 10, Windows 7 |
