FPC-9000-L2U4

Name: Arbor Technology FPC-9000-L2U4 Xeon E3/6th&amp;7th Gen Core Robust Box PC
SKU: FPC-9000-L2U4

Arbor Technology

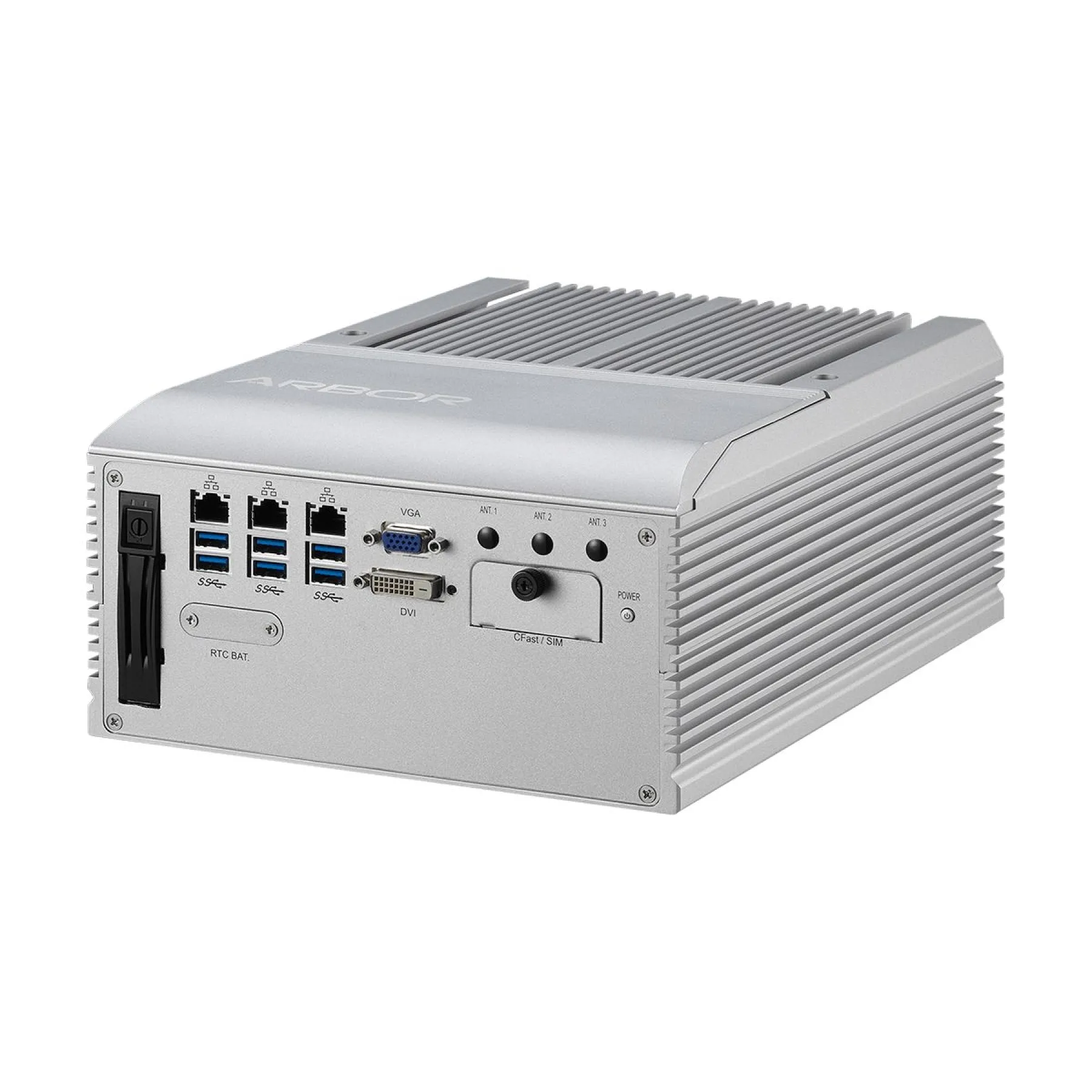

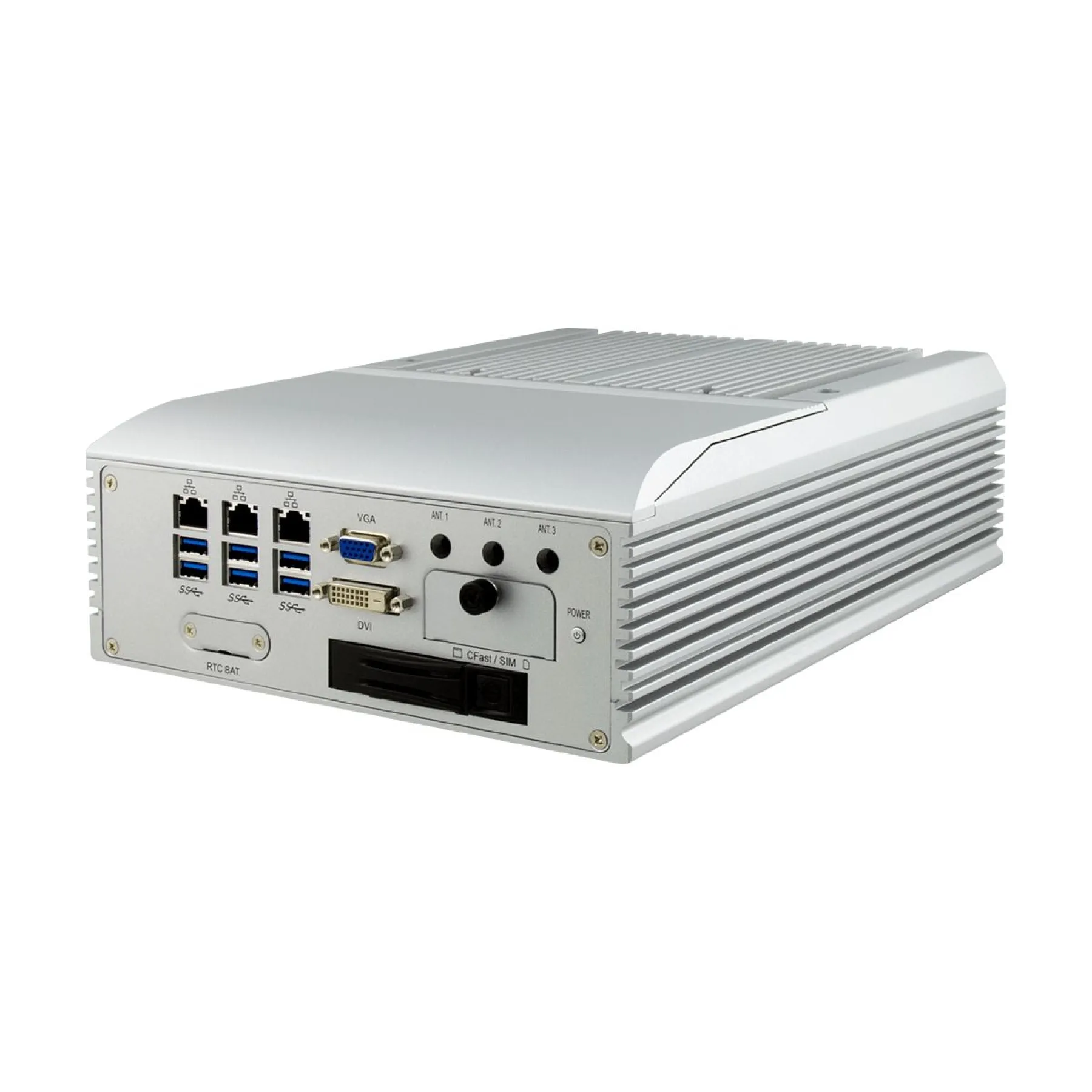

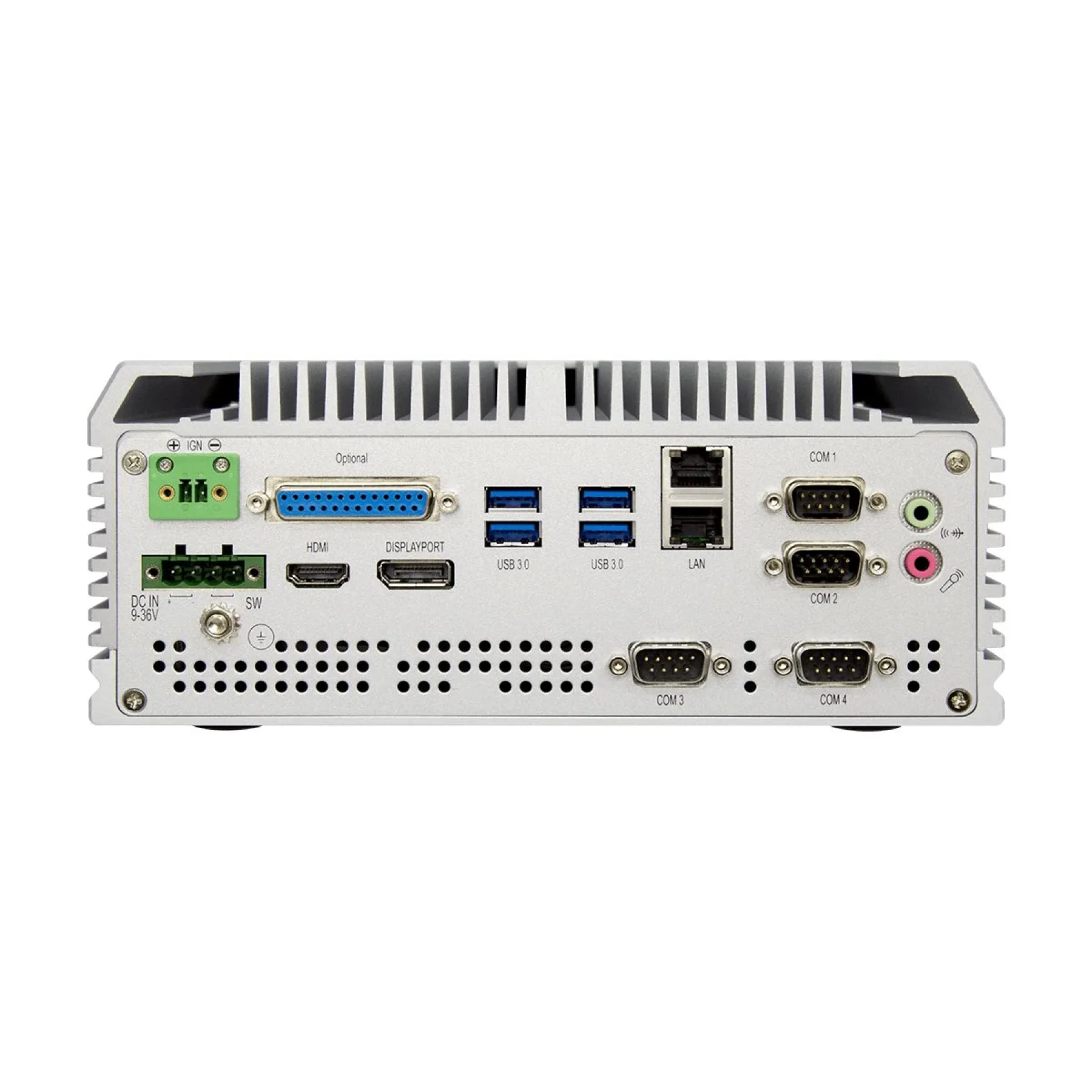

Arbor Technology FPC-9000-L2U4 Xeon E3/6th&7th Gen Core Robust Box PC

FPC-9000-L2U4

Fanless design
Wide range DC power input (9~36V)
DisplayPort x 1 + HDMI x1 + VGA x 1 and DVI x 1 (support 3 independent displays)
Rich I/O (10 x USB, 5 x GbE LAN, 4 x COM)
Power on/off delay control / configurable ignition power control
TPM 2.0 support (optional)
RTC battery service window support
Two-mPCIe for optional Wi-Fi/3G/4G/GPS or I/O expansion supported
2 SATA SSD (1 x removable, 1 x internal), support RAID 0,1
Front-accessible I/O support

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: FPC-9000-L2U4

Categories: Arbor Technology, Embedded Box PCs, Fanless Embedded PCs, Fanless Industrial PCs, Industrial Computing, Rugged Computers

Range: Arbor Technology

Details

The Arbor Technology FPC-9000-L2U4 is a Robust Box PC powered by Intel Xeon E3/6th & 7th Gen Core i7/i5/i3 Processor. It contains rich I/O including: 10 x USB, 5 x GbE LAN and 4 x COM, alongside supporting 3 independent displays with DisplayPort x 1 + HDMI x1 + VGA x 1 and DVI x 1.

Downloads

Arbor Technology FPC-9000-L2U4 (PDF)

1.42MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

CPU	Intel Xeon E3/6th & 7th generation Core i7/i5/i3 processor in LGA1151 socket
Memory	2 x 260-pin DDR4 SO-DIMM sockets, supporting 2400 MHz SDRAM up to 32GB
Chipset	Intel C236
Graphics	Integrated Intel HD Graphics
ATA	2 x Serial ATA ports with 600MB/s HDD transfer rate
LAN Chipset	2 x Intel WGI211AT GbE controllers 1 x Intel WGI219LM GbE controller w/ iAMT 11.0 2 x Intel WG82583V GbE controllers
Watchdog Timer	1~255 levels reset
Serial Port	2 x RS-232 / 422 / 485 configurable via DB-9 connectors 2 x RS-232 ports via DB-9 connectors
USB Port	6 x USB 3.0/ 2.0 ports 4 x USB 3.0/ 2.0 ports
LAN	5 x RJ-45 ports for GbE
Video Port	1 x DisplayPort 1 x HDMI 1 x DB-15 female connector for Analog RGB 1 x DVI-D female connector for digital video output Support 3 independent displays

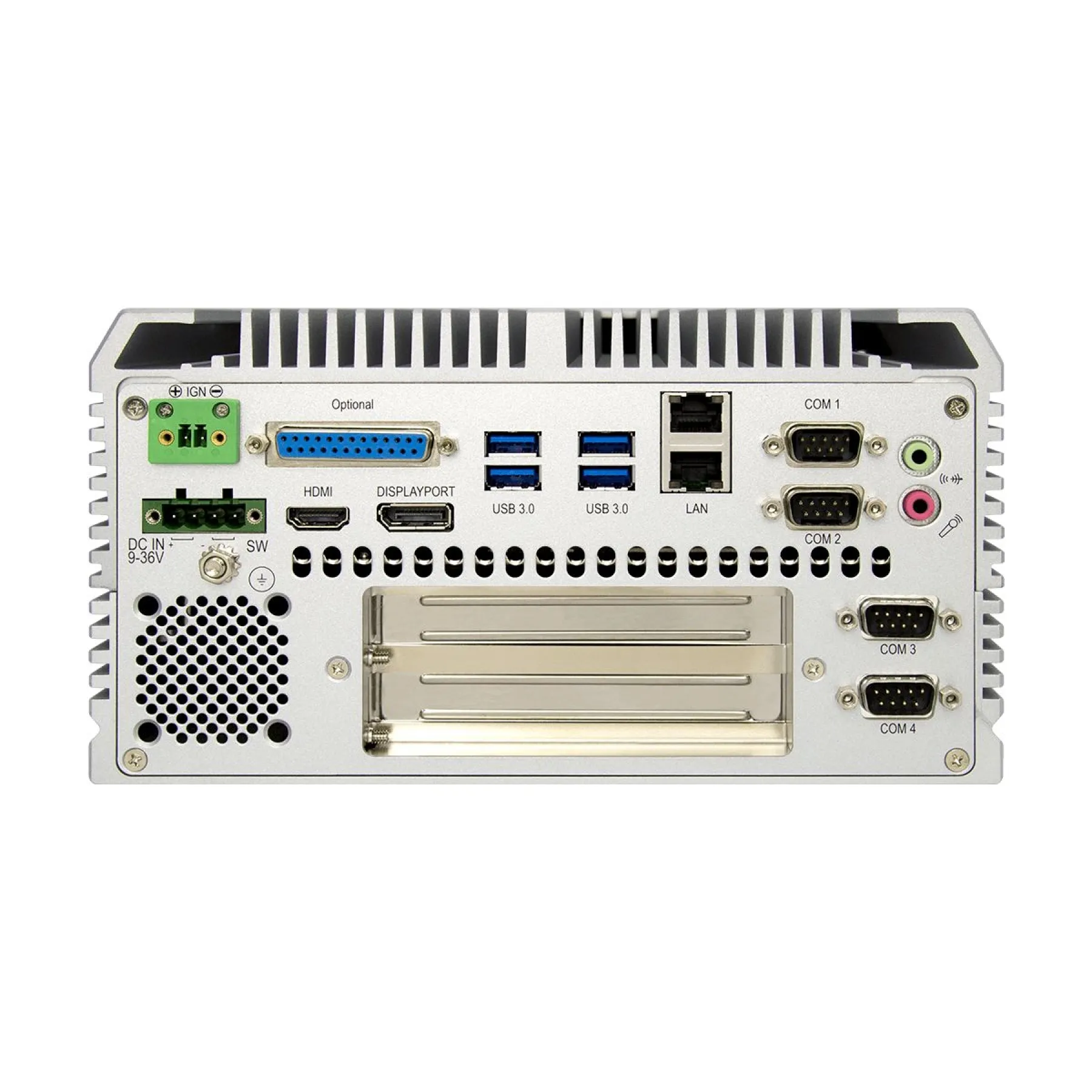

Expansion Bus	1 full-size & 1 half-size Mini-card interconnected for optional WiFi/3G/4G/GPS or I/O Expansion 1 x SIM socket 1 x PCIe x16 slot +1 x PCI / FPC-9001-L2U4 1 x PCIe x16 slot +1 x PCIe x8 slot (via x 4 lanes) / FPC-9002-L2U4
Selectable Port	1 x DB25 connector for DIO (8 in / 8 out) port or LPT port (either one, default is DIO)
Audio	Mic-in / Line-out
Operating Temp.	-20 ~ 55°C (-4 ~ 131°F), ambient w/ air flow, (w/ 35W~65W TDP CPU, fanless)
Storage Temp.	-40 ~ 75°C (-40 ~ 167°F)
Operating Humidity	10 ~ 95% @ 55°C (non-condensing)
Vibration	3 Grms / 5~500Hz / random operation w/ SSD
Shock	Operating 40G (11ms), Non-operating 60G with SSD
System	Windows 10 IoT Enterprise 64-bit (For 7th Gen Intel CPU) Windows 7 / Windows8.1/ Windows 10 IOT (For 6th Gen Intel CPU) Linux (Kernel: 4.4.x)
Type	2 x 2.5” drive bays 1 x CFast socket, can be outside accessible
Certification	CE, FCC Class A
Power Input	DC 9 ~ 36V input (w/ 4-pin DC input terminal block,combining remote power on/off switch)
Ignition Switch	2-pin terminal block: IGN & GND
Power Consumption	MAX. 75W (w/35W TDP CPU, w/o I/O card) MAX. 105W (w/65W TDP CPU, w/o I/O card
Construction	Aluminum Alloy
Mounting	Wall-mount
Weight	6.4kg (14.1Ib) / FPC-9000-L2U4 7kg (15.43Ib) / FPC-9001-L2U4, FPC-9002-L2U4

Processor Type	Intel Xeon, up to 4 Cores, Intel Core, up to 4 Cores
Memory Capacity	Up to 32GB
Cooling Type	Fanless
Serial Ports (COM)	2x RS-232/422/485, 2x RS-232
USB Ports	10x USB 3.0, 10x USB 2.0
Ethernet Ports (LAN)	5x 1G
Wireless	Cellular, Wi-Fi
Video Ports	1x DVI, 1x DB-15, 1x DisplayPort, 1x HDMI, 1x VGA, DB-15
Digital I/O	16 DIO
Audio	Yes
Storage Type	1x Cfast, 2x 2.5"
Input Voltage	9-36 VDC
Mounting Options	Wall-mount
Operating Temperature	Wide OT: -20°C to 55°C
Market Certifications	CE/FCC
OS Support	Linux, Windows 10, Windows 7, Windows 8.1
