FPC-8101/8102/8103

Name: Arbor Technology FPC-8101/8102/8103 10th Gen Intel Core Robust Box PC
SKU: FPC-8101/8102/8103
Availability: InStock

Arbor Technology

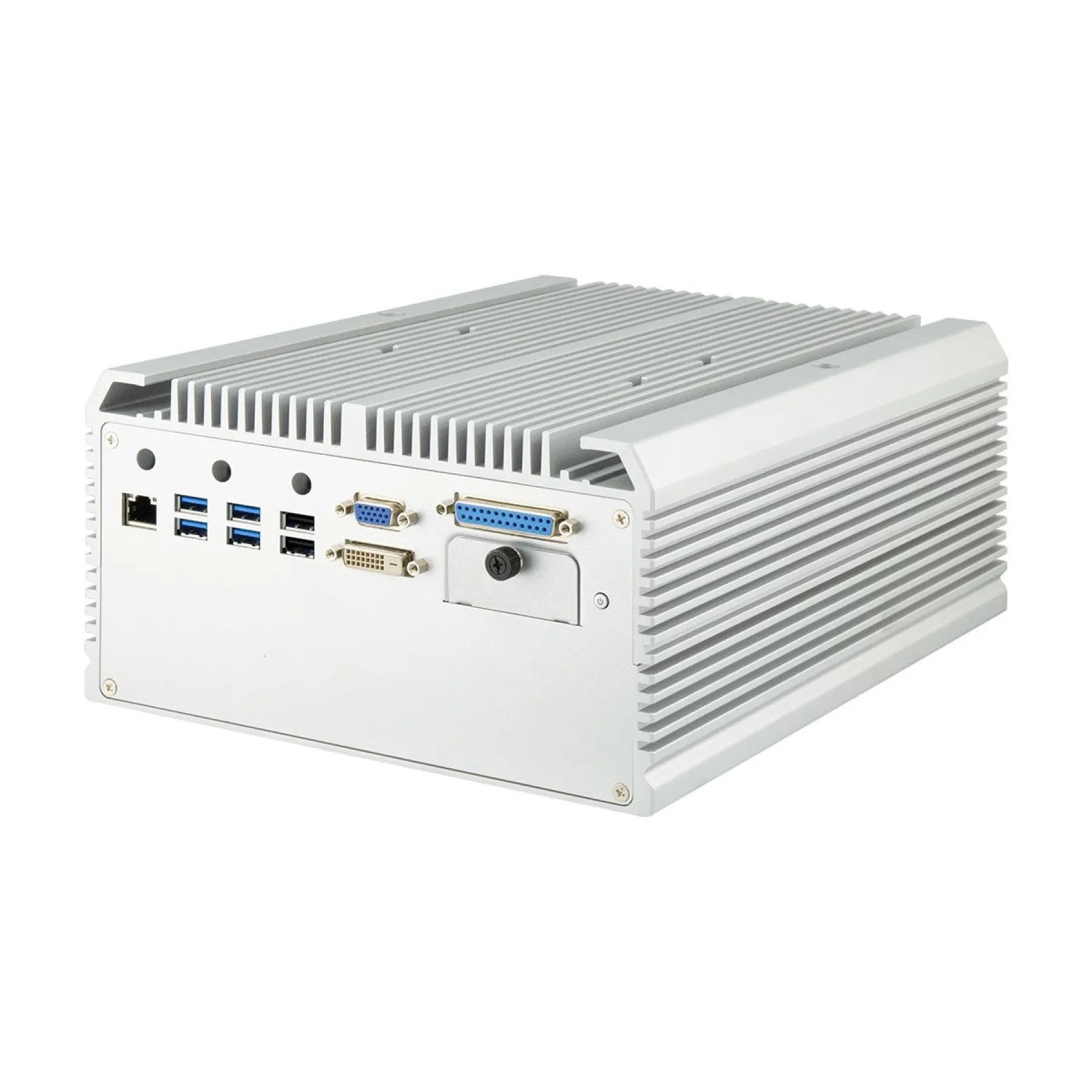

Arbor Technology FPC-8101/8102/8103 10th Gen Intel Core Robust Box PC

FPC-8101/8102/8103

Fanless design
Wide range DC power input (9~36V)
Two independent displays support (HDMI x 1 + VGA x 1 and DVI x 1)
Power on/ off delay control/ configurable ignition power control
TPM 2.0 support
1 x mPCIe for optional Wi-Fi/ 3G/ 4G/ GPS or I/O expansion supported
1 x M.2 E Key (2230) for Wi-Fi/ Bluetooth

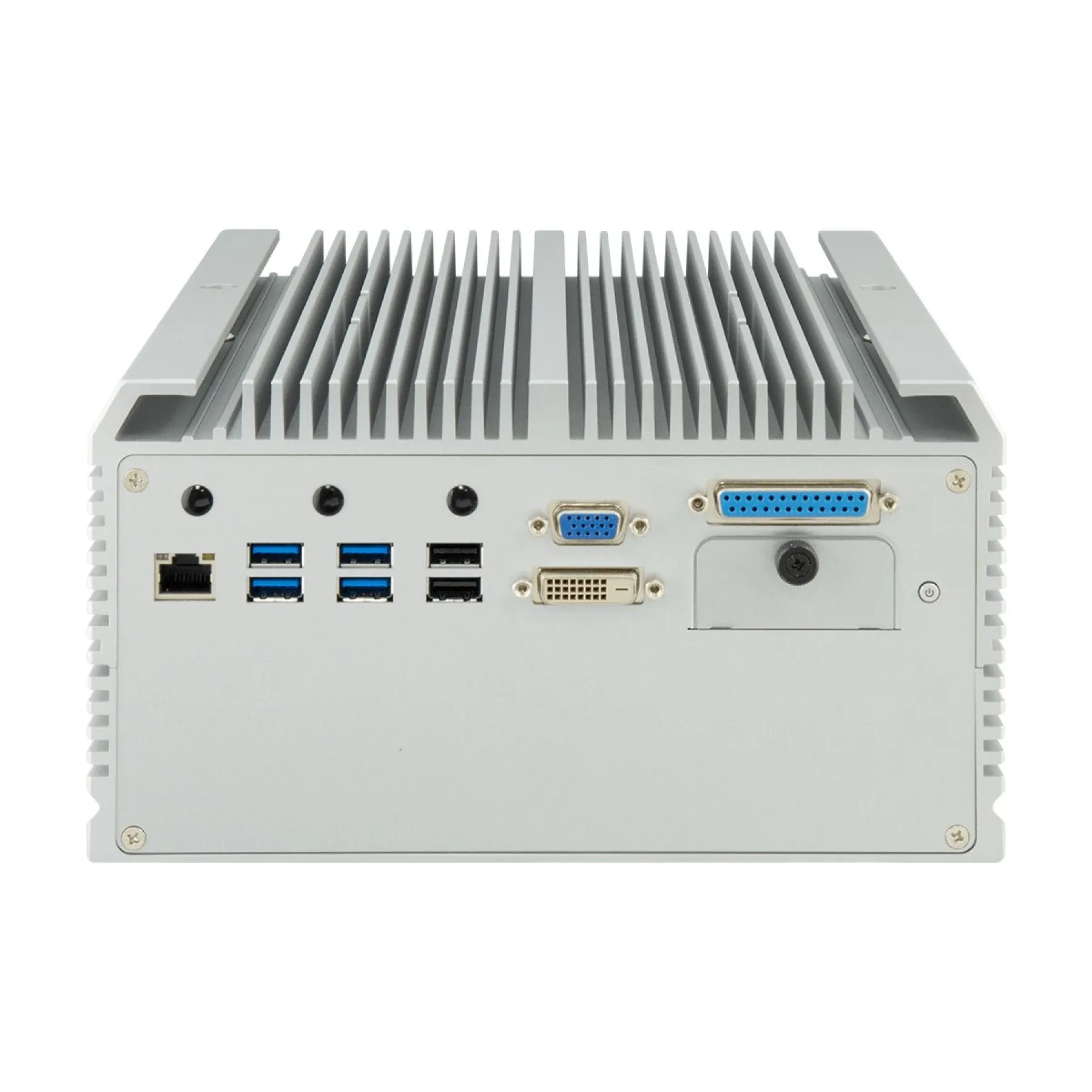

Front-accessible I/O support
Intel Wireless-AC 9260 support
RAID 0,1 support (W480E optional)

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: FPC-8101/8102/8103

Categories: Arbor Technology, Embedded Box PCs, Fanless Industrial PCs, Industrial Computing, Rugged Computers

Range: Arbor Technology

Details

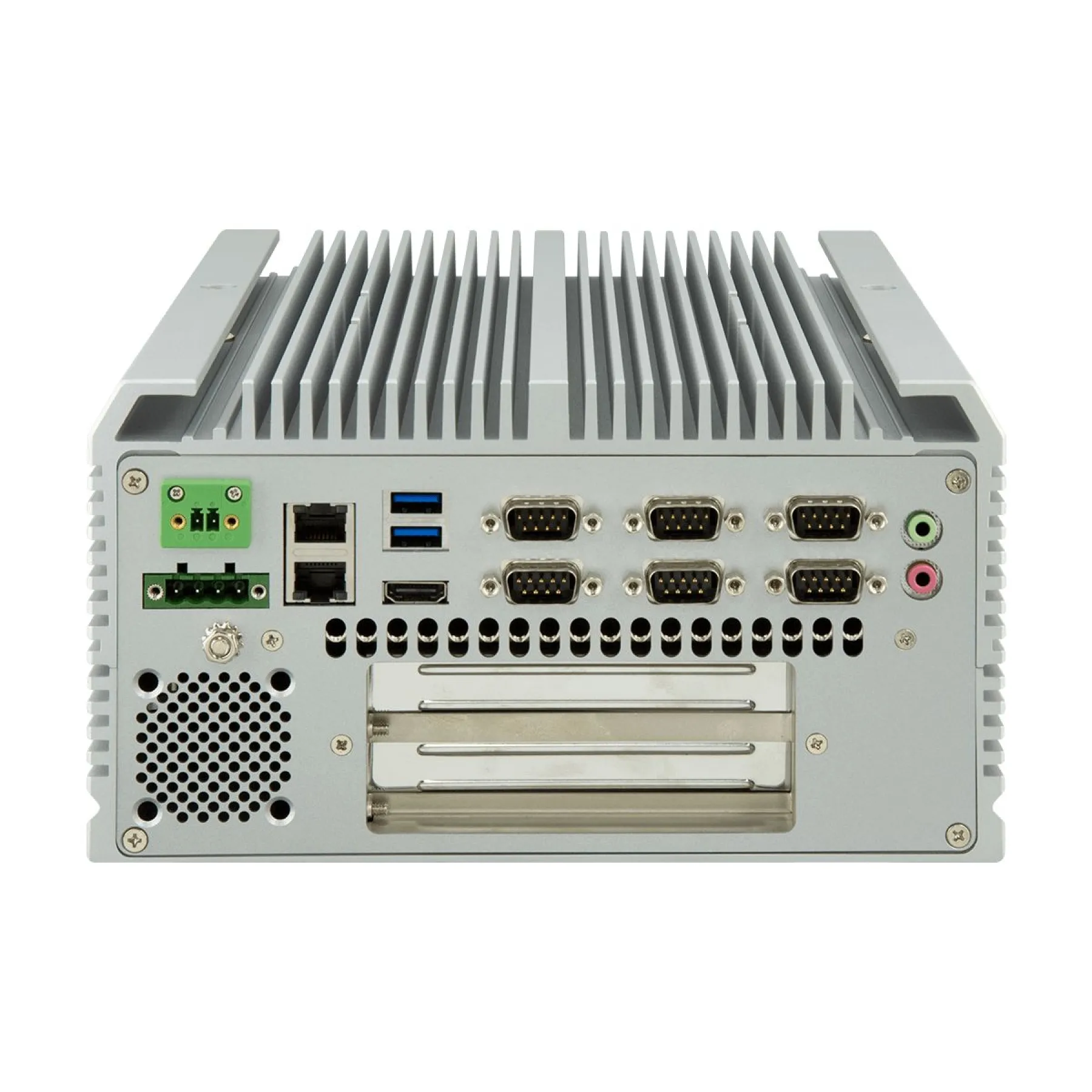

The Arbor Technology FPC-8101/8102/8103 is a Robust Box PC powered by Intel 10th Generation Core i9/i7/i5/i3 processor. The FPC-8101/8102/8103 provides rich I/O including: 6x Serial, 8x USB and 3x Ethernet ports, alongside supporting different expansion options. The FPC-8101 provides 1x PCIe x16 and 1x PCI slot, the FPC-8102 provides 1x PCIe x16 and 1x PCIe x8, whilst the FPC-8103 provides 2x PCI slots.

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

Arbor Technology FPC-8100 Datasheet (PDF)

0.83MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

CPU	Intel 10th generation Core i9/ i7/ i5/ i3 processor in LGA1200 socket
Memory	2 x 260-pin DDR4 SO-DIMM sockets, supporting 2933 MHz SDRAM up to 64GB
Chipset	Intel H420E/ W480E (Optional)
Graphics	Integrated Intel HD Graphics
ATA	2 x Serial ATA ports with 600MB/s HDD transfer rate
LAN Chipset	1 x Intel WGI225LM 2.5GbE LAN 1 x Intel WGI211AT GbE controller 1 x Intel WGI219LM GbE controller (w/o iAMT, H420E) (w/ iAMT, W480E)
Watchdog Timer	1~255 levels reset
Serial Port	2 x RS-232 / 422 / 485 configurable via DB-9 connectors 4 x RS-232 ports via DB-9 connectors
USB Port	6 x USB 3.2 Gen1 / 2.0 ports 2 x USB 2.0 ports Internal USB dongle (Optional)
LAN	3 x RJ-45 ports for GbE
Video Port	1 x HDMI 1 x DB-15 female connector for Analog RGB 1 x DVI-D female connector for digital video output * Support 2 independent displays * Support 3 independent displays (W480E, only)
Expansion Bus	1 full-size Mini-card interconnected with SIM card for optional Wi-Fi / 3G / 4G / GPS or I/O Expansion (PCIe x1 + USB2.0) 1 x M.2 E key (2230) with PCIe x1 + USB2.0, for Wireless 1 x PCIe x16 slot +1 x PCI slot (FPC-8101) 1 x PCIe x16 slot +1 x PCIe x8 slot (via x 1 lane) (FPC-8102) 2 x PCI (FPC-8103)
Selectable Port	1 x DB25 connector for DIO (8 in / 8 out) port or LPT port (either one, default is DIO)
Audio	Mic-in / Line-out
Operating Temp.	-20 ~ 70°C (-4 ~ 158°F), ambient w/ air flow, (w/ 35W TDP CPU, fanless) -20 ~ 55°C (-4 ~ 131°F), ambient w/ air flow, (w/ 65W TDP CPU, fanless)
Storage Temp.	-40 ~ 85°C (-40 ~ 185°F)
Operating Humidity	10 ~ 95% @ 70°C (non-condensing)
Vibration	3 Grms / 5~500Hz / random operation w/ SSD
Shock	Operating 40G (11ms), Non-operating 60G with SSD
System	Windows 10 IOT Enterprise 64-bit Linux (Kernel: 4.9)
Type	2 x 2.5” drive bays 1 x CFast socket, can be outside accessible
Certification	CE, FCC Class A
Power Input	DC 9 ~ 36V input (w/ 4-pin DC input terminal block,combining remote power on/off switch)
Ignition Switch	2-pin terminal block: IGN & GND
Power Consumption	MAX. 65W (w/35W TDP CPU, w/o I/O card) MAX. 95W (w/65W TDP CPU, w/o I/O card)
Construction	Aluminum Alloy
Mounting	Wall-mount
Weight	7kg (15.43Ib)
Dimensions (W x D x H)	225 x 292 x 120 mm (8.86″ x 11.50″ x 4.72″)

Processor Type	Intel Core, up to 10 Cores
Memory Capacity	Up to 64GB
Cooling Type	Fanless
Serial Ports (COM)	2x RS-232/422/485, 4x RS-232
USB Ports	6x USB 3.2, 8x USB 2.0
Ethernet Ports (LAN)	3x 1G
Wireless	Cellular, Wi-Fi
Video Ports	1x HDMI, 1x DVI, 1x DB-15, DB-15
Digital I/O	16 DIO
Audio	Yes
Storage Type	1x Cfast, 2x 2.5"
Expansion Type	1x PCI Express, 1x PCI, 2x PCI
Input Voltage	9-36 VDC
Mounting Options	Wall-mount
Operating Temperature	Wide OT: -20°C to 55°C, Wide OT: -20°C to 70°C
Market Certifications	CE/FCC
OS Support	Linux, Windows 10, Windows 11
