ELIT-1850

Arbor Technology ELIT-1850 5th Gen Intel Core i7/i3 Fanless Signage Player

End of Life

  • Intel Core i7-5650U/i3-5010U Processor
  • Support Triple-display for 1 x DVI-D, 1 x DisplayPort, 1 x HDMI
  • Support one channel 4K (UHD) Display
  • Support 2 x COM, 4 x USB3.0, 2 x USB2.0
  • Support DirectX 11.1
  • One NGFF connector for Wireless
  • RTC Wakeup supported
  • Operating Temperature: -20 ~ 60°C

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

-
+

Details

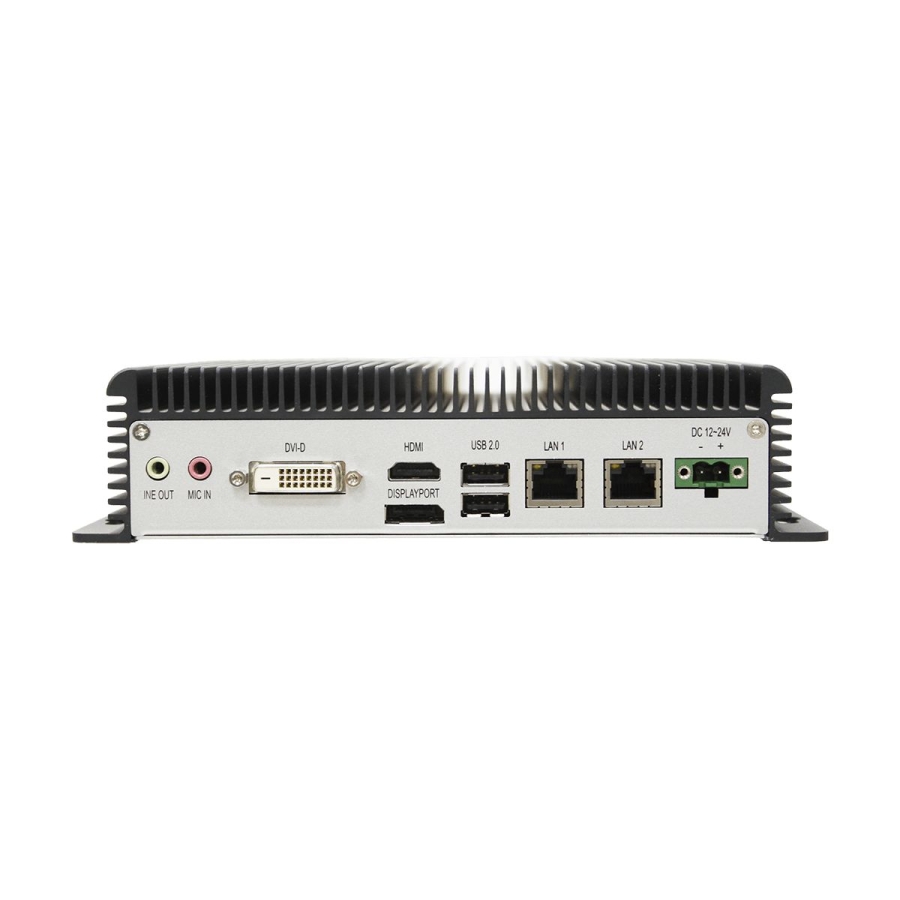

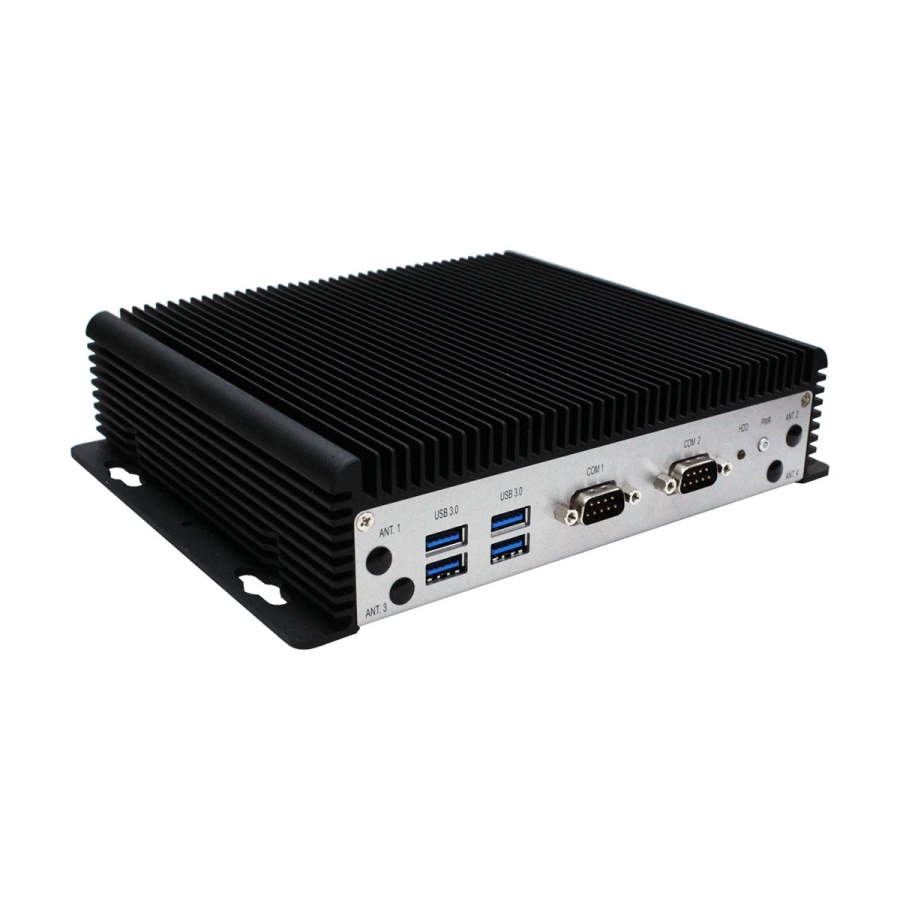

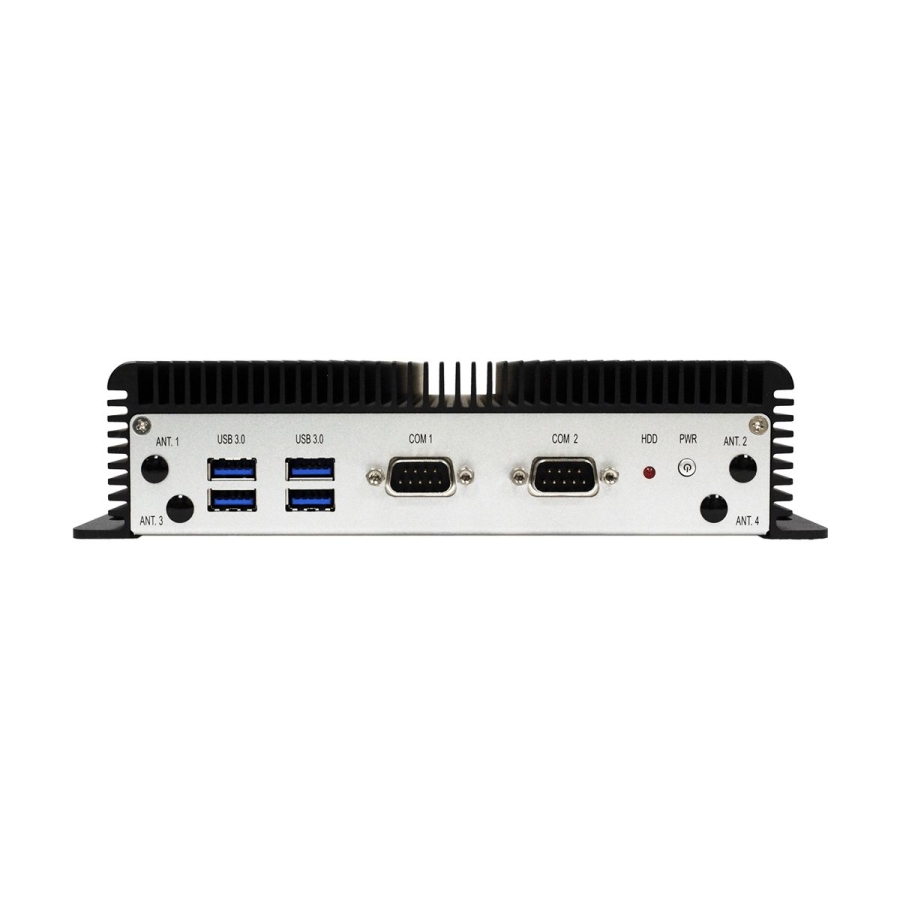

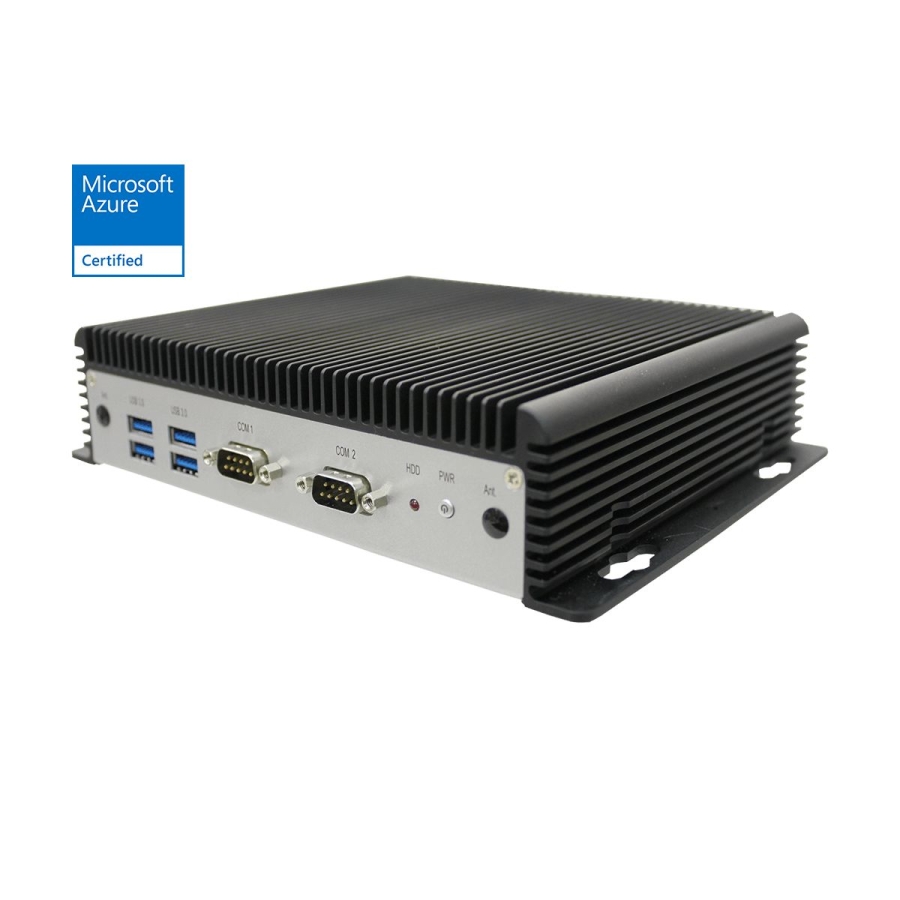

The Arbor Technology ELIT-1850 is a Fanless Digital Signage Player powered by Intel Core i7-6560U/i3-5010U processor. The ELIT-1850 contains 2x COM, 4x USB 3.0 and 2x USB 2.0 ports, alongside supporting triple-display with 1x DVI-D, 1x DisplayPort and 1x HDMI port.

Ordering Info

ELIT-1850-5650U Digital Signage Player with Intel Core i7-5650U, w/o memory and storage
ELIT-1850-5350U (BTO) Digital Signage Player with Intel Core i5-5350U, w/o memory and storage
ELIT-1850-5010U Digital Signage Player with Intel Core i3-5010U, w/o memory and storage

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Specification

CPU Soldered onboard Intel Core i7-5650U, 2.2GHz 4M L2 Cache, up to 3.1GHz, 15W TDP Soldered onboard Intel Core i3-5010U, 2.1GHz 3M L2 Cache, 15W TDP
Memory 1 x 204-pin DDR3L SO-DIMM socket, supporting 1333/1600MHz SDRAM up to 8GB
Chipset 5th Generation Intel Core ULT SoC
Graphics Integrated Intel HD Graphics 6000
ATA 1 x Serial ATA port with 600MB/s HDD transfer rate
LAN Chipset 1 x Intel i218LM GbE PHY (w/ iAMT10.0 supported) 1 x Intel i210AT GbE controller
Watchdog Timer 1~255 levels reset
Serial Port 2 x RS-232/485 ports
USB Port 4 x USB 3.0 ports, 2 x USB 2.0 ports
LAN 2 x RJ-45 ports for GbE
Serial Port 1 x Micro-B RS232 half-duplex
Video Port 1 x DVI-D 1 x DisplayPort, up to 4K (UHD) 1 x HDMI, up to 4K (UHD)
Audio Realtek ALC662 HDA codec, Mic-in/Line-out
Expansion Bus 1 x M.2 (NGFF) E Key 22 x 30 mm (2230)
Operating Temp. -20 ~ 60°C (-4 ~ 140°F), ambient w/ air flow
Storage Temp. -30 ~ 70°C (-22 ~ 158°F)
Operating Humidity 10 ~ 95% @ 60°C (non-condensing)
Vibration 3 Grms/5~500Hz/random operation
Shock Operating 40G (11ms), non-operating 80G with SSD
Power Input DC 12~24V input
Power Consumption Max. 30W (w/o I/O card)
Power Management RTC wakeup timer configurable
Construction Aluminum alloy
Mounting Wall-mount & VESA-mount
Weight 1.6 kg (3.52 lb)
Dimensions (W x H x D) 193 x 50 x 170 mm
Type 1 x 2.5” drive bay for SSD
System Windows 7 / Windows 8.1/ Windows 10 / Linux (Kernel: 3.1X)
Certification CE, FCC Class A
