FR ARES-1980

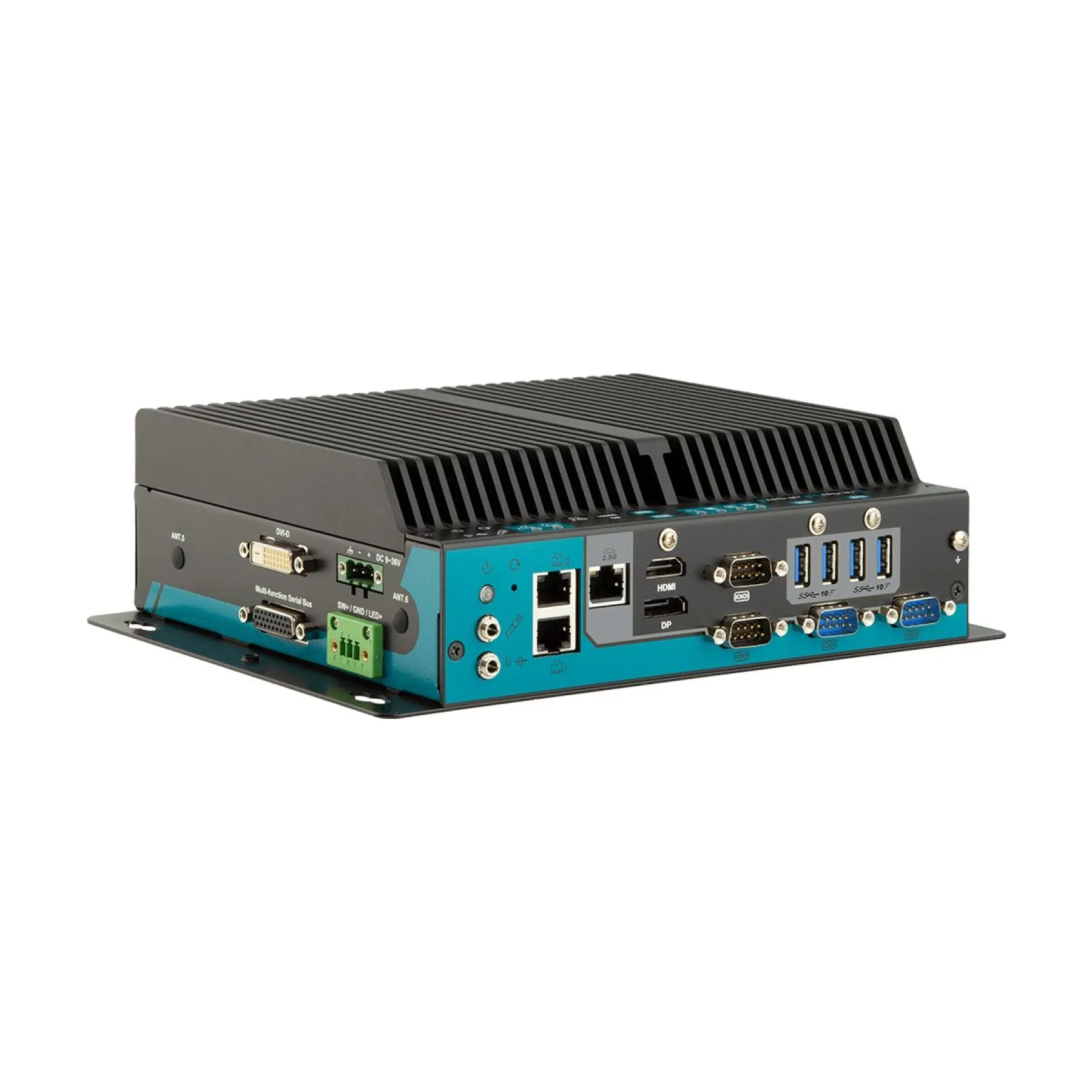

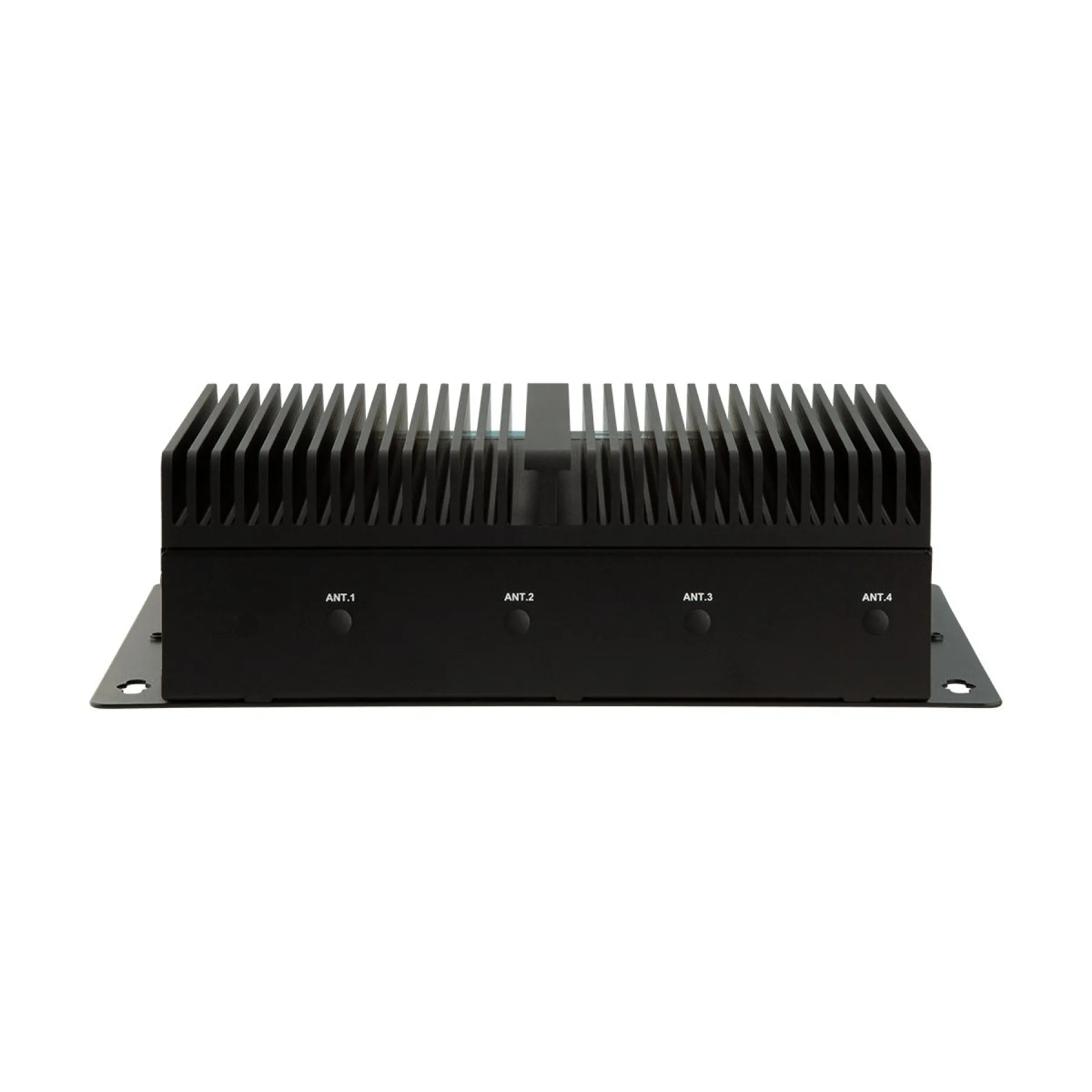

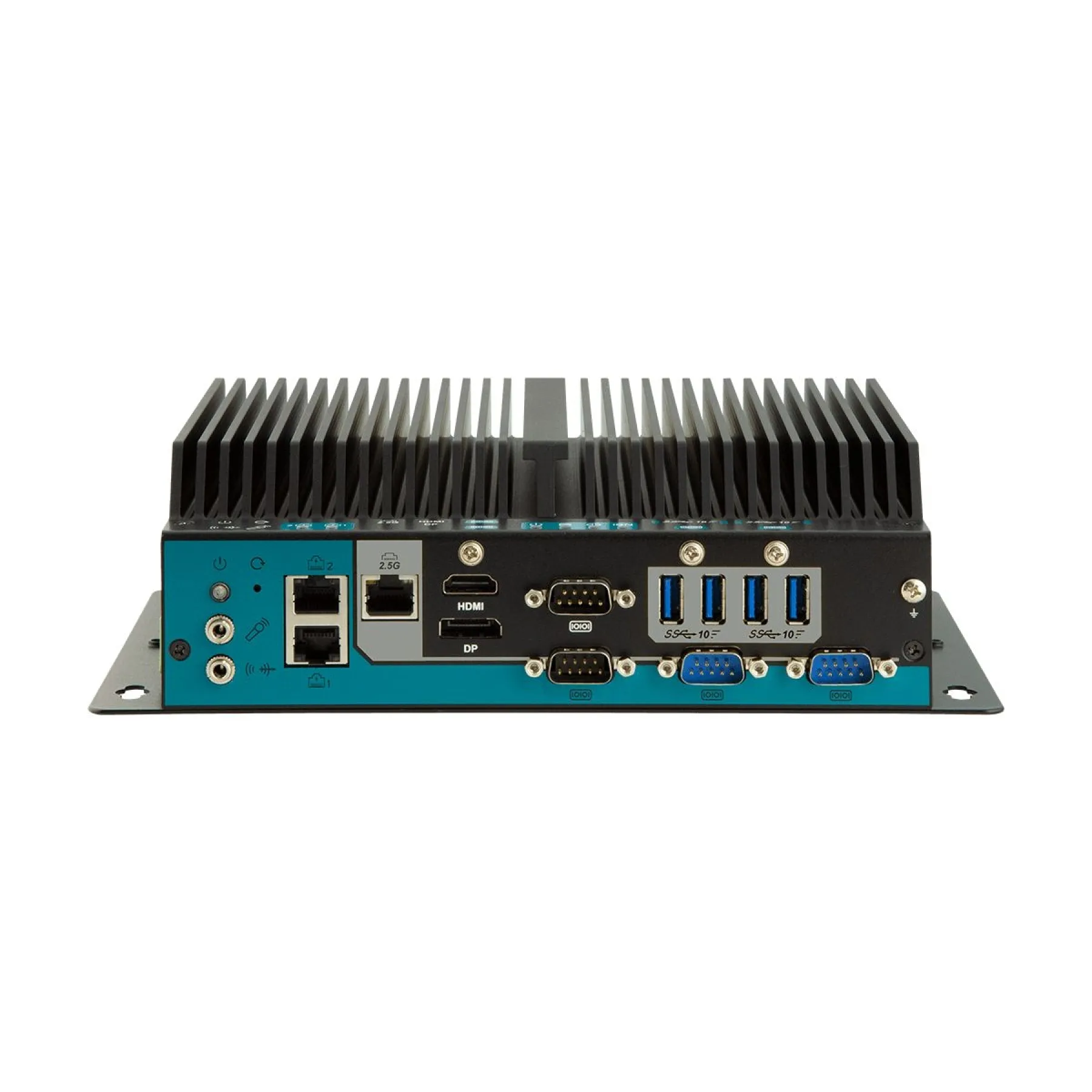

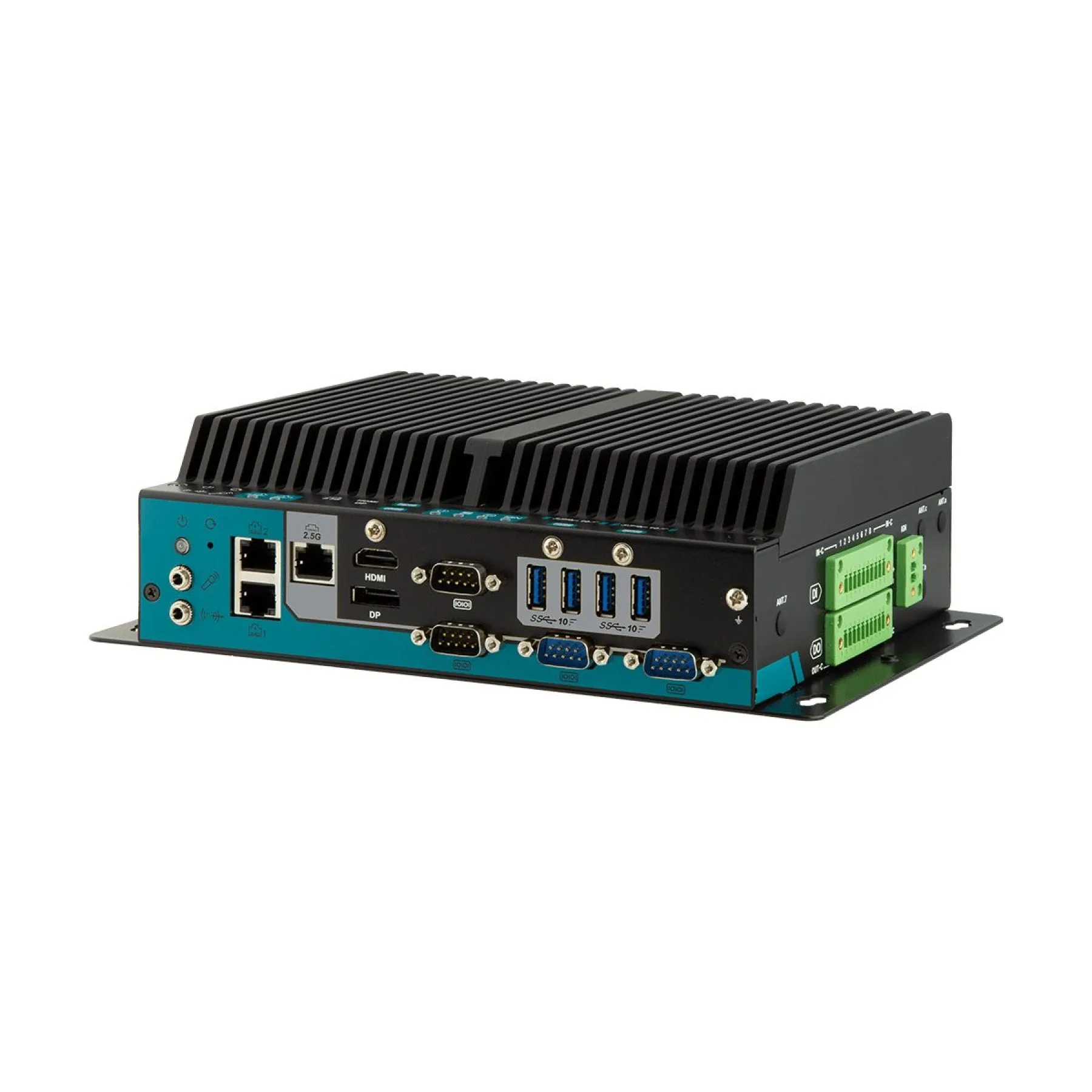

Arbor Technology ARES-1980 11th Gen Intel Core i (Tiger Lake UP3) Fanless PC
ARES-1980
- Onboard Intel Core i Processor (Tiger Lake UP3)
- Support 2 x 260-pin DDR4 SO-DIMM sockets
- Support 5G (Sub-6G) module, M.2 NVMe SSD Gen3x4, USB 3.1 Gen2, and 2.5 GbE LAN
- Rich I/O: 4 x COM/ 3 x LAN/ 4 x USB3.1/ Remote PWR
- Support Triple-display (DVI-D/HDMI/DP)
- Wide Power Input: 9~36 VDC
- Power on/off delay control / configurable ignition power control
- Support DirectX 12
ARES-1980
Arbor Technology, Din Rail PCs, Embedded Box PCs, Fanless Embedded PCs, Fanless Industrial PCs, Industrial Computing, POE Computers, Rugged Computers
Details
The Arbor Technology ARES-1980 is a fanless embedded PC powered by onboard 11th Gen Intel Core i Processor (Tiger Lake UP3). This rugged computer contains rich I/O including 4x COM, 3x LAN and 4x USB alongside supporting triple display (DVI-D/HDMI/DP).Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| CPU | Soldered onboard Intel i7/ i5/ i3 Processor (Default: i5 CPU Tiger Lake-U) |
| Memory | 2 x 260-pin DDR4 SO-DIMM socket, supporting 3200MHz SDRAM up to 64GB |
| Chipset | SoC |
| Graphics | Intel Iris Xe Graphics |
| LAN Chipset | 2 x Intel i211AT PCIe controller 1 x Intel 225LM PCIe controller (iAMT support w/ i5/i7 skus) |
| Watchdog Timer | 1~255 levels reset |
| Operating Temp. | -20 ~ 60 °C (-4 ~ 140°F), ambient w/ air flow |
| Storage Temp. | -40 ~ 70°C (-40 ~ 158°F) |
| Operating Humidity | 10 ~ 95% @ 50°C (non-condensing) |
| Vibration | 5~500Hz 3 Grms X,Y,Z axis w/ SSD, according to IEC 60068-2-64 |
| Shock & Crash | 40G peak acceleration (11 m sec. duration), operation w/ SSD 80G peak acceleration (11 m sec. duration), nonoperation w/ SSD According to IEC 60068-2-27 |
| Storage Type | 1 x M.2 M-Key 2242/2280 (PCIe Gen III x4 + SATA III) 1 x 2.5” HDD/SSD tray (SATA III + SATA PWR connector) |
| Certification | CE, FCC Class A |
| System | Windows 10 IoT Linux: Ubuntu 20.04 |
| Serial Port | 2 x RS232 (DB-9 male connectors) 2 x RS232(Default) / 422/ 485 (RI/ 5V/ 12V) (DB-9 male connector/ Switch via BIOS) |
| USB Port | 4 x USB 3.2 Gen2 (2 w/ independent full speed) 1 x USB 2.0 onboard for encryption dongle (Type A) |
| LAN Port | 2 x RJ-45 ports for GbE LAN (PoE complies with IEEE802.3af) 1 x RJ-45 ports for 2.5 GbE LAN (iAMT support w/ i5/i7 skus) |
| Video Port | 1 x HDMI 2.0b connector, supporting 4K/2K resolution 1 x DisplayPort 1.4 connector, supporting 4K/2K resolution 1 x DVI-D connector, supporting Full HD resolution |
| Expansion Bus | 1 x full mPCIe slot (PCIe x1+ USB2.0, Full size) w/ 1 x SIM card slot 1 x M.2 B-Key 2242/3042/3052 (PCIe x2 + USB3.0) w/ 2 x SIM card slots |
| Digital I/O | 8 x DI, 8 x DO w/ 1.5KV isolation |
| Multi Serial Bus | I22C/SPI/UART/GPIO (w/ 3.3 or 5V) via DB-15 |
| Others | 10 x antenna holes are reserved |
| Power Input | DC 9 ~ 36V (3-pin terminal block: V+, V-, GND) |
| Remote Control | 1 x 3-pin terminal block for remote control and PWR LED output |
| Power Ignition | IGN +/- |
| Construction | Sheet Metal + Aluminium Alloy |
| Mounting | Wall-mount (standard) DIN-rail or VESA mount (optional w/ CTOS bracket) |
| Weight | 3.7kg |
| Dimensions (W x D x H) | 210 x 180 x 70mm |
| Memory Capacity | Up to 64GB |
|---|---|
| Cooling Type | Fanless |
| Serial Ports (COM) | 2x RS-232/422/485, 2x RS-232 |
| USB Ports | 1x USB 2.0, 4x USB 3.2 |
| Ethernet Ports (LAN) | 1x 2.5G, 2x 1G |
| Power Over Ethernet (PoE) | PoE Ports |
| Wireless | Cellular, Wi-Fi |
| Video Ports | 1x HDMI, 1x DisplayPort, 1x DVI |
| Digital I/O | 16 DIO |
| Storage Type | 1x 2.5", 1x M.2 PCIe, 1x M.2 SATA |
| Expansion Type | 1x Mini PCI Express, 1x M.2 |
| Input Voltage | 9-36 VDC |
| Mounting Options | DIN-mount, VESA-mount, Wall-mount |
| Market Certifications | CE/FCC |
| OS Support | Linux, Windows 10, Windows 11 |
