ARES-1973H

Name: Arbor Technology ARES-1973H Intel Core i7/i5/i3 &amp; Celeron Machine Vision System
SKU: ARES-1973H

Arbor Technology

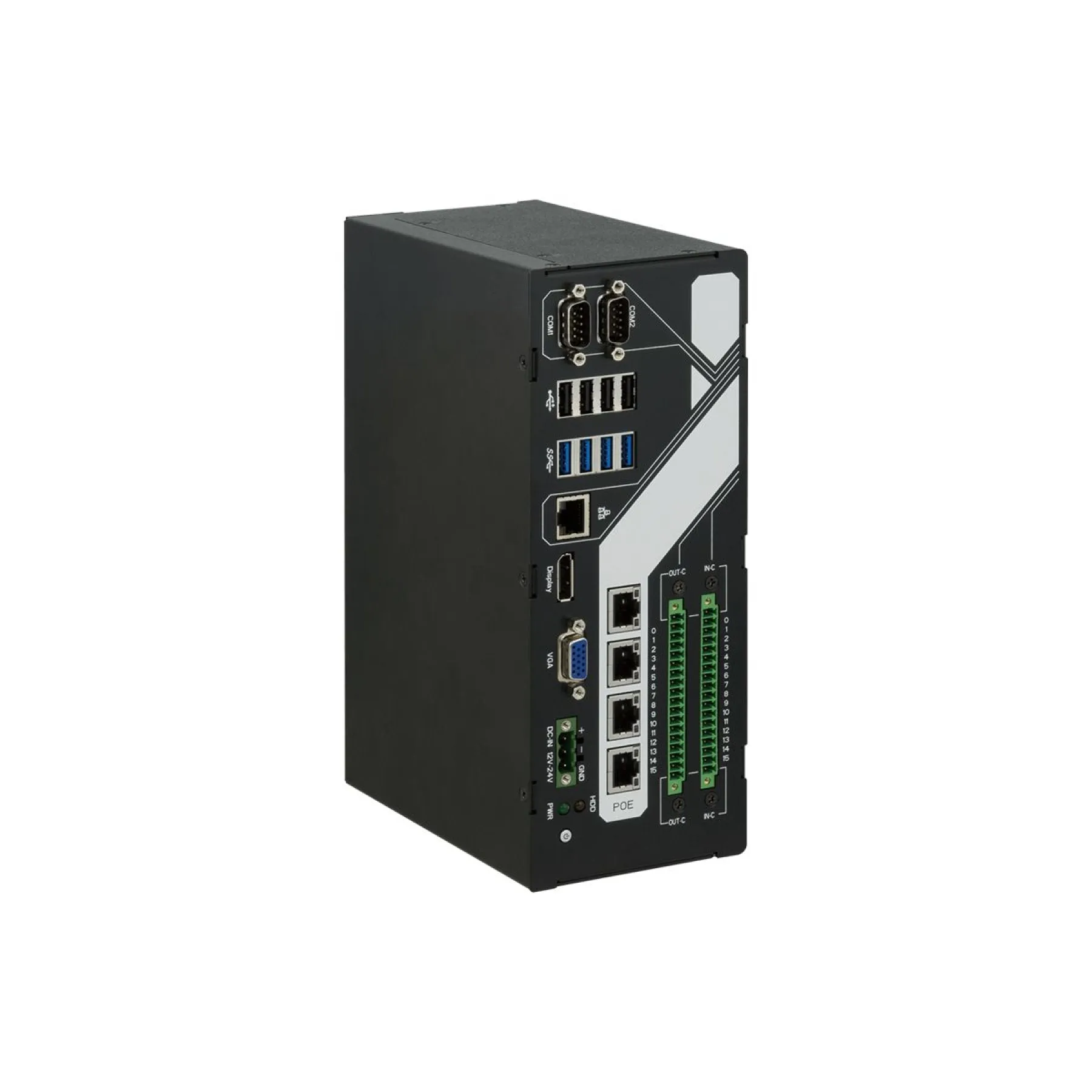

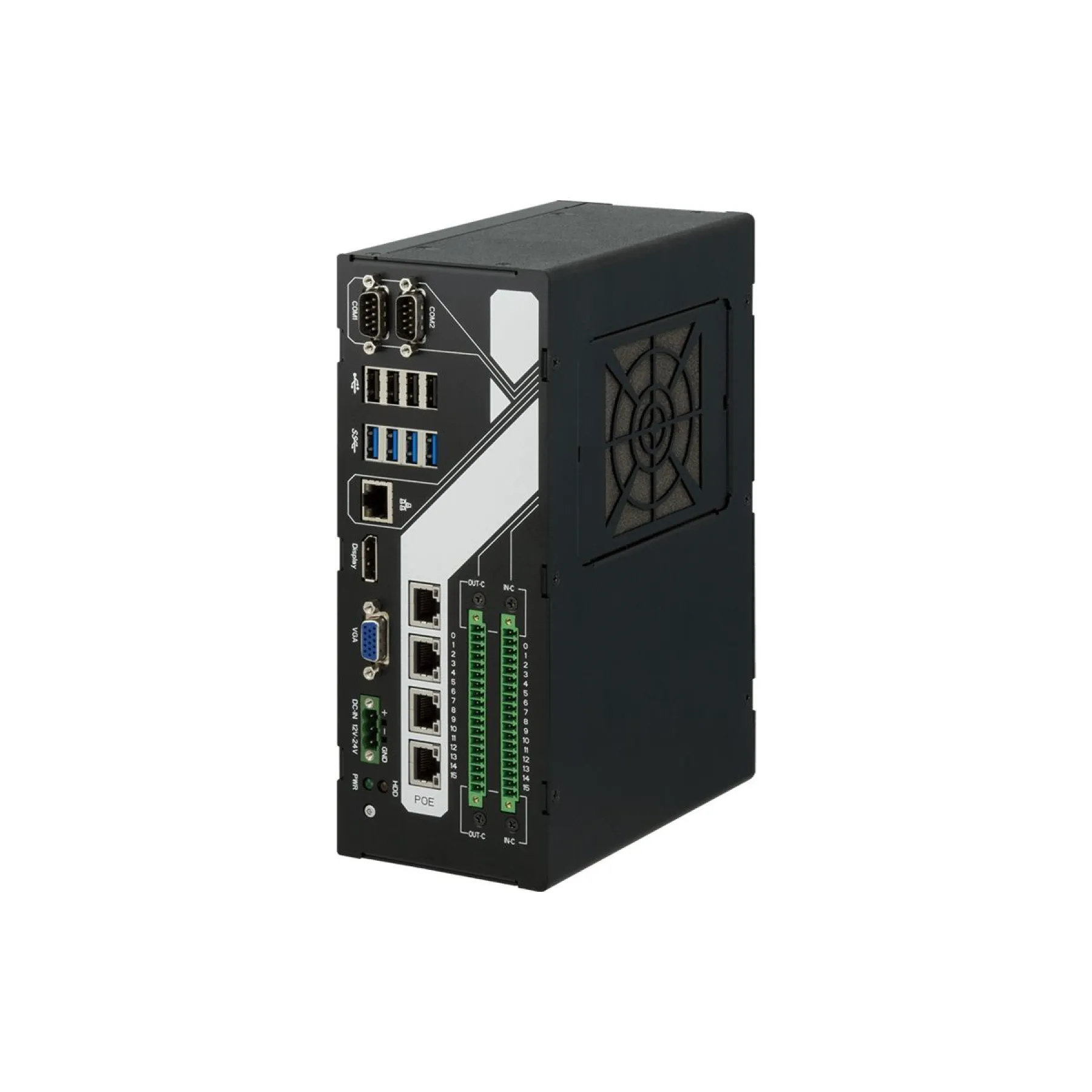

Arbor Technology ARES-1973H Intel Core i7/i5/i3 & Celeron Machine Vision System

ARES-1973H

Socket LGA1151 for Intel Core i7/i5/i3 / Celeron Processor
4-CH GbE PoE (Power over Ethernet), IEEE 802.3af compliant designed for GigE camera
16 x DI/DO with 1.5KV isolation protection
Supports dual-display for 1 x VGA and 1 x DisplayPort
Internal USB 2.0 Type-A connector

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: ARES-1973H

Categories: Arbor Technology, Certified Computers, Din Rail PCs, Embedded Box PCs, Machine Vision Systems, POE Computers

Range: Arbor Technology

Details

The Arbor Technology ARES-1973H is a Machine Vision Controller powered by 6th/7th generation Intel Core i7/i5/i3 and Celeron processors. The ARES-1973H contains rich I/O including: 2x COM, 9x USB and 5x LAN ports.

Downloads

Arbor Technology ARES-1973H Datasheet (PDF)

1.48MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

CPU	Socket LGA1151 for 6th / 7th Intel® Core i7 / i5 / i3 / Celeron®, Max.65W TDP
Memory	2 x 260-pin DDR4 SO-DIMM socket, supporting 2133MHz SDRAM up to 32GB
Chipset	Intel® H110
Graphics	Intel® Gen. 9 Graphics DX 11/12, OGL4.3/4.4
LAN Chipset	1x Intel® i219LM PCIe controller w/ iAMT 11.0 (except Core i3 and Celeron series) 4x Intel® i211AT PCIe controller for PoE, (Co-Layout i210-IT)
Watchdog Timer	1~255 levels reset
Operating Temp.	-20 ~ 50 °C (-4 ~ 122°F), ambient w/ air flow
Storage Temp.	-30 ~ 80°C (-22 ~ 176°F)
Operating Humidity	10 ~ 95% @ 55°C (non-condensing)
Vibration	5~500Hz 3 Grms X,Y,Z axis w/ SSD, according to IEC 68-2-64
Shock & Crash	10G peak acceleration (11 m sec. duration), operation 30G peak acceleration (11 m sec. duration), nonoperation According to IEC 68-2-27
Storage Type	1 x 2.5” internal drive bay for HDD/SDD 1 x M.2 M-key for SSD, 2242/2280
System	Windows 10 IoT (For 7th Gen Intel® Processor) Windows 7/ Window8.1/ Window 10 IoT (For 6th Gen Intel® Processor) Linux: Ubuntu (Kernel: 3.1X)
Serial Port	2 x RS232/422/485 DB-9 connectors
USB Port	4 x USB 3.0/2.0 Type A connectors 4 x USB 2.0 Type A connectors 1 x Vertical USB 2.0 (type A) internal
LAN Port	4 x RJ-45 ports for PoE, IEEE802.3af 1 x RJ-45 ports for Giga Lan
Video Port	1 x DisplayPort 1.2, up to 4K (UHD) 1 x VGA
Expansion Bus	1 x M.2 M-key for SSD, 2242/2280 (PCIe x4+SATA3.0)
Digital I/O	16 x DI, 16 x DO (1.5KV isolation protection / DO supports 24V 200mA)
Storage	1 x SATA 3.0 Port and 1 x SATA Power connector
Certification	CE, FCC Class A
Power Input	DC 12 ~ 24V
Power Consumption	Max. 150W (w/o I/O card)
Construction	Metal

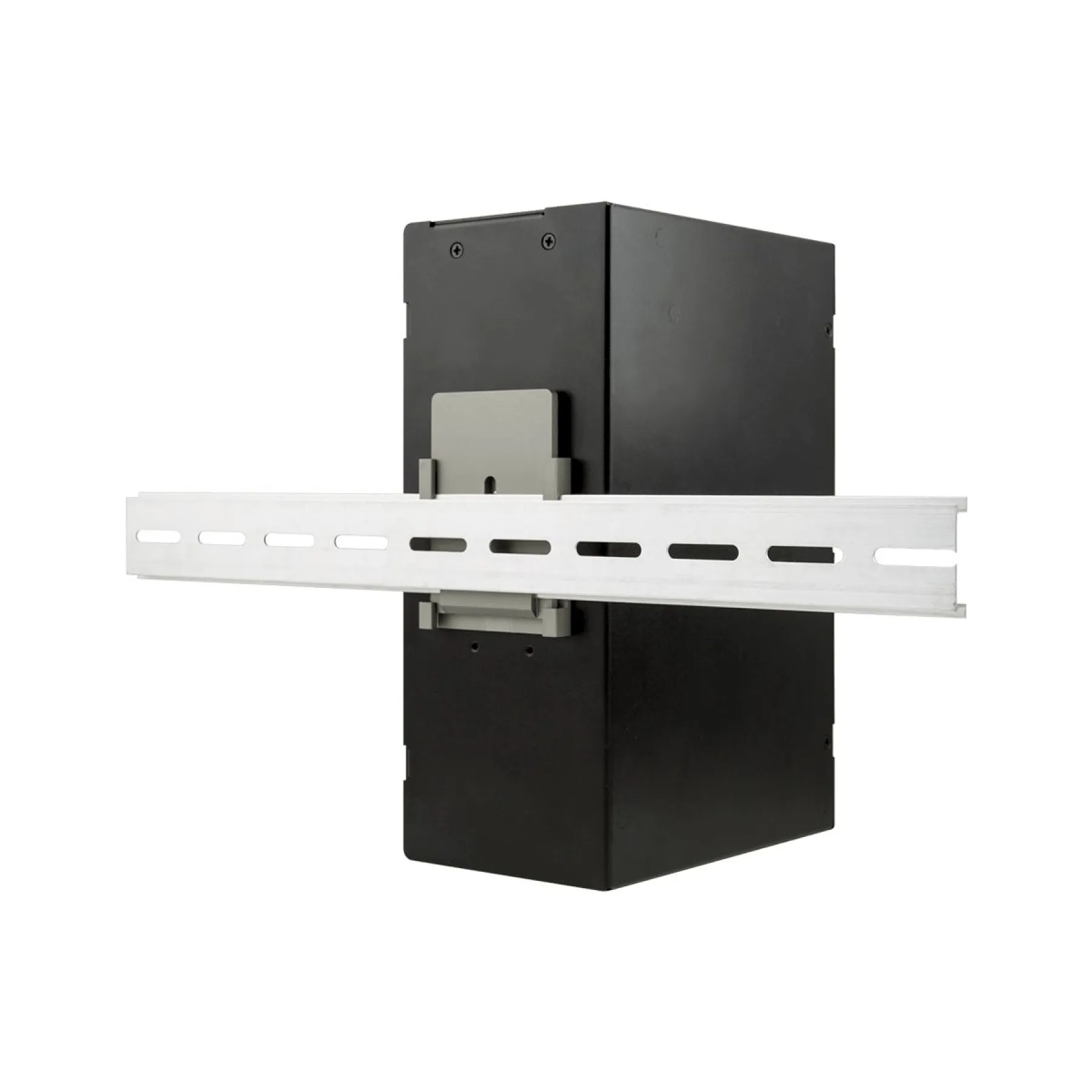

Mounting	Wall-mount/ DIN-rail
Weight	2.6Kg
Dimensions (W x D x H)	230 x 155 x 90 mm (9.06” x 6.10” x 3.54”)

Processor Type	Intel Core, up to 4 Cores
Memory Capacity	Up to 32GB
Serial Ports (COM)	2x RS-232/422/485
USB Ports	4x USB 3.0, 9x USB 2.0
Ethernet Ports (LAN)	5x 1G
Power Over Ethernet (PoE)	PoE Ports
Video Ports	1x DisplayPort, 1x VGA
Digital I/O	32 DIO
Storage Type	1x M.2 SATA, 1x M.2 PCIe, 2x SATA
Expansion Type	1x M.2
Input Voltage	12-24 VDC
Mounting Options	DIN-mount, Wall-mount
Operating Temperature	Wide OT: -20°C to 50°C
Market Certifications	CE/FCC
OS Support	Linux, Windows 10, Windows 11, Windows 7
