PhanTAM-916CP

Name: Aplex Technology PhanTAM-916CP 15.6" 11th Gen Intel Core i3/i5 IP66/IP69K Stainless Steel Panel PC
SKU: PhanTAM-916CP

Aplex Technology

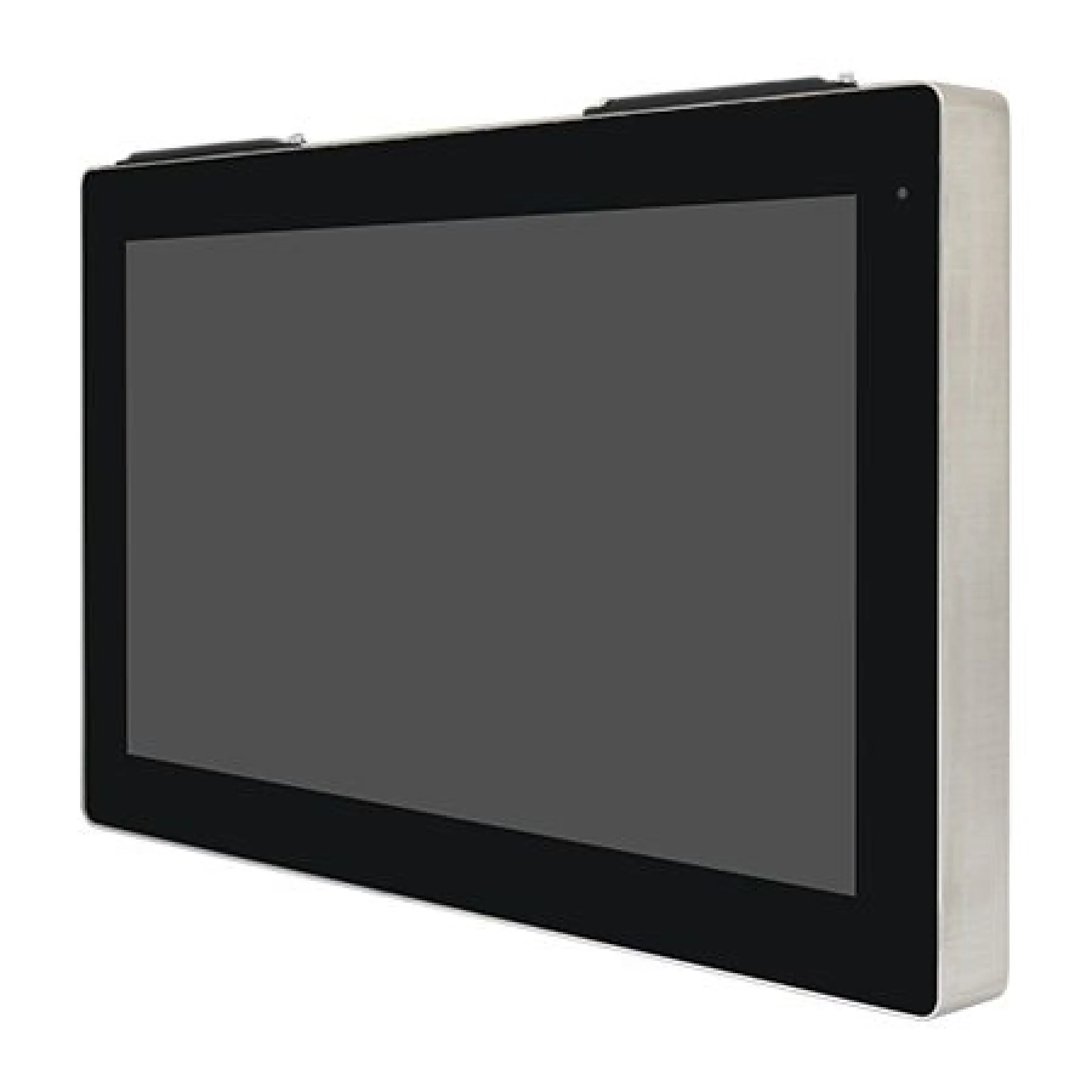

Aplex Technology PhanTAM-916CP 15.6″ 11th Gen Intel Core i3/i5 IP66/IP69K Stainless Steel Panel PC

PhanTAM-916CP

15.6” New Generation Stainless Steel Panel PC
Intel Core i5-1145G7E (Quad Core, 8 MB cache, 1.50 GHz) Intel Core i3-1115G4E (Dual Core, 6 MB cache, 2.20 GHz)

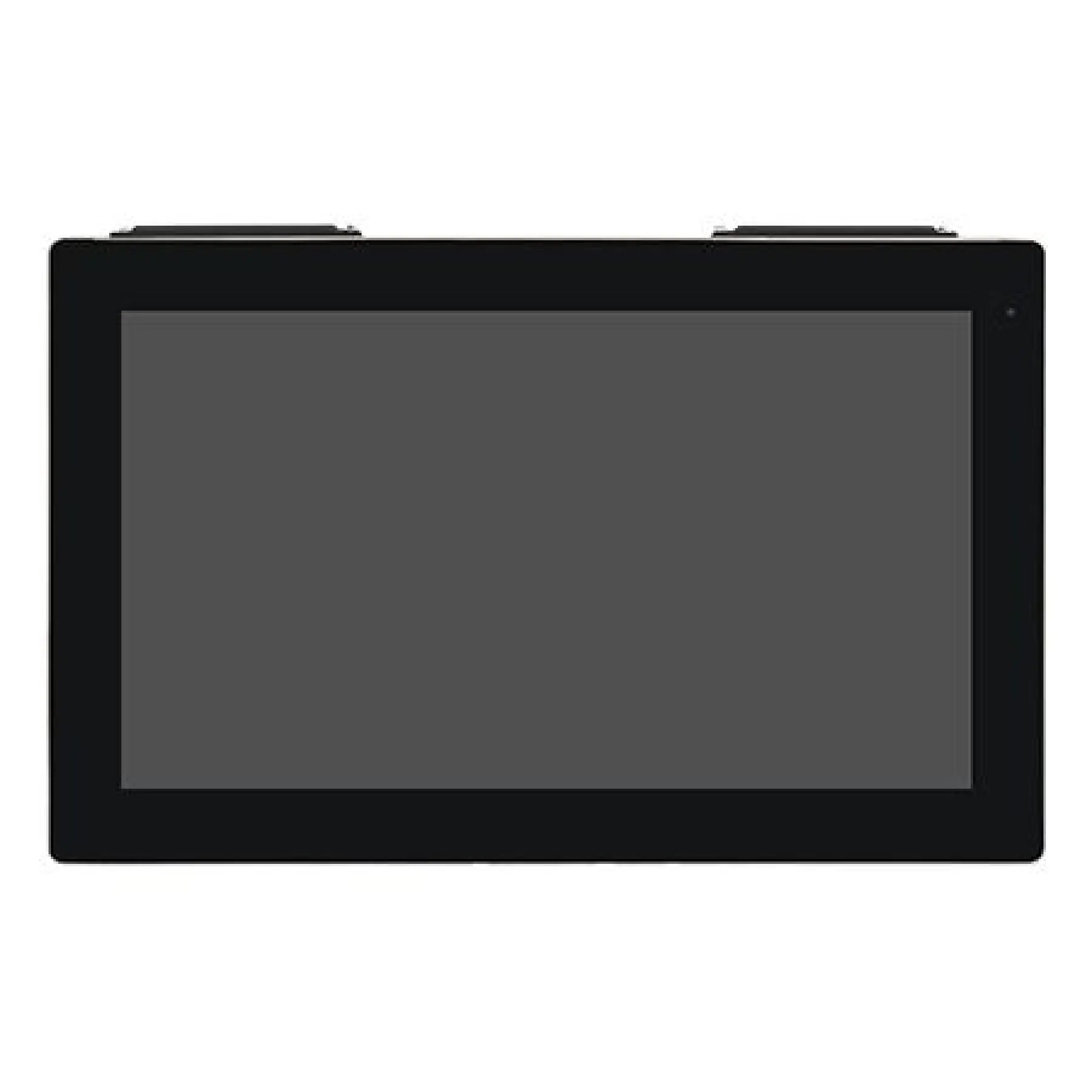

True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure (Grade 316 for Option)
IP66/IP69K Rated with M12 Connectors
Projected Capacitive Touchscreen
Touch on/off Button on the Side Edge for Hygienic Cleaning
VESA Mount 100 x 100, Swing ARM (optional)

Product Code: PhanTAM-916CP

Categories: Aplex Technology, Aplex Technology Panel PCs & HMI, Industrial Touchscreen Computers, IP66 Panel PCs, IP69K Panel PCs, Stainless Steel Panel PCs

Range: Aplex Technology

Details

The Aplex Technology PhanTAM-916CP is a 15.6" Intel Core i5-1145G7E (Quad Core, 8 MB cache, 1.50 GHz)Core i3-1115G4E (Dual Core, 6 MB cache, 2.20 GHz) Onboard Processor . This Panel PC has a True Flat Front Bezel and Grade 304 Stainless Steel Enclosure (Grade 316 is Optional) with Projected Capacitive Touch.

Downloads

Aplex PhanTAM-916 Series Datasheet (PDF)

0.5MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

CPU	Intel Core i5-1145G7E (Quad Core, 8 MB cache, 1.50 GHz) Intel Core i3-1115G4E (Dual Core, 6 MB cache, 2.20 GHz)
System Chipset	SoC
System Memory	2 x 260-pin SO-DIMM up to 64GB DDR4 3200MHz
Power Consumption	PhanTAM-916CP: 32W

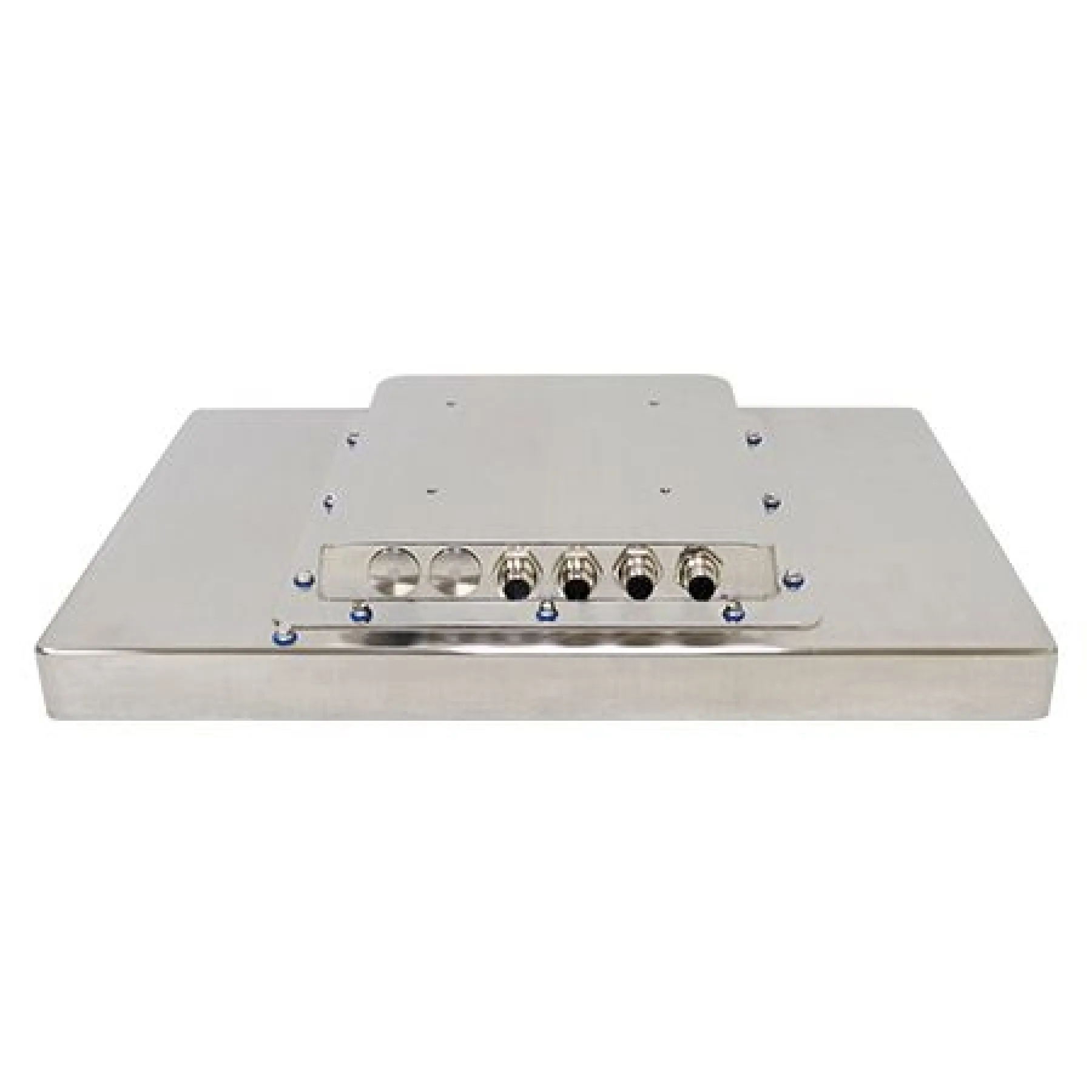

USB	1 x M12 8-pin for 2 x USB 2.0 with waterproof cover
Serial / Parallel	1 x M12 8-pin COM1, RS-232/422/485, default RS-232, with waterproof cover
LAN	1 x M12 8-pin for LAN with waterproof cover
Power	1 x M12 3-pin for DC power with waterproof cover 1 x Power switch on the rear
Options	2 x optional blank M12 connector with waterproof cover for selecting two from the following options: 2 x USB 2.0 1 x USB 3.2 Gen.1 1 x HDMI 1 x LAN 1 x COM 1 x CAN
Storage Space	1 x M-Key 2280 (PCIe x4) for SSD
Expansion slot	1 x Full size mPCIe/mSATA (mPCIe as default, select by BIOS) 1 x NANO-SIM 1 x M.2 E-key 2230 (PCIe+USB) for optional WIFI/BT module
RFID module	RFID module design on the front side (for option)
Display Type	15.6″ TFT-LCD
Max. resolution	1366 x 768
Max. colour	16.7M
Luminance(cd/m²)	400
Viewangle(H°/V°)	170/160
Contrast	500:1
Backlight lifetime(hrs)	50,000
Interface	USB
Light Transmission (%)	Projected Capacitive : 90%
Power input	DC 9~36V
Construction	304 Stainless steel chassis(default), 316 Stainless steel chassis(optional)
IP rating	IP66 / IP69K
Mounting	VESA mount 75 x 75, Yoke mount for optional
Dimension(mm)	6404.4 x 225.4 x 64.5 mm
Net weight(Kgs)	5.1 Kg
Operating temperature(°C)	0~50°C
Storage temperature(°C)	-30~70°C
Storage humidity	10 to 90% @ 40°C, non- condensing
Certification	CE / FCC CLASS A
Operating System Support	Windows 10 IoT Enterprise 64-bit

Touch Technology	Projected Capacitive
Ingress Protection	IP66, IP69K
Stainless Steel	Yes
Brightness	400nit, Standard
Resolution	1366x768, Special/Other
GPU	Integrated GPU
Memory Capacity	Up to 64GB
Serial Ports (COM)	1 Port, 2 Ports, 2 Ports, RS-232/422/485
USB Ports	1 Port, 2 Ports, 2 Ports, 4 Ports, 5 Ports, USB 2.0, USB 3.2
Ethernet Ports (LAN)	1x 1G, 2 Ports, 2 Ports
Wireless	Cellular, Wi-Fi
CAN Bus	Yes
Video Ports	1x HDMI
Storage Type	1, M.2 PCIe
Expansion Type	1, 1x M.2, 1, 2, Any Expansion Type, M.2, Mini PCI Express, mSATA
Input Voltage	9-36 VDC
Mounting Options	VESA-mount
Operating Temperature	-20°C to 60°C, 0°C to 50°C, Standard, Wide
Certifications	CE/FCC
OS Support	Windows 10, Windows 10 IoT, Windows 10 Pro
