AVS-600

Name: Aplex Technology AVS-600 9th Gen Intel Machine Vision System 1 x HDMI, 2 x LAN
SKU: AVS-600

Aplex Technology

Aplex Technology AVS-600 9th Gen Intel Machine Vision System 1 x HDMI, 2 x LAN

AVS-600

4U Rackmount Chassis for ATX/Micro ATX Motherboard
Up to 1 x 3.5″/2.5″ SATA Drive bay and 3 x Optical Drive bays
Front-accessible System Fan and USB Interfaces
Supports 7 Expansion slots
3 Independent Displays: VGA & DP++ & DP++
DP++ Resolution up to 4096 x 2160 @ 60Hz

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: AVS-600

Categories: Aplex Technology, Aplex Technology Embedded Computers, Certified Computers, Embedded Box PCs, Machine Vision Systems

Range: Aplex Technology

Details

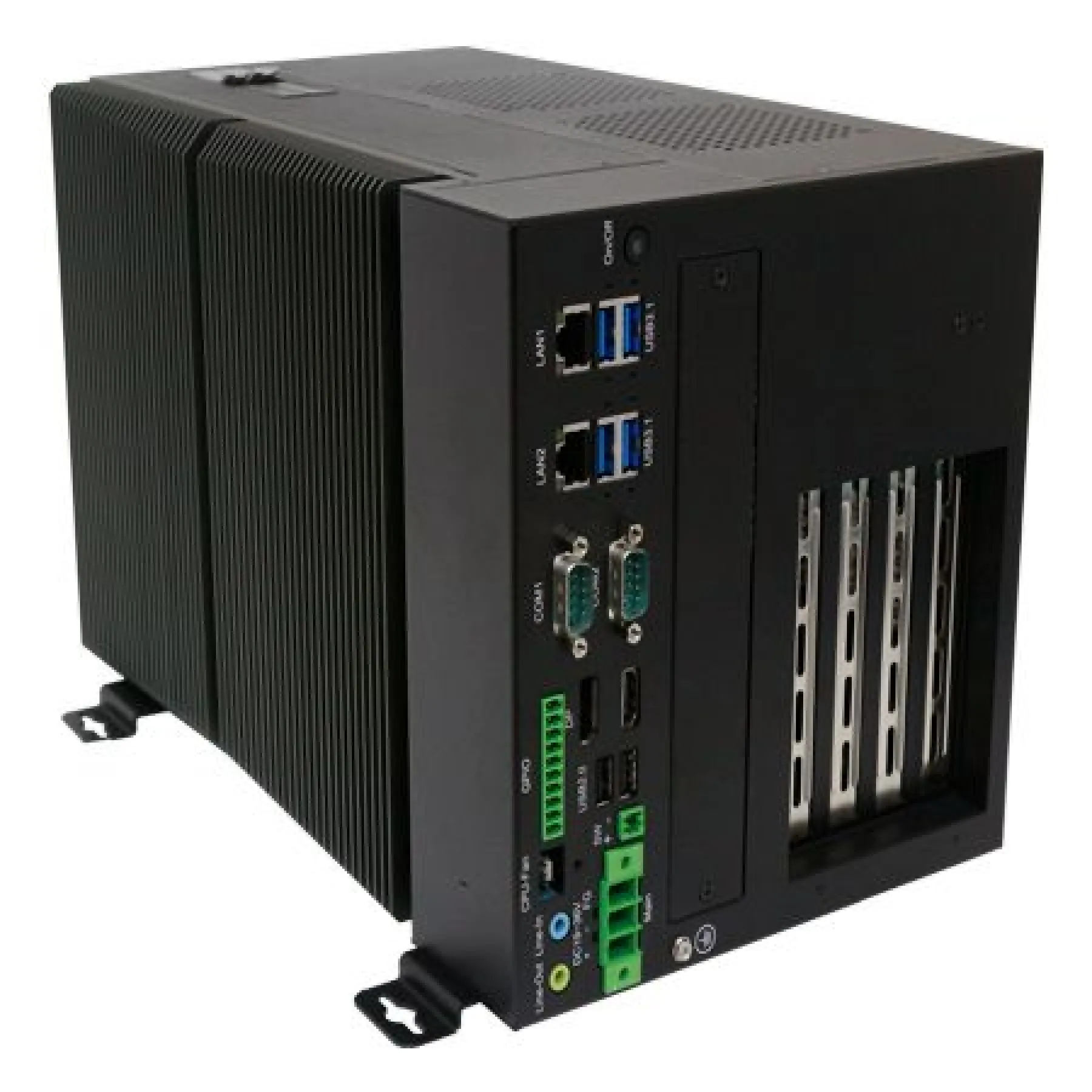

Aplex Technology AVS-600 is a Machine Vision Systems powered by the 9th Gen Intel Core with Dual Channel DDR4 (2400MHz) up to 64GB, shipping with 2 x LAN (supporting 1Gps Ethernet), 4 x USB 3.1 Gen 1, 2 x USB 2.0, 1 x RS-232/422/485 (RS-232 w/ power) (DB-9). Expansion is possible via 20x Full-size mini PCIe solts, 1 x micro SIM socket, 1 x PCIe-4 in x8 slot (slot #1, Gen 3.), 1 x PCIe-4 in x8 slot (slot #1, Gen 3.) and 1 x PCIe-16 (slot #3, Gen 3) Max. Power Support 250W.

Downloads

Aplex AVS-600 Datasheet (PDF)

1.01MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

System
Processor	Intel 9th Gen. Core i7/i5/i3 and Xeon Processors
System Chipset	C246
Memory	2 x 260-pin DDR4 (2400MHz) SO-DIMM up to 64GB

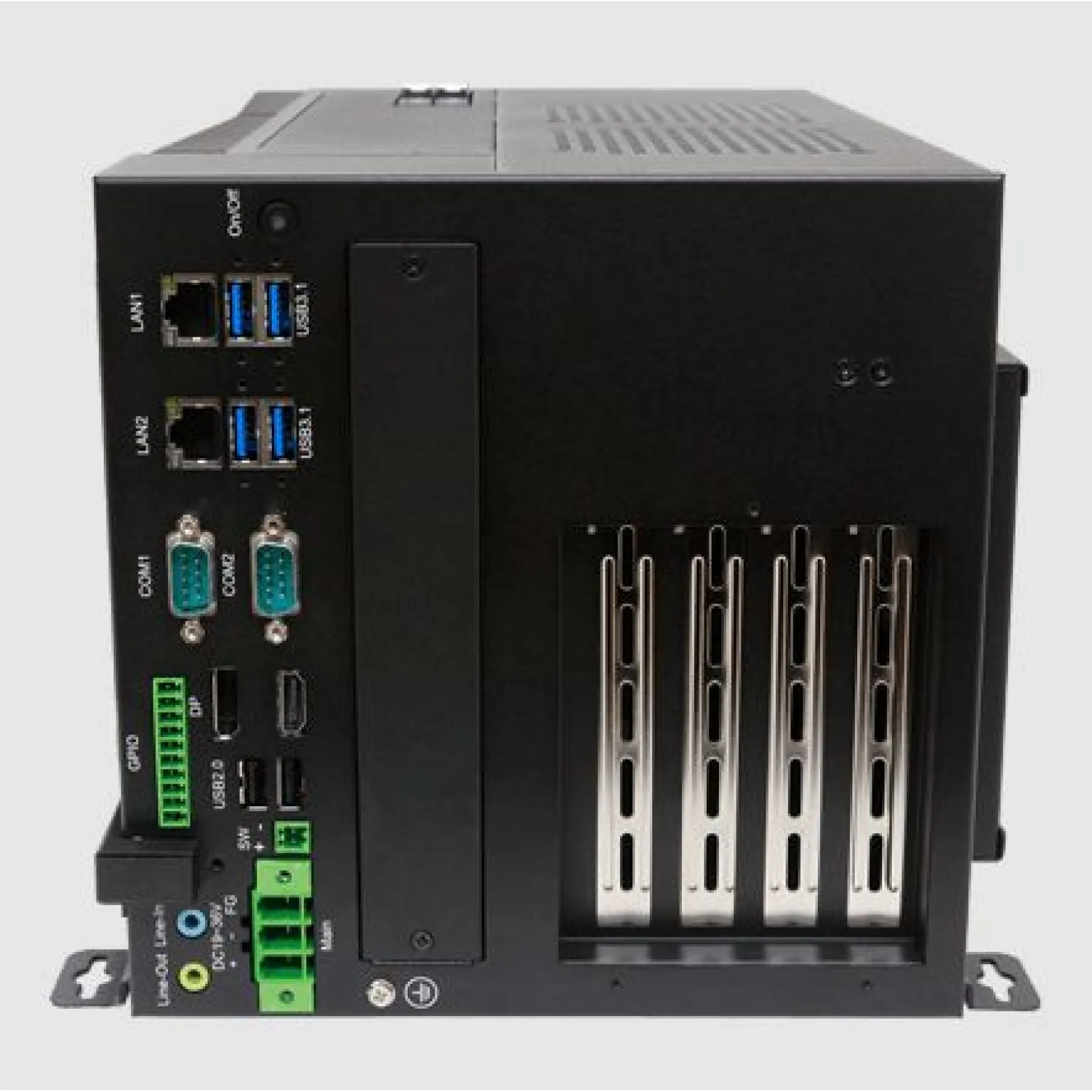

Default I/O	2 x GbE LAN (RJ-45) 4 x USB 3.1 Gen.1 (Type A) 2 x USB 2.0 (Type A) 1 x USB 2.0 (Internal Type A for Dongle) 1 x DP 1.2 port 1 x HDMI port 2 x RS-232/422/485 (COM1, COM2, DB9, Default RS-232) 1 x Line-Out 1 x Mic-In 8 x GPIO (4 x in, 4 x out) 1 x Power Switch
Storage Space
Storage	2 x 2.5” SATA3 HDD/SSD with removable drive-bays 2 x 2.5” SATA3 HDD/SSD with internal drive-bays
Expansion
Expansion Slot	2 x Full-size mini PCIe slots 1 x micro SIM socket 1 x PCIe-4 in x8 slot (slot #1, GEN.3) 1 x PCIe-4 in x8 slot (slot #2, GEN.3) 1 x PCIe-16 (slot #3, GEN.3) MAX. Power Support 250W
Power
Power Input	DC 12~36V
Mechanical
Construction	Aluminum Heat-sink. Metal Steel Chassis
Mounting	Desktop, Wall Mount
Dimensions	200 x 200 x 350 mm Max Add-on Card Size of 308 x 128 mm
Net Weight	7 kg
Mechanical & Environment
Operating Temperature	-20˚C~60˚C(WT1) with CPU Fan, 0˚C to 50˚C Fanless
Storage Temperature	-40˚C~85˚C
Storage Humidity	0 to 90%@, non-condensing
Certificate	CE,FCC, RoHS
Operating System Support	Default: Win10 IoT, Linux 4.20.2

Memory Capacity	Up to 64GB
Serial Ports (COM)	2x RS-232/422/485
USB Ports	3x USB 2.0, 4x USB 3.1
Ethernet Ports (LAN)	2x 1G
Video Ports	1x HDMI, 1x DisplayPort
Storage Type	4x 2.5"
Expansion Type	2x Mini PCI Express, 3x PCI Express, 5
Input Voltage	12-36 VDC
Mounting Options	Wall-mount
Operating Temperature	Standard OT: 0°C to 50°C, Standard
Market Certifications	CE/FCC
OS Support	Linux, Windows 10
