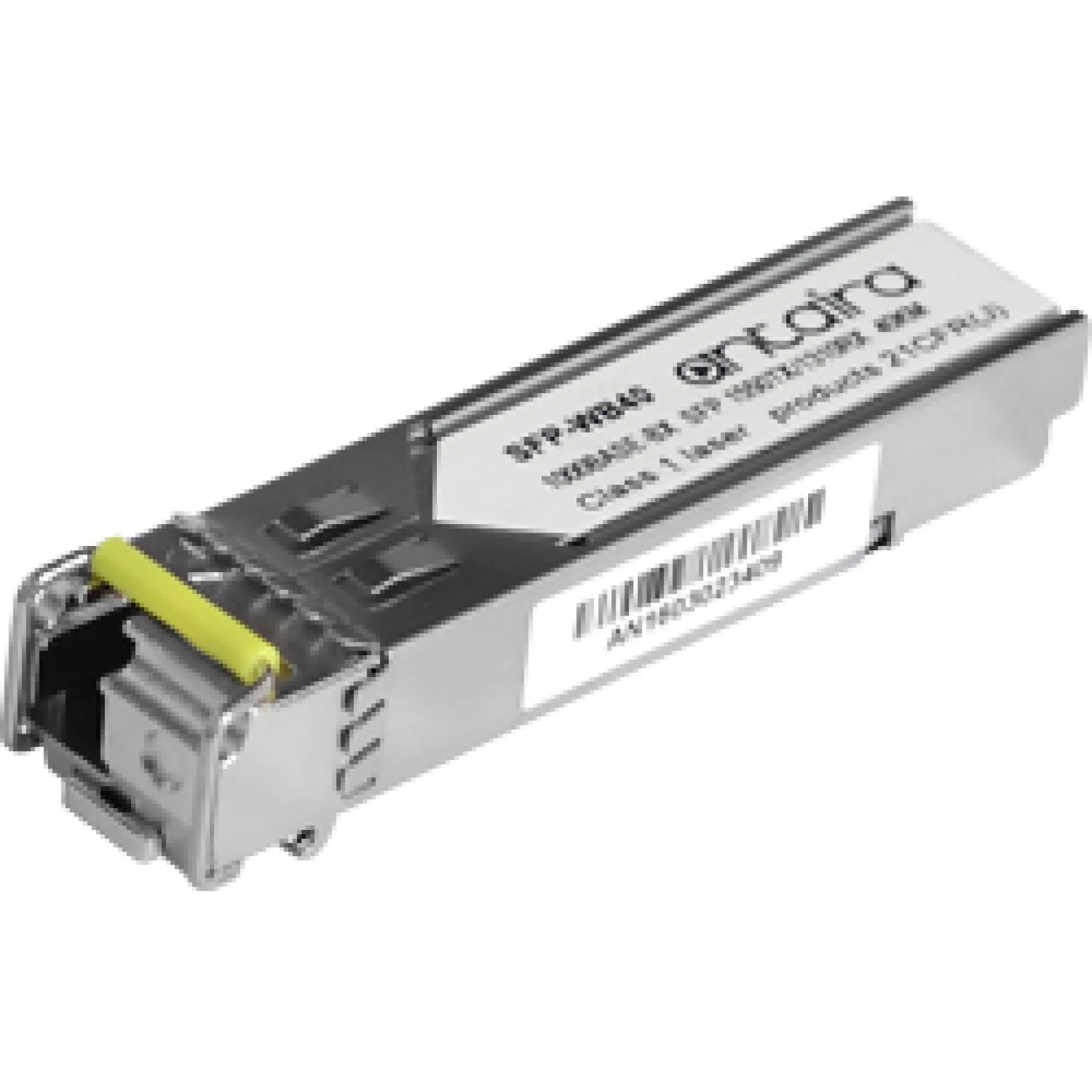

SFP-WB40

Antaira SFP-WB40 1.25G Gigabit SFP Transceiver WDM-B, SM/LC/40KM/21.0dB/TX:1550nm RX:1310nm, 0°C~70°C

SFP-WB40

1550nm DFB LD
Multi Data Rate: from 125M to 1.25Gbps, NRZ
Single +3.3V Power Supply
RoHS Compliant and Lead-free
AC/AC Differential Electrical Interface
Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP)
Single LC Connector
Compliance with specifications for IEEE-802.3z Gigabit Ethernet at 1.25 Gbps
Compliance with ANSI specifications for Fiber Channel applications at 1.06 Gbps
Eye Safety (Designed to meet Laser Class 1, complies with EN60825-1)

Product Code: SFP-WB40

Categories: Antaira, Antaira SFP Modules, Gigabit SFP Modules, SFP Modules

Details

The SFP-WB40 is a high performance and cost-effective module for serial optical data communication applications specified for a single mode of multi-rate from 125M to 1.25 Gb/s. It operates on +3.3V power. The module is intended for single mode fiber, operates at a nominal wavelength of Tx: 1550nm / Rx: 1310nm, and complies with the Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP). Each module consists of a bi-directional optical subassembly that combines a transmitter with a receiver and an electrical subassembly. All are housed in a metal package and the combination produces a reliable component.
