SFP-WB-M-T

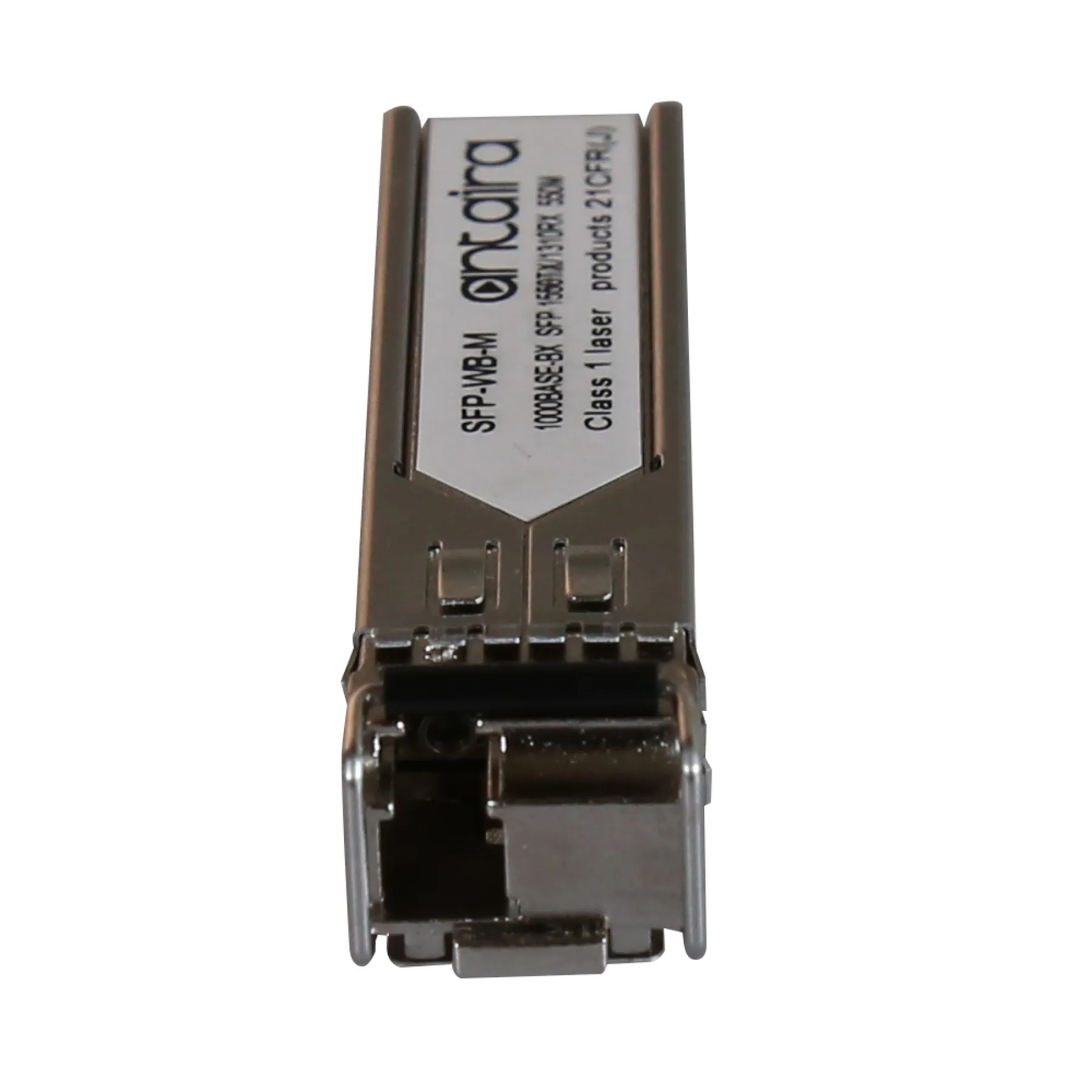

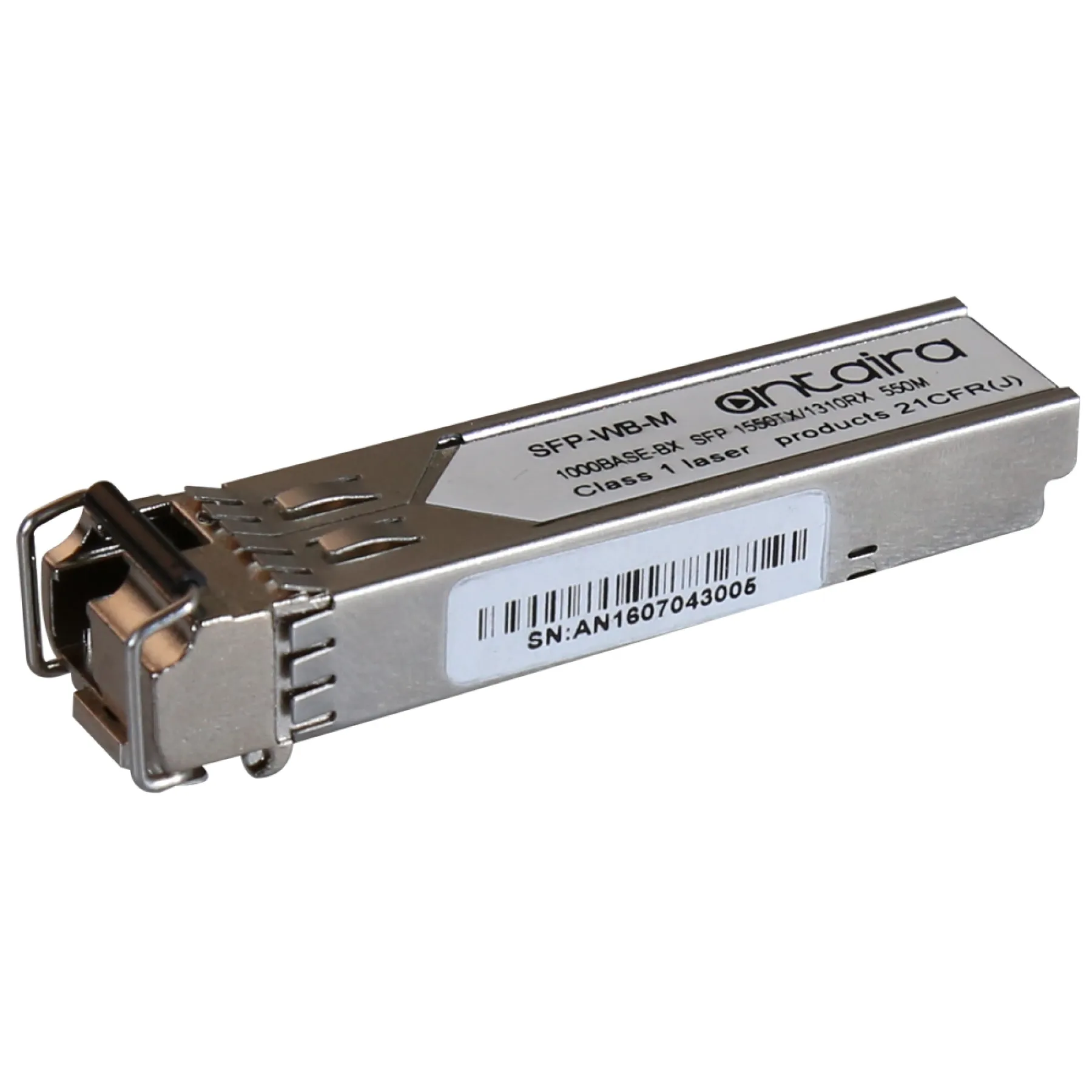

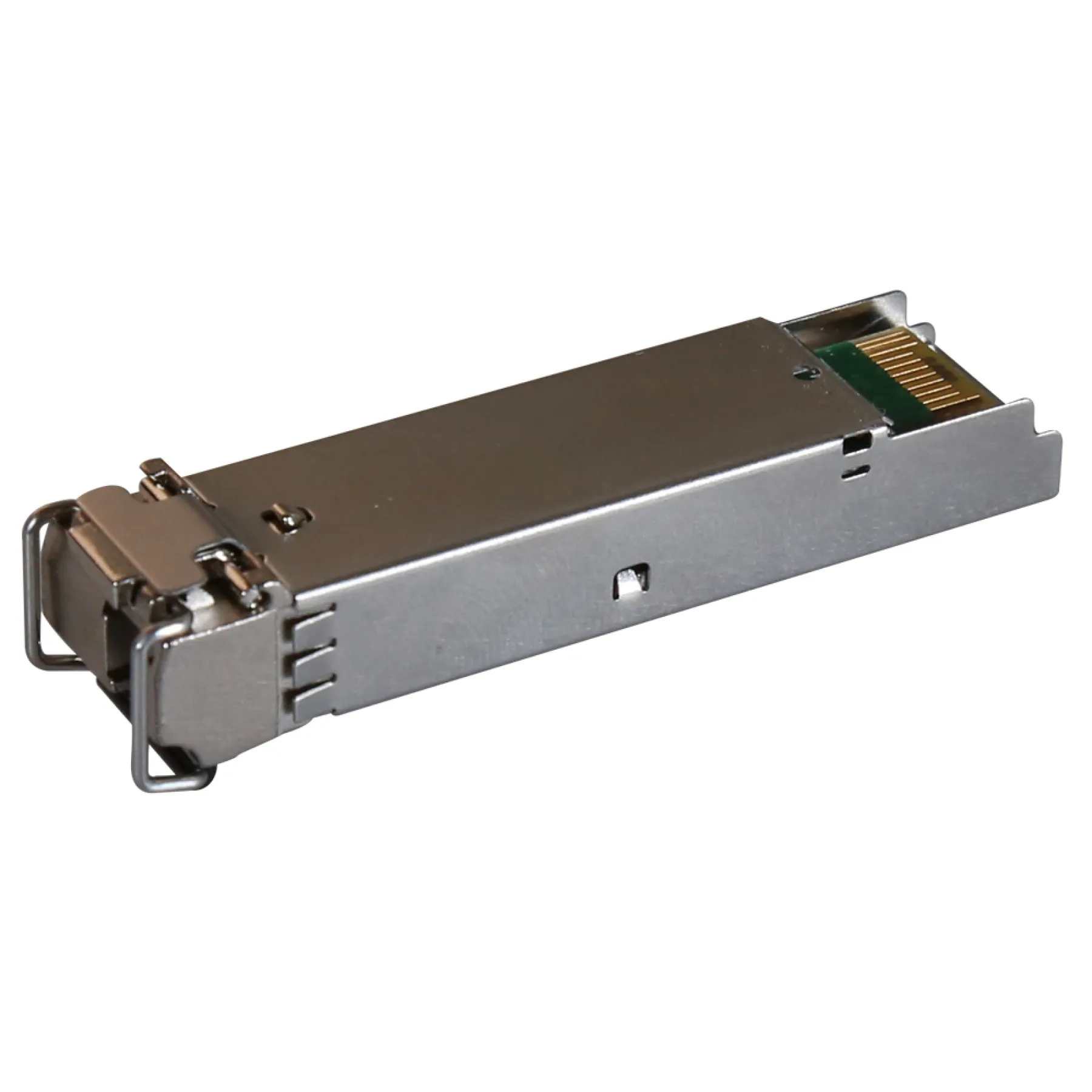

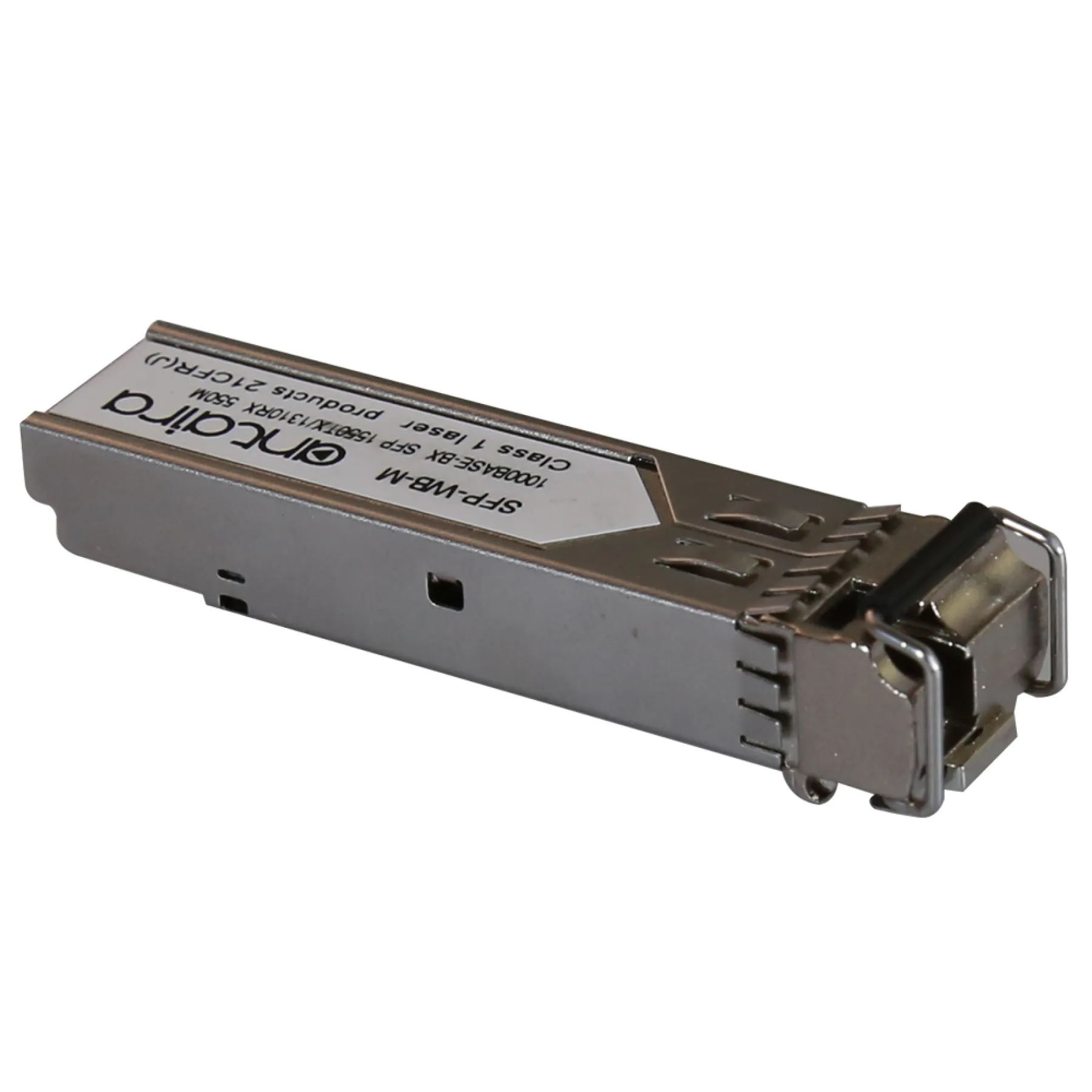

Antaira SFP-WB-M-T 1 Gigabit SFP Transceiver WDM-B, MM/LC/550M/TX:1550nm RX:1310nm, -40ºC~85ºC

SFP-WB-M-T

Multi Data Rate: from 125M to 1.25Gbps, NRZ
Single +3.3V Power Supply
RoHS Compliant and Lead-free
AC/AC Differential Electrical Interface
Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP)
Single LC Connector
Compliance with specifications for IEEE-802.3z Gigabit Ethernet at 1.25 Gbps
Compliance with ANSI specifications for Fibre Channel applications at 1.06 Gbps
Eye Safety
Designed to meet Laser Class 1 comply with EN60825-1Fsfp

Product Code: SFP-WB-M-T

Categories: Antaira, Antaira SFP Modules, Gigabit SFP Modules, SFP Modules

Details

The SFP-WB-M-T is the high performance and cost-effective module for serial optical data communication applications specified for multimode of multi-rate from 125M to 1.25 Gb/s. It operates with +3.3V power supply. The module is intended for multimode fiber, operates at a nominal wavelength of Tx: 1550nm / Rx: 1310nm and complies with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP). Each SFP transceiver consists of a transmitter optical subassembly, a receiver optical subassembly and an electrical subassembly. All of them are housed in a metal package and the combination produces a reliable component. The SFP module is a multimode fiber connector transceiver designed for use in Gigabit Ethernet applications and to provide IEEE-802.3z compliant link for 1.25Gb/s intermediate reach applications. The characteristics are performed in accordance with Telcordia Specification GR-468-CORE.
