SFP-10G-M-DELL

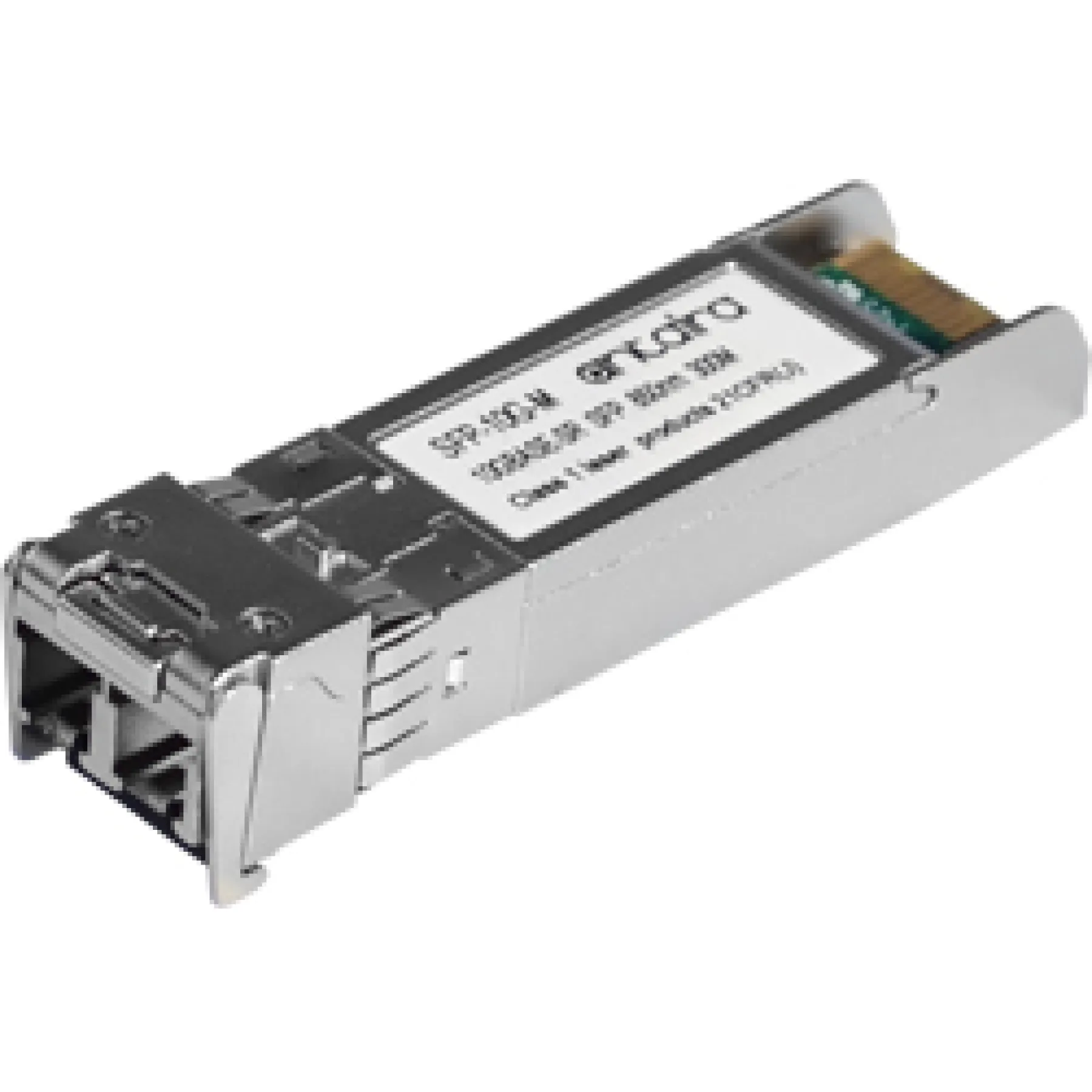

Antaira SFP-10G-M-DELL 10G SFP+ SR Transceiver, Multi-Mode 300M / LC / 850nm, 0°C~70°C * DELL Compatible *

SFP-10G-M-DELL

10Gb/s serial optical interface compliant to 802.3ae 10GBASE-SR
Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggable module ??SFP+??
850nm VCSEL transmitter, PIN photo-detector
2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers
Operating case temperature: 0 to 70°C
All-metal housing for superior EMI performance
Low power consumption
Advanced firmware allow customer system encryption information to be stored in transceiver
Cost effective SFP+ solution, enables higher port densities and greater bandwidth

Product Code: SFP-10G-M-DELL

Categories: 10G SFP Modules, Antaira, SFP Modules

Details

The SFP-10G-M-DELL is designed to transmit and receive optical data over 50/125 nm or 62.5/125 nm multimode optical fiber. The transmitter converts 10Gbit/s serial PECL or CML electrical data into serial optical data compliant with the 10GBASE-SR standard.

Downloads
