SFP-100WA20-T

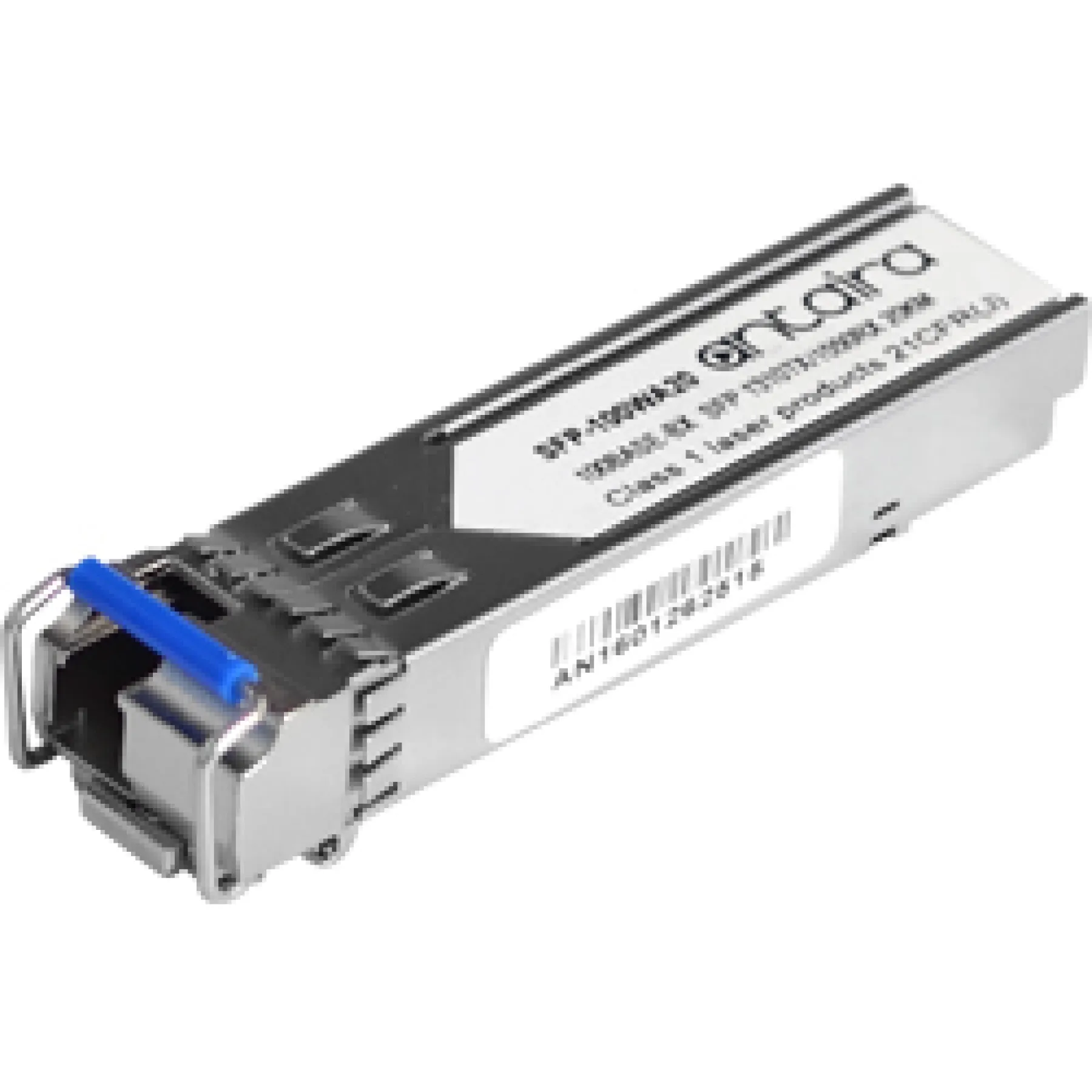

Antaira SFP-100WA20-T 155Mbps SFP Transceiver WDM-A, Single Mode 20KM / LC / TX:1310nm RX:1550nm, -40°C~85°C

SFP-100WA20-T

Extended Operating Temperature
1310nm FP LD
Data Rate: 125~155Mbps, NRZ
Single +3.3V Power Supply
RoHS Compliant and Lead-free
AC/AC Differential Electrical Interface
Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP)
Single LC Connector
Compliance with specifications for IEEE-802.3ah 100BASE-BX10-U
Compliance with FDDI PMD Standard
Compliance with ATM Standard

Product Code: SFP-100WA20-T

Categories: 100Mbps, Antaira, Antaira SFP Modules, SFP Modules

Details

The SFP-100WA20-T is a high performance and cost-effective module for serial optical data communication applications specified for single mode of 125 Mb/s. It operates on +3.3V power. The module is intended for Single-mode fiber, operates at a nominal wavelength of Tx: 1310nm / Rx: 1550nm, and complies with the Multi-Source Agreement (MSA) Small Form Factor Pluggable (SFP). Each module consists of a bi-directional optical subassembly that combines a transmitter with a receiver and an electrical subassembly. All are housed in a metal package and the combination produces a reliable component.
