LNX-C500-CC

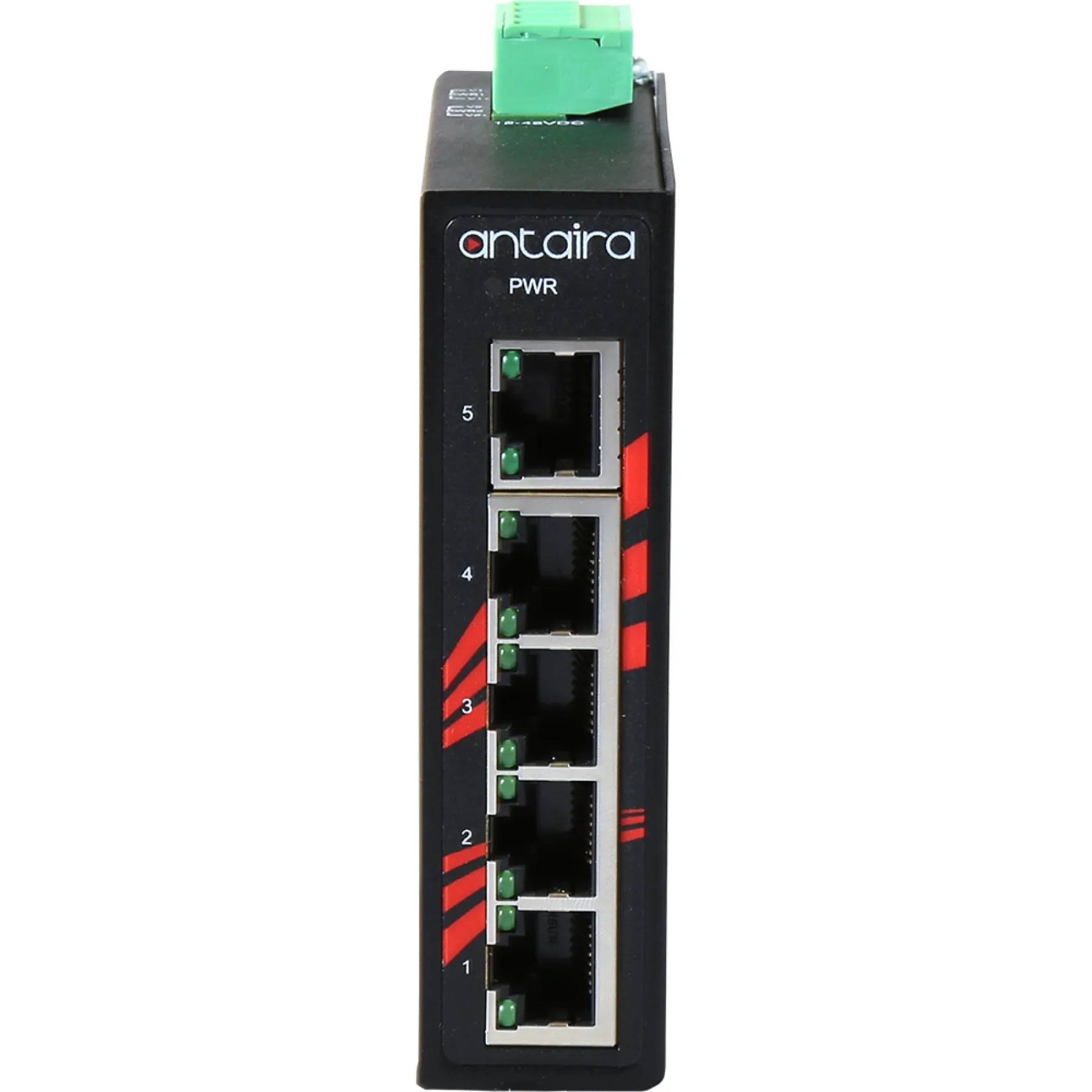

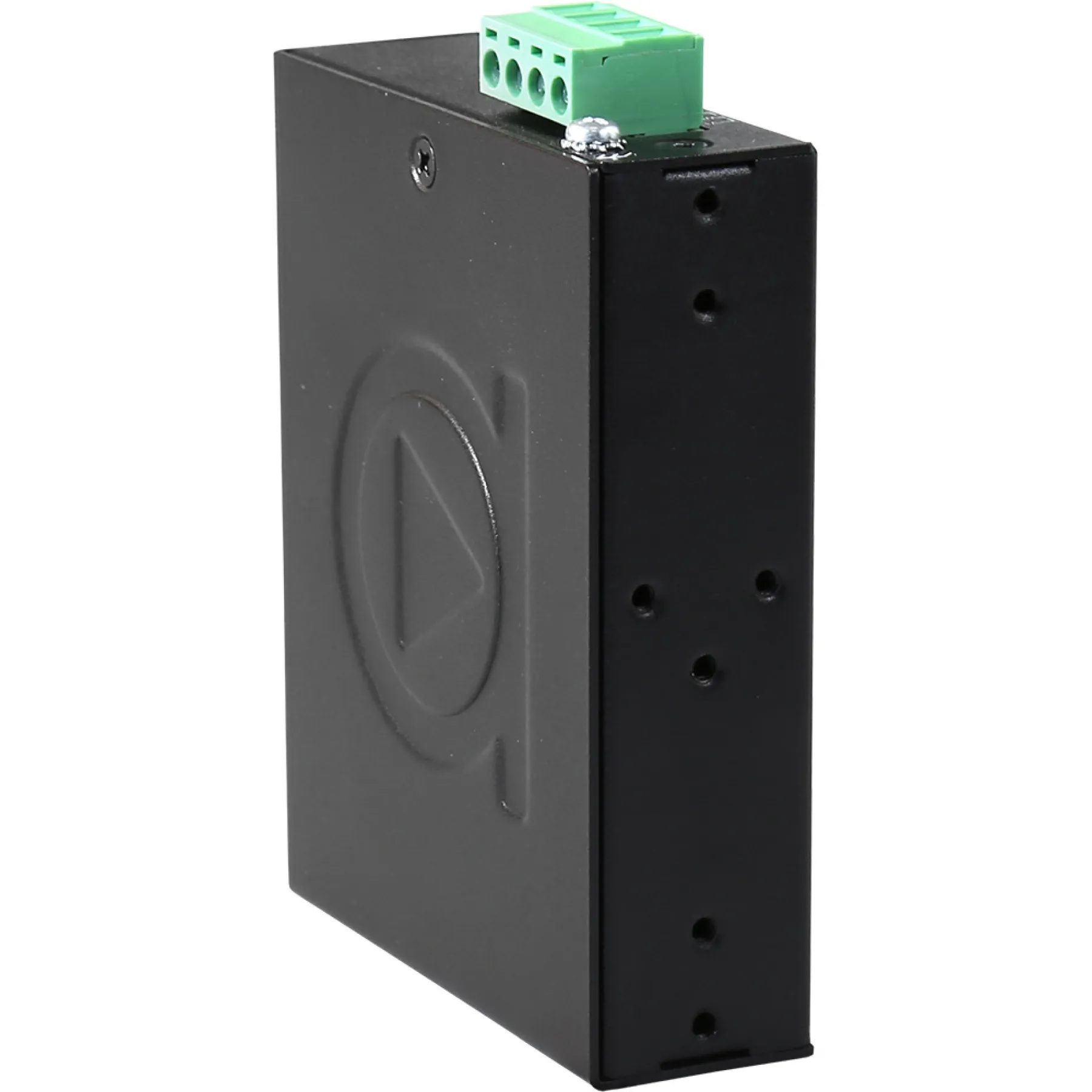

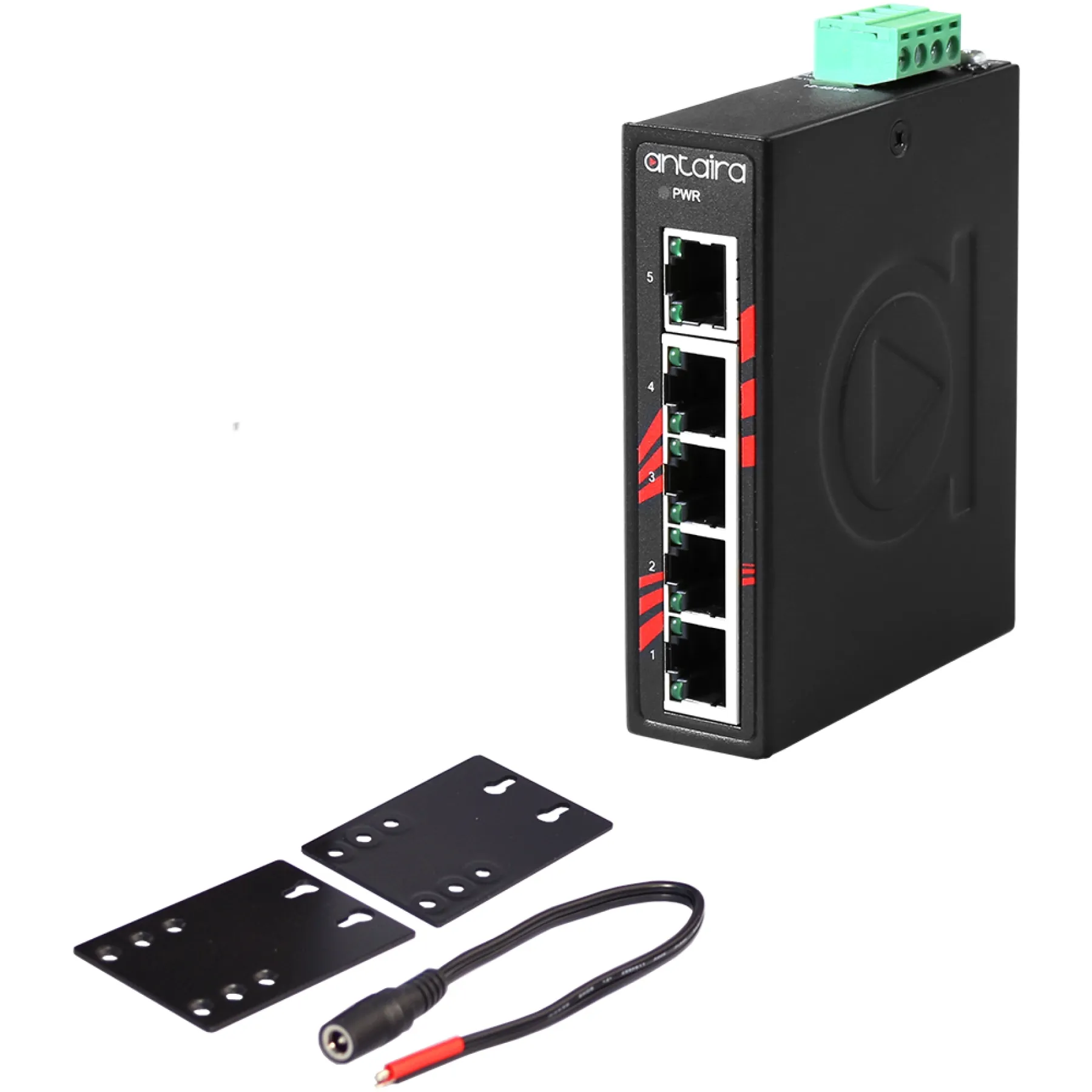

Antaira LNX-C500-CC Compact 5-Port Industrial Unmangaed Ethernet Switch, w/5*10/100TX with Conformal Coating
LNX-C500-CC
- Conformal Coating
- Compact Industrial Grade Design
- Supports 5*10/100Tx
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 8K MAC Address Table
- Surge Protection: 2,000 VDC Support
- ESD Protection: 6,000 VDC Support
- Redundant Power Input Design: 12~48VDC
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support
- Operating Temperature Range: -10° to 70° C
- 5-Year Warranty
LNX-C500-CC
![](https://www.assured-systems.com/_cache/Payments_Icons_NEW-400x50.jpg)
Details
Antaira’s Compact design LNX-C500 industrial unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. The LNX-C500 series is equipped with 5*10/100Tx RJ45 Ethernet ports; with a backplane speed of 1gbps. The small form factor of this industrial switch is 30% smaller allowing for a more versatile implementation. The conformal coating adds a layer of protection against gases, dust and water. Conformal coating is a specialty film which conforms to the contours of the printed circuit board to protect the board from adverse environmental conditions. Antaira’s conformal coating process meets or exceed the standards for protection against gases, dust, and water. This product series provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It also supports a standard operating temperature from -10 to 70°C. The LNX-C500 is a perfect industrial networking product to support any application such as power/utility, water wastewater treatment, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems.
