LNX-1002C-SFP

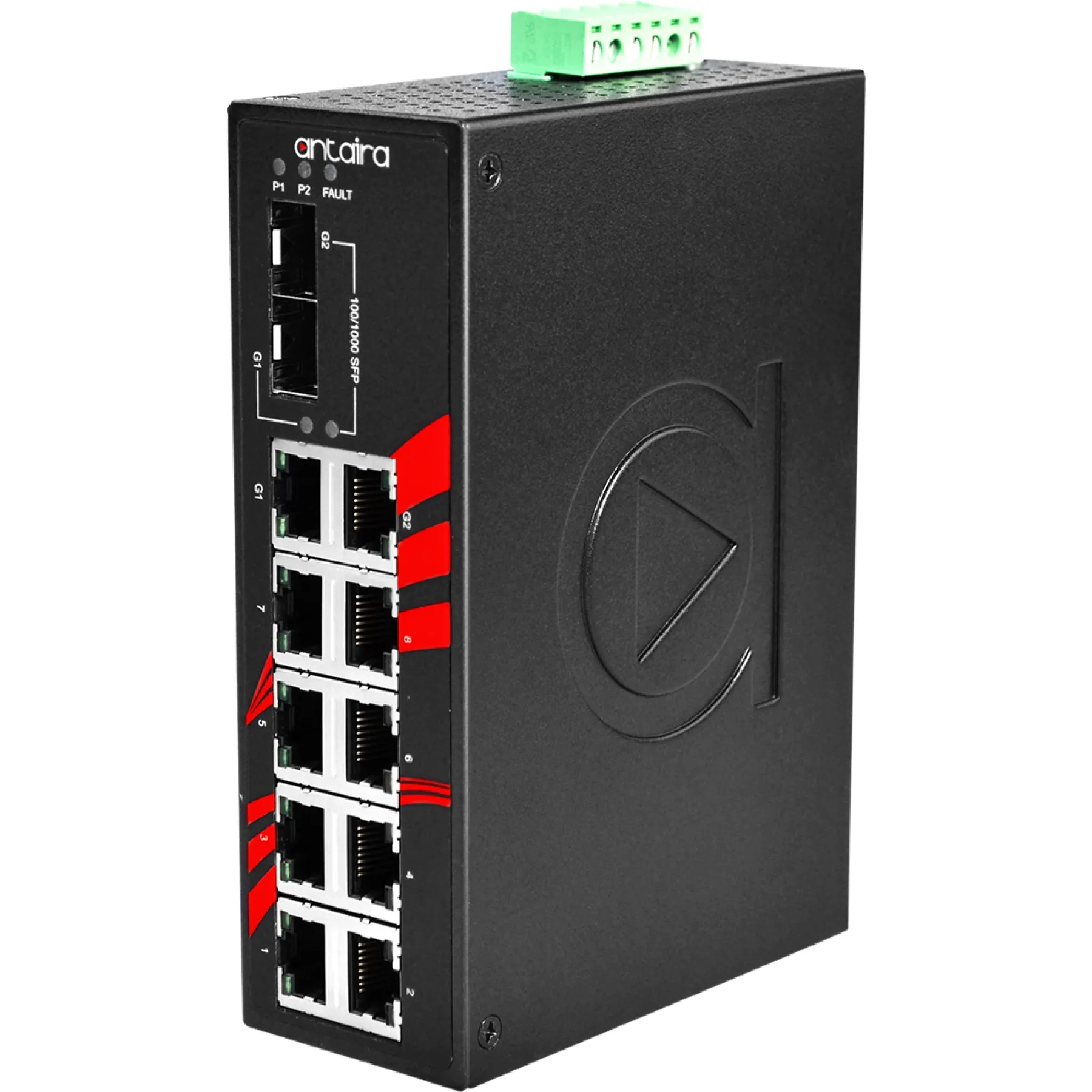

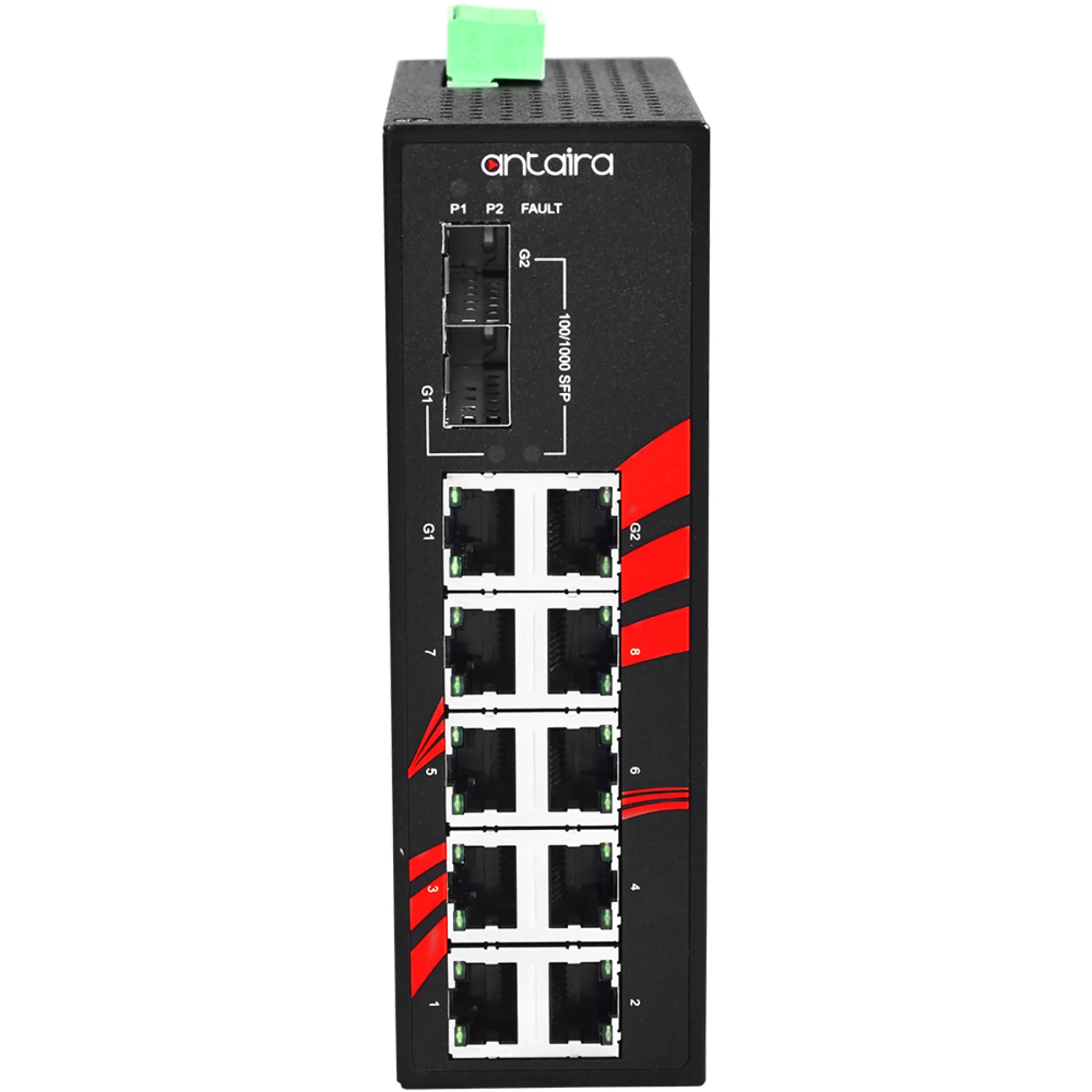

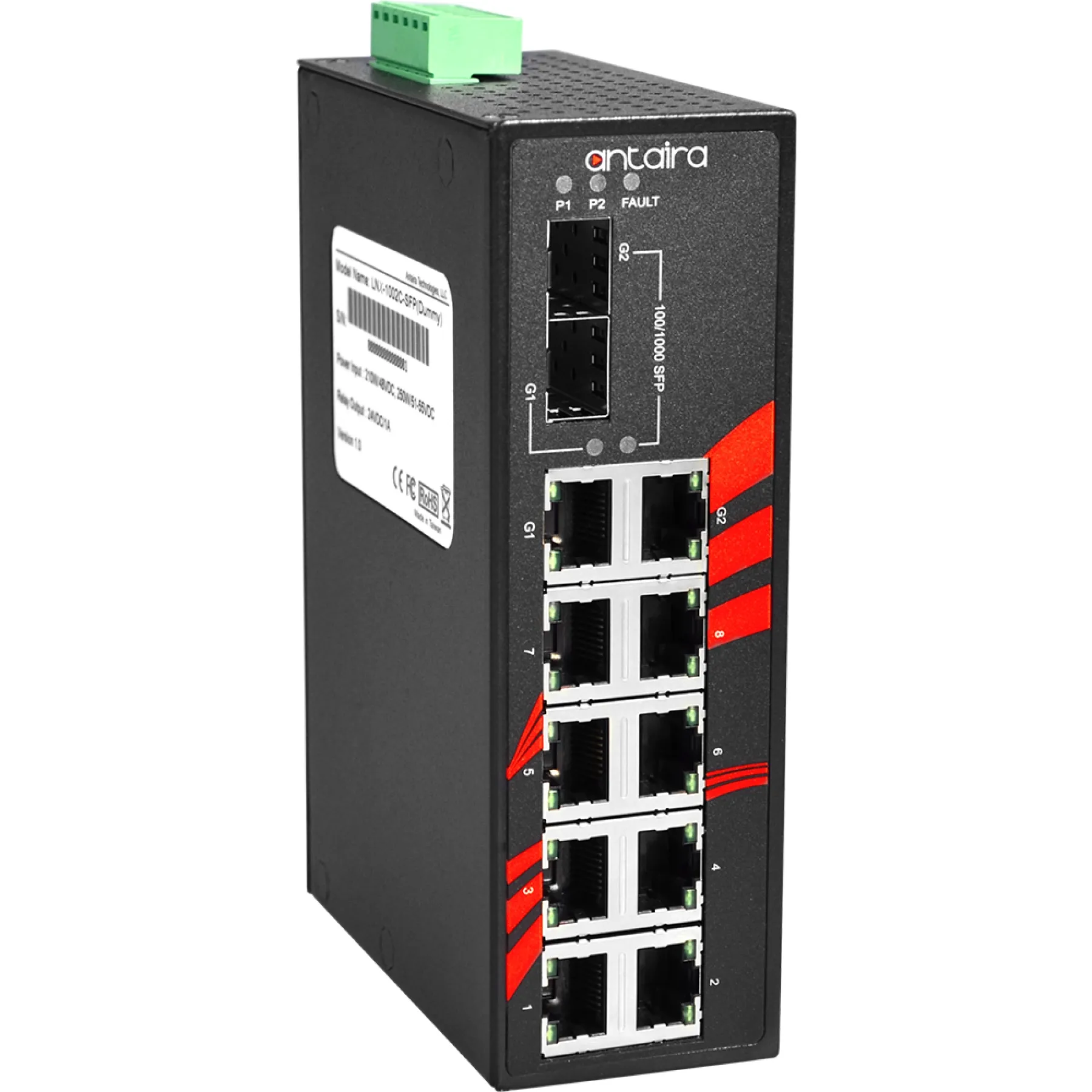

Antaira LNX-1002C-SFP 10-Port Industrial Unmanaged Ethernet Switch 8-Port 10/100Tx and 2x Gigabit Combo Ports (210/100/1000Tx RJ45, and 2100/1000 SFP Slots)

LNX-1002C-SFP

Supports 8-Port 10/100Tx, + 2 Gigabit Combo Ports (2*10/100/100 RJ45, and 2*100/1000 SFP Slots)
Supports Auto MDI/MDI-X Function
Non-Blocking Switching Fabric
8K MAC Address Table
Surge Protection: 2,000 VDC Support
ESD Protection: 6,000 VDC Support
UL Class I, Division 2 Certified
Redundant Power Input Design: 12~48VDC
Built-in 1 Relay Output for Power Failure Warning
IP30 Rugged Metal Case Design

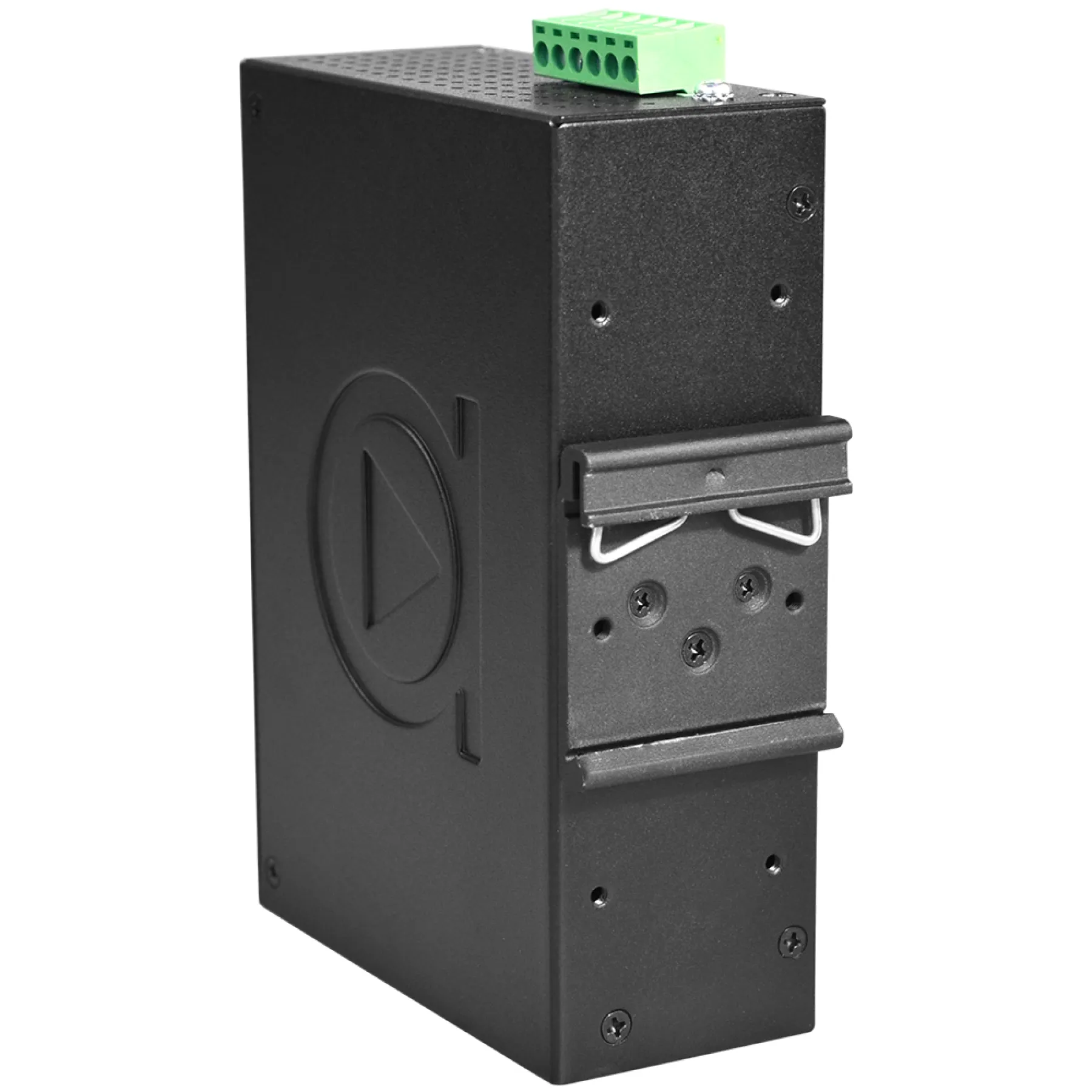

DIN-Rail and Wall Mount Support
Operating Temperature Range STD: -10° to 70°C
5-Year Warranty

Product Code: LNX-1002C-SFP

Categories: 10/100 Mbps, Antaira, C1D2 Unmanaged Industrial Ethernet Switches, Class 1 Division 2, Industrial Ethernet Switches, Specialty Solutions, Unmanaged Ethernet Switches

Details

Antaira Technologies’ LNX-1002C-SFP industrial gigabit unmanaged Ethernet switch series is IP30 rated and DIN-Rail mountable with 8*10/100Tx and 2*GigE combo ports (2*10/100/1000Tx RJ45 and 2*100/100 SFP slots for fiber). This industrial switch series is ideal for applications that demand high bandwidth and long distance communication.

This industrial switch series provides a high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. The industrial Ethernet switch supports the power redundancy feature by having a dual power input design with reverse power polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur. The LNX-1002C-SFP industrial switch series includes two models: one with an operating temperature range of -10 to 70°C and the other with an extended operating temperature range of -40 to 75°C. This industrial switch series has been designed to fulfill special needs for industrial automation and harsh outdoor environment applications.
