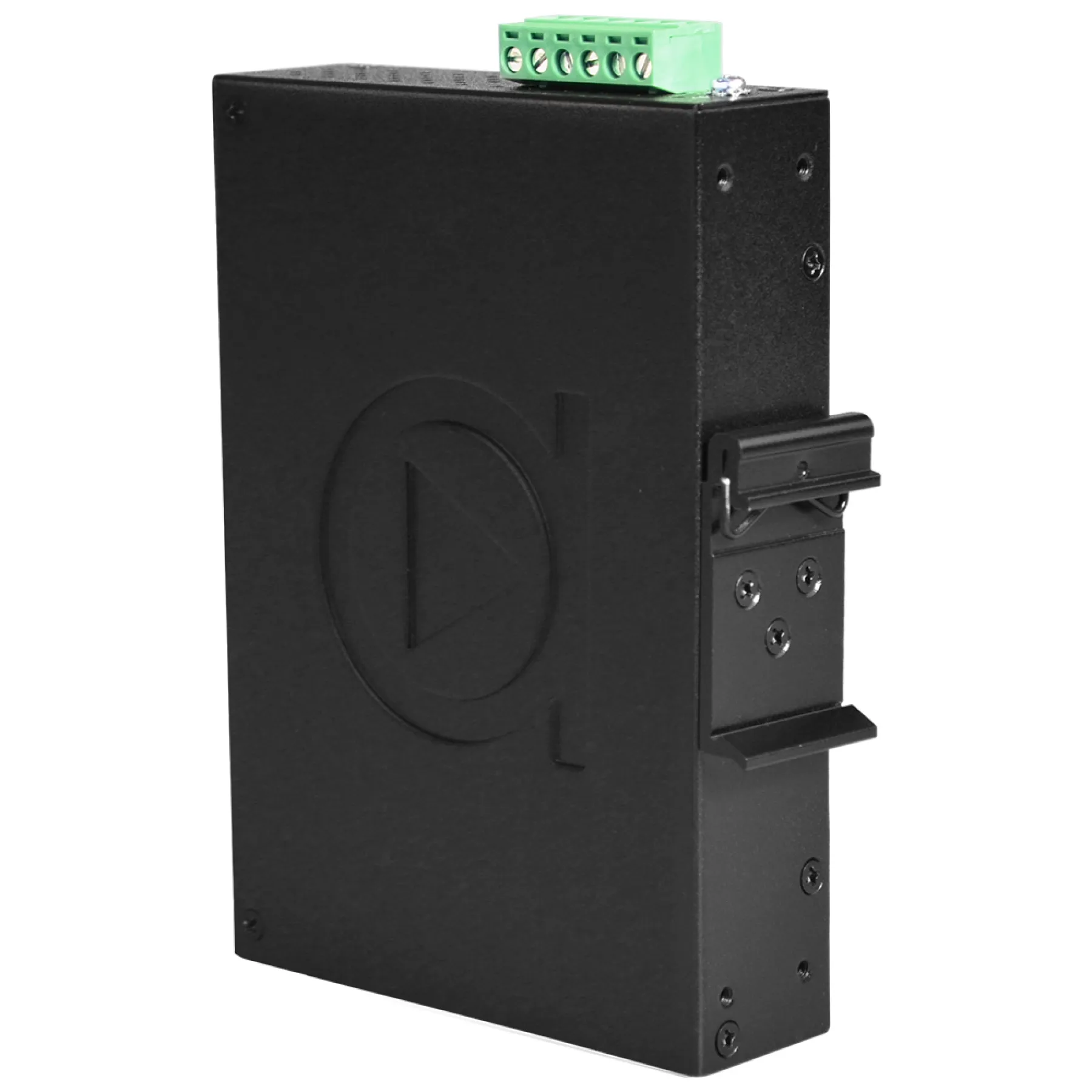

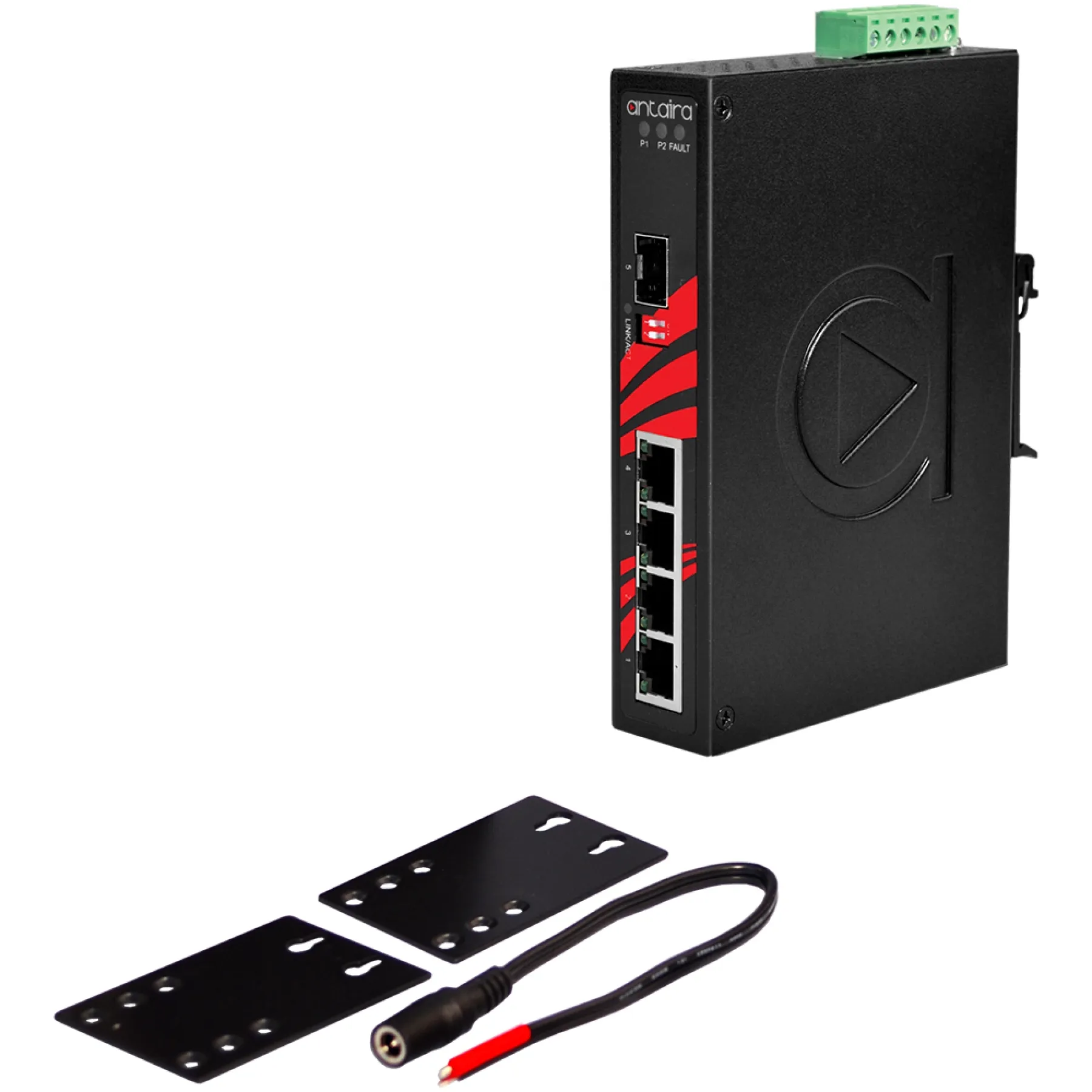

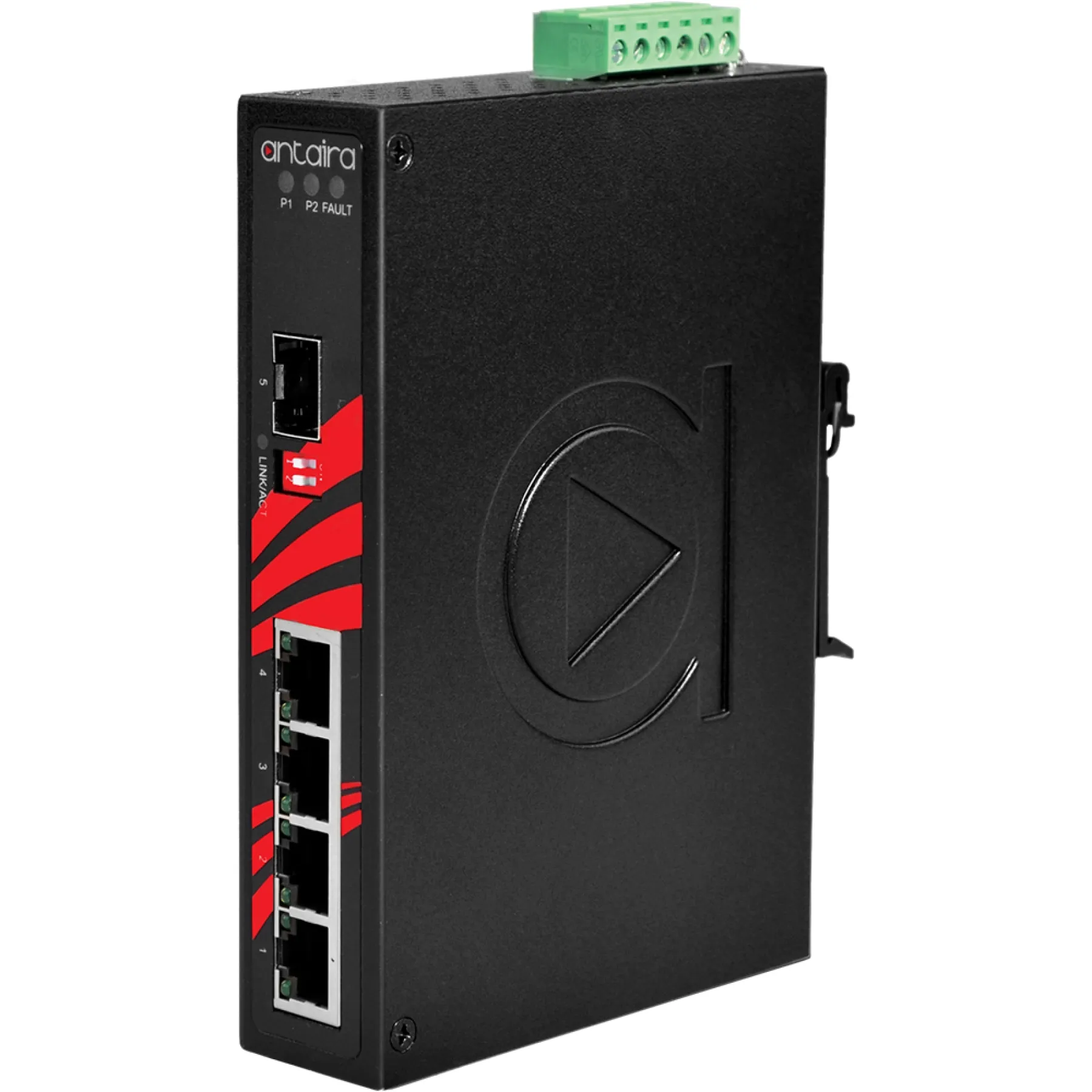

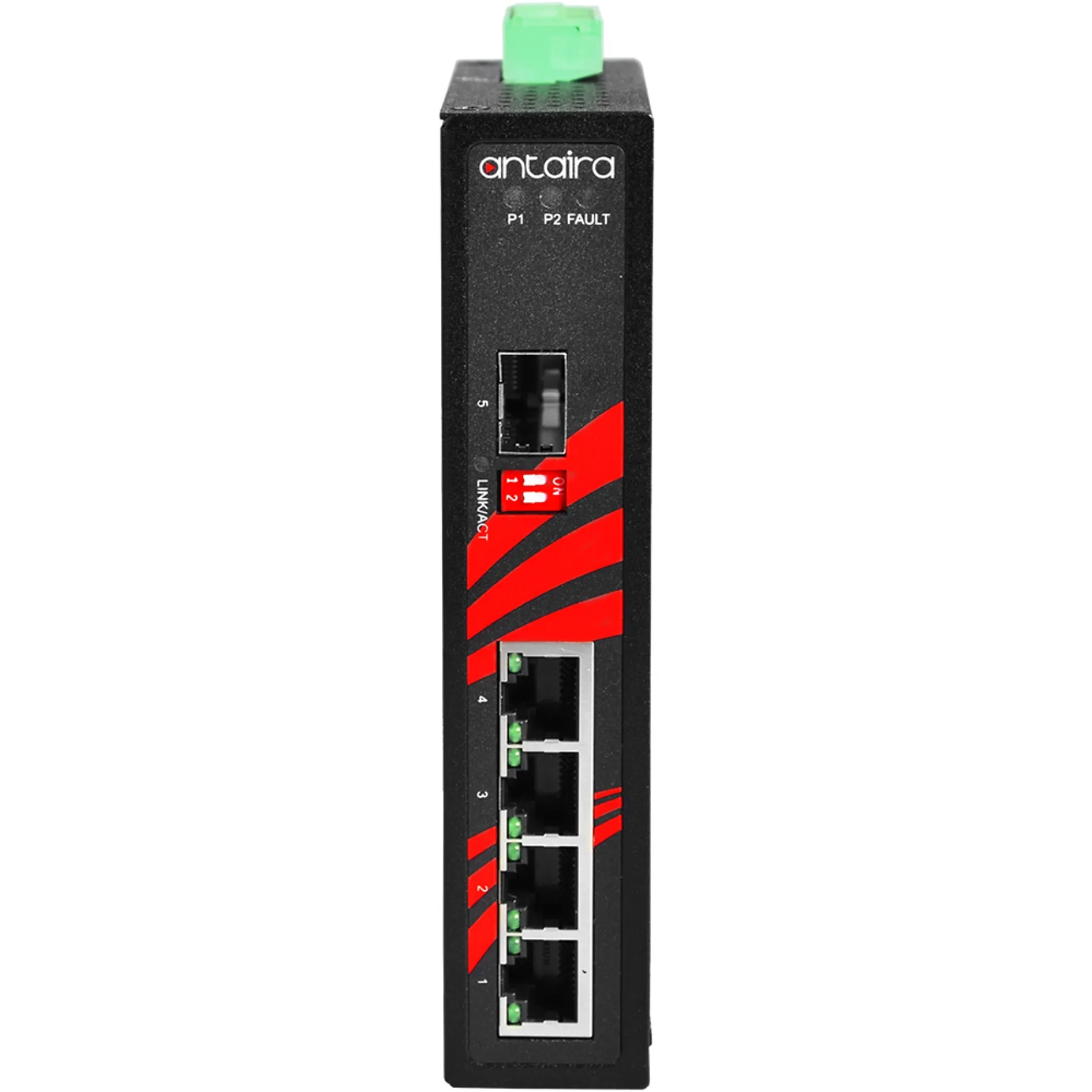

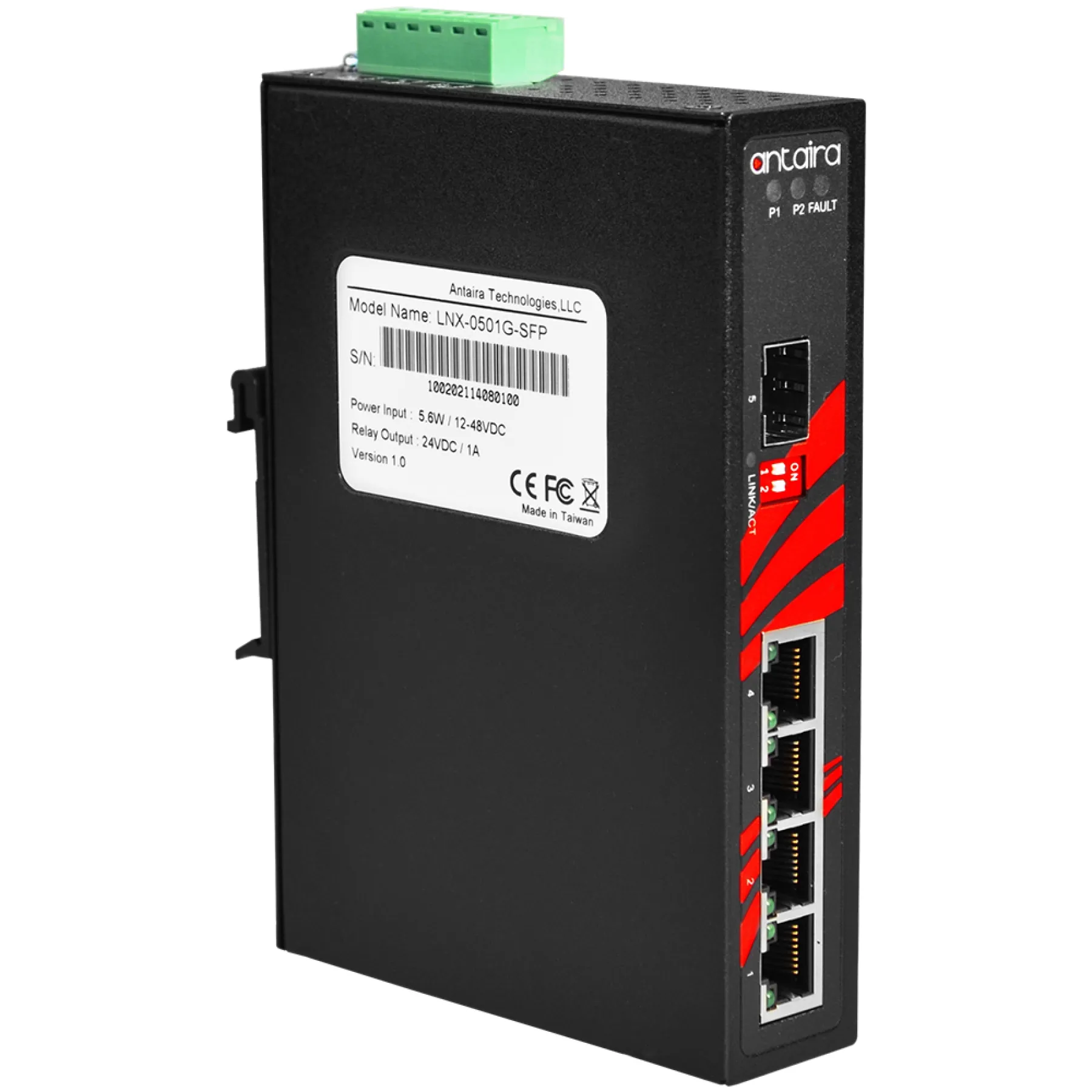

LNX-0501G-SFP

Antaira LNX-0501G-SFP 5-Port Industrial Unmanaged Ethernet Switch, w/410/100/1000Tx + 1100/1000 SFP Slot

LNX-0501G-SFP

Network Broadcast Storm Protection
4*10/100/1000Tx Fast Ethernet Ports & 1*100/1000 SFP Slot
Supports Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
10Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 3,000 VDC Support
ESD Protection: 6,000 VDC Support
UL Class I, Division 2 Certified
Redundant Power Input Design – 12~48VDC
Built-in 1 Relay Output for Port Break Alarm
IP30 Rugged Aluminum Case Design
DIN-Rail and Wall Mount Support
Operating Temperature Range – STD: -10° to 70° C
5-Year Warranty

Product Code: LNX-0501G-SFP

Categories: Antaira, C1D2 Unmanaged Industrial Ethernet Switches, Class 1 Division 2, Gigabit, Specialty Solutions, Unmanaged Ethernet Switches

Details

Antaira’s LNX-0501G-SFP industrial gigabit unmanaged Ethernet switch series are IP30 rated and DIN-Rail mountable. Each unit is designed with four gigabit Ethernet ports and one dual rate (100/1000) SFP slot, making it ideal for applications that demand high bandwidth and long distance communication. The LNX-0501G-SFP series provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures or port breaks occur, plus the built-in advanced broadcast storm protection feature will block any data packet that exceeds a defined limit when it arrives to a port, until the rate decreases to a lower threshold.

Downloads
