LNP-1604G-SFP-T

Antaira LNP-1604G-SFP-T 16-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch, w/1210/100/1000Tx (30W/Port) + 4100/1000 SFP Slots; EOT: -40 to 75C

LNP-1604G-SFP-T

Supports 12*10/100/1000Tx IEEE 802.3at PoE+ Compliant (PSE: 30W/Port), + 4*100/1000 SFP Slots
Store-and-Forward Switching Architecture
8K MAC Address Table
Jumbo Frame Support: 12.2Kbytes
Surge Protection: 2,000 VDC Support
ESD Protection: 6,000 VDC Support
Redundant Power Input Design: 48~55VDC
Built-in 1 Relay Output for Power Failure Warning
IP30 Rugged Metal Case Design

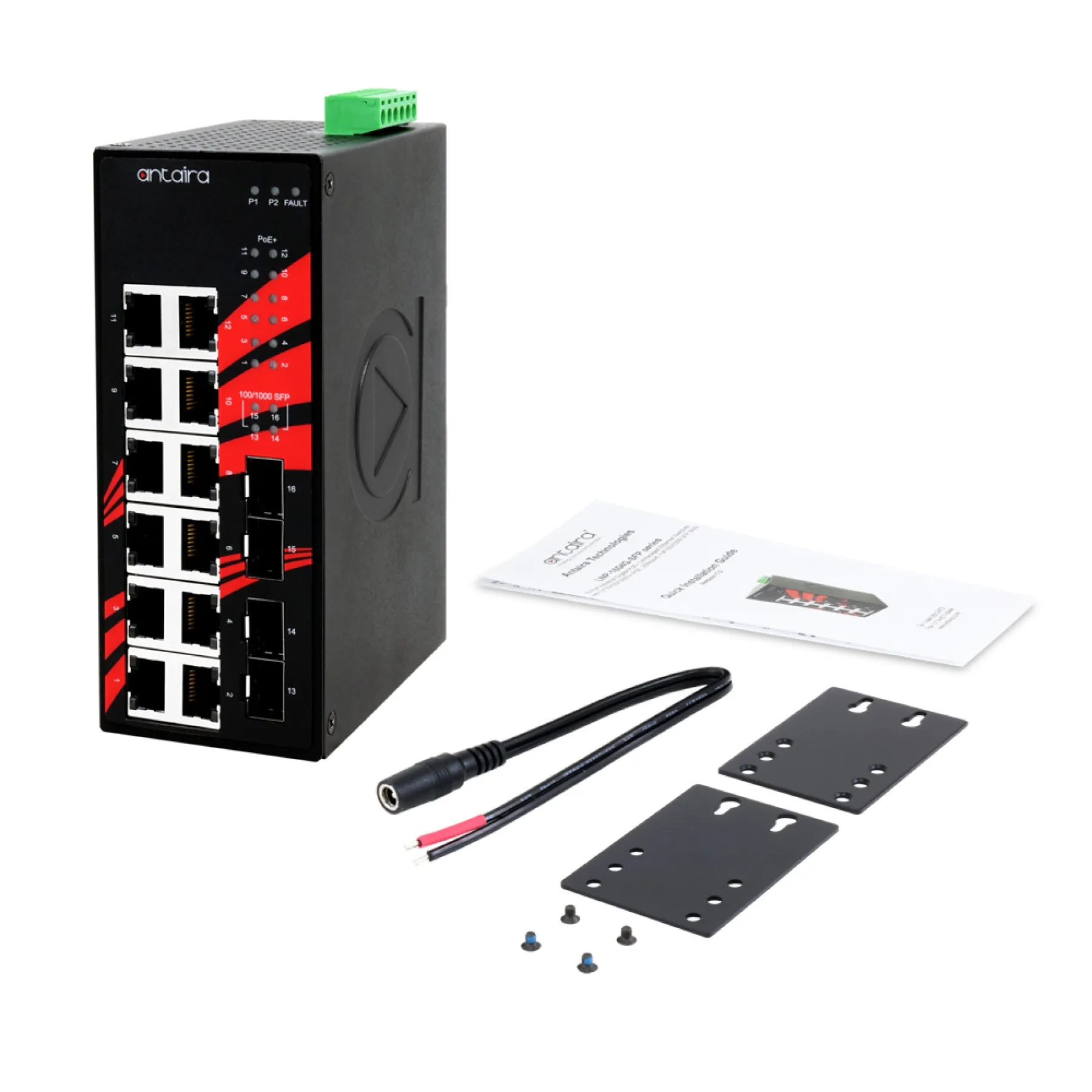

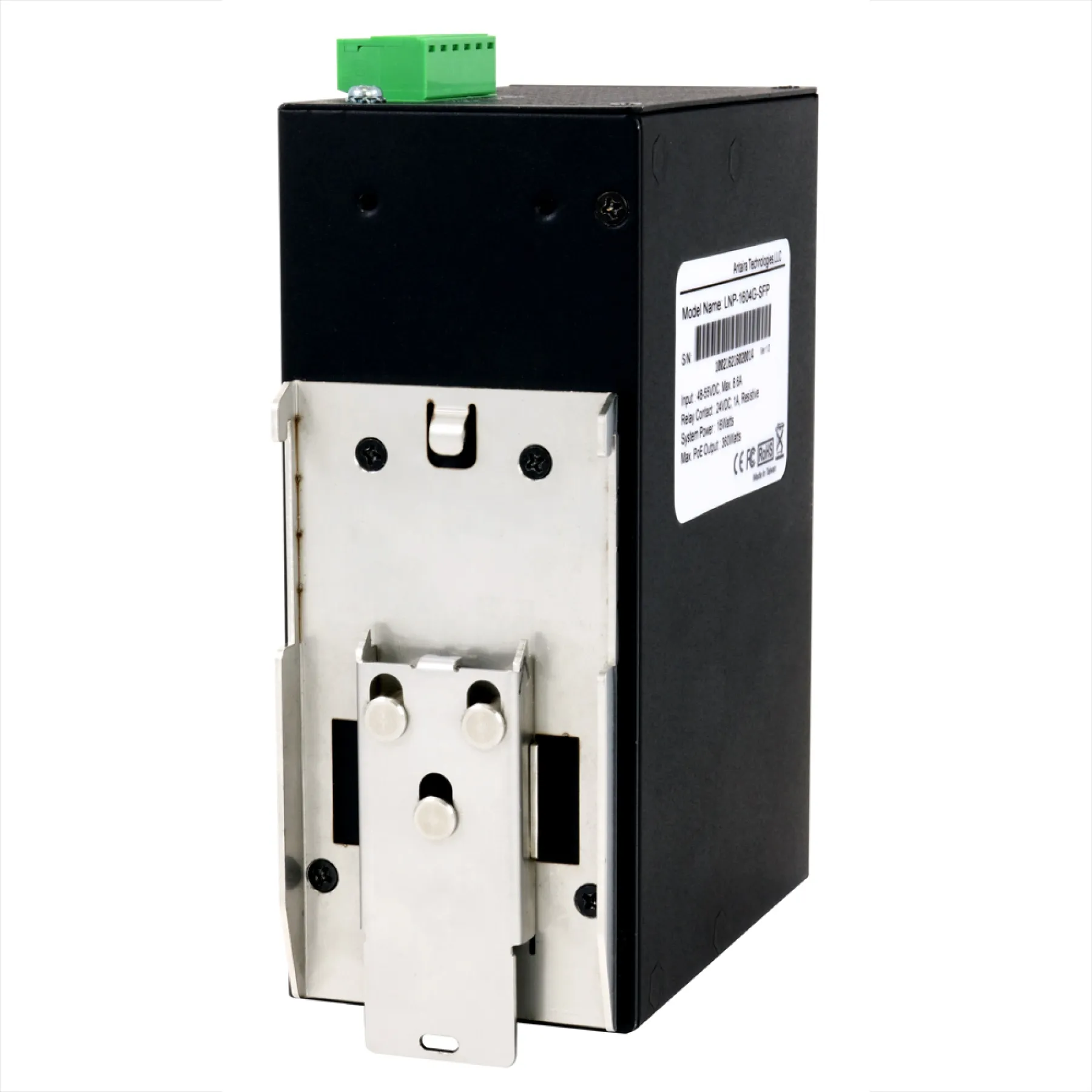

DIN-Rail and Wall Mount Support
Operating Temperature Range – EOT: -40° to 75°C
5-Year Warranty

Product Code: LNP-1604G-SFP-T

Categories: Antaira, Antaira Industrial Ethernet Switches, Antaira Low-Voltage Industrial POE Switches, Antaira Power Over Ethernet (POE) Switches, Gigabit, Gigabit PoE, PoE, Unmanaged Ethernet Switches, Unmanaged PoE Switches

Details

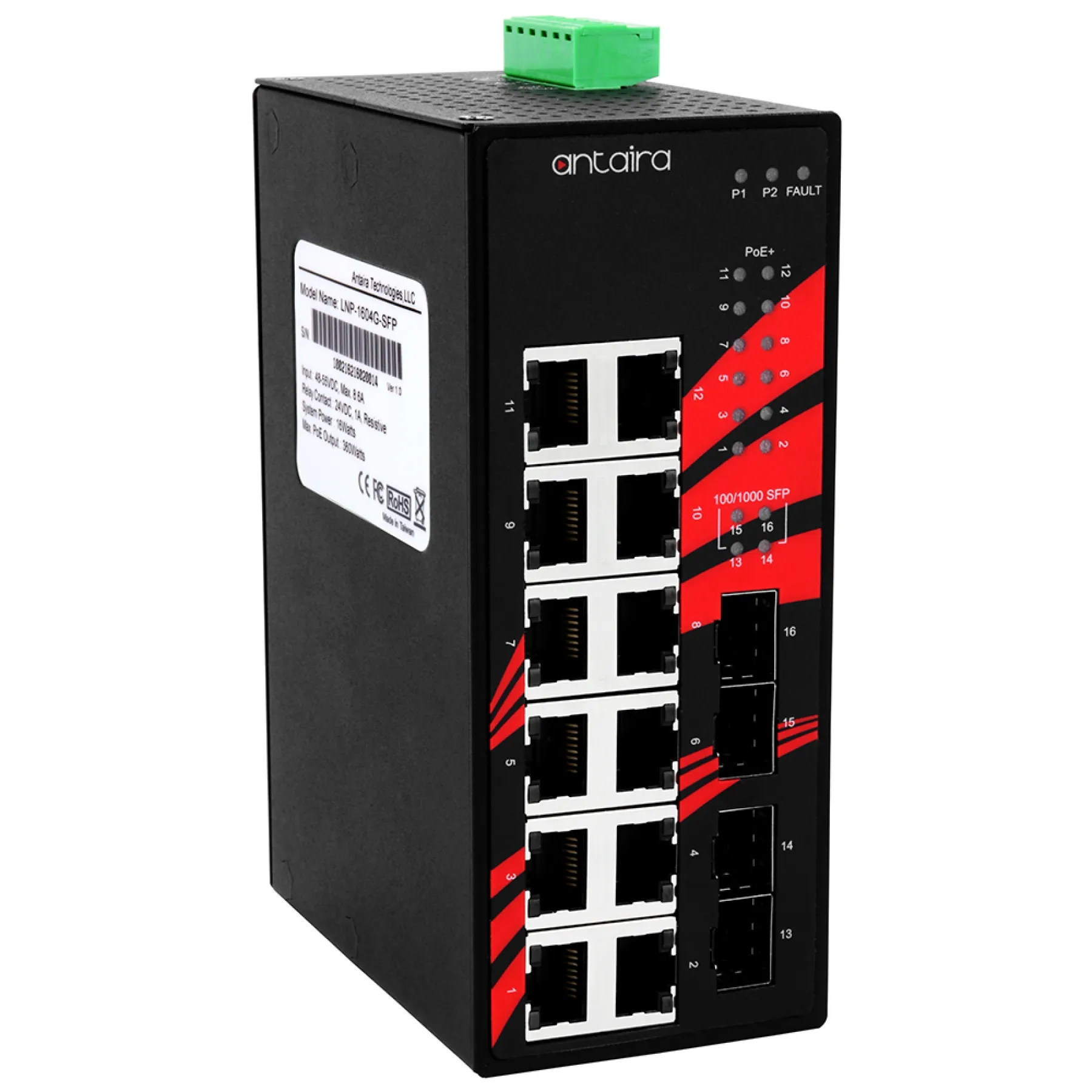

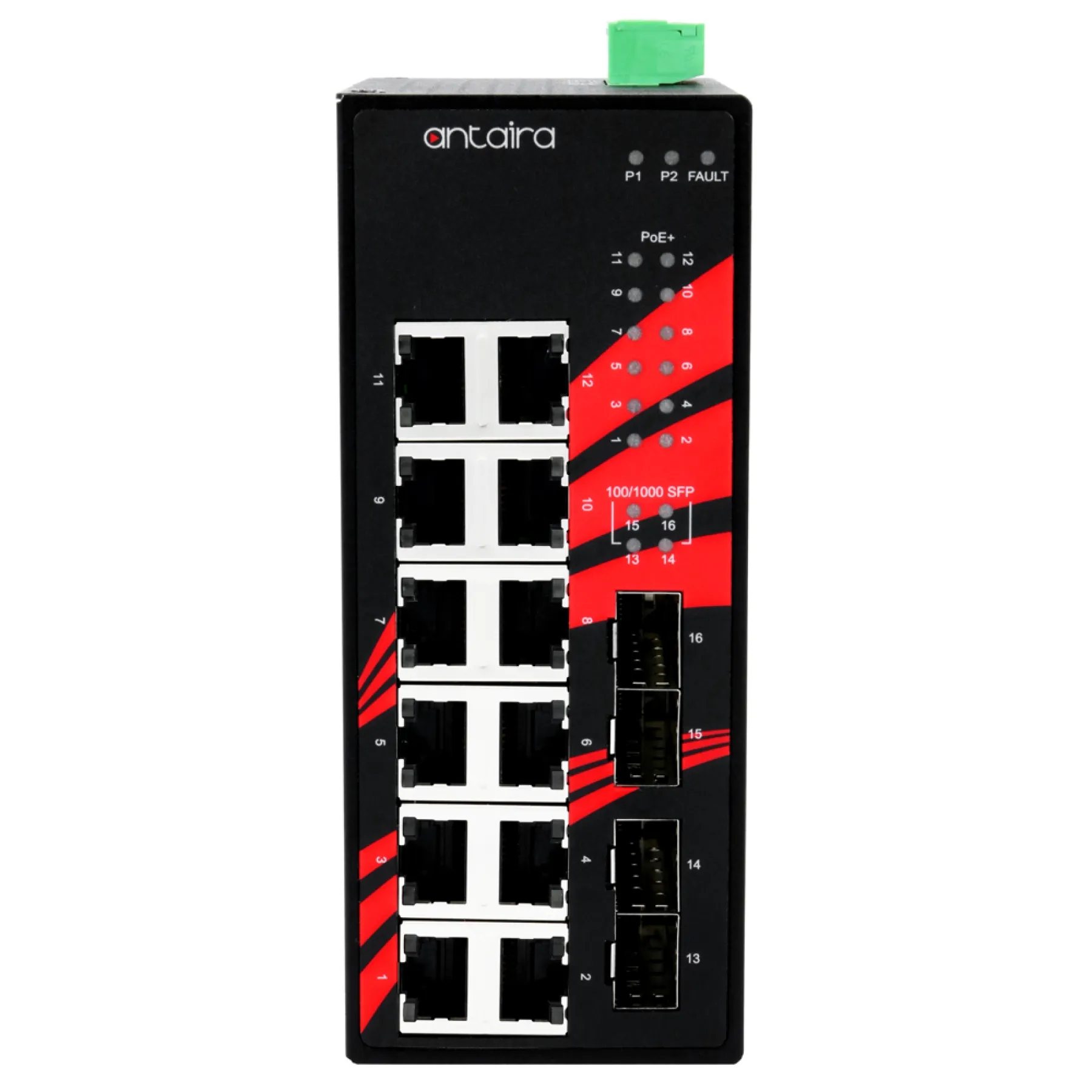

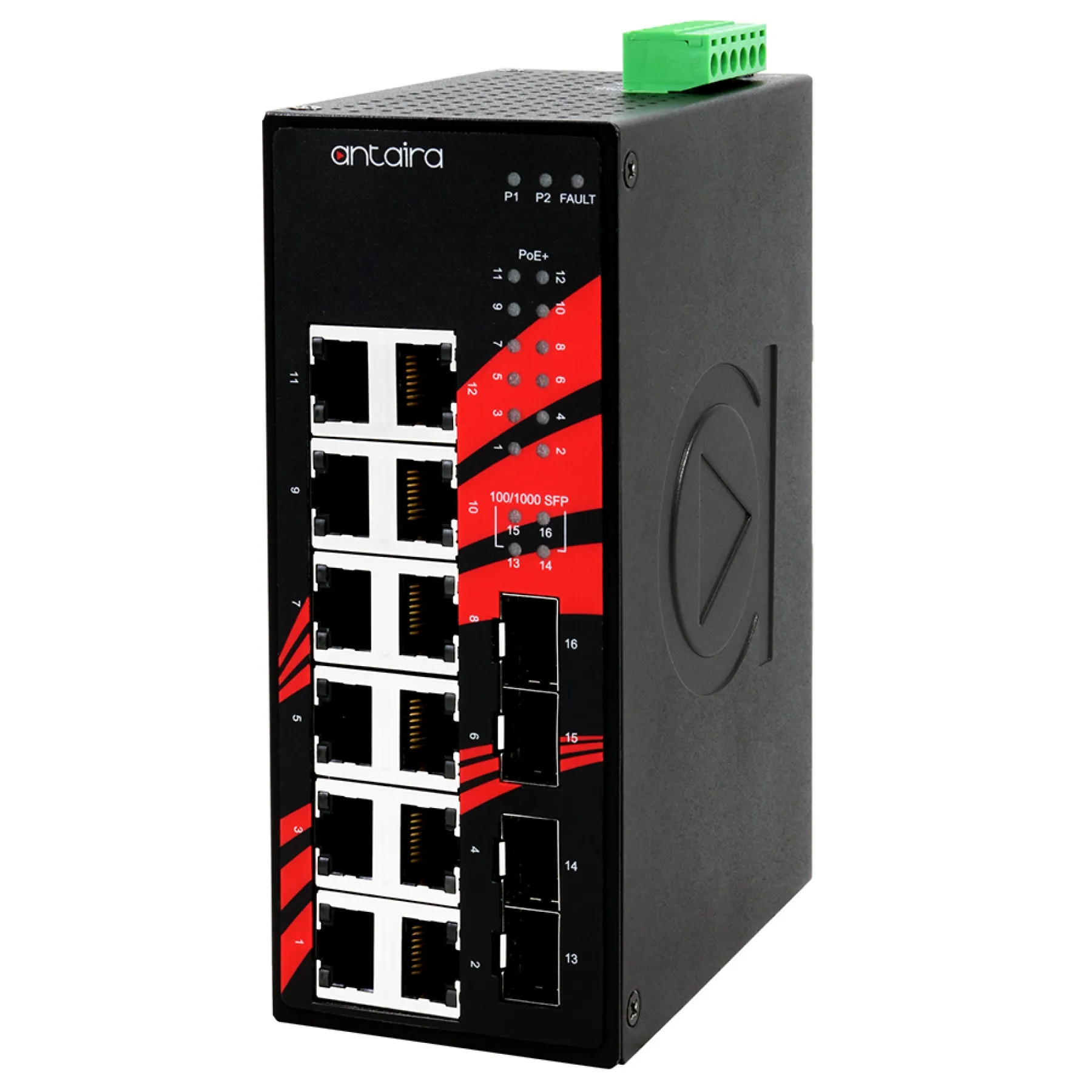

Antaira Technologies’ LNP-1604G-SFP industrial gigabit PoE+ unmanaged Ethernet switch series has twelve 10/100/1000TX RJ45 ports that support IEEE 802.3af/at PoE/PoE+ standards supplying up to 30 watts per port. The device also has four dual rate (100/1000) SFP slots for fiber connection. It is IP30 rated design with both DIN-Rail and wall mounting options. It is ideal for applications that require high density port connections with full high PoE power outputs, wide network bandwidth, and multiple gigabit fiber connections. The LNP-1604G-SFP series works well in industrial applications such as, security video surveillance, GigE machine vision, process control automation and intelligent transportation. This product series provides high EFT and ESD protection with a redundant power input support of 48~55VDC. There are two wide operating temperature models to support -40 to 75 ̊C environment.
