LNP-0800-T

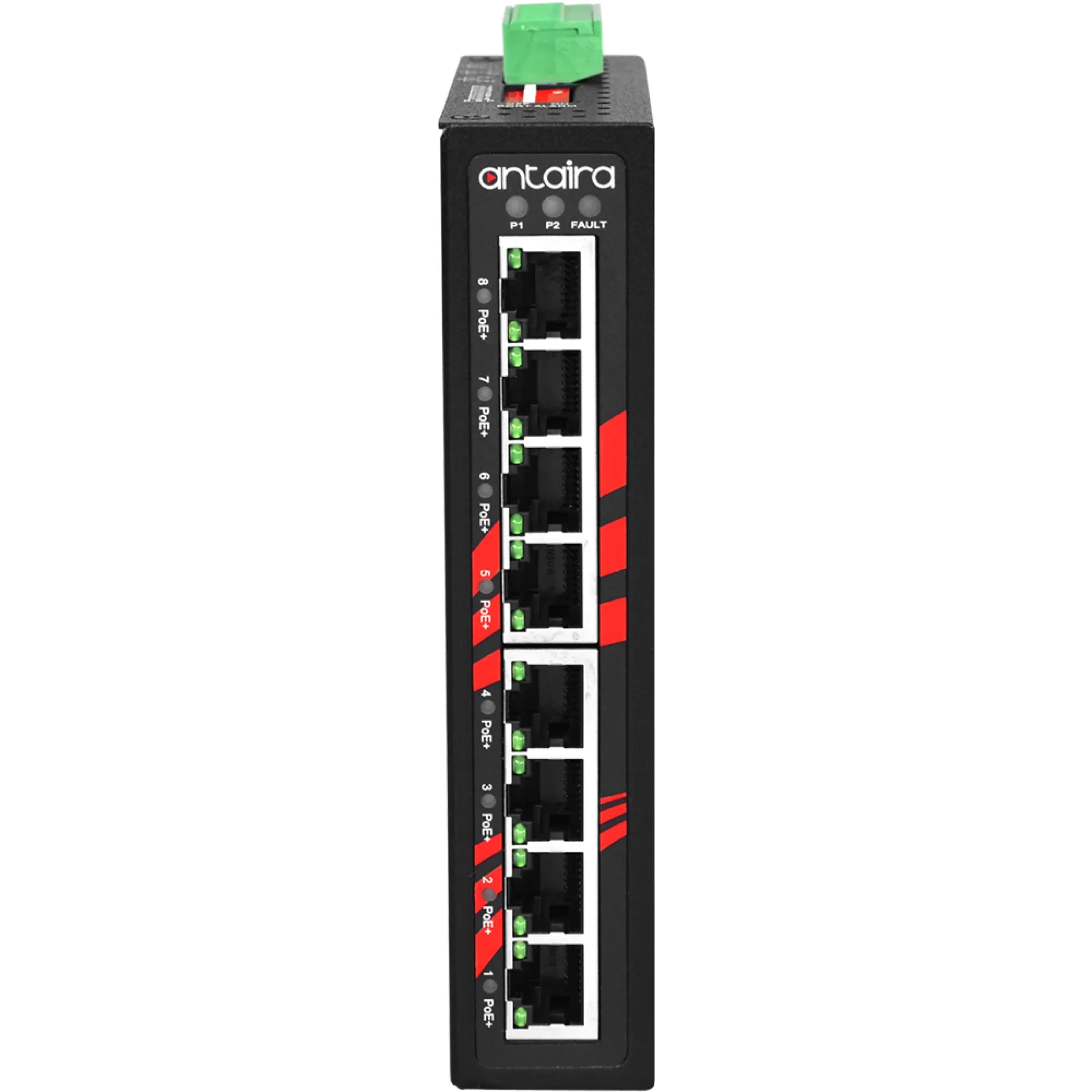

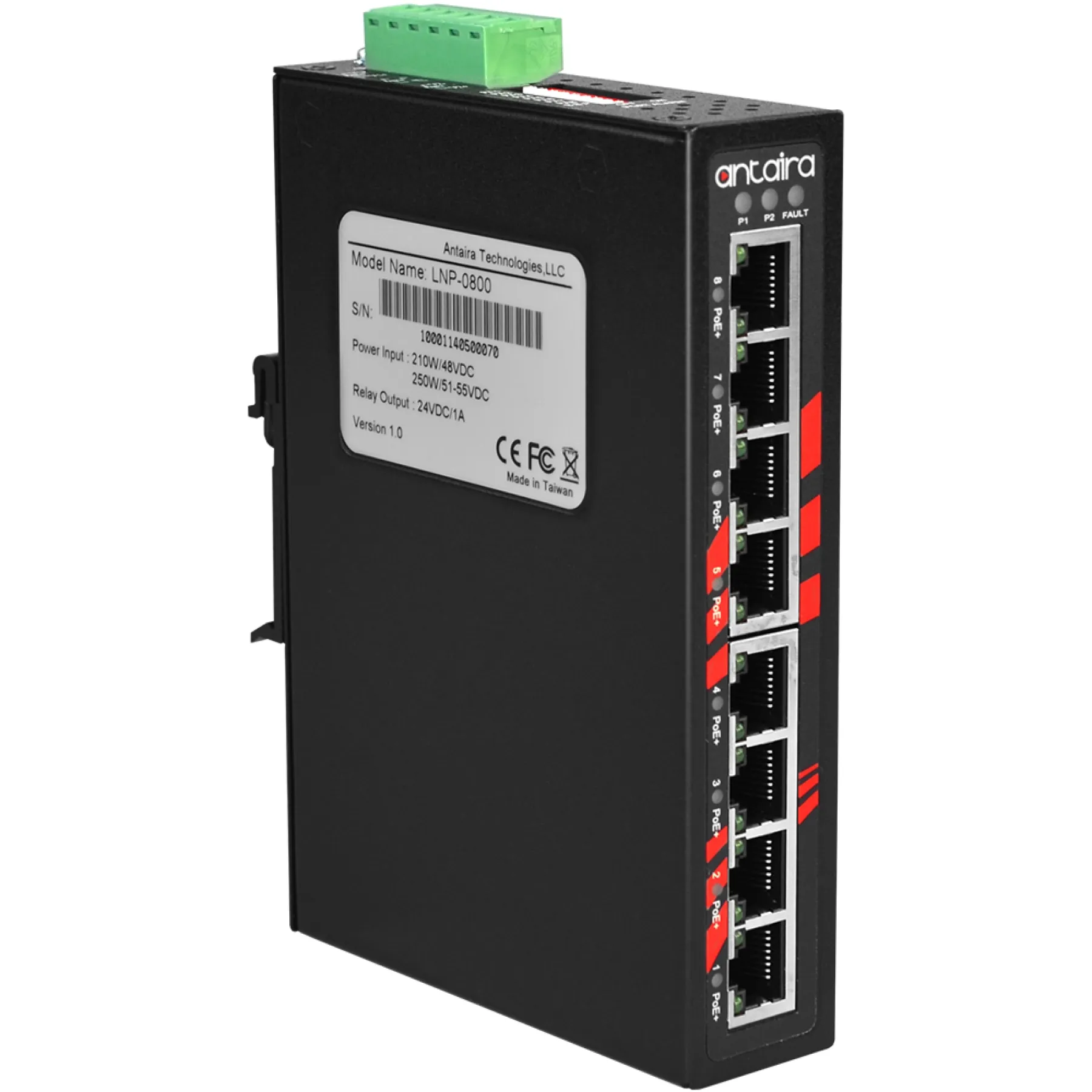

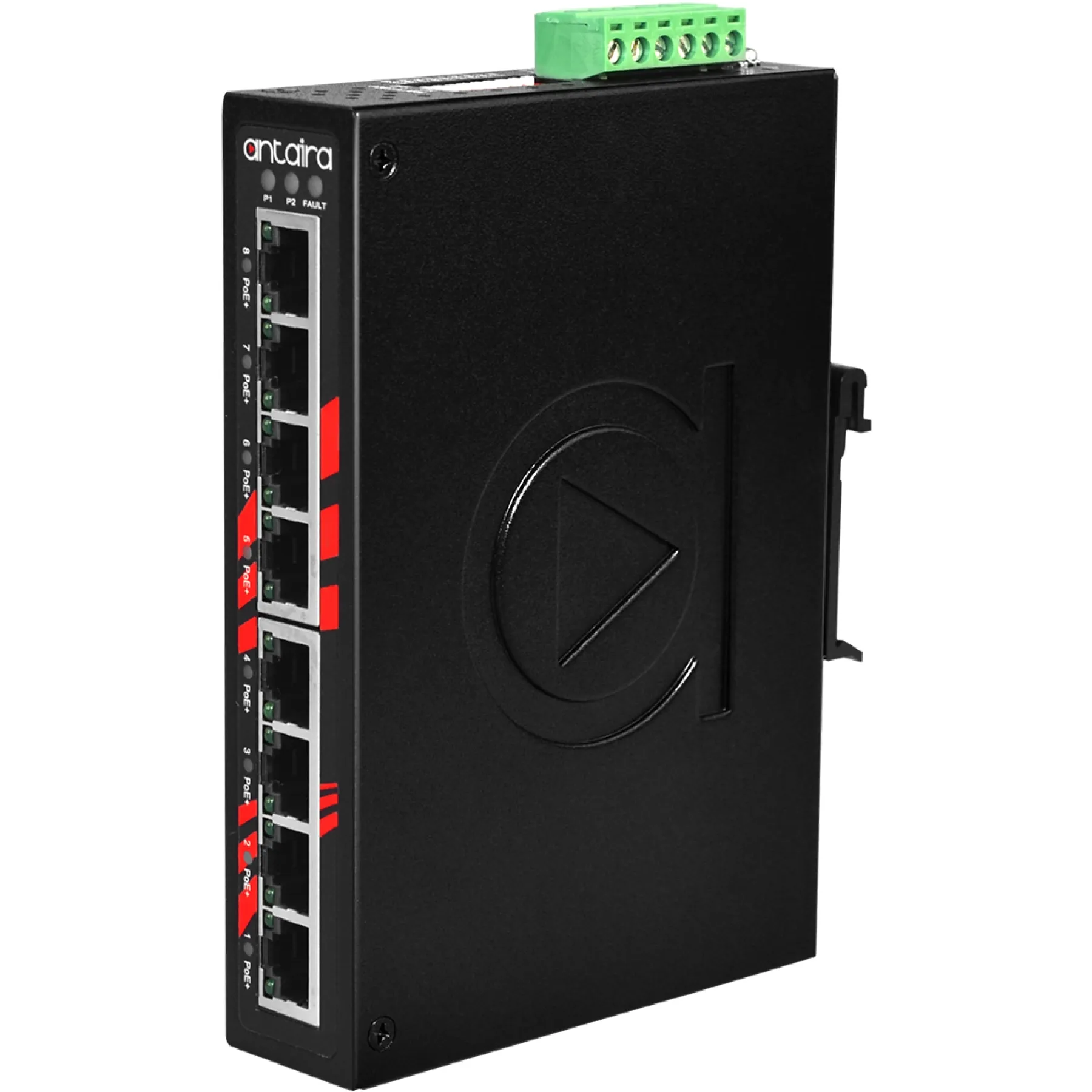

Antaira LNP-0800-T 8-Port Industrial PoE+ Unmanaged Ethernet Switch, w/8*10/100Tx (30W/Port); EOT: -40~75C

LNP-0800-T

Network broadcast storm protection
8-Port IEEE 802.3at compliant PoE+ Function with 30W/Port
Supports Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
2K MAC Address Table
Surge Protection: 2,000 VDC support
ESD Protection: 6,000 VDC support
UL Class I, Division 2 Certified
Redundant Power Input Design – 48~55VDC
Built-in 1 relay output for Port Break Alarm
IP30 Rugged Aluminum Case Design

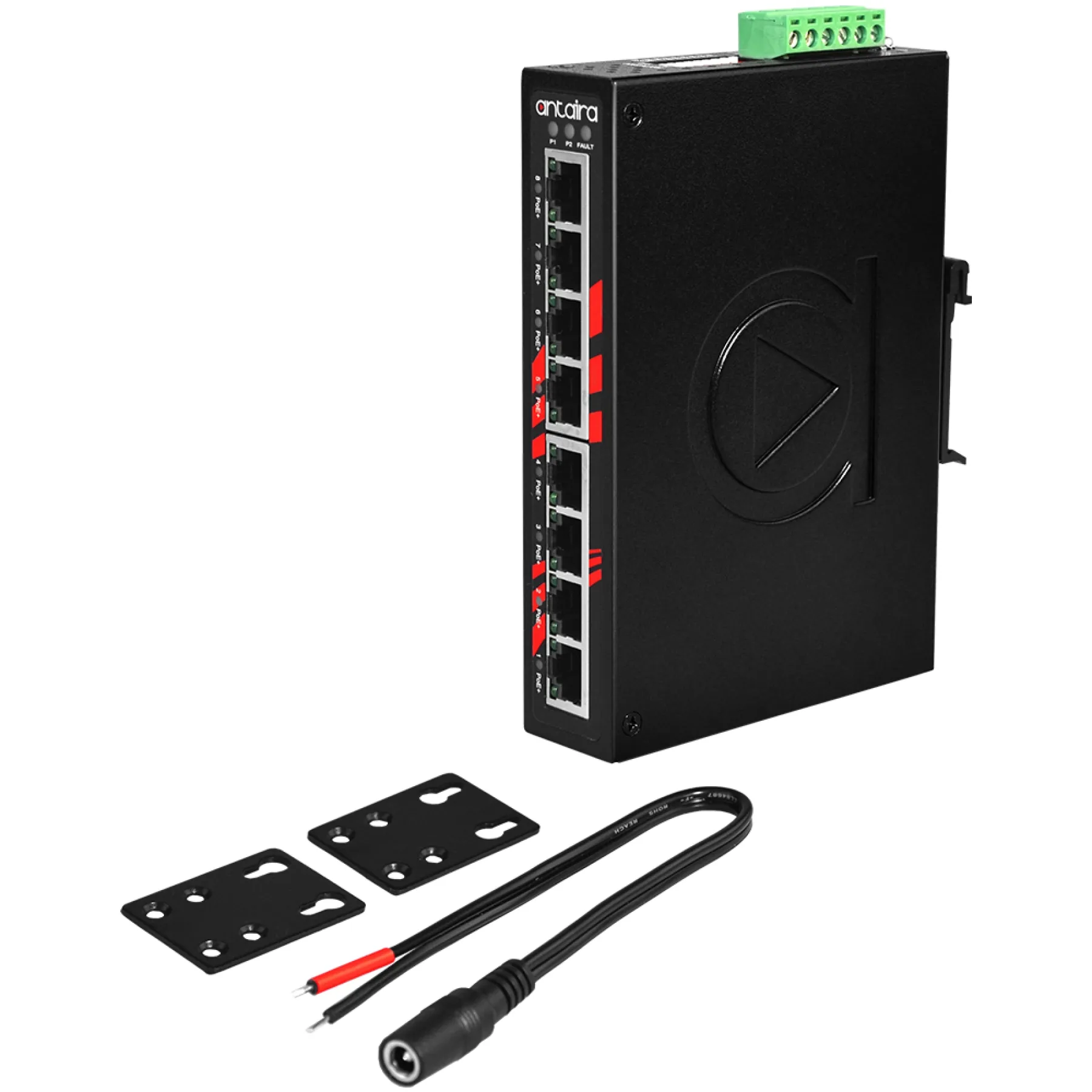

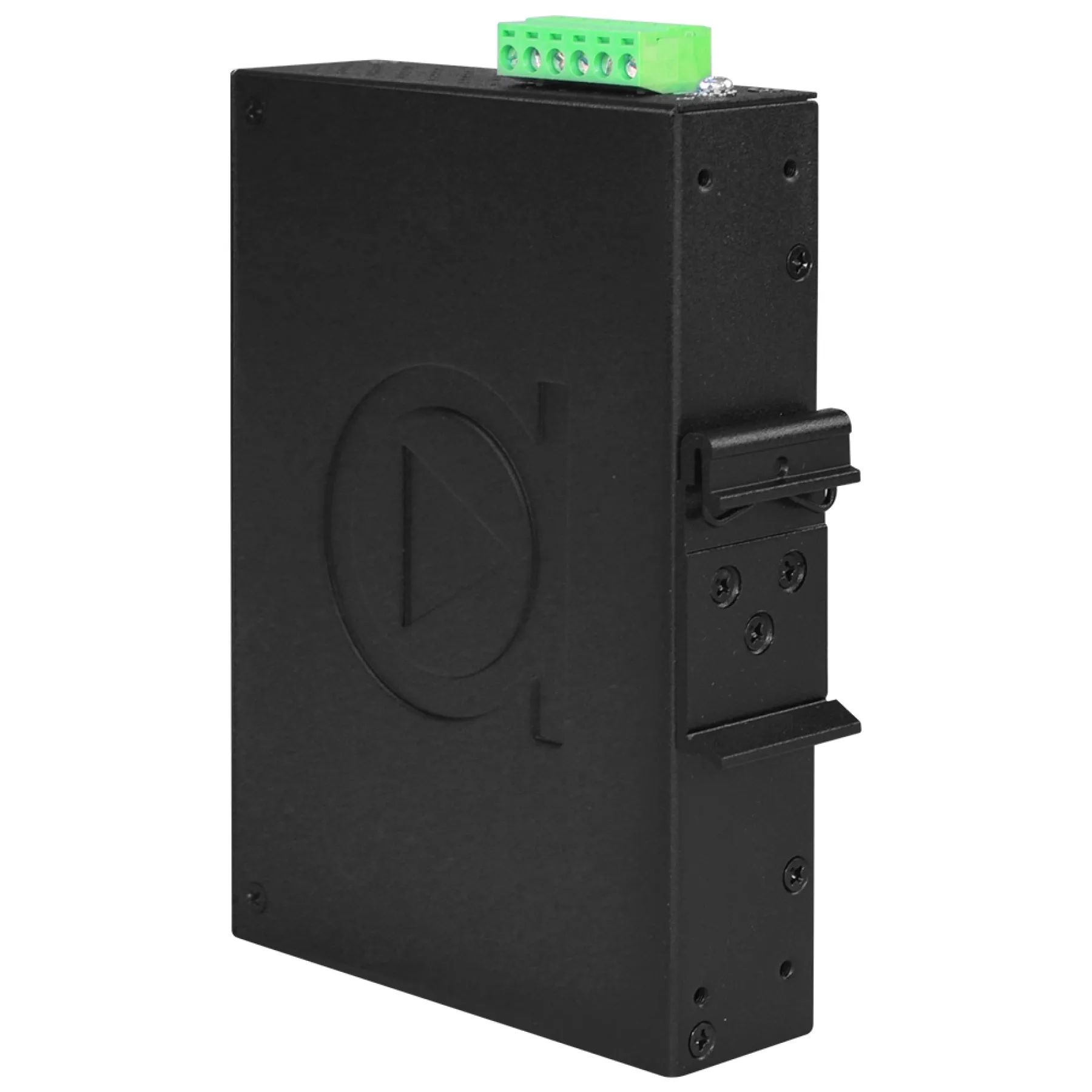

DIN-Rail and Wall Mount support
Operating Temperature range – STD: -10° to 70° C, EOT: -40° to 75° C
5-Year Warranty

Product Code: LNP-0800-T

Categories: 10/100 Mbps, 10/100 Mbps PoE, Antaira, Antaira Industrial Ethernet Switches, Antaira Low-Voltage Industrial POE Switches, Antaira Power Over Ethernet (POE) Switches, Antaira Specialty Industrial Networking Equipment, C1D2 Unmanaged Industrial Ethernet Switches, Class 1 Division 2, PoE, Specialty Solutions, Unmanaged Ethernet Switches, Unmanaged PoE Switches

Details

Antaira’s LNP-0800 series switch is a smart 8-port Industrial Unmanaged Ethernet Switch that supports IEEE-802.3at (Power-over-Ethernet Plus) on ports 1 to 8. This switch is classified as power sourcing equipment (PSE), and when used in this way, the LNP-0800 series switch enables centralization of the power supply and provides up to 30 watts of power per port. The LNP-0800 series switch can be used to power IEEE 802.3af or 802.3at compliant power devices (PD), eliminating the need for additional wiring, and supports IEEE 802.3/802.3u/802.3x with 10/100BTx, full or half duplex, and MDI/MDI-X auto sensing to provide an economical solution for the Industrial Ethernet Network. In addition, the Network Broadcast Storm Protection and built-in relay warning function alerts network engineers when power failures or port breaks occur.

Downloads
