LNP-0702G-SFP-24

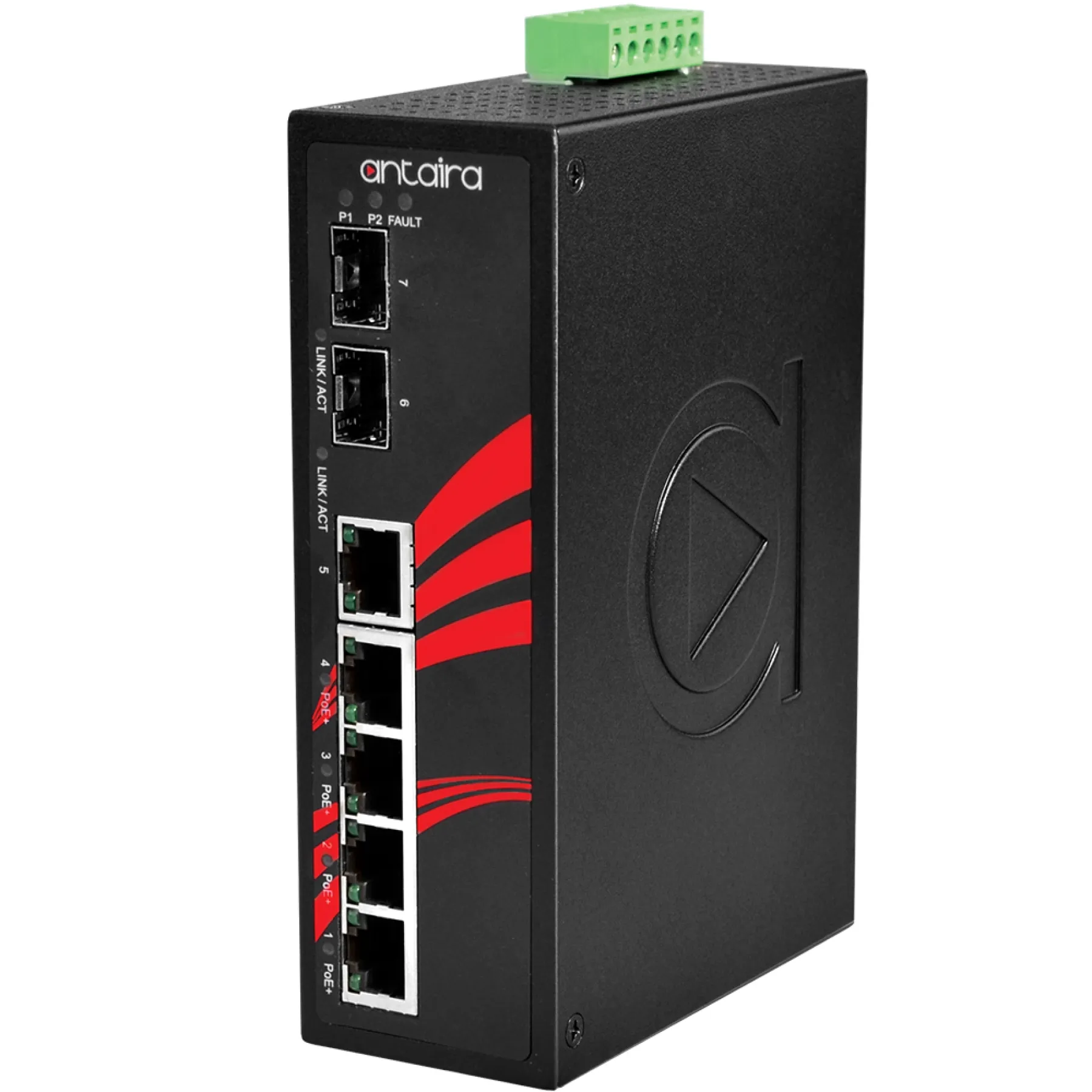

Antaira LNP-0702G-SFP-24 7-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch, with 410/100/1000Tx (30W/Port), 110/100/1000Tx, and 2*100/1000 SFP Slots; 12~55VDC Power Input

LNP-0702G-SFP-24

Supports 4-Port 10/100/1000Tx IEEE 802.3at PoE+ Compliant with 30W per Port, 1-Port 10/100/1000Tx + 2-Port 100/1000 SFP
Supports Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
14Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 2,000 VDC Support
ESD Protection: 6,000 VDC Support
UL Class I, Division 2 Certified
Redundant Power Input Design: 12~55VDC
Built-in 1 Relay Output for Power Failure Detection
IP30 Rugged Metal Case Design

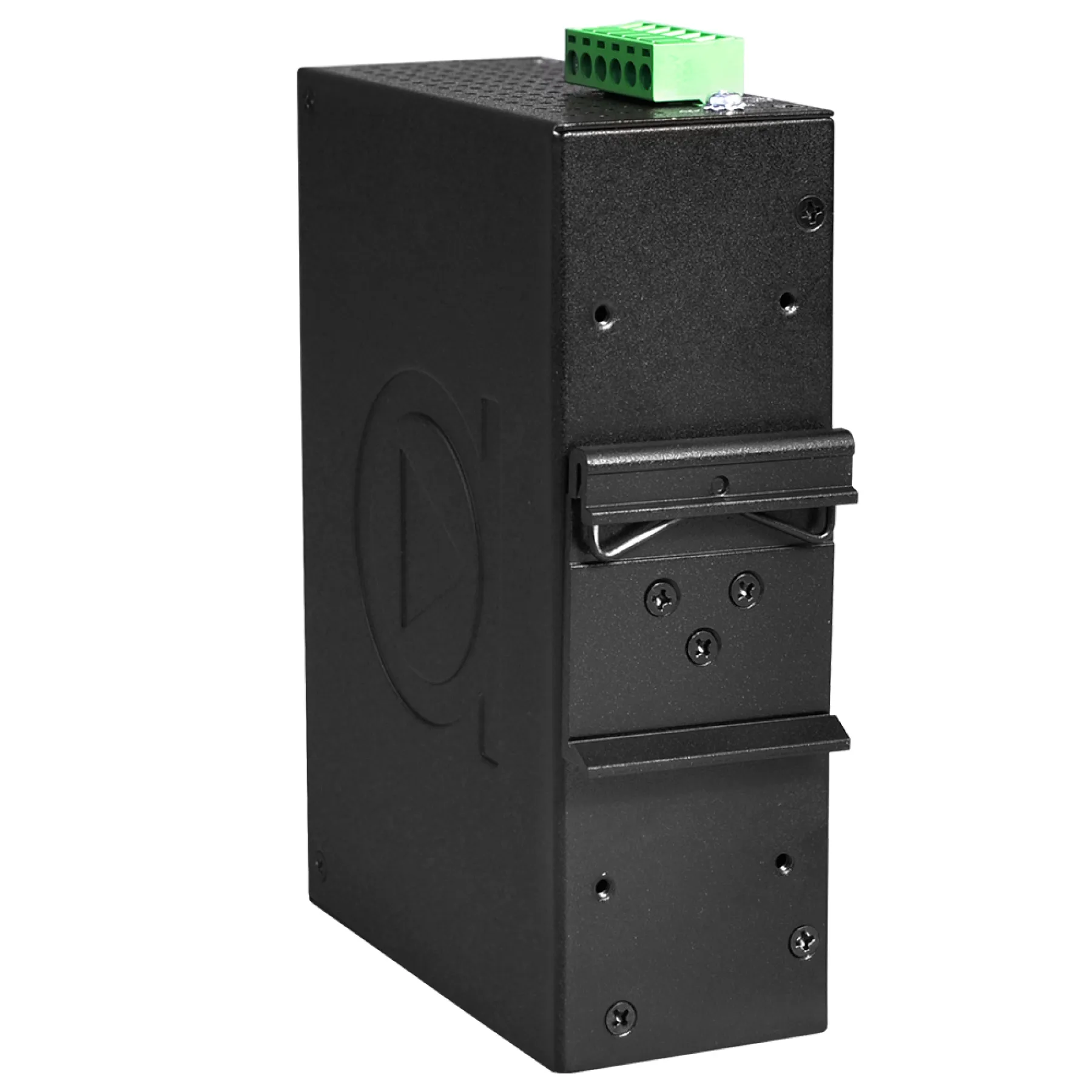

DIN-Rail and Wall Mount Support
Operating Temperature Range – STD: -10° to 70° C
5-Year Warranty

Product Code: LNP-0702G-SFP-24

Categories: Antaira, Antaira Industrial Ethernet Switches, Antaira Low-Voltage Industrial POE Switches, Antaira Power Over Ethernet (POE) Switches, Antaira Specialty Industrial Networking Equipment, C1D2 Unmanaged Industrial Ethernet Switches, Class 1 Division 2, Gigabit, Gigabit PoE, PoE, Specialty Solutions, Unmanaged Ethernet Switches, Unmanaged Low Voltage PoE Switches, Unmanaged PoE Switches

Details

Antaira’s LNP-0702G-SFP-24 industrial gigabit unmanaged Ethernet switch series are IP30 rated and DIN-Rail mountable. Each unit is designed with five gigabit Ethernet ports that are IEEE 8023.at compliant (power-over-Ethernet plus) on ports 1-4 (30W/Port) and has two dual rate (100/1000) SFP slots, making it ideal for applications that demand high bandwidth and long distance communication. This product series provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur. The LNP-0702G-SFP-24 series meets IEEE 802.3at (30 Watts per port @ 53VDC), supports 12V ~ 55VDC power inputs and has an operating temperature range of -10 to 70° perfectly designed to fulfill any special needs for industrial automation, outdoor applications and harsh weather environments.

Downloads
