LNP-0602-ST-S3-T

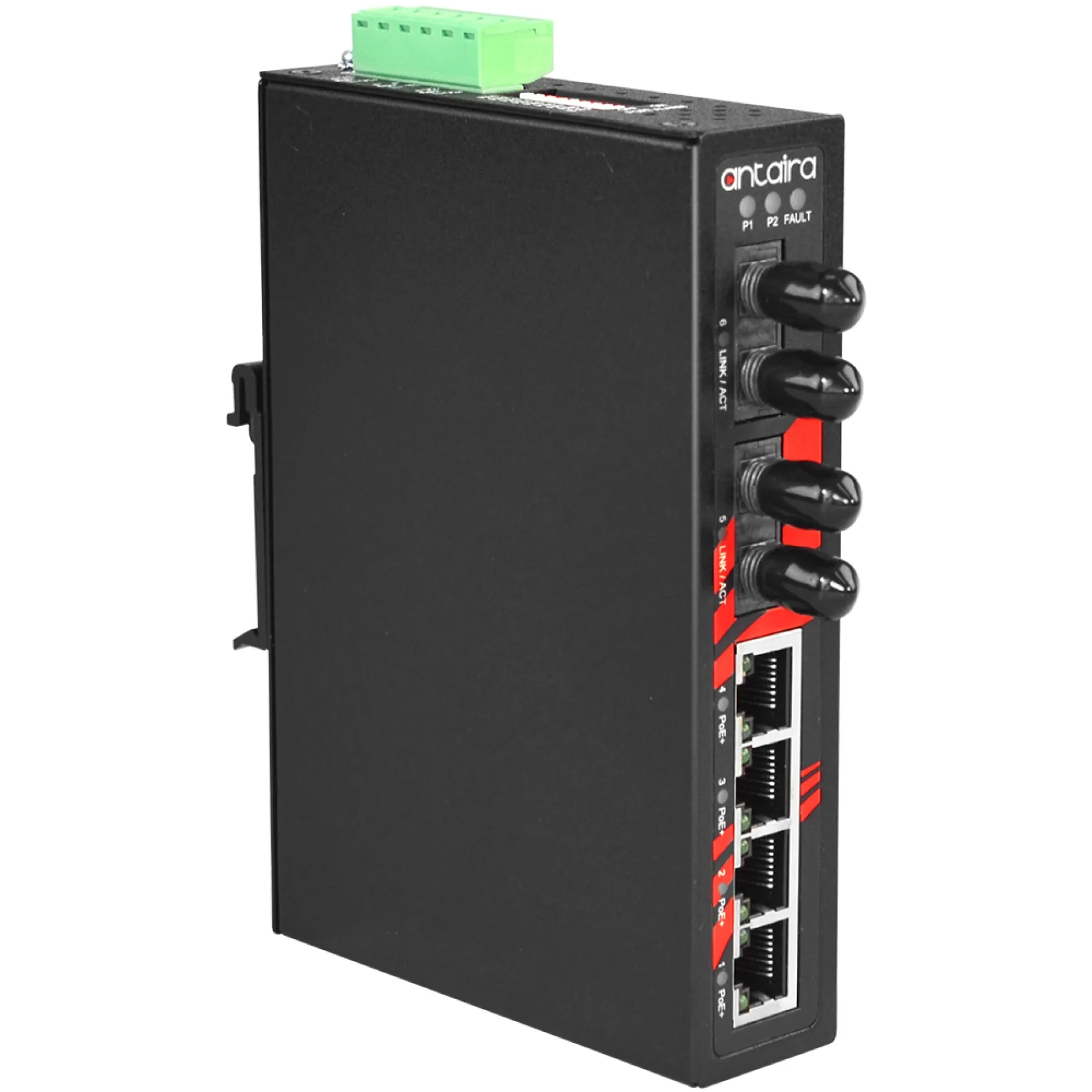

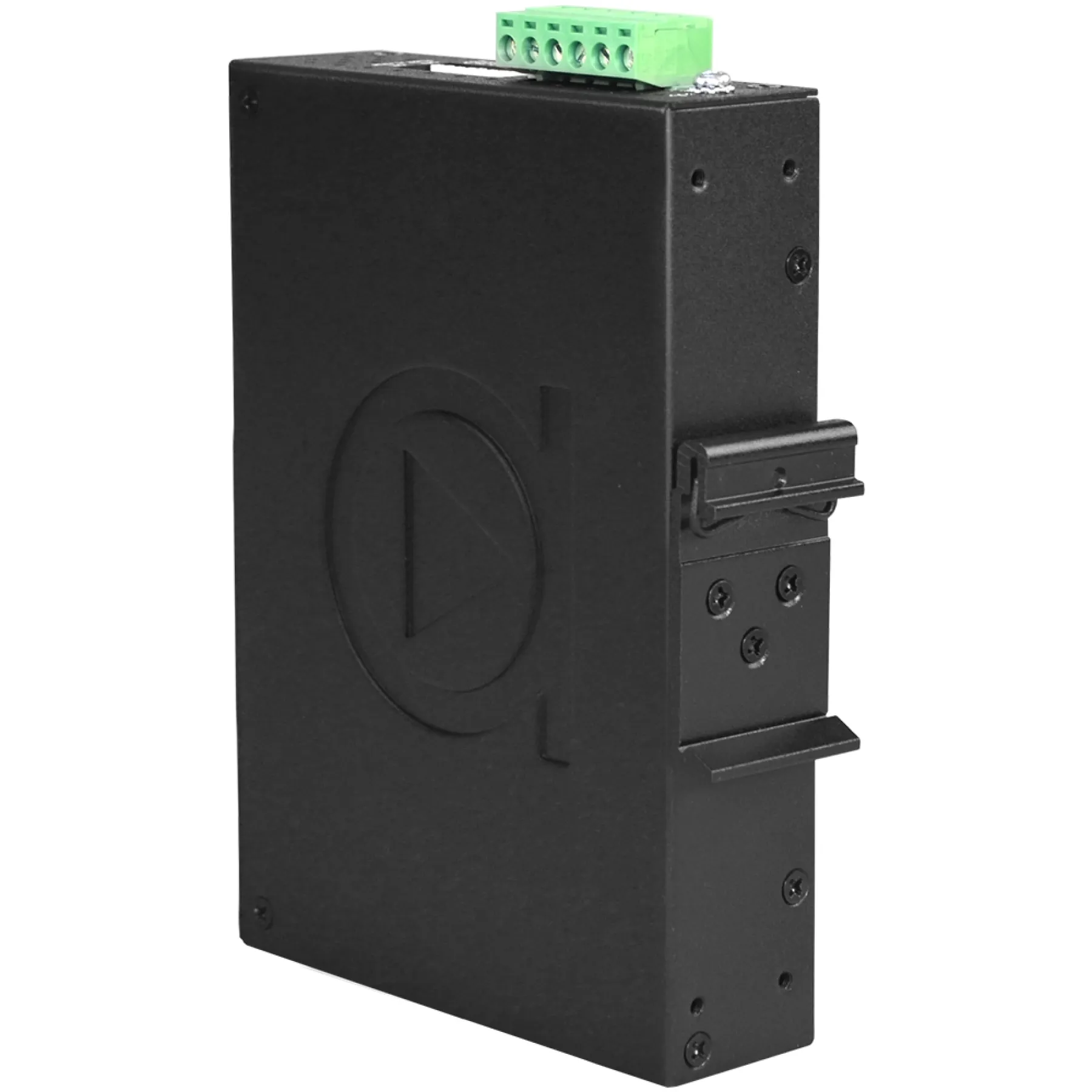

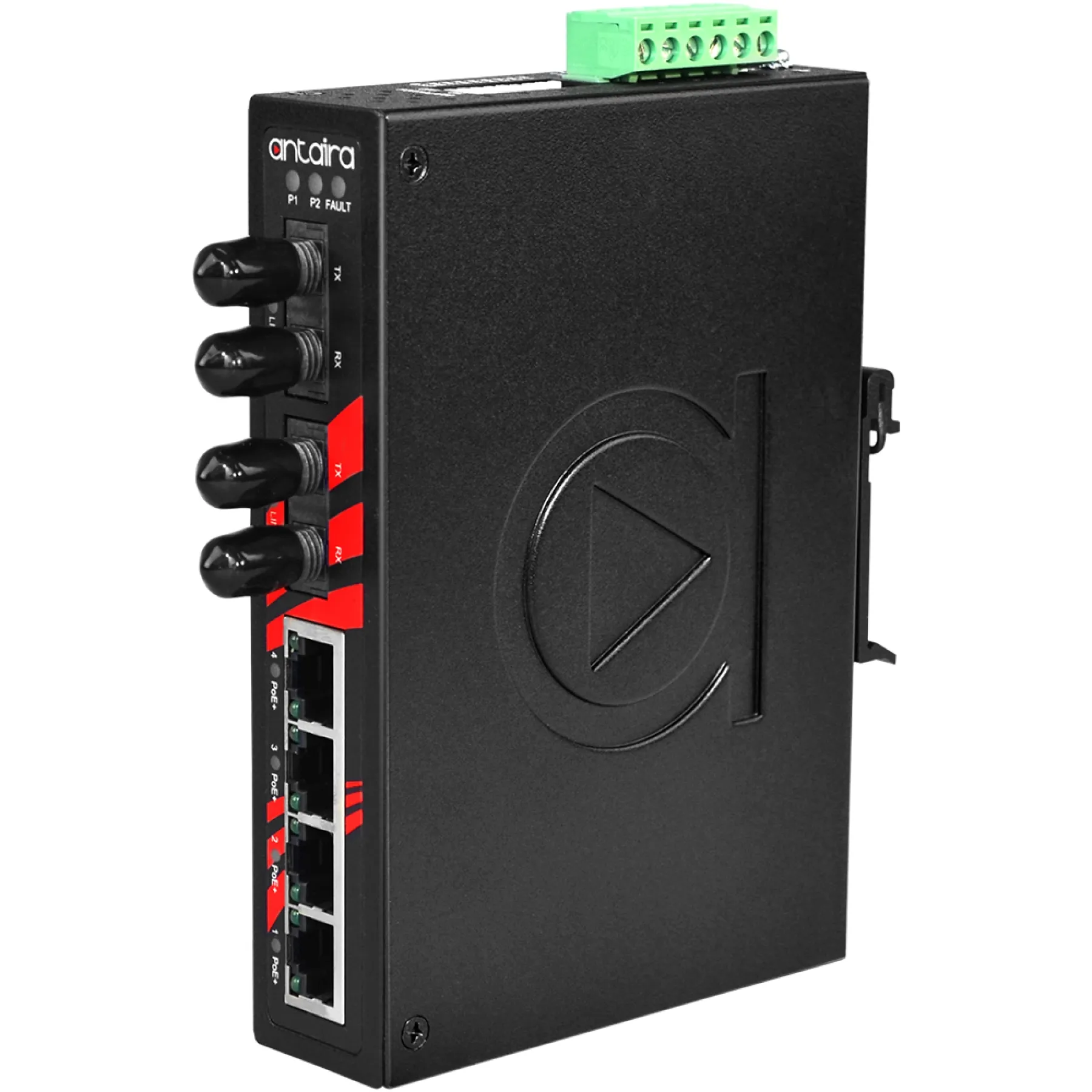

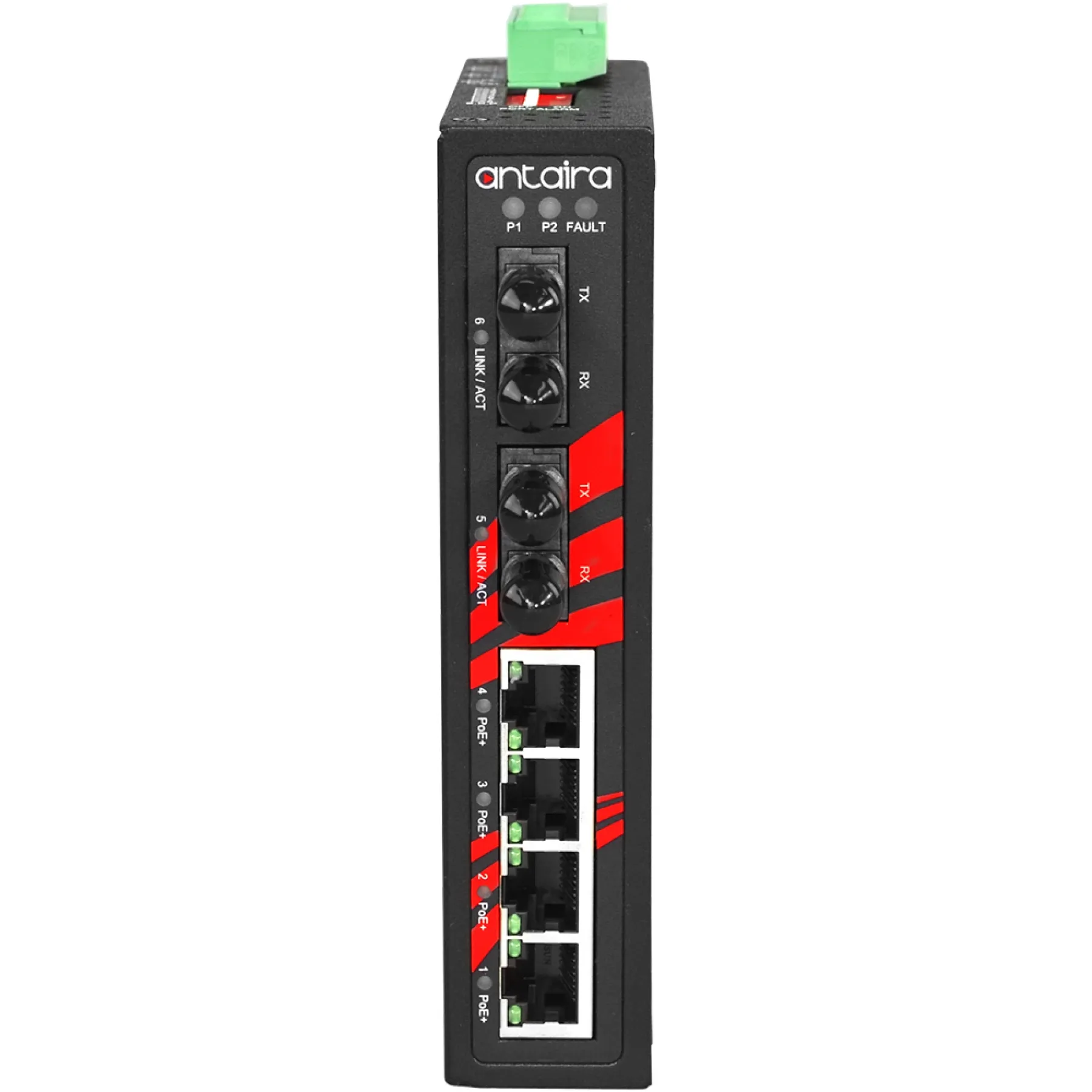

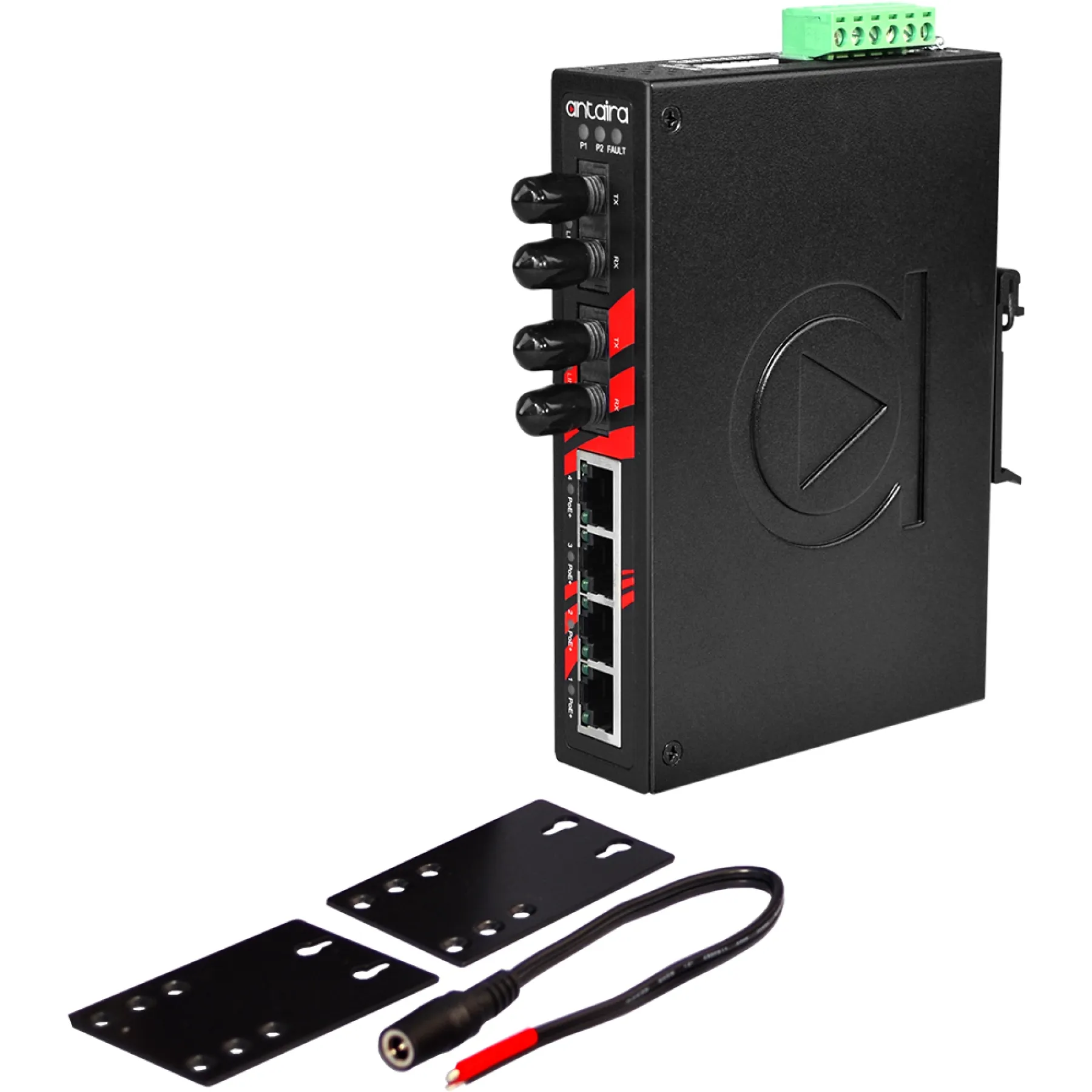

Antaira LNP-0602-ST-S3-T 6-Port Industrial PoE+ Unmanaged Ethernet Switch, w/410/100Tx (30W/Port), 2100Fx Single-mode 30Km, ST Connector; EOT: -40~75C

LNP-0602-ST-S3-T

Network broadcast storm protection
4-Ports IEEE 802.3at compliant PoE+ Function with 30W/Port
2-Ports 100Fx SC/ST type connector (Multi / Single mode)
Supports Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
2K MAC Address Table
Surge Protection: 2,000 VDC support
ESD Protection: 6,000 VDC support
UL Class I, Division 2 Certified
Redundant Power Input Design – 48~55VDC
Built-in 1 relay output for Port Break Alarm
IP30 Rugged Aluminum Case Design
DIN-Rail and Wall Mount support
Operating Temperature range – STD: -10° to 70° C, EOT: -40° to 75° C
5-Year Warranty

Product Code: LNP-0602-ST-S3-T

Categories: 10/100 Mbps, 10/100 Mbps PoE, Antaira, Antaira Industrial Ethernet Switches, Antaira Low-Voltage Industrial POE Switches, Antaira Power Over Ethernet (POE) Switches, Antaira Specialty Industrial Networking Equipment, C1D2 Unmanaged Industrial Ethernet Switches, Class 1 Division 2, PoE, Specialty Solutions, Unmanaged Ethernet Switches, Unmanaged PoE Switches

Details

Antaira’s LNP-0602 series switch is a smart 6-port Industrial Unmanaged Ethernet Switch that supports IEEE-802.3at (Power-over-Ethernet Plus) on ports 1 to 4. It comes with 2 x 100Fx ports with SC or ST type connectors and supports Multi-mode in 2Km, or Single-mode in 30Km. The LNP-0602 series switch supplies a power source up to 30 watts/per port @ 51~55VDC output; with 48~55VDC power input support. This series offers an Extended Operating Temperature model (w/-T) that supports -40°C ~ 75°C. It also supports IEEE 802.3/802.3u/802.3x with 10/100BTx, full or half duplex, and MDI/MDI-X auto sensing to provide an economical solution for the Industrial Ethernet Network. In addition, the Network Broadcast Storm Protection and built-in relay warning function alerts network engineers when power failures or port breaks occur.
