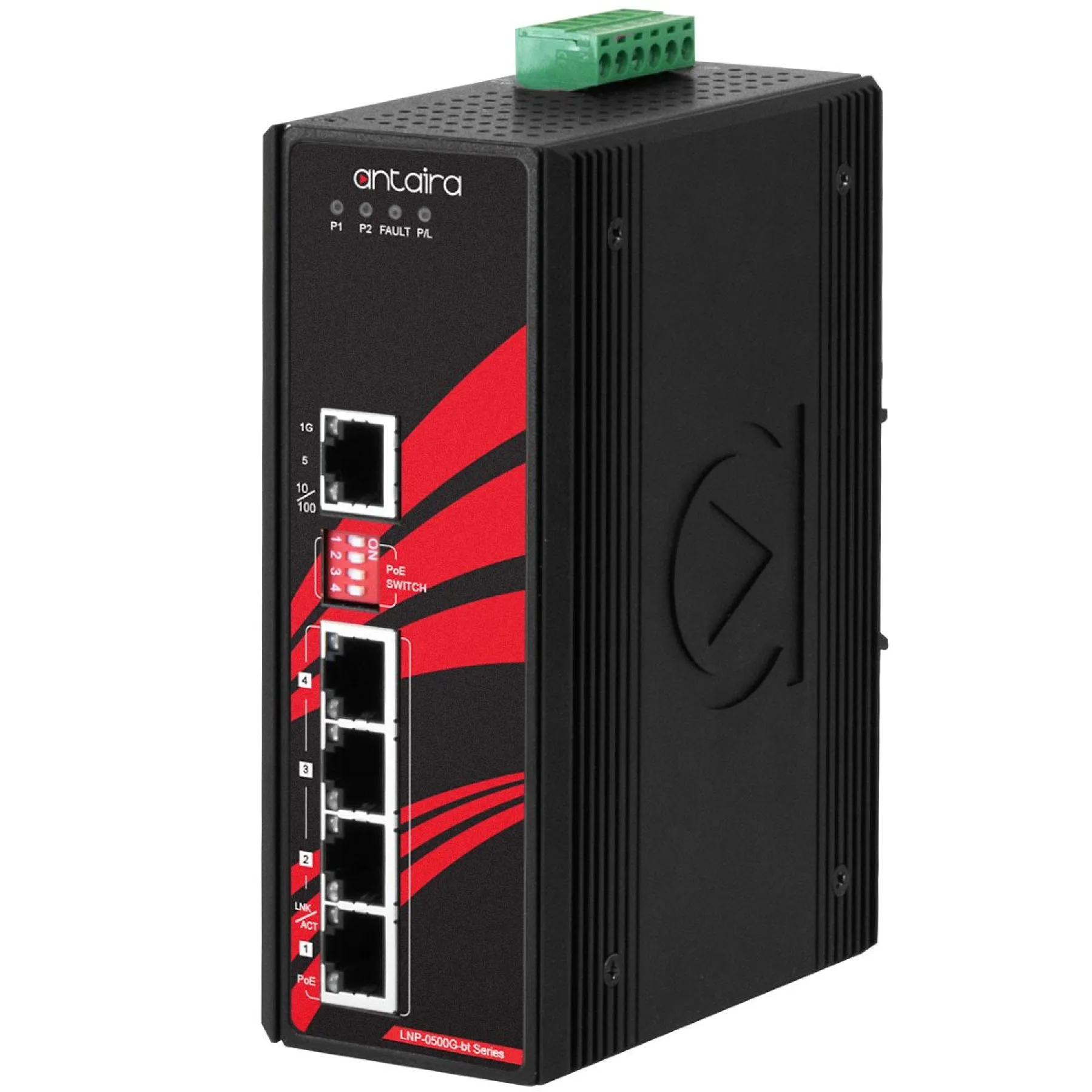

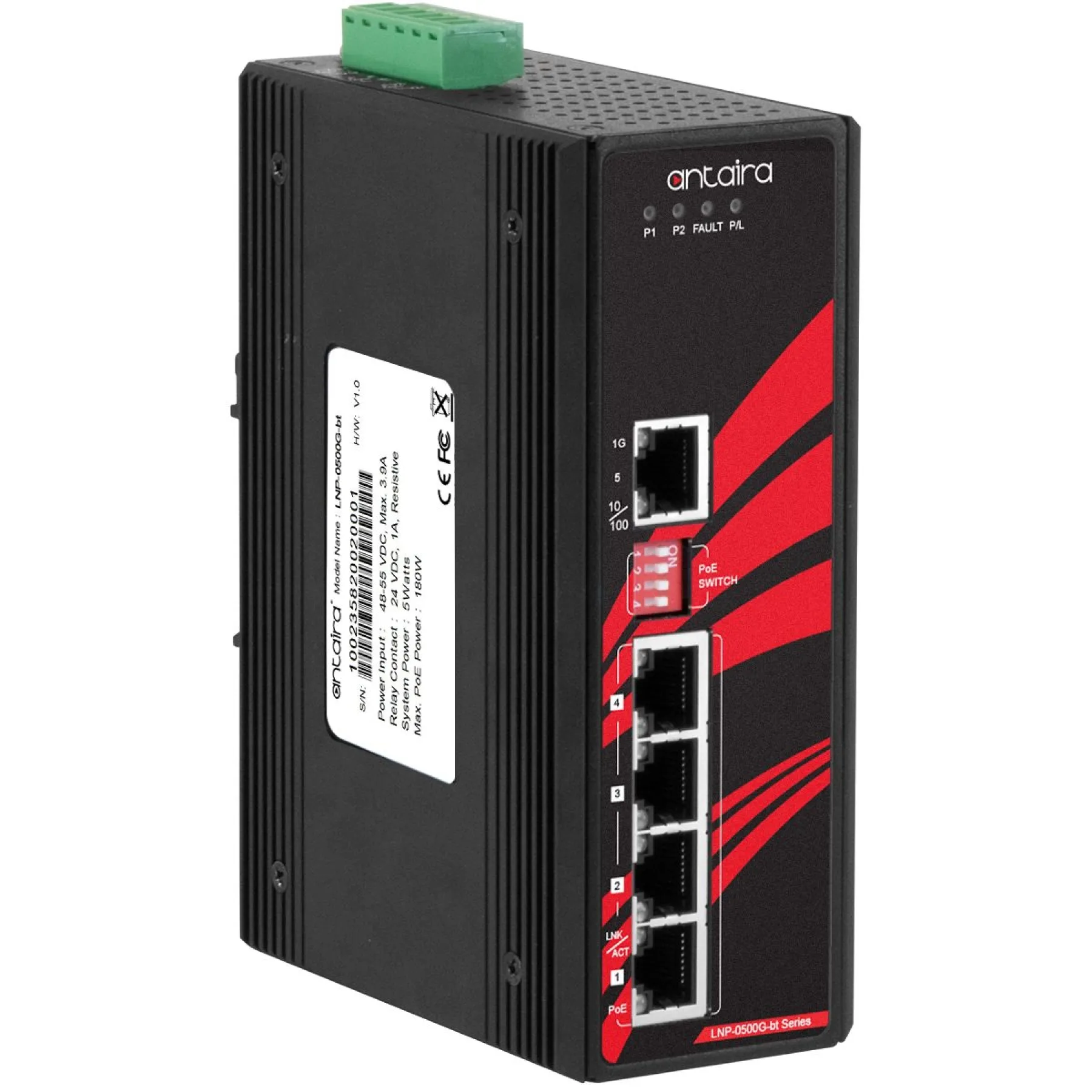

Antaira LNP-0500G-bt-T 5-Port Industrial Gigabit PoE++ Unmanaged Ethernet Switch
LNP-0500G-bt-T
- Supports 4*10/100/1000Tx IEEE 802.3bt Compliant with 90W/Port and 1*10/100/1000Tx Ethernet Port
- Store-and-Forward Switching Architecture
- 10Gbps Back-Plane (Switching Fabric)
- 8K MAC Address Table
- 10.0Kbytes Jumbo Frame Support
- Redundant Power Input Design: 48~55VDC
- Built-in 1 Relay Output for Power Failure Warning
- IP30 Rugged Metal Case Design
- DIN-Rail and Wall Mount Support Included
- Extended Operating Temperature -40 to 75°C
- 5-Year Warranty
LNP-0500G-bt-T
90 Watt PoE++, Antaira, Antaira Low-Voltage Industrial POE Switches, Antaira Power Over Ethernet (POE) Switches, Antaira Specialty Industrial Networking Equipment, Gigabit, Industrial PoE++ Devices, PoE, Specialty Solutions, Unmanaged PoE Switches
Details
Antaira Technologies’ LNP-0500G-bt-T is an industrial gigabit PoE++ unmanaged Ethernet switch featuring 4*10/100/1000Tx Gigabit Ethernet ports that support IEEE 802.3bt for a maximum of 90W/port and 1*10/100/1000Tx Ethernet port. The LNP-0500G-bt-T is an ideal solution for rapid, unmanaged gigabit network expansion with PoE++ capabilities. The LNP-0500G-bt-T is IP30 rated and DIN-rail mountable. Working at an extended operating temperature range -40 to 75°C. It also provides Ethernet connectivity with PoE functions for outdoor or harsh industrial automation application environments, such as security surveillance, ITS-traffic monitoring systems, oil/gas and mining, facility management for power/utility, water wastewater treatment plants, and lastly, automated production lines in factory automation.Ordering Info
| LNP-0500G-bt | 5-Port Industrial Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch, w/4*10/100/1000Tx (90W/Port) and 1*10/100/1000Tx |
| LNP-0500G-bt-T | 5-Port Industrial Gigabit IEEE 802.3bt PoE++ Unmanaged Ethernet Switch, w/4*10/100/1000Tx (90W/Port) and 1*10/100/1000Tx; Extended Operating Temperature: -40°C~75°C |
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| Standards | IEEE 802.3 10Tx Ethernet IEEE 802.3u 100Tx Fast Ethernet IEEE 802.3ab 1000Tx Gigabit Ethernet IEEE 802.3at/af/bt Power over Ethernet |
| Processing Type | Store and Forward |
| Flow Control | IEEE 802.3x back pressure flow control |
| Switch Architecture | Back-Plane (Switching Fabric): 10.0Gbps |
| Transfer Rate | 14,880pps for 10Base-T Ethernet 148,800pps for 100Base-T Fast Ethernet 1,488,000pps for 1000Base-T Gigabit Ethernet |
| Packet Buffer | 1Mbit |
| Jumbo Frame | 10Kbytes |
| MAC Table Size | 8K |
| Ethernet RJ45 Port | 4*10/100/1000Tx (PSE: 90W/Port) + 1*10/100/1000Tx auto negotiation speed, Full/Half duplex mode, and auto MDI/MDIX connection |
| PoE Pin Out | V-, V-, V+, V+, for pin 1, 2, 3, 6 V+, V+, V-, V-, for pin 4, 5, 7, 8 |
| DIP Switch | Control PoE Function by Port |
| LED Indicators | System: Power 1, Power 2, Fault, PoE Load (P/L) Ethernet Ports: Link/Active PoE: On-connected to PD devices |
| Relay Contact | 24VDC, 1A resistive |
| Network Cable | 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable EIA/TIA-568 100-ohm (100m) 100Base-TX: 2-pair UTP/STP Cat. 5 cable EIA/TIA-568 100-ohm (100m) 1000BaseTX: UTP/STP Cat.5/5E cable EIA/TIA-568 100-ohm (100m) |
| Housing | Metal, IP30 protection |
| Dimension | 54 x 142 x 99 mm |
| Weight | Unit: 1.85 lbs.; Shipping: 2.51 lbs. |
| Mounting | DIN-Rail mounting, Wall mounting |
| Input Voltage | 48~55VDC Redundant Input *For IEEE 802.3bt application, power supply not less than 53V is recommended |
| Power Connection | 1 removable 6-contact terminal block |
| Overload Current Protection | Present |
| Power Reverse Polarity Protection | Present |
| Power Consumption | 5W |
| Max PoE Power Budget | 180W @48~55VDC |
| PoE Power Output | 90W max. per PoE port |
| PoE Port Priority | Port 1>Port 2>Port 3>Port 4 |
| Operating Temperature | STD: -10 to 65°C EOT: -40 to 75°C |
| Storage Temperature | -40°C ~ 85°C |
| Ambient Relative Humidity | 5 to 95%, (non-condensing) |
| EMI | FCC Part 15 Subpart B Class A, CE EN55032/EN61000-6-4 Class A |
| EMS | CE EN55035/EN61000-6-2 Class A, IEC61000-4-2,3,4,5,6,8 |
| Free Fall | IEC60068-2-32 |
| Shock | IEC60068-2-27 |
| Vibration | IEC60068-2-6 |
| Green | RoHS Compliant |
| Certifications | FCC, CE |
| Warranty | 5 Years |
