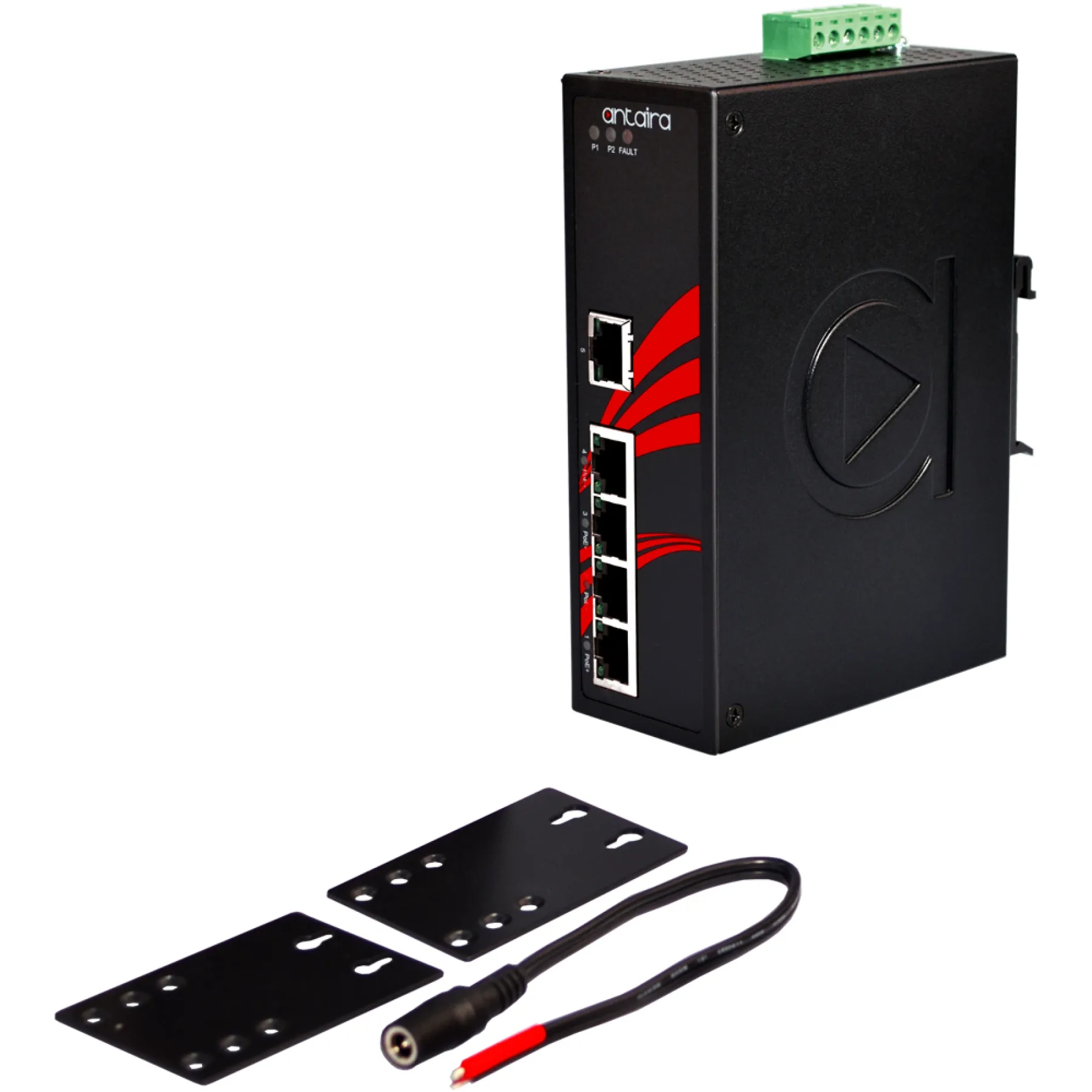

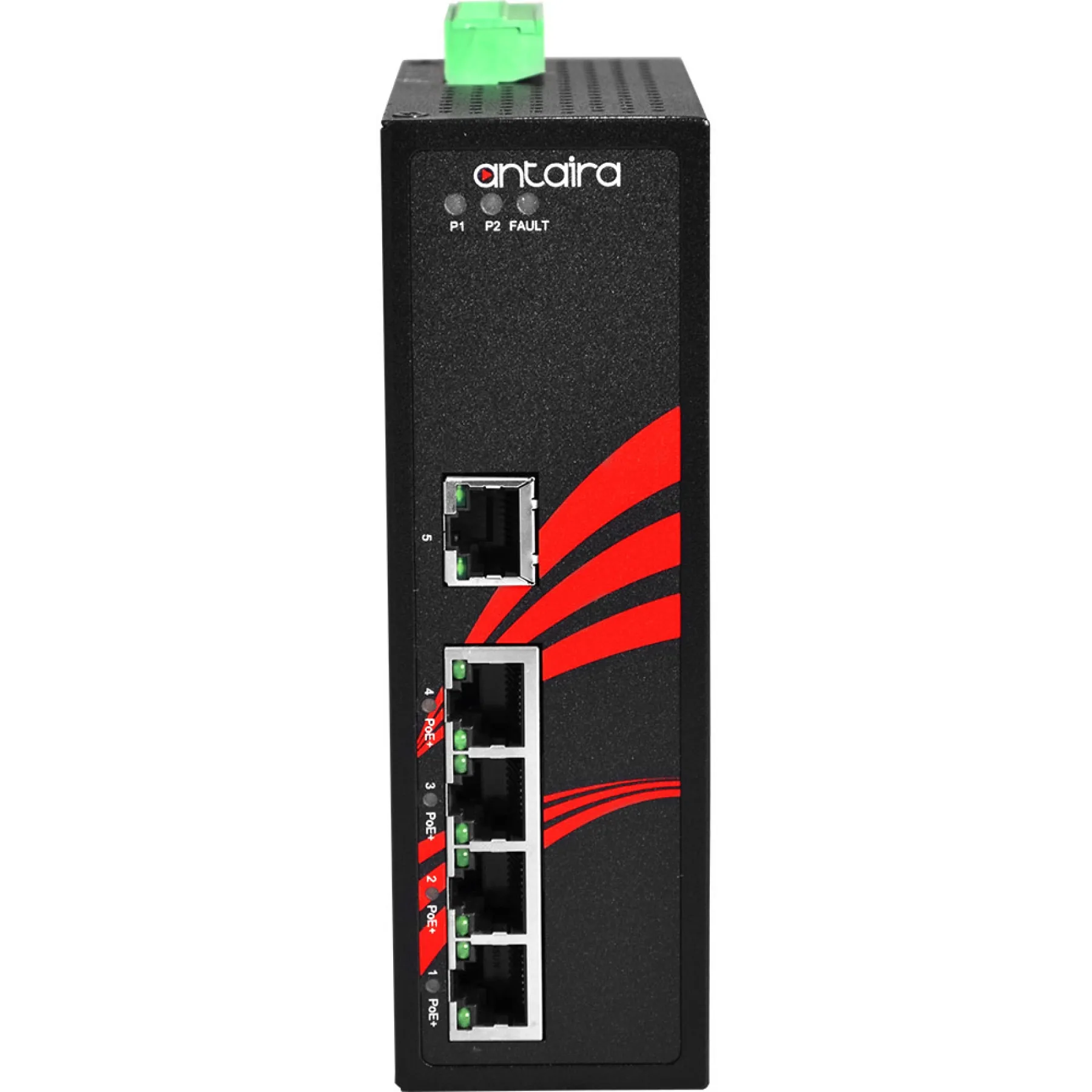

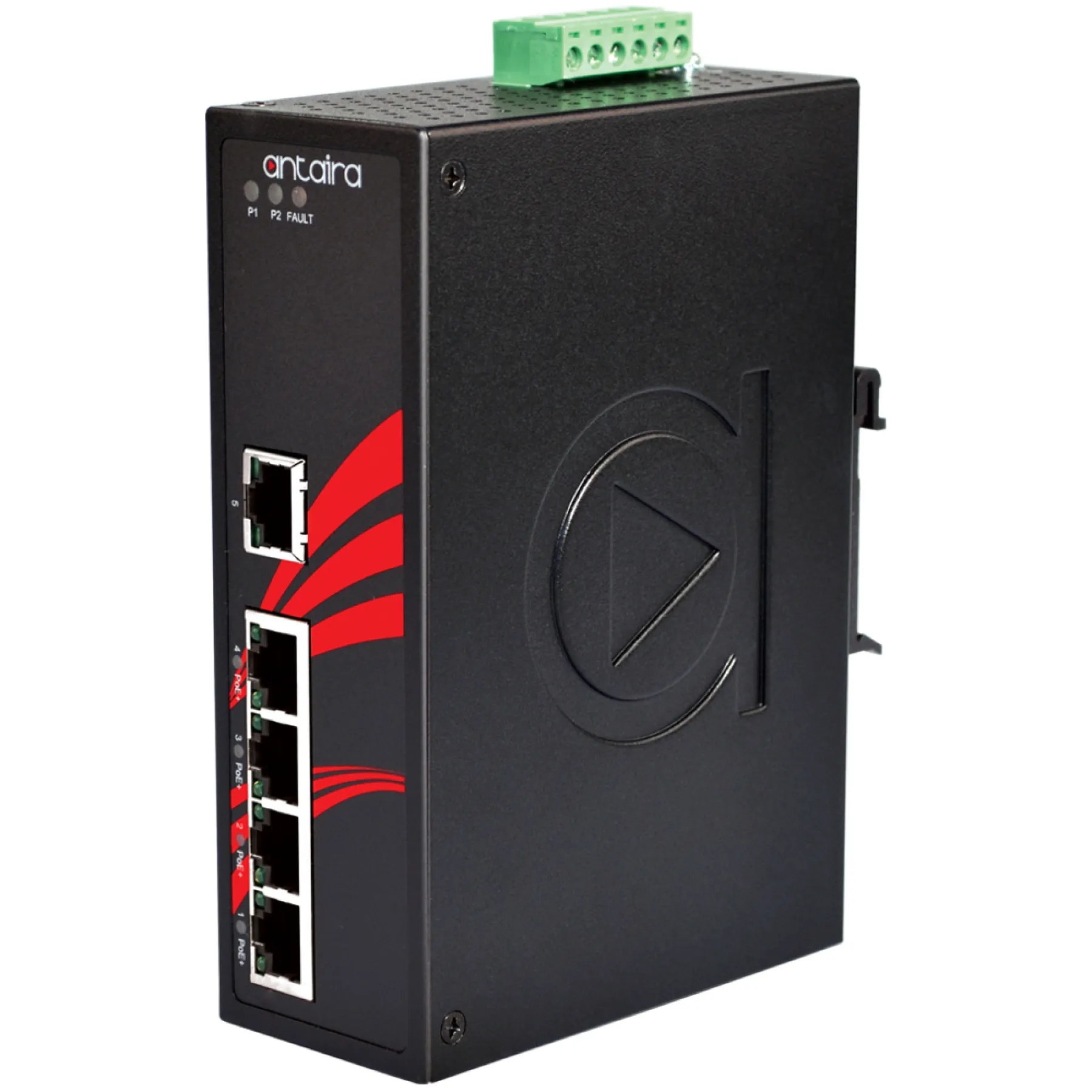

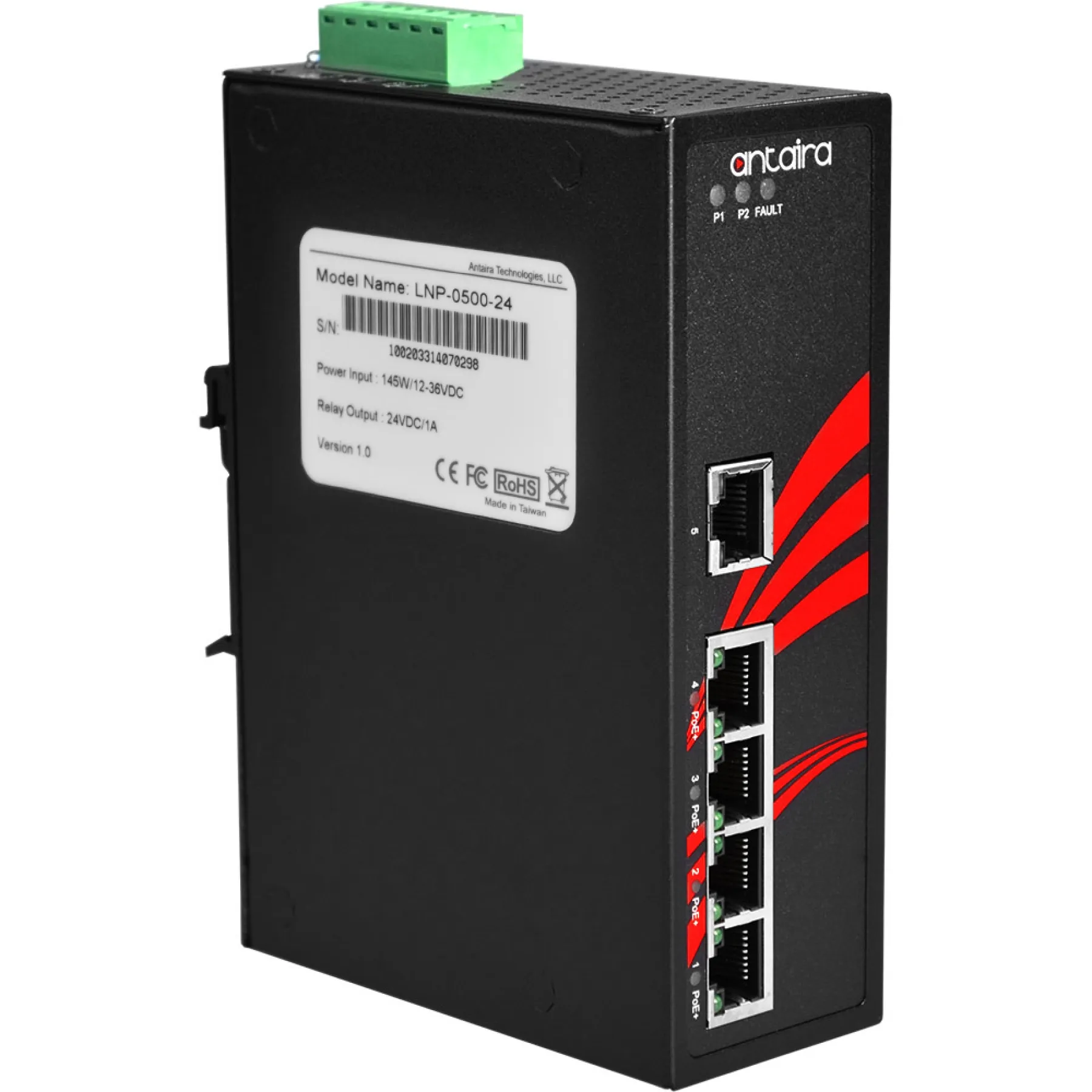

Antaira LNP-0500-24 5-Port Industrial PoE+ Unmanaged Ethernet Switch with 4x 10/100Tx (30W/Port) + 1x 10/100Tx, 12~36VDC
LNP-0500-24
- Network broadcast storm protection
- 4-Port IEEE 802.3at compliant PoE+ Function with 30W/Port
- 1-Port 10/100Tx Fast Ethernet
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 2K MAC Address Table
- Surge Protection: 2,000 VDC support
- ESD Protection: 6,000 VDC support
- UL Class I, Division 2 Certified
- Redundant Power Input Design – 12~36VDC
- Built-in 1 relay output for Port Break Alarm
- IP30 Rugged Aluminum Case Design

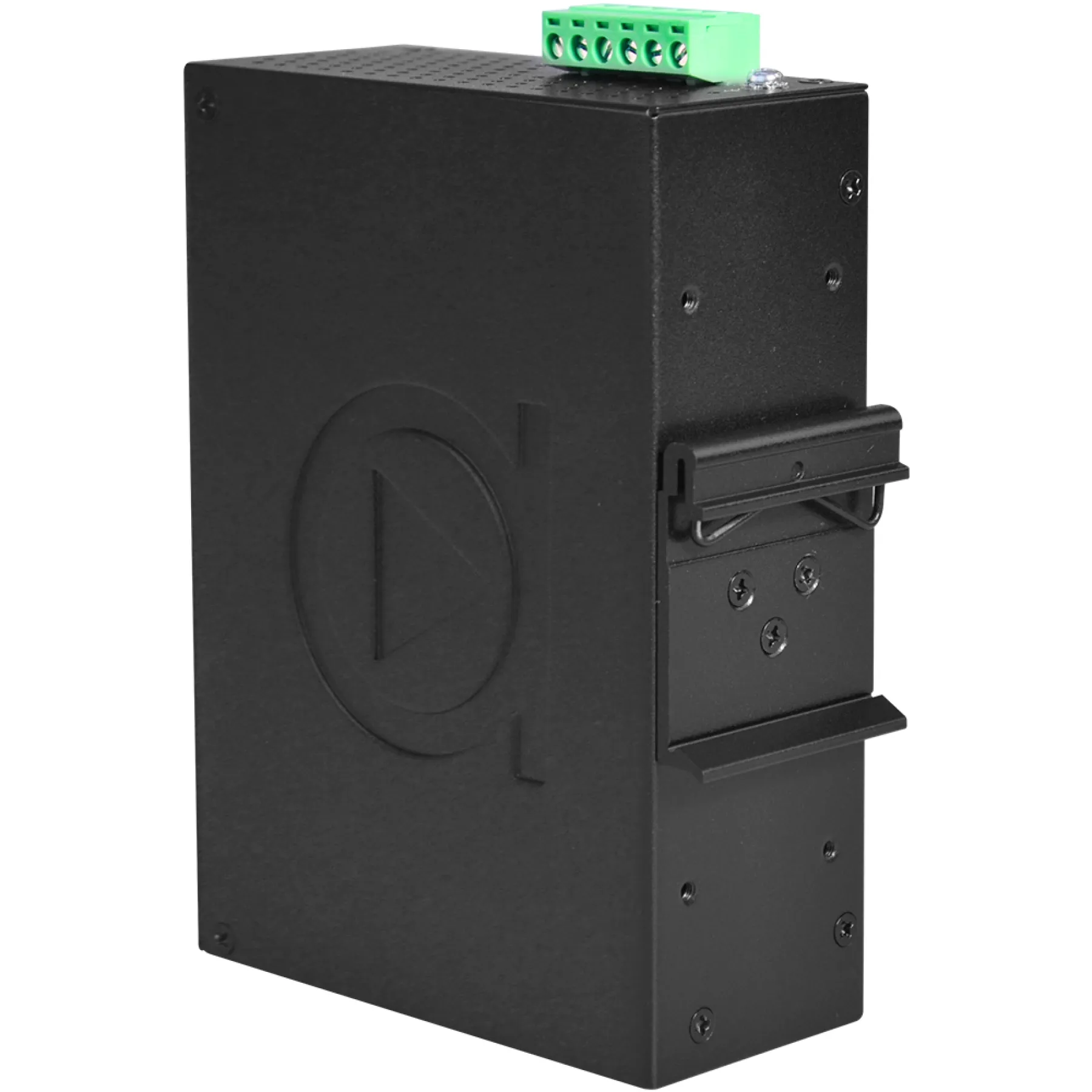

- DIN-Rail and Wall Mount support
- Operating Temperature range – STD: -10° to 70° C, EOT: -40° to 75° C
- 5-Year Warranty
LNP-0500-24
10/100 Mbps, Antaira, C1D2 Unmanaged Industrial Ethernet Switches, Class 1 Division 2, PoE, Specialty Solutions, Unmanaged Low Voltage PoE Switches, Unmanaged PoE Switches
Details
Antaira’s LNP-0500 series switch is a smart 5-port Industrial Unmanaged Ethernet Switch supporting IEEE-802.3at compliance (Power-over-Ethernet Plus) on ports 1 to 4. The switch is classified as power sourcing equipment (PSE), and when used in this way, the LNP-0500 series switch enables centralization of the power supply and provides up to 30 watts of power per port. The LNP-0500 can be used to power IEEE 802.3af or 802.3at compliant power devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u/802.3x with 10/100BTx, full or half duplex, MDI/MDI-X auto sensing to provide an economical solution for the Industrial Ethernet Network. In addition, the Network Broadcast Storm Protection and built-in relay warning function alerts network engineers when power failures or port breaks occur.
