LMX-0802-ST-M

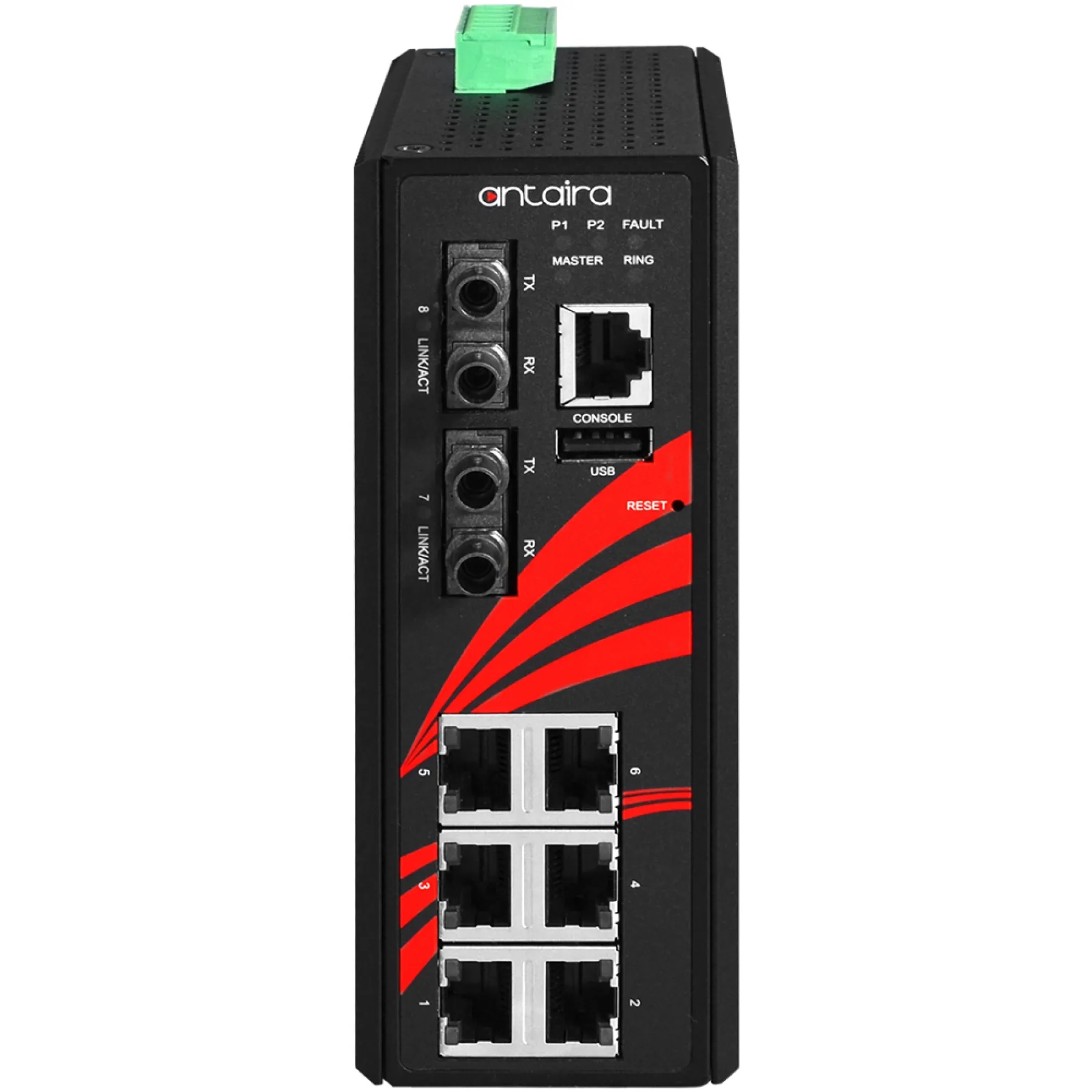

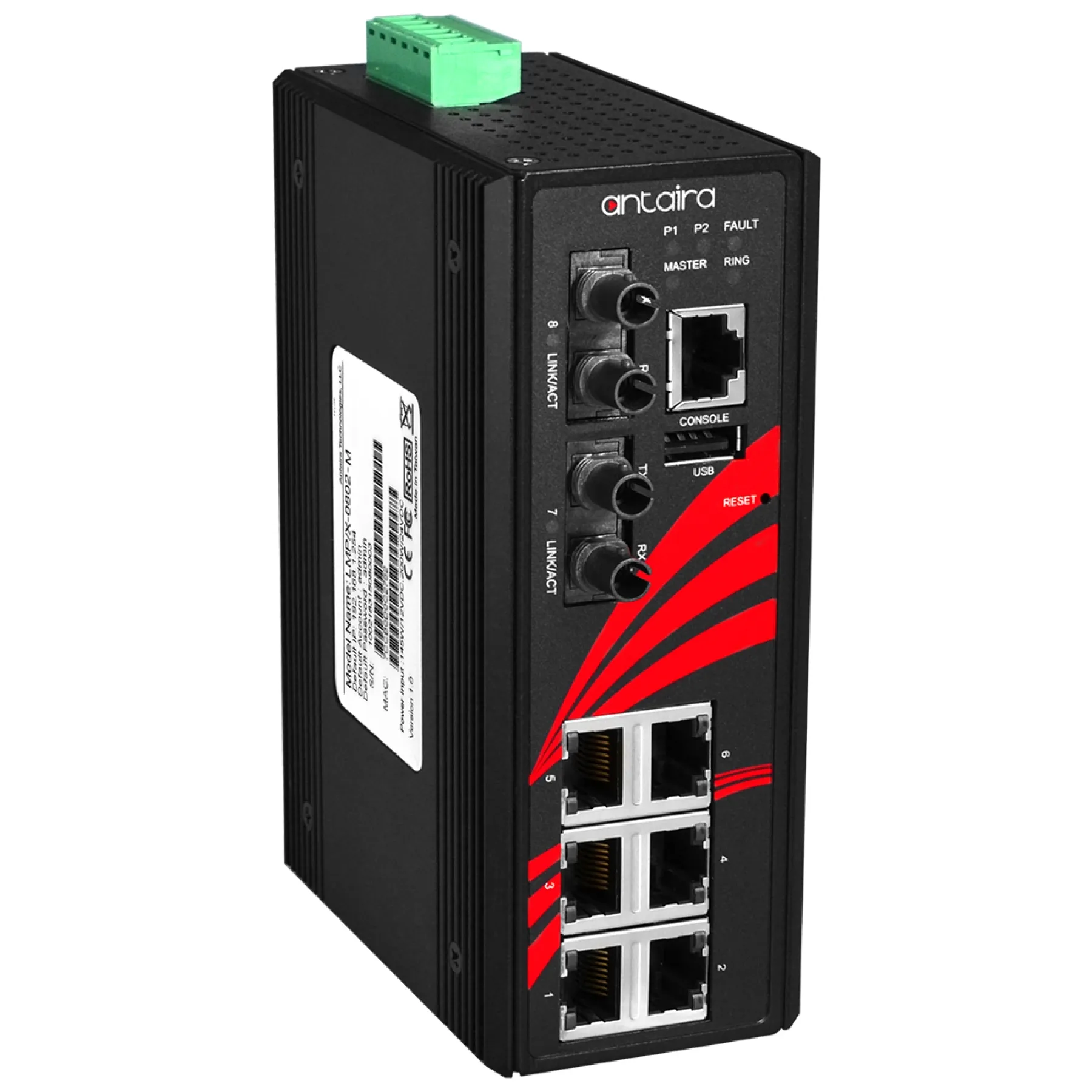

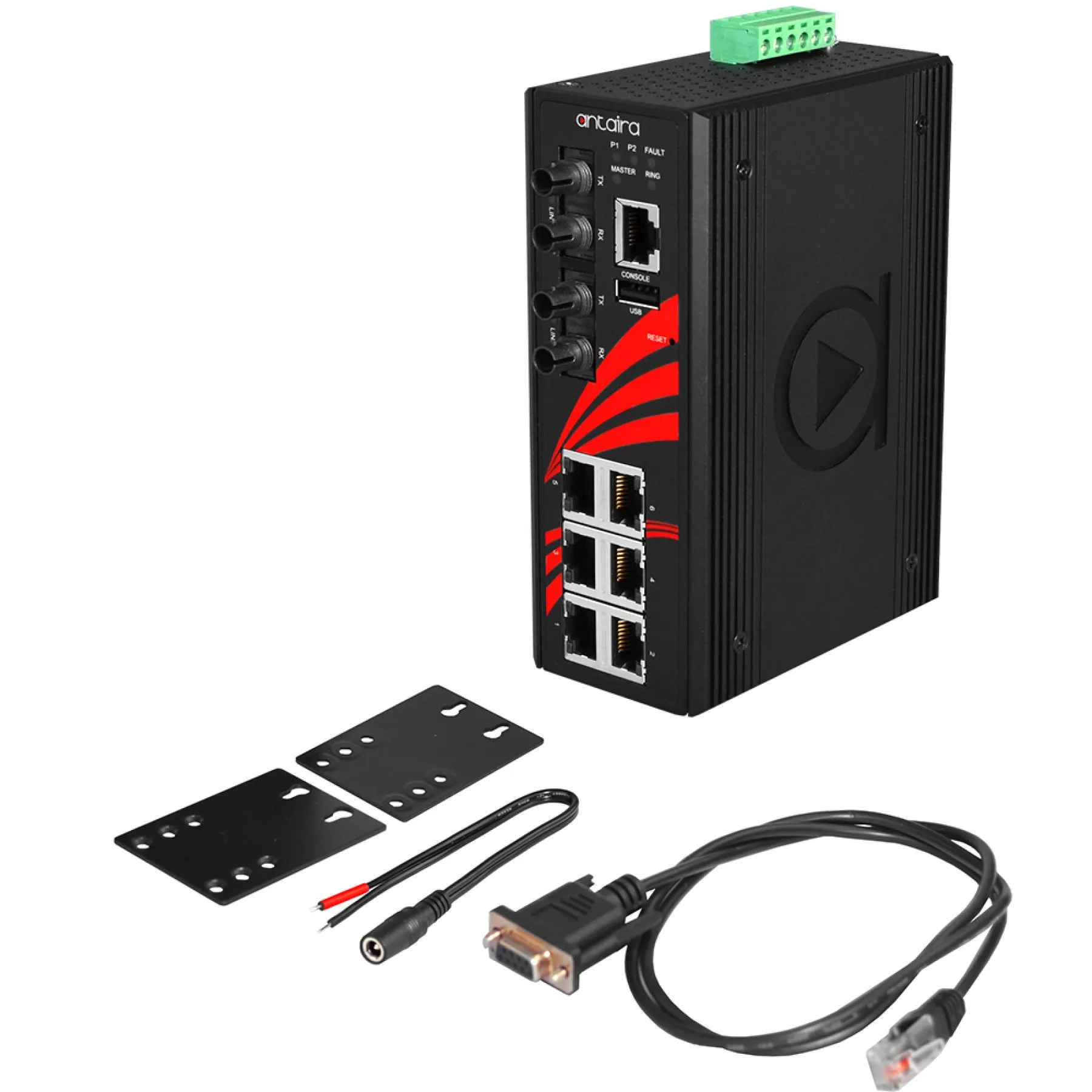

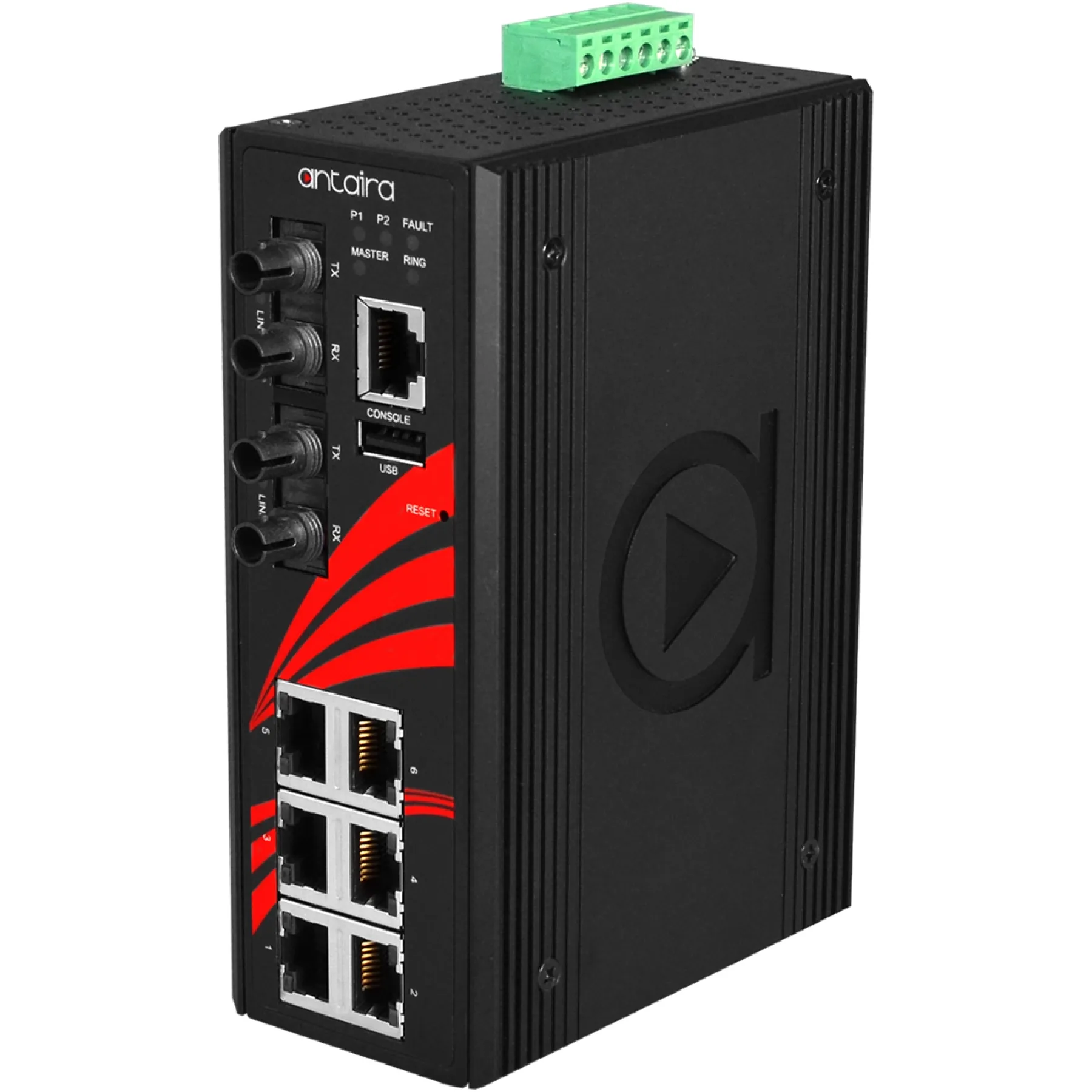

Name: Antaira LMX-0802-ST-M 8-Port Industrial Light Layer 3 Managed Ethernet Switch, w/6*10/100Tx Ports + 2*100Fx Multi-Mode ST Fiber Ports.
SKU: LMX-0802-ST-M

Antaira

Antaira LMX-0802-ST-M 8-Port Industrial Light Layer 3 Managed Ethernet Switch, w/610/100Tx Ports + 2100Fx Multi-Mode ST Fiber Ports.

LMX-0802-ST-M

Network Broadcast Storm Protection
Supports 6*10/100Tx Fast Ethernet Ports + 2*100Fx Multi-Mode ST Fiber Ports
Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery time <50ms)
Configuration: Web Console, Serial, CLI Command
Supports IGMP v1/v2
Supports QoS (IEEE 802.1p) and CoS/ToS
Supports IEEE 802.1Q VLAN, SNMP v1/v2c/v3
Redundant Power Input Design 12~48VDC + Built-in Relay Output for Port Break Alarm
System Warning Setting for Automatic Warning through E-mail

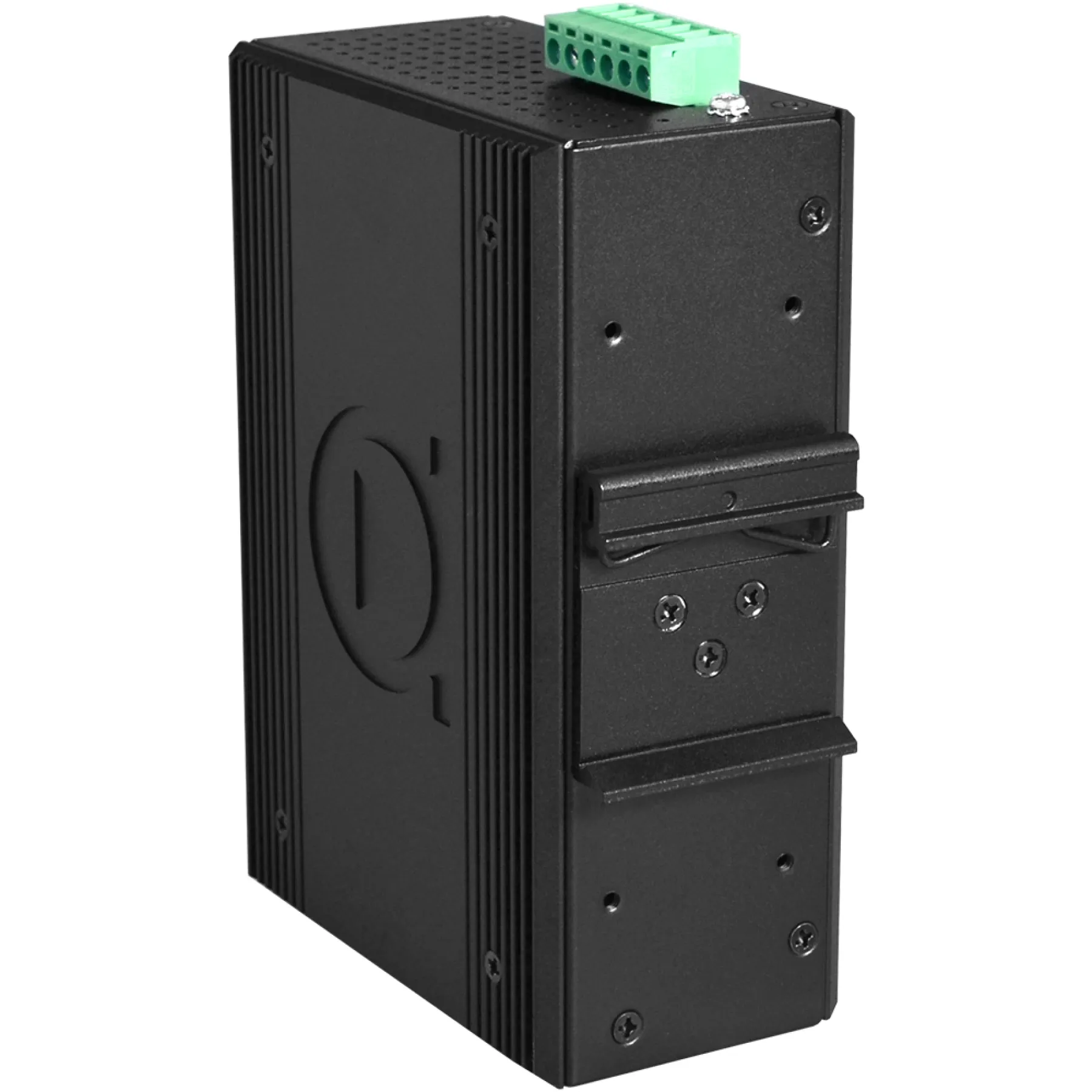

DIN-Rail and Wall Mount Support
Operating Temperature Range – STD: -10° to 70° C
5-Year Warranty

Product Code: LMX-0802-ST-M

Categories: 10/100 Mbps, Industrial Managed Ethernet Switches

Range: Antaira

Details

Antaira’s LMX-0802-ST-M is a 8-port industrial Light Layer 3 managed Ethernet switch that is embedded with 6*10/100Tx Fast Ethernet ports + 2*100Fx multi-mode ST fiber ports. This model is a fully manageable industrial Ethernet switch pre-loaded with standard Light Layer 3 network management software. The LMX-0802-ST-M has a compact form factor design with an IP30 rating, DIN-rail mounting, and standard operating temperature support from -10°C to 70°C. It also provides high EFT and ESD protection for industrial networking applications within factory automation, ITS, power/utility, water wastewater, security, or other outdoor/harsh environments.

Downloads

Datasheet (LMX-0802-ST-M) (PDF)

0.29MB
