LMP-2004G-SFP

Name: Antaira LMP-2004G-SFP 20-Port IndustriaL PoE+ Light Layer 3 Managed Ethernet Switch with 16x 10/100/1000Tx (30W/port) &amp; 4x 100/1000 SFP Ports
SKU: LMP-2004G-SFP

Antaira

Antaira LMP-2004G-SFP 20-Port IndustriaL PoE+ Light Layer 3 Managed Ethernet Switch with 16x 10/100/1000Tx (30W/port) & 4x 100/1000 SFP Ports

LMP-2004G-SFP

Supports 16*10/100/1000Tx IEEE 802.3at/af Compliant with 30W/Port
4*100/1000 SFP ports
Network Broadcast Storm Protection
Network Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery time <50ms)
Configuration: Web Console, Serial, CLI Command
Supports IGMP v1/v2
Supports QoS (IEEE 802.1p) and CoS/ToS
Supports IEEE 802.1Q VLAN, SNMP v1/v2c/v3
Redundant Power Input Design 48~55VDC + Built-in Relay Output for Port Break Alarm
System Warning Setting for Automatic Warning through E-mail
DIN-Rail and Wall Mount Support
Operating Temperature Range – STD: -10° to 70°C
5-Year Warranty

Product Code: LMP-2004G-SFP

Categories: Antaira, Antaira Industrial Ethernet Switches, Antaira Specialty Industrial Networking Equipment, C1D2 Unmanaged Industrial Ethernet Switches, Class 1 Division 2, Gigabit PoE, IEC 61850-3 Ethernet Switches, Industrial Ethernet Switches, Industrial Managed Ethernet Switches, Specialty Solutions

Range: Antaira

Details

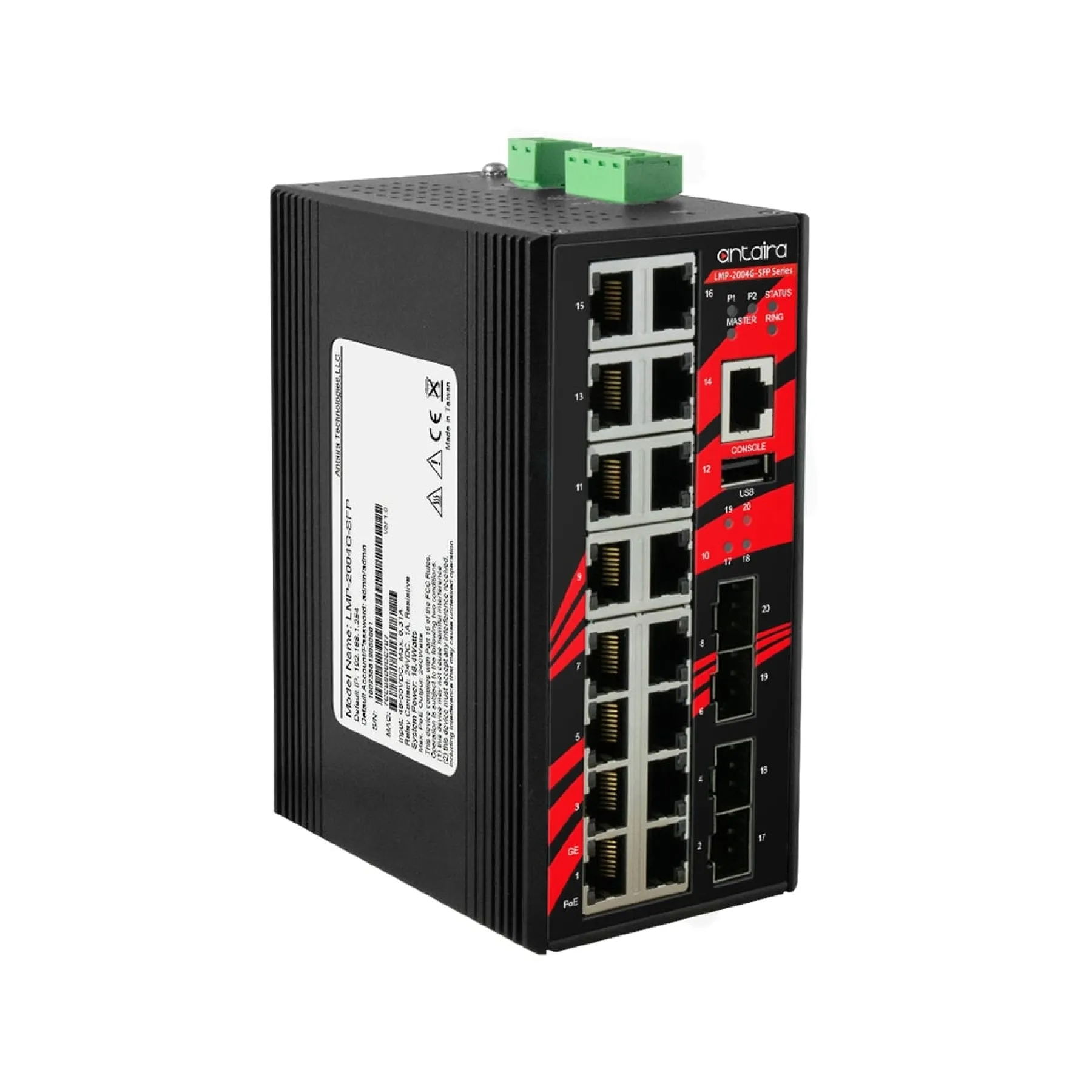

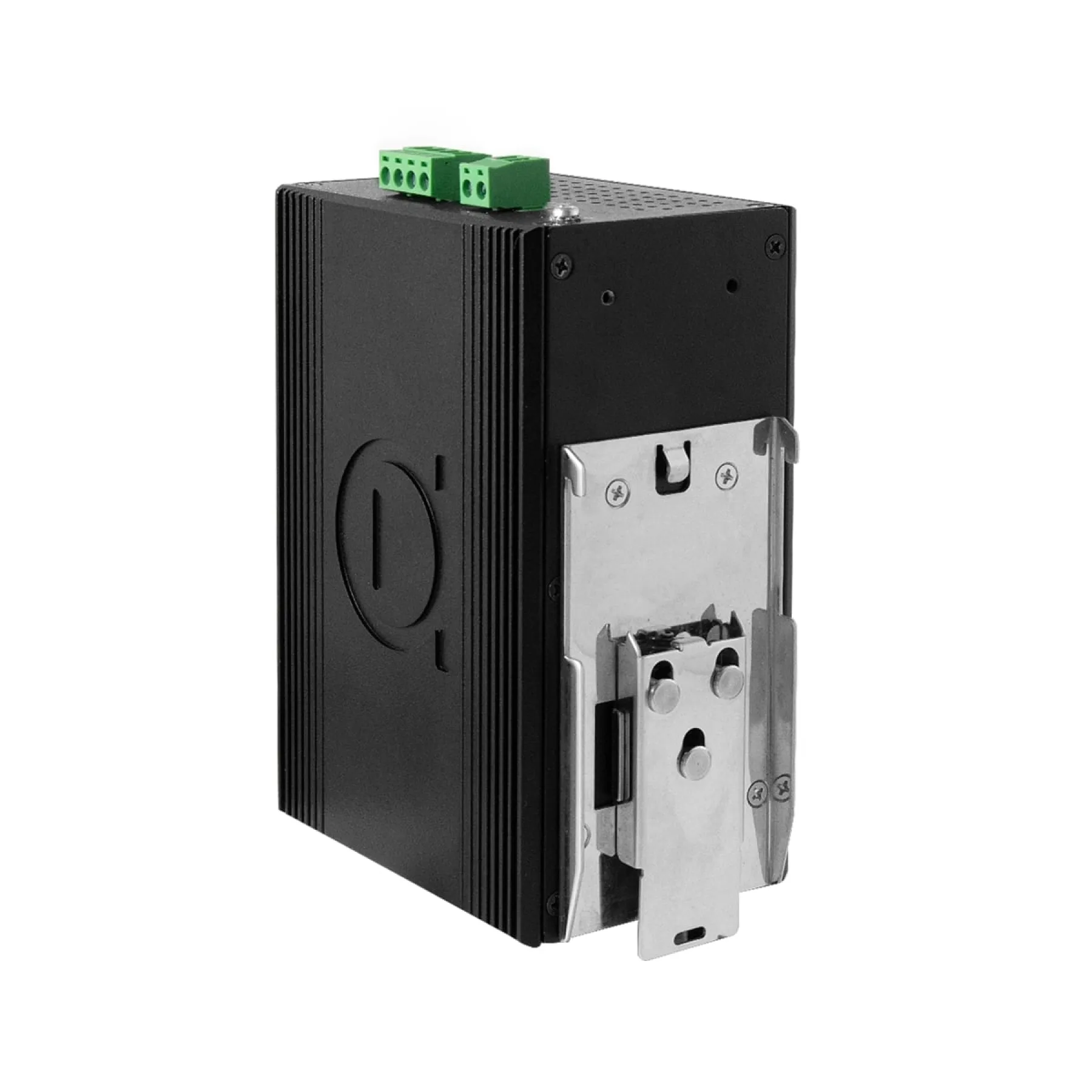

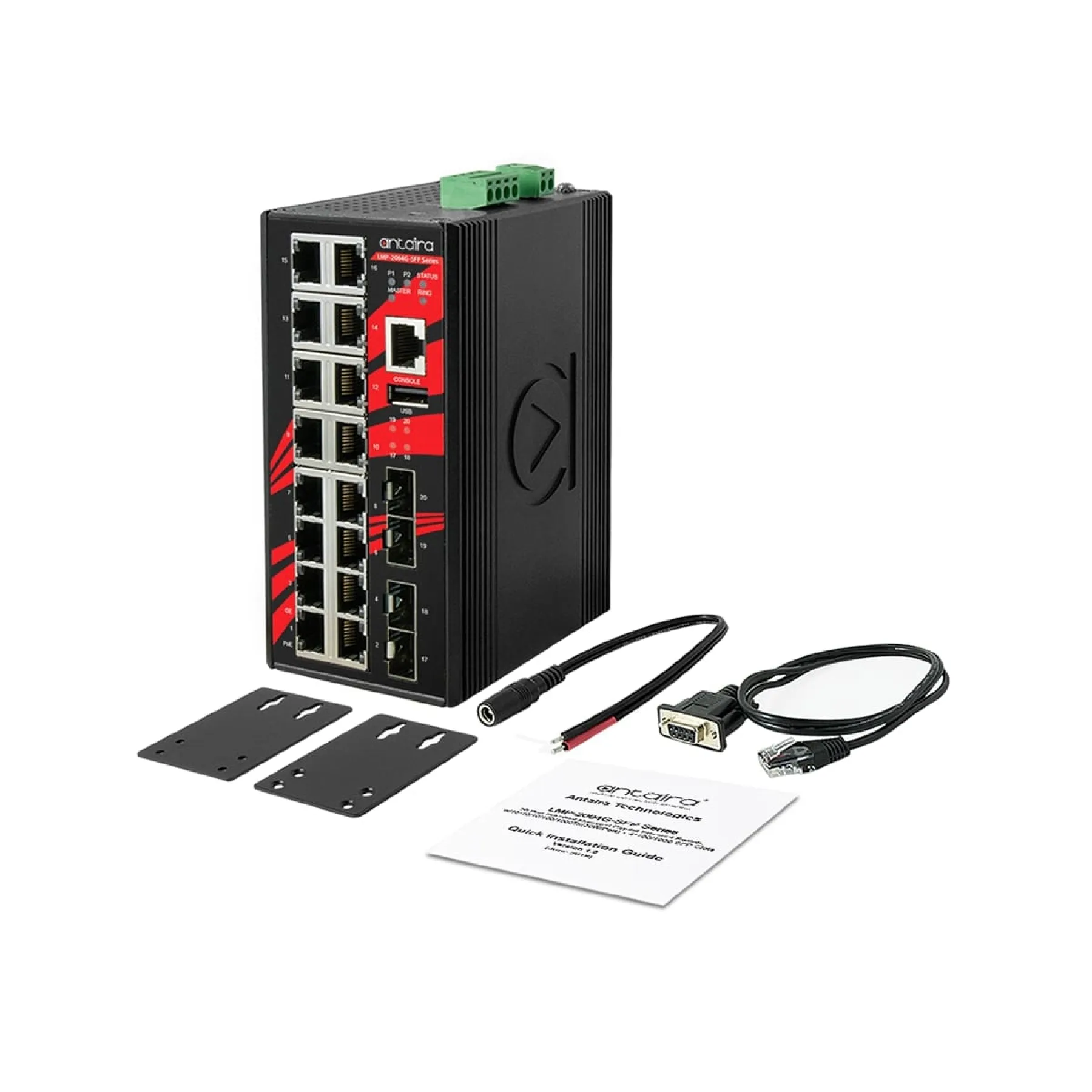

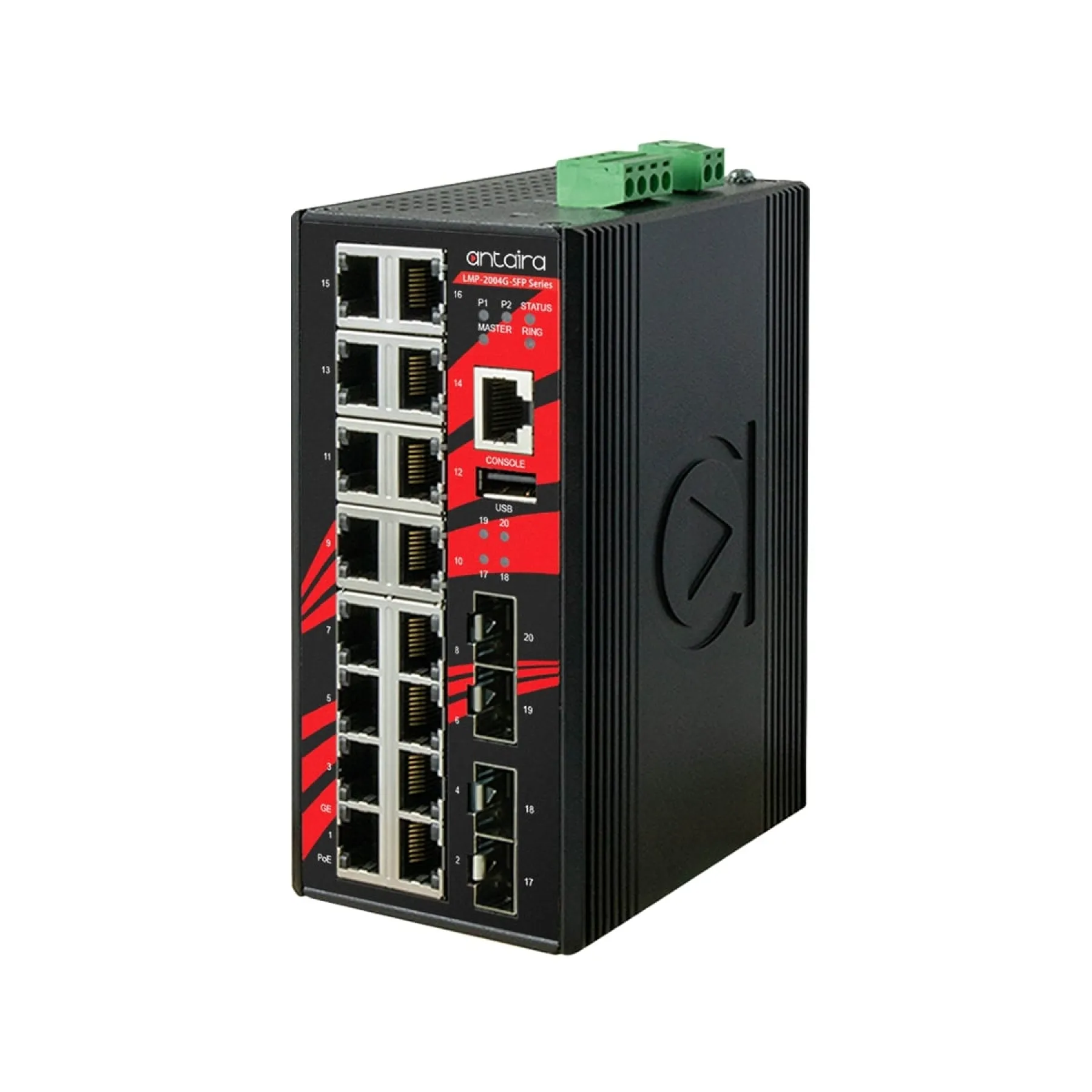

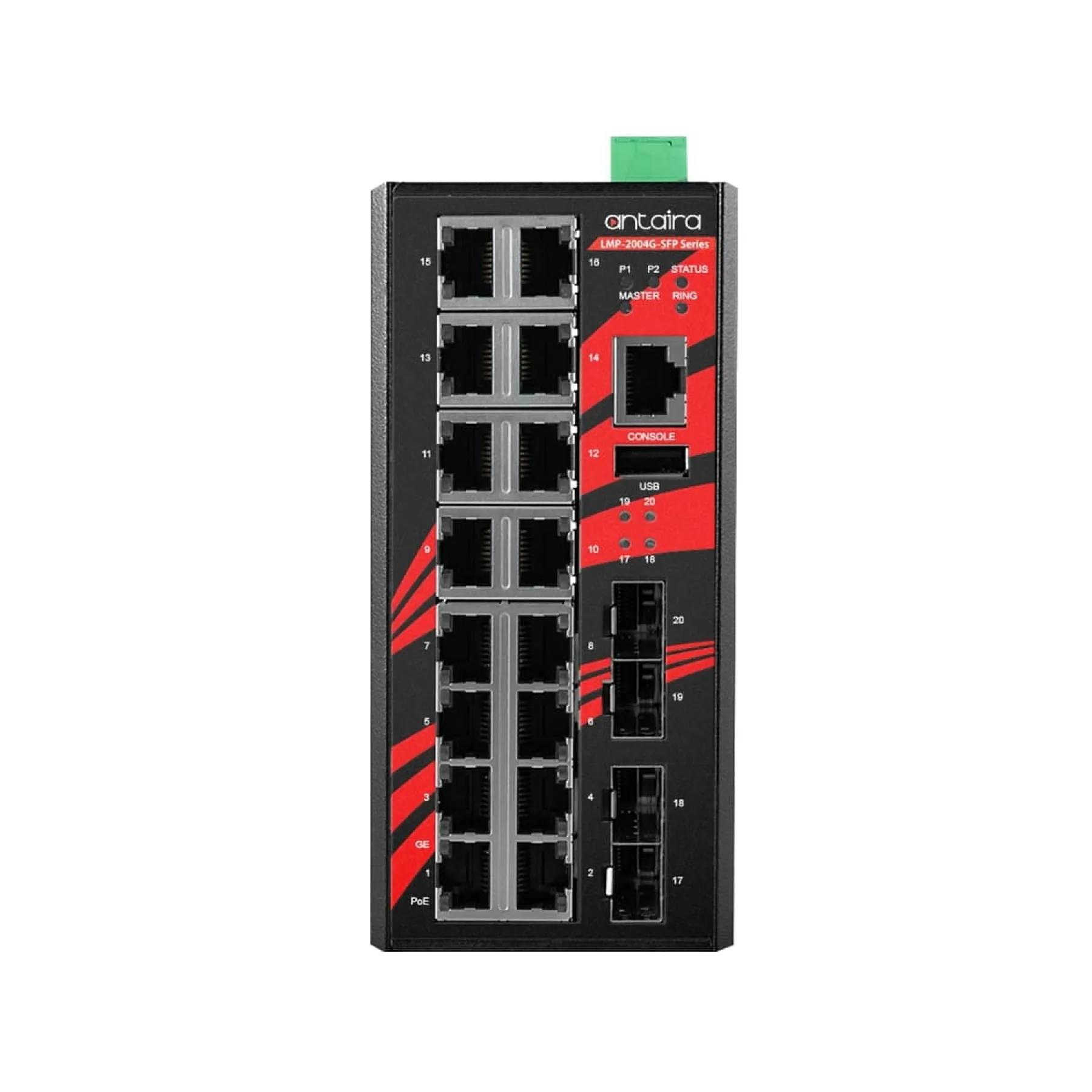

Antaira’s LMP-2004G-SFP is a 20-port industrial Gigabit PoE+ Light Layer 3 managed Ethernet switch embedded with 16*10/100/1000Tx Ethernet ports that support IEEE 802.3at/af for a maximum of 30W/port and 4*100/1000 SFP ports. It is a fully manageable Light Layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as, IGMP, VLAN, QoS, SNMP, RMON, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. The LMP-2004G-SFP is IP30 rated, DIN-rail mountable, and supports a standard operating temperature range of -10°C to 70°C. It also provides high EFT and ESD protection for industrial networking applications, such as, power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS, or any other outdoor or harsh environment.

Downloads

Datasheet (LMP-2004G-SFP) (PDF)

0.62MB
