IMC-C1000-S4-T

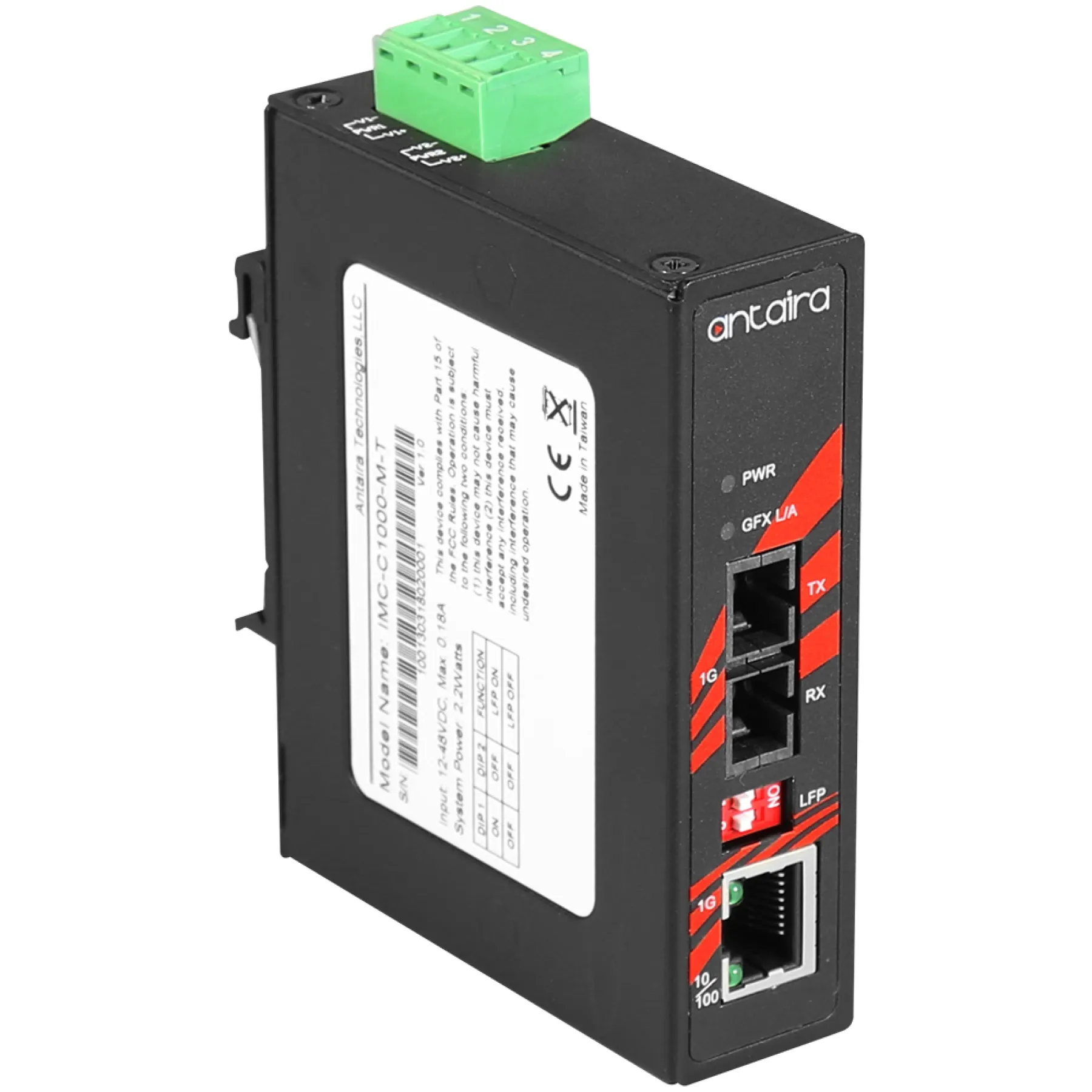

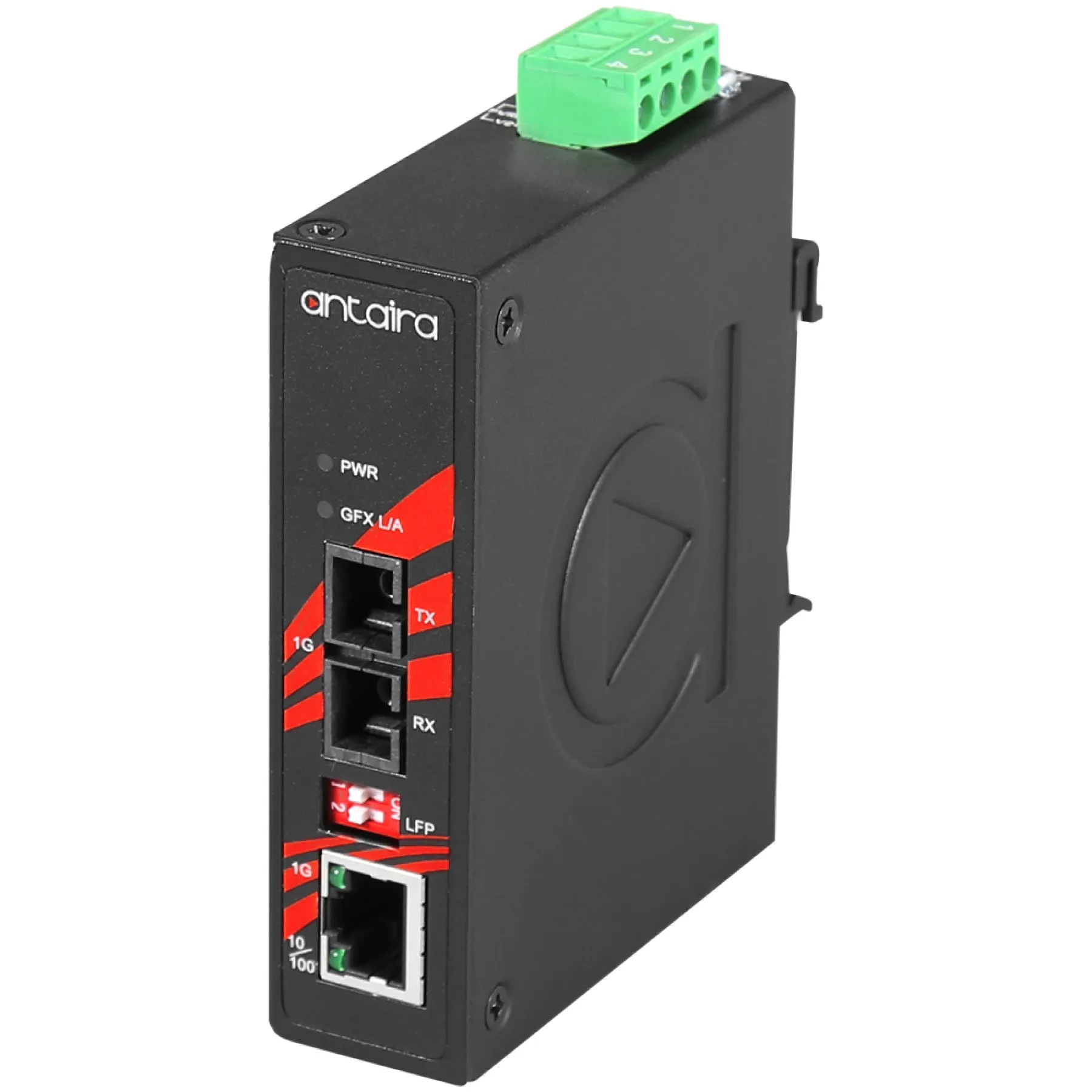

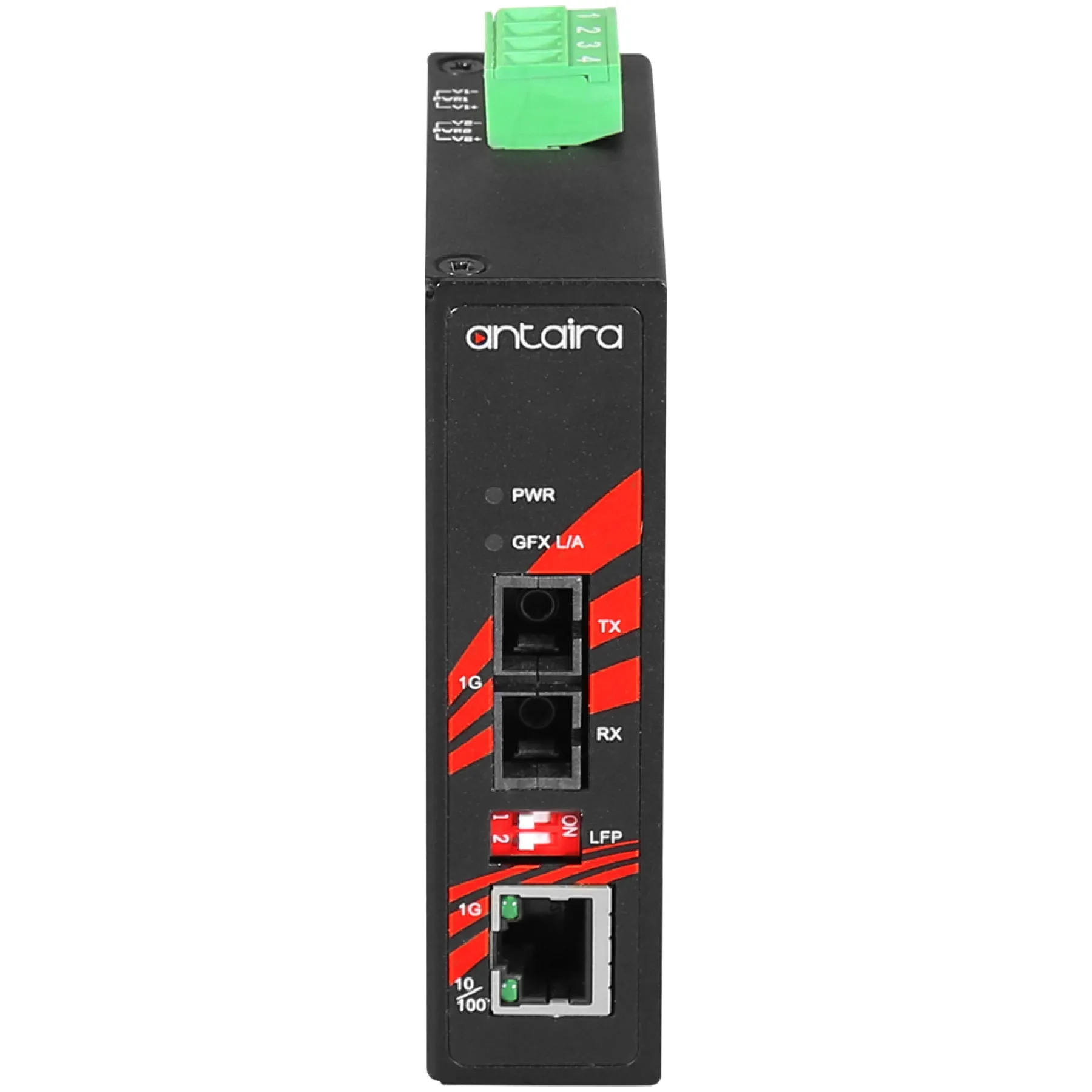

Antaira IMC-C1000-S4-T Compact Industrial Gigabit Ethernet Media Converter, with 10/100/1000TX to SC SM 40km 1000Mbps Fixed Fiber; EOT: -40° to 80°C

IMC-C1000-S4-T

1*10/100/1000Tx Gigabit Ethernet
1*1000x SC/ST Connector (Multi / Single-Mode)
RJ45 Port Support Auto MDI / MDI-X Function
Auto Negotiation Speed, Half / Full Duplex
Store-and-Forward Switching Architecture
Built-in Link Fault Pass Through (LFP)
Built-in Far End Fault (FEF)
Jumbo Frame Support: 10k bytes
Wide-Range Redundant Power Design
Redundant Power Input: 12~48VDC
Power Polarity Reverse Protection
Overload Current Protection

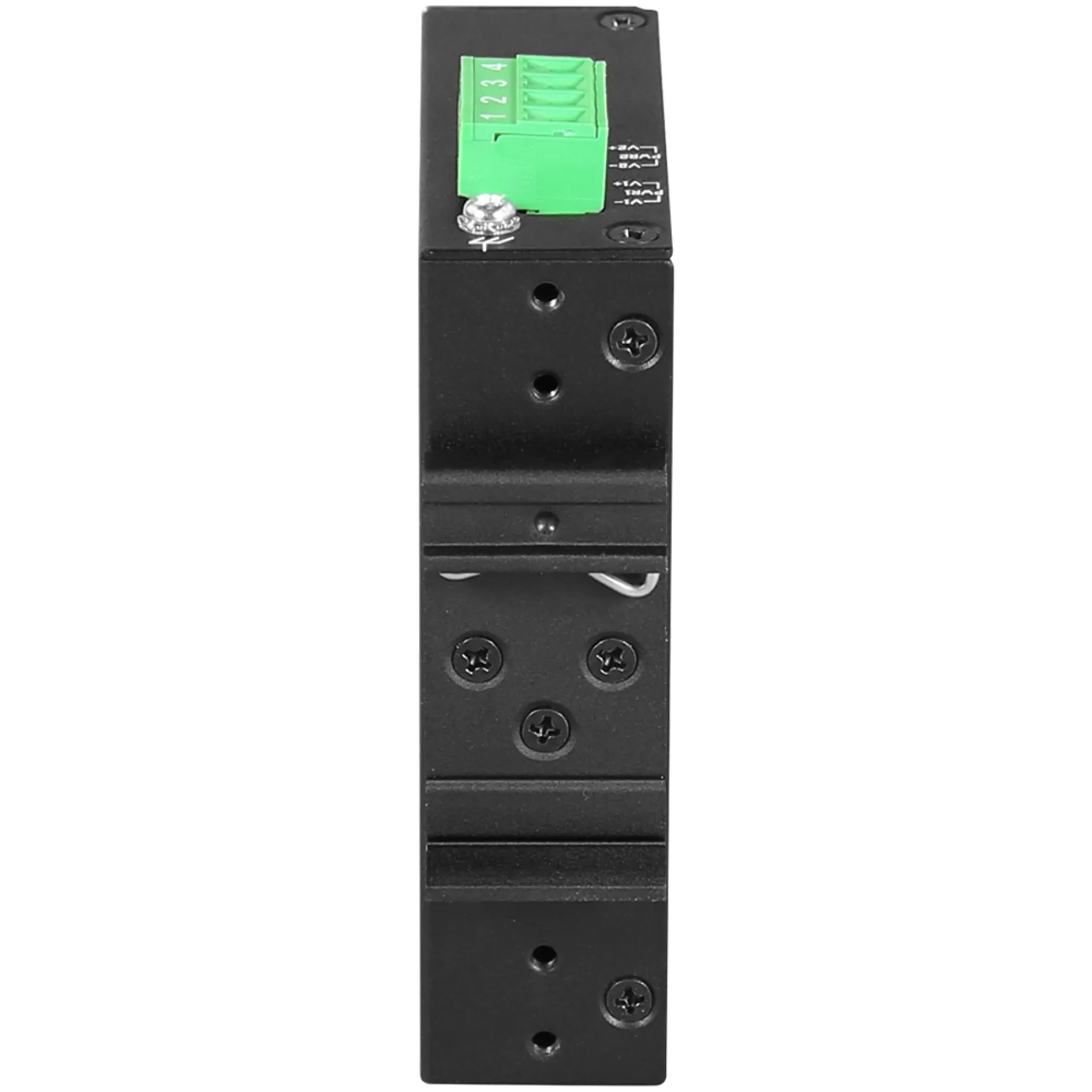

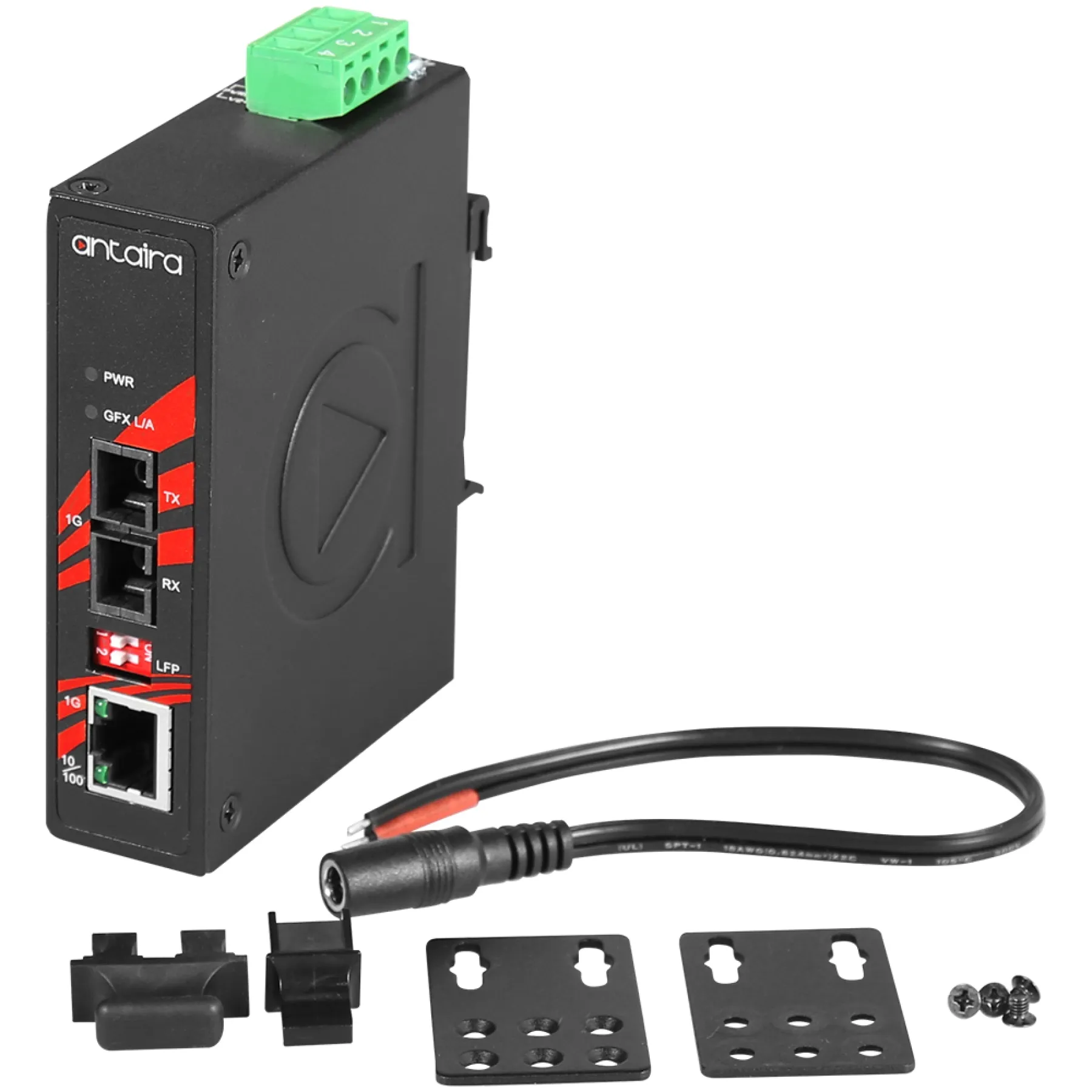

DIN-Rail or Wall Mountable
IP30 Protection
5-Year Warranty

Product Code: IMC-C1000-S4-T

Categories: Antaira, Compact Devices, Industrial Compact Media Converters, Industrial Media Converters, Media Converters, Specialty Solutions

Details

Antaira Technologies’ IMC-C1000-S4-T series is a compact IP30 rated gigabit Ethernet-to-Fiber media converter featuring a 10/100/1000TX Ethernet port and a fixed fiber interface supporting ST or SC connectors depending on the model. There are models that support Multi-Mode and Single-Mode to support applications with a variety of fiber distances. It is perfectly designed to fulfill industrial applications that require distance extension and high bandwidth capabilities. The IMC-C1000-S4-T series has a built-in “Link Fault Pass Through” (LFP) and “Far End Fault” (FEF) function with 12~48VDC redundant power inputs with reverse polarity and overload current protection. This product series supports DIN-rail as well as wall mountable orientations and provides an operating temperature range for EOT: -40°C to 80°C.
