PICO-EHL4-A11-0003

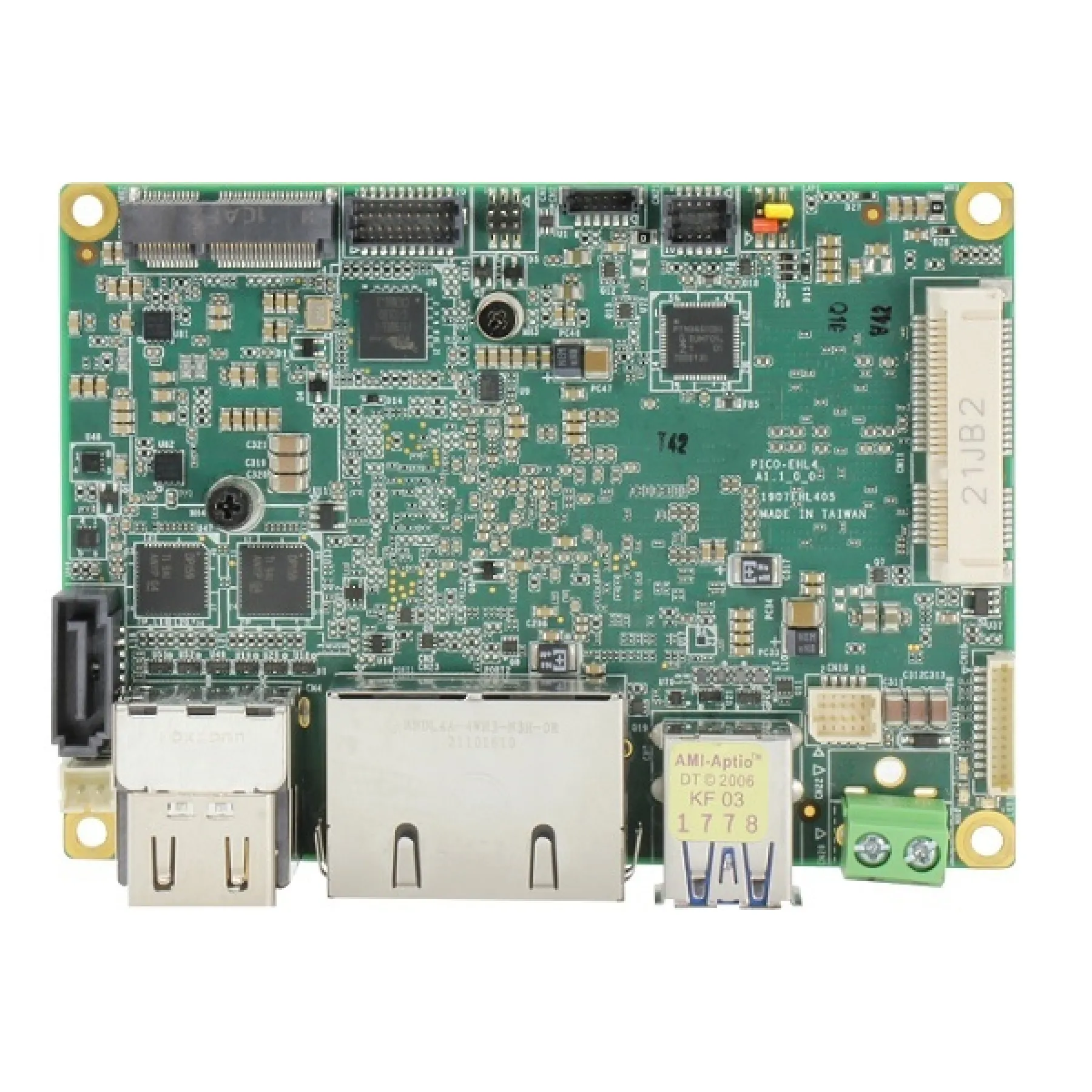

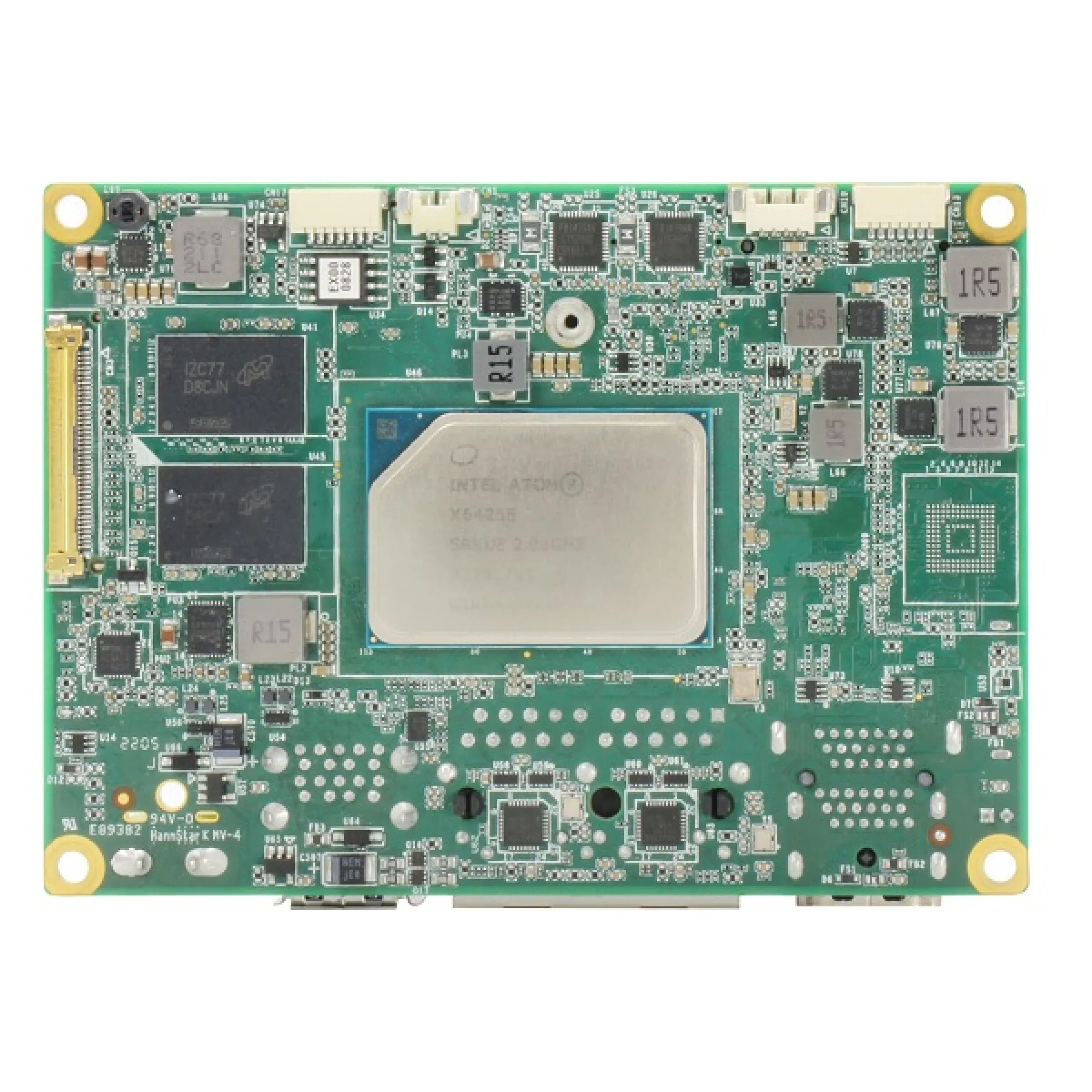

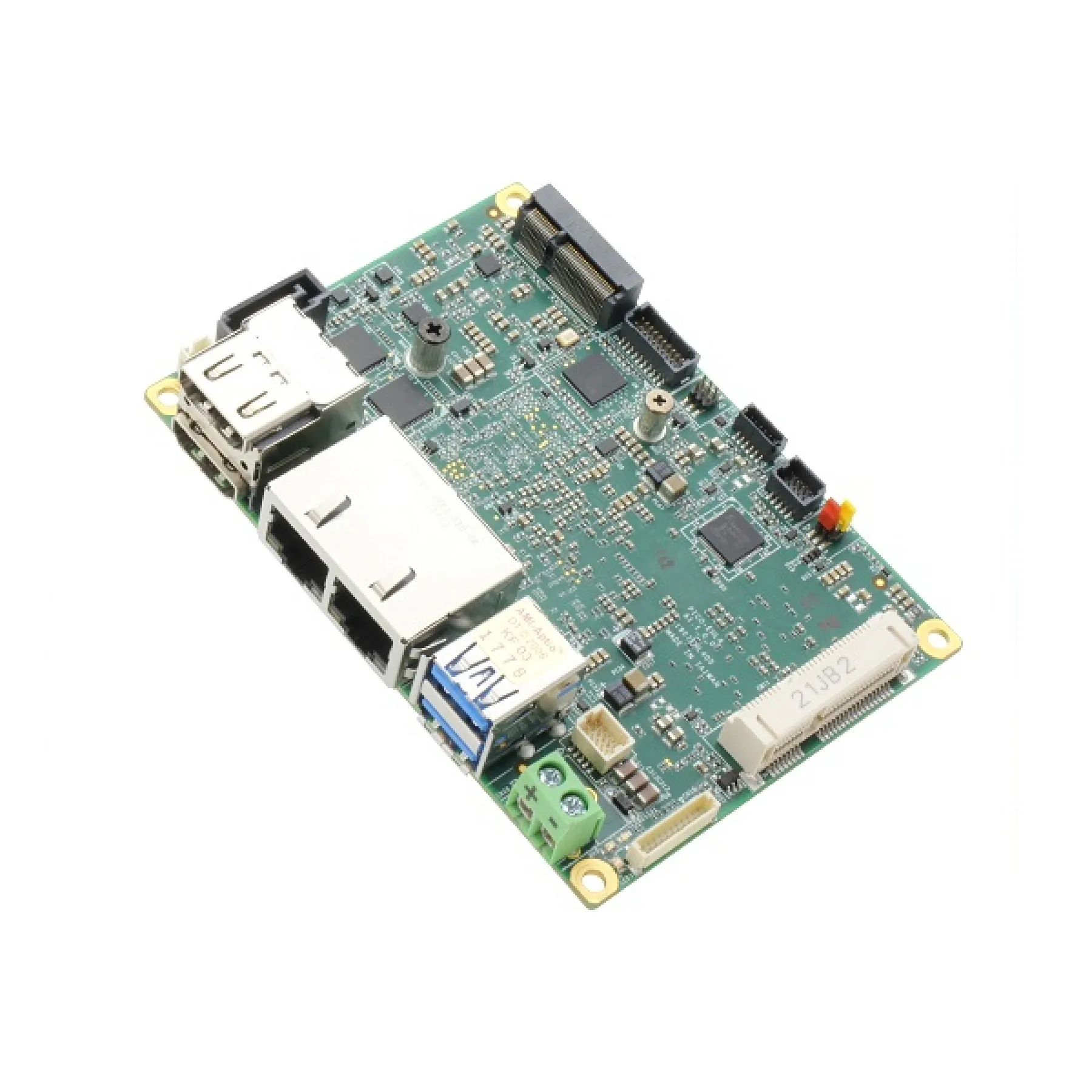

Name: AAEON PICO-EHL4-A11-0003 Intel Atom x6000E/Intel Pentium/Celeron Pico-ITX Board
SKU: PICO-EHL4-A11-0003

AAEON Technology

AAEON PICO-EHL4-A11-0003 Intel Atom x6000E/Intel Pentium/Celeron Pico-ITX Board

PICO-EHL4-A11-0003

Intel Atom x6000E series, Intel Pentium, and Celeron N and J series processors (formerly Elkhart Lake)

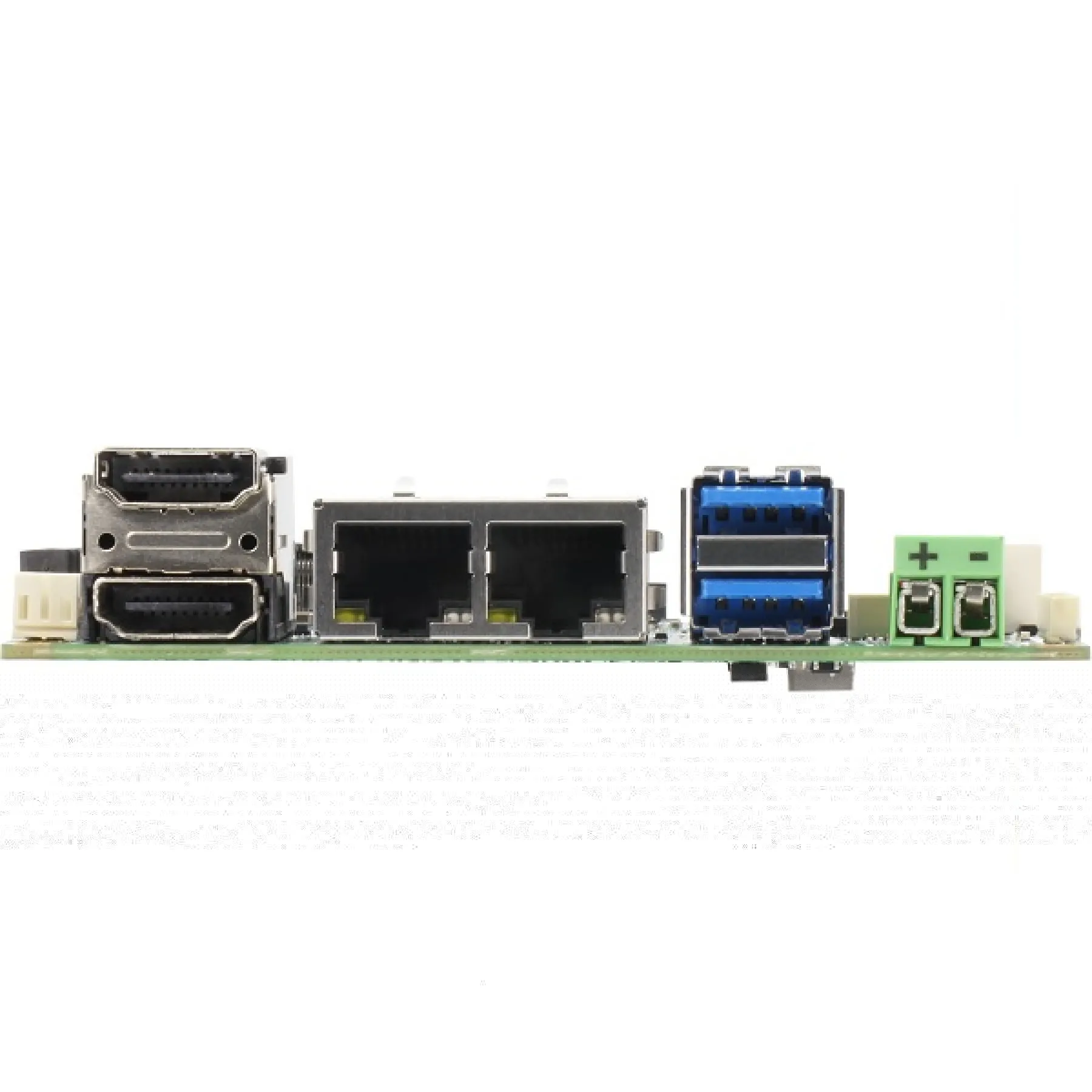

HDMI2.0b x 2 + LVDS/eDP1.3 x 1
GbE x 2
2 x USB 3.2 Gen 2, 2 x USB2.0
LPDDR4x onboard memory, In-Band ECC
eMMC x 1, SATA x 1
COM x 2 Full, CANBUS x 2(optional), mSATA x 1, M.2 E-Key 2230 x 1

Choose PICO-EHL4 Model:

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: PICO-EHL4-A11-0003

Categories: AAEON Embedded Boards, AAEON Technology, Boards & Modules, Industrial Motherboards, Pico-ITX Motherboards

Range: AAEON Technology

Details

The PICO-EHL4 Series brings the latest Intel Atom, Celeron and Pentium processors (formerly Elkhart Lake) to the compact PICO-ITX form factor. The Intel Atom x6000E series processors, Intel Pentium and Celeron N and J series processors (formerly Elkhart Lake) deliver greater computing performance over previous generations along with key technologies like in-band ECC to ensure data accuracy and integrity. The PICO-EHL4 takes advantage of the support for faster memory speeds and higher capacities by providing up to 16GB of LPDDR4x 4267MHz memory on-board. The PICO-EHL4-A11-0003 provides a host of features allowing for flexibility to meet the needs of individual applications. Expansion slots include both M.2 2230, perfect for adding Wi-Fi or Bluetooth functionality; and full sized Mini-Card for expanded storage, AI accelerators, and more. The PICO-EHL4-A11-0003 can connect with a range of devices thanks to 4-bit GPIO as well as dual Gigabit Ethernet LAN ports, two USB3.2 and two USB2.0 ports, and two serial port headers (RS232/422/485). The PICO-EHL4 also features two HDMI 2.0 ports supporting 4K graphics at 60Hz, as well as on-board co-lay LVDS/eDP allowing the board to output up to three independent displays.

Downloads

Datasheet (PICO-EHL4 Series) (PDF)

0.54MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Processor Type	Intel Celeron: Up to 4 Cores
COM Ports	2x RS-232/422/485
LAN Ports	2x 1GB
USB Ports	2x USB 3.2, 2x USB 2.0
Video Ports	1x eDP, 2x HDMI
Storage	1x SATA
Operating Temperature	0°C to 60°C
