GENE-SKU6-B12-0002

Name: AAEON GENE-SKU6-B12-0002 Intel Core i5-6300U 3.5” SubCompact Board
SKU: GENE-SKU6-B12-0002

AAEON Technology

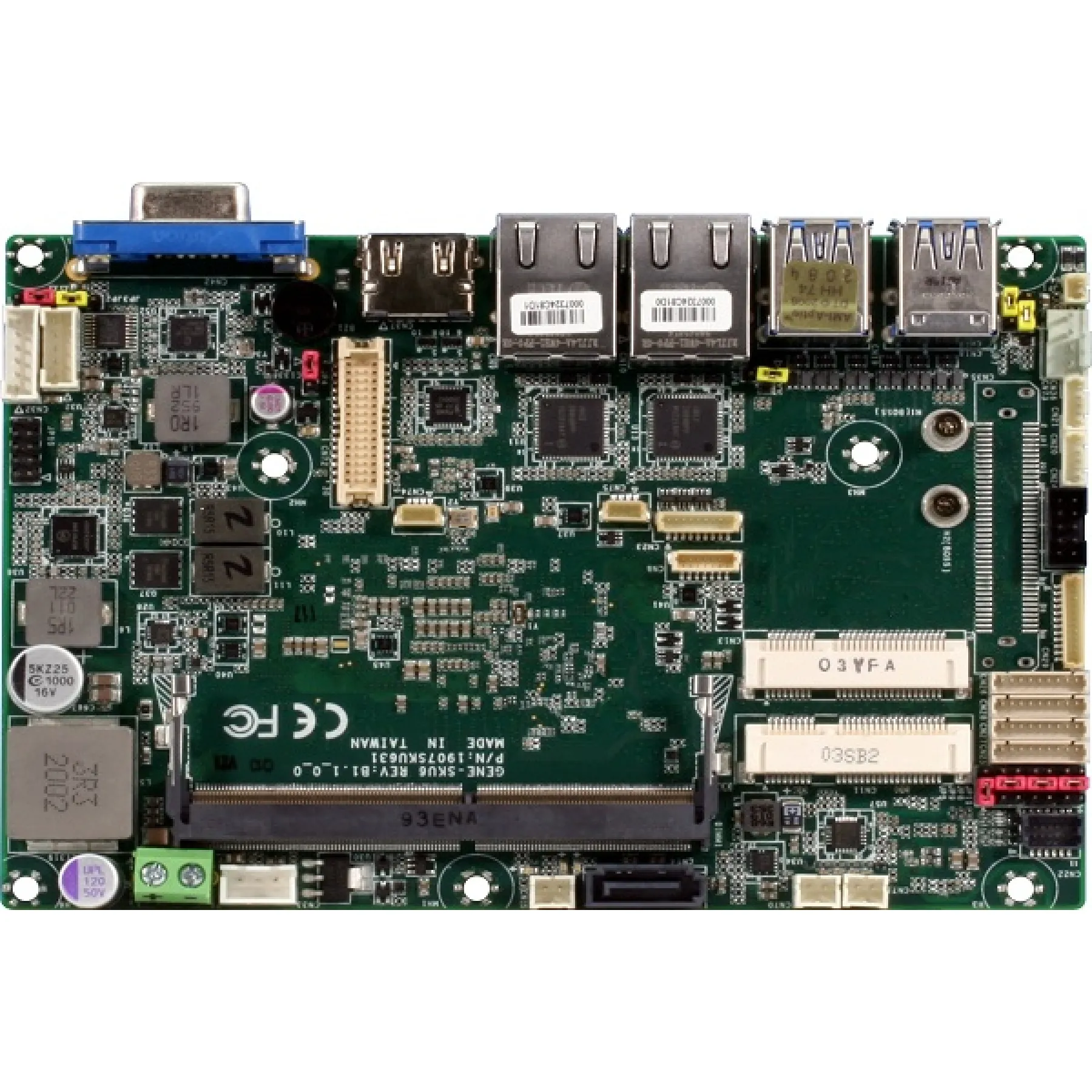

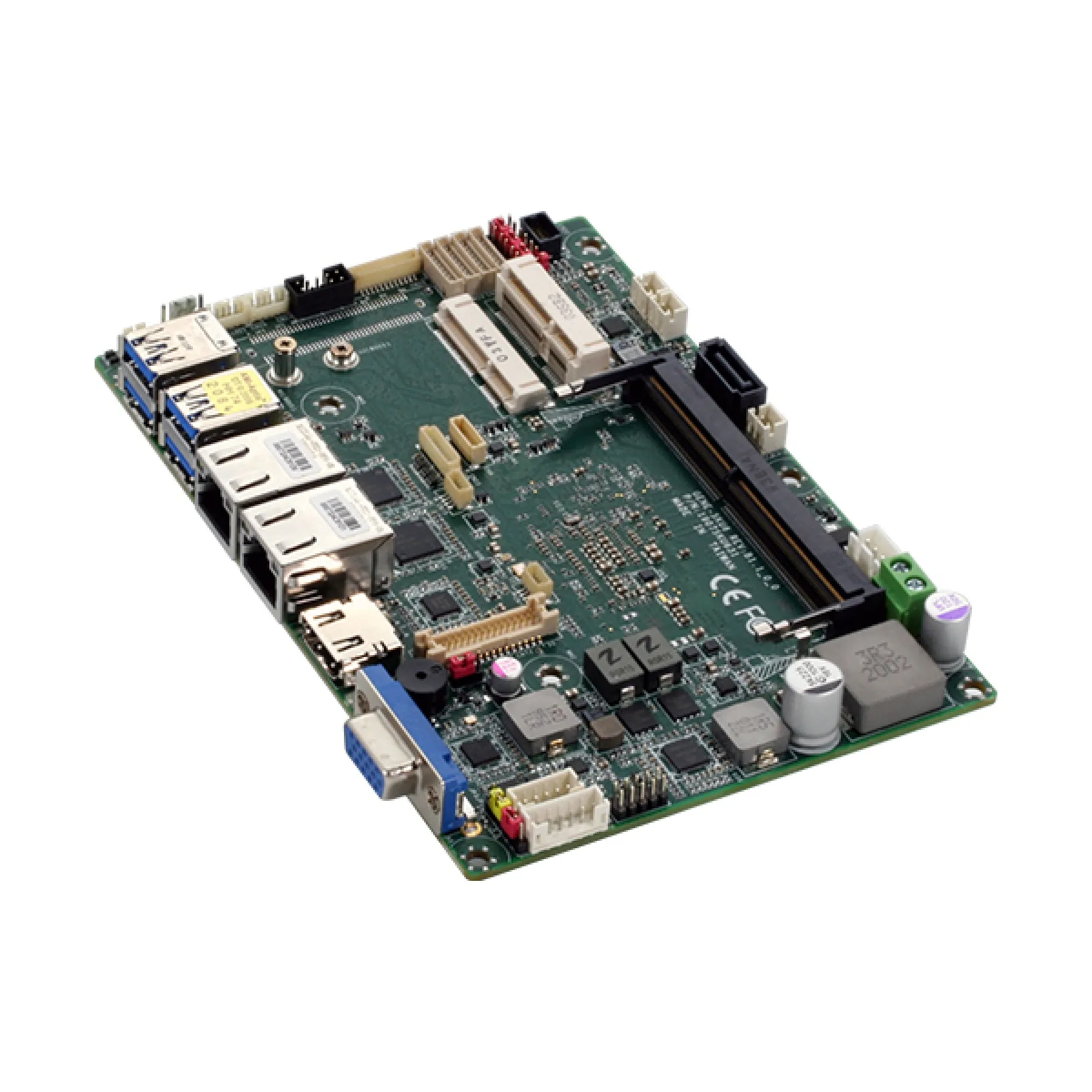

AAEON GENE-SKU6-B12-0002 Intel Core i5-6300U 3.5” SubCompact Board

GENE-SKU6-B12-0002

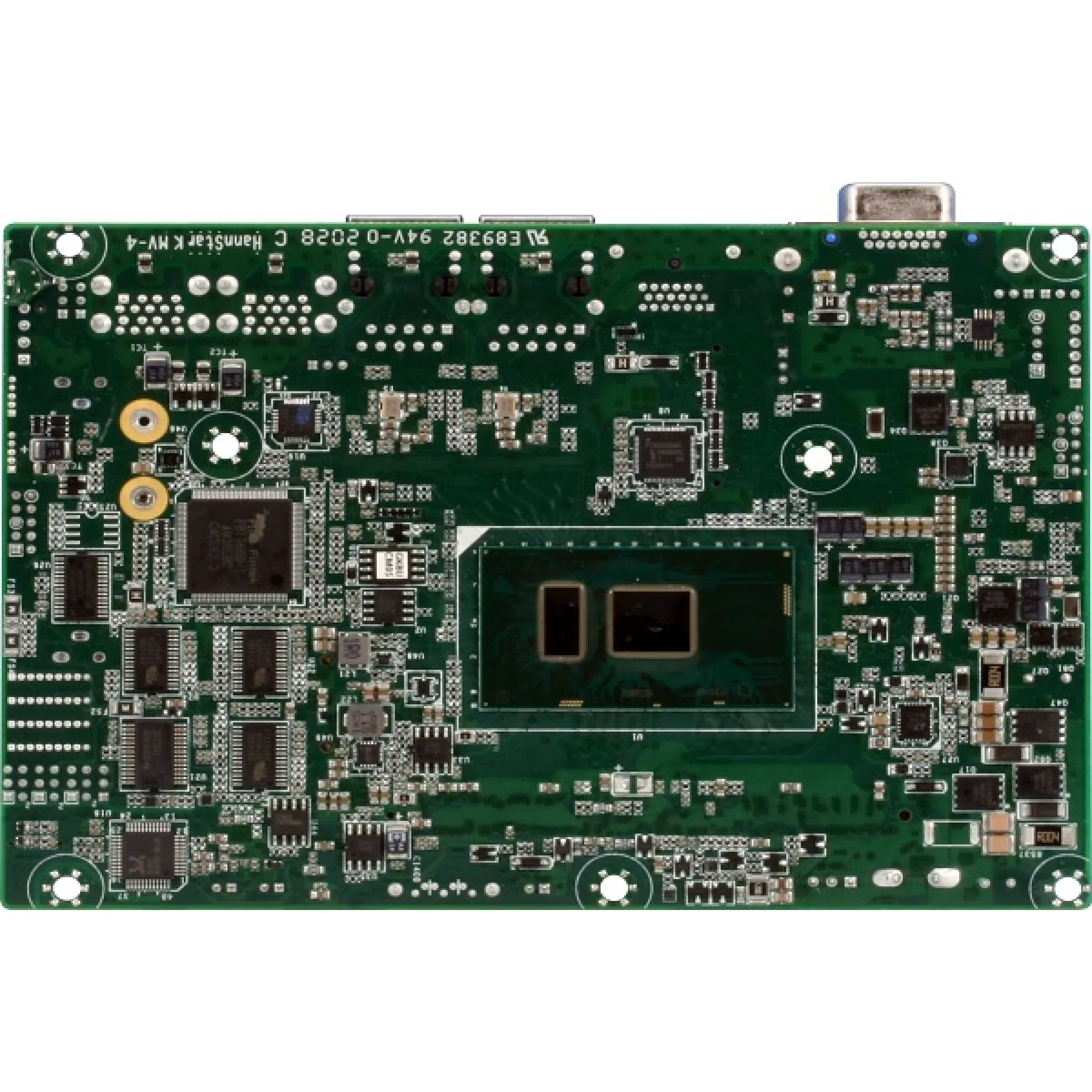

Intel Core i7/i5/i3/Celeron Processor SoC
DDR4 1866/2133, SODIMM x 1

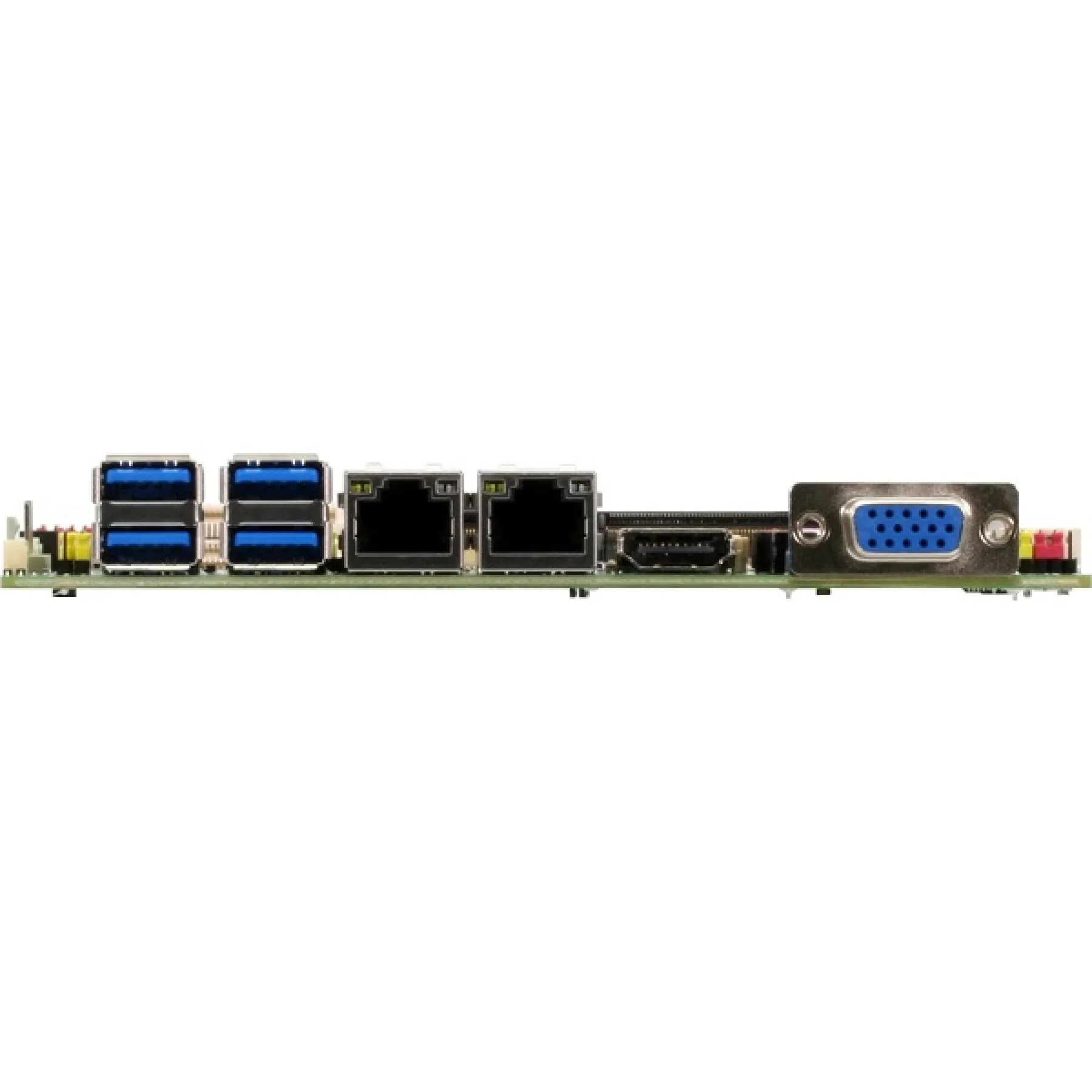

VGA, HDMI, 18/24-bit Dual Channel LVDS
2 CH Audio, 3W Speaker
SATA 6.0 Gb/s x 1 & mSATA (Shared with Half-size Mini-Card and Selected by BIOS)
Supports 8-bit Digital I/O, USB 2.0 x 2 , USB 3.2 Gen 1 x 4
COM x 4 (RS-232 x 1, RS-232/422/485 x 3)
Mini-Card Slot x 1 (Shared with full-size mATA and Selected by BIOS), TPM
Wide DC Support 9~36V, +12V Only (Optional)
4/5/8-wire Resistive Touch Screen Controller
BIO Connector for Daughter Board (Optional)
Solder Design for System Assembly and Thermal

Choose GENE-SKU6 Model:

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: GENE-SKU6-B12-0002

Categories: 3.5" Single Board Computers, AAEON Embedded Boards, AAEON Technology, Boards & Modules, Industrial Motherboards

Range: AAEON Technology

Details

Powered by 6th Generation Intel Core i7/i5/i3/Celeron Processors, the GENE-SKU6 Rev.B is designed for applications that require reliable and efficient performance. The board is equipped with an expansive set of I/O interfaces, including four USB 3.2 Gen 1, two GbE LAN, and four COM ports for RS-232/422/485, along with three simultaneous display outputs. The GENE-SKU6 Rev.B also contains impressive expansion options on such a small form factor, with one full size and one half size mSATA/mPCIe slots. With its robust design and versatile features, the GENE-SKU6 Rev.B is the ideal solution for a variety of applications.

Downloads

Datasheet (GENE-SKU6 Rev. B) (PDF)

0.51MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Processor Type	Intel Core: Up to 2 Cores
Memory Type	DDR4
COM Ports	1x RS-232, 3x RS-232/422/485
LAN Ports	2x 1GB
USB Ports	2x USB 2.0, 4x USB 3.2
Video Ports	1x VGA, 1x LVDS, 1x HDMI
Storage	1x mSATA, 1x SATA
Operating Temperature	0°C to 60°C
