FR GENE-EHL7-A10-0002

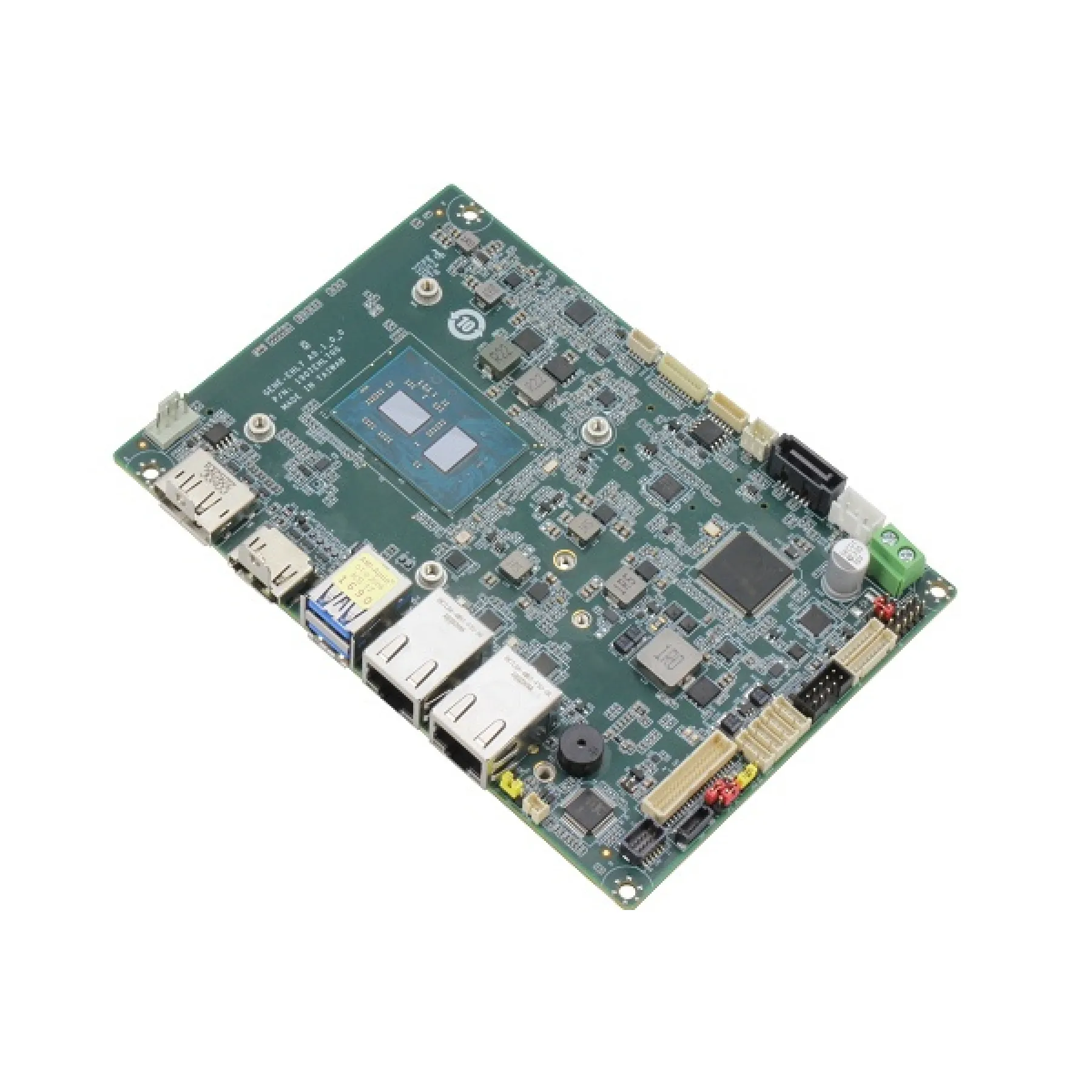

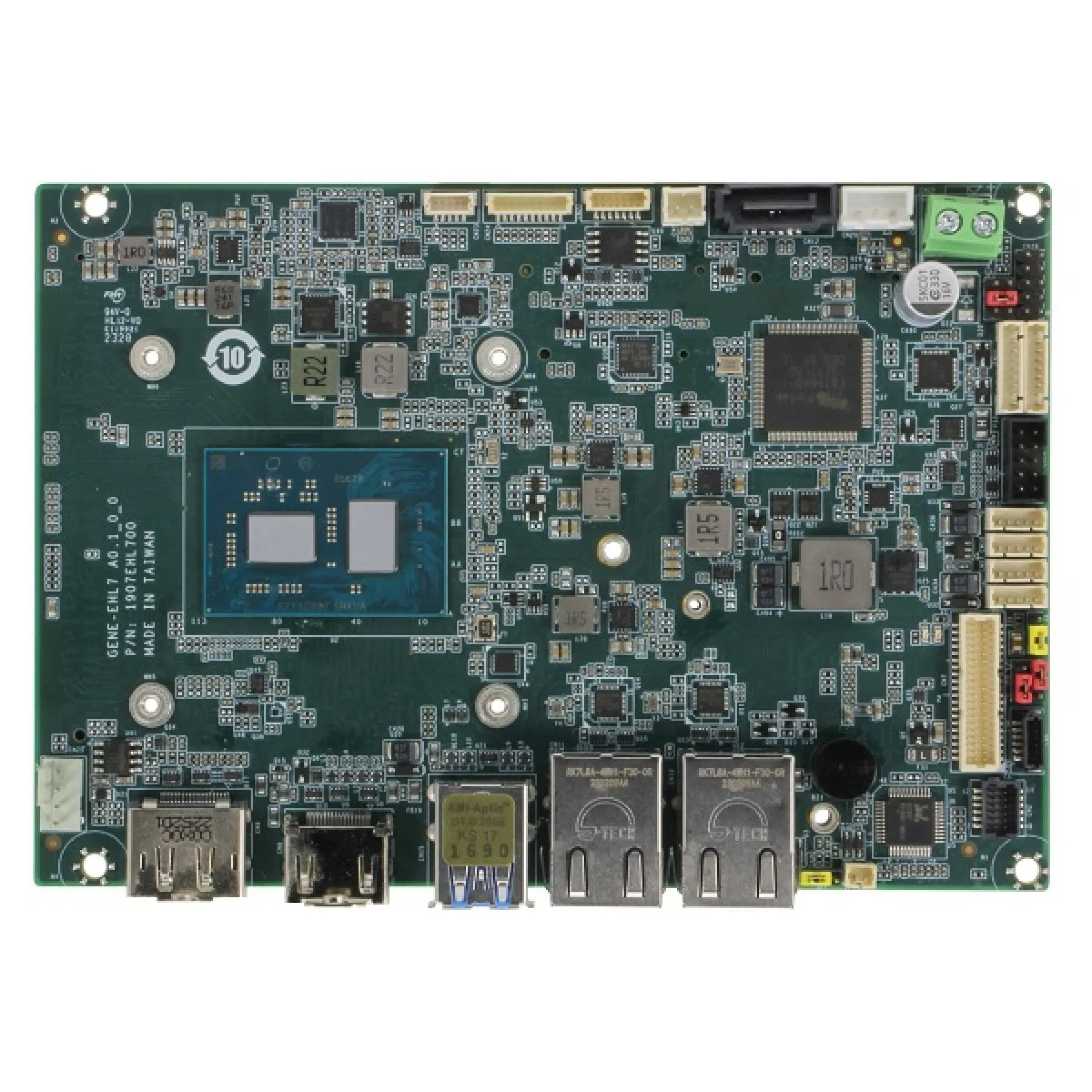

AAEON GENE-EHL7-A10-0002 3.5″ SubCompact Board Intel Processor J6412 (4C/4T, 2.00GHz, 10W) 12V Power, TPM 2.0
GENE-EHL7-A10-0002
- DDR4 3200MHz SODIMM x 1, up to 32GB
- HDMI 1.4 x 1, DP 1.4 x 1, LVDS/eDP x 1
- GbE x 2, SATA 6.0 Gb/s x 1, GPIO x 8-bit
- USB 3.2 Gen 2 x 2, USB 2.0 x 4, RS-232/422/485 x 1, RS-232 x 1
- Mini PCIe Card x 1, M.2 2230 E-Key x 1, M.2 2280 M-Key x 1
Choose GENE-EHL7 Model:
GENE-EHL7-A10-0002
3.5" Single Board Computers, AAEON Embedded Boards, AAEON Technology, Industrial Motherboards
Details
SubCompact Board with Intel Atom® x6000E Series, and Intel® Pentium® and Celeron® N and J Series Processors.Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
| SYSTEM | |
| FORM FACTOR | 3.5″ SubCompact Board |
| CPU | Intel Atom® x6000E series, Pentium®, and Celeron® N and J series Processors: x6413E (4C/4T, 1.50GHz, 9W) J6412 (4C/4T, 2.00GHz, 10W) N6210 (2C/2T, 1.20GHz, 6.5W) |
| CHIPSET | Integrated with Intel® SoC |
| MEMORY TYPE | Single-Channel DDR4 3200MHz SODIMM x 1, Max. 32GB, Non-ECC *IBECC supported by selected CPU SKU |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | TPM 2.0 (Optional) |
| RTC BATTERY | Lithium Battery 3V/240mAh |
| DIMENSION | 5.75″ x 4″ (146mm x 101.7mm), 0.83 lbs (0.38 kg) |
| OS SUPPORT | Windows 10 (64bit) Linux Ubuntu 20.04.5 / 5.15.0-46-generic |
| POWER | |
| POWER REQUIREMENT | +12V |
| POWER SUPPLY TYPE | AT/ATX |
| CONNECTOR | Phoenix 2-pin Connector |
| POWER CONSUMPTION | Intel Atom® x6413E, DDR4 32GB, 2.17A @+12V (Typical) Intel Atom® x6413E, DDR4 32GB, 2.72A @+12V (Max) |
| DISPLAY | |
| CONTROLLER | Intel® UHD Graphics for 10th Gen Intel® Processors |
| LVDS/EDP | Dual-Channel 18/24-bit LVDS x 1, up to 1920 x 1080 eDP 1.3 x 1, up to 1920 x 1200 (Optional) |
| DISPLAY INTERFACE | HDMI 1.4 x 1, up to 3840 x 2160 @ 30Hz DP 1.4 x 1, up to 3840 x 2160 @ 120Hz |
| MULTIPLE DISPLAY | Up to 3 Simultaneous Displays |
| AUDIO | |
| CODEC | Realtek ALC897 |
| AUDIO INTERFACE | Line-In / Line-Out / Mic |
| SPEAKER | — |

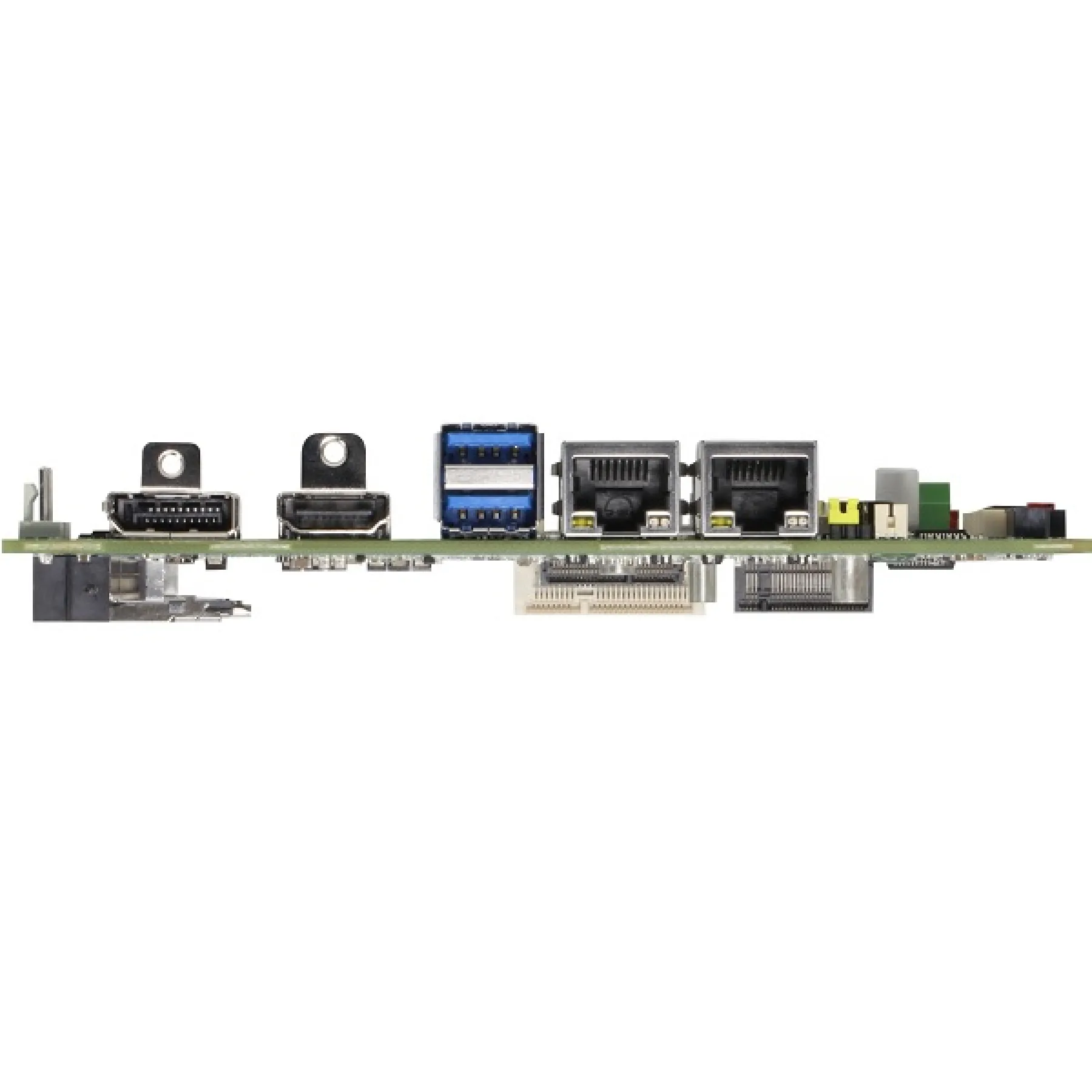

| EXTERNAL I/O | |
| ETHERNET | Realtek RTL8111H 1GbE, RJ-45 x 2 |
| USB | USB 3.2 Gen2 x 2 |
| SERIAL PORT | — |
| VIDEO | HDMI 1.4 x 1 DP 1.4 x 1 |
| INTERNAL I/O | |
| USB | USB 2.0 x 4 |
| SERIAL PORT | COM1 (RS232/422/485, supports 5V/12V/RI) COM2 (RS232) |
| VIDEO | LVDS / eDP x 1 (Default: LVDS) Inverter x 1 (12V/2A) |
| SATA | SATA 6.0 Gb/s x 1 +5V SATA Power Connector x 1 |
| AUDIO | Audio Header x 1 |
| DIO/GPIO | GPIO 8-bits |
| SMBUS/I2C | SMBus / I2C x 1 (Default: SMBus) |
| TOUCH | — |
| FAN | 4pins Smart Fan x 1 |
| SIM | — |
| FRONT PANEL | HDD LED, PWR LED, Power Button, Buzzer, Reset |
| OTHERS | — |
| EXPANSION | |
| MINI PCI-E/MSATA | Full-size mPCIe x 1 |
| M.2 | M.2 2230 E-Key x 1 (PCIe 3.0 [x1], USB2.0) M.2 2280 M-Key x 1 (PCIe 3.0 [x2] / SATA), SATA select by BOM |
| OTHERS | — |
| ENVIRONMENT & CERTIFICATION | |
| OPERATING TEMPERATURE | 32°F ~ 140°F (0°C ~ 60°C) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 484,355 |
| EMC | CE/FCC Class A |
| PART NUMBER | GENE-EHL7-A10-0001 | GENE-EHL7-A10-0002 | GENE-EHL7-A10-0003 |
|---|---|---|---|
| CPU | N6210 | J6412 | x6413E |
| DISPLAY | DP x 1, HDMI x 1,LVDS x 1 | DP x 1, HDMI x 1,LVDS x 1 | DP x 1, HDMI x 1,LVDS x 1 |
| LAN | GbE x 2 | GbE x 2 | GbE x 2 |
| USB | USB 3.2 Gen 2 x 2 USB 2.0 x 4 | USB 3.2 Gen 2 x 2 USB 2.0 x 4 | USB 3.2 Gen 2 x 2 USB 2.0 x 4 |
| RS-232 | 1 | 1 | 1 |
| RS-232/422/485 | 1 | 1 | 1 |
| STORAGE | SATA x 1 | SATA x 1 | SATA x 1 |
| EXPANSION SLOT | M.2 2280 M-Key x 1, M.2 2230 E-Key x 1, mPCIe (Full size)x 1 | M.2 2280 M-Key x 1, M.2 2230 E-Key x 1, mPCIe (Full size)x 1 | M.2 2280 M-Key x 1, M.2 2230 E-Key x 1, mPCIe (Full size)x 1 |
| TPM | 2.0 | 2.0 | 2.0 |
| POWER | 12V | 12V | 12V |
| TEMP | 0°C ~ 60°C | 0°C ~ 60°C | 0°C ~ 60°C |
| OTHERS | Audio, DIO, SMBUS | Audio, DIO, SMBUS | Audio, DIO, SMBUS |
| Processor Type | Intel Celeron: Up to 4 Cores |
|---|---|
| Memory Type | DDR4 |
| COM Ports | 1x RS-232/422/485, 1x RS-232 |
| LAN Ports | 2x 1GB |
| USB Ports | 2x USB 3.2, 4x USB 2.0 |
| Video Ports | 1x HDMI, 1x DisplayPort, 1x LVDS |
| Storage | 1x SATA |
| Operating Temperature | 0°C to 60°C |
