GENE-APL5-A12-F003

Name: AAEON GENE-APL5-A12-F003 Intel Pentium N4200 3.5” SubCompact Board
SKU: GENE-APL5-A12-F003

AAEON Technology

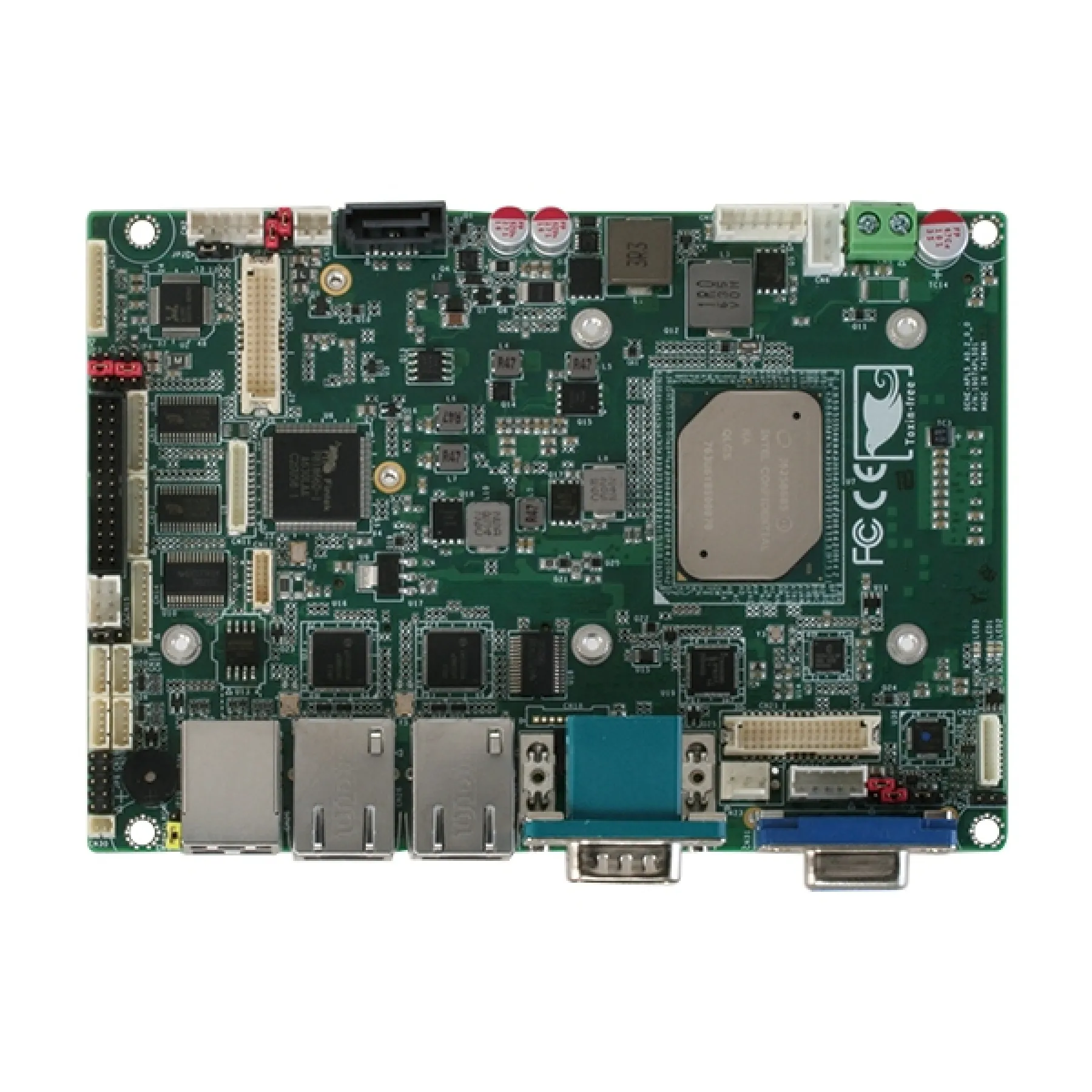

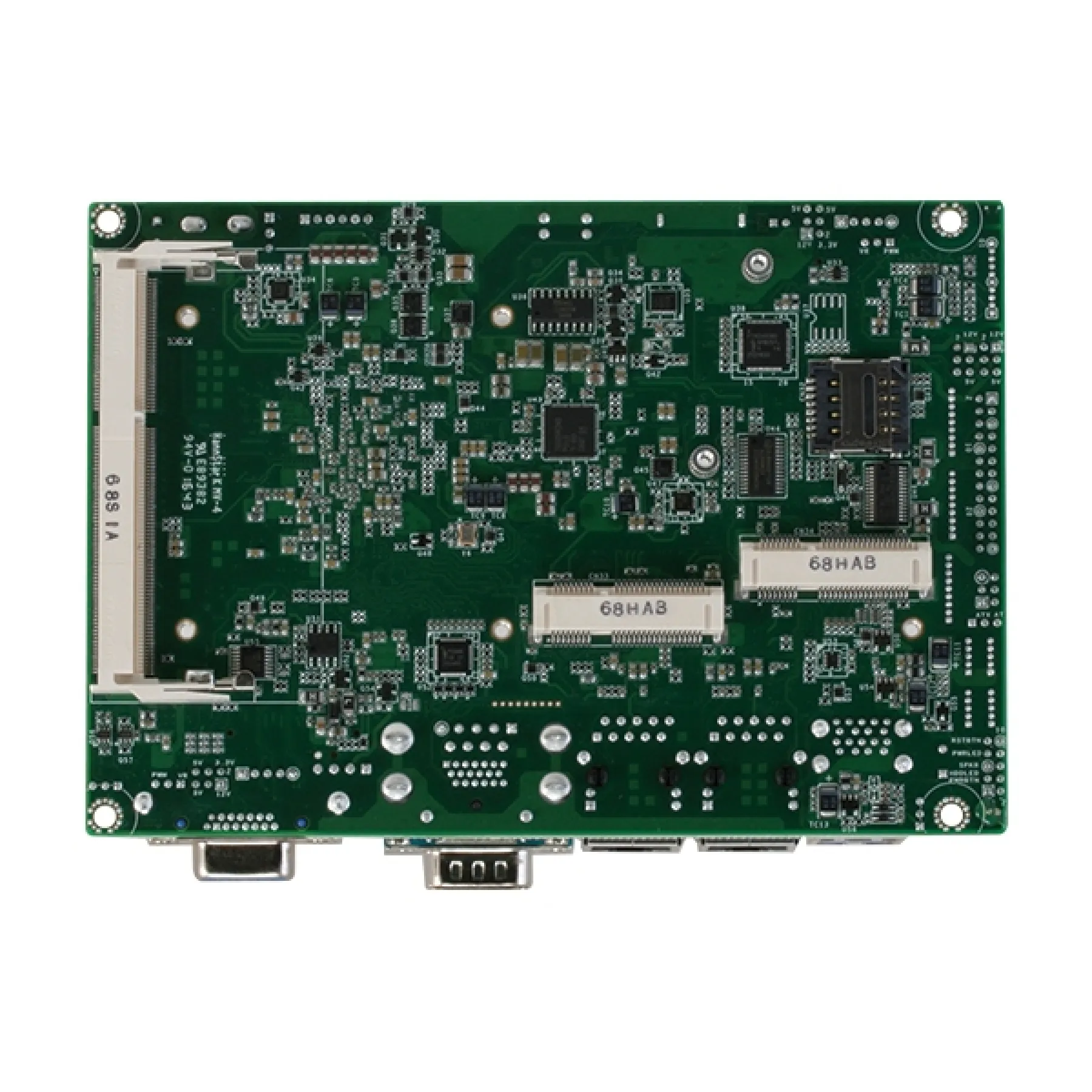

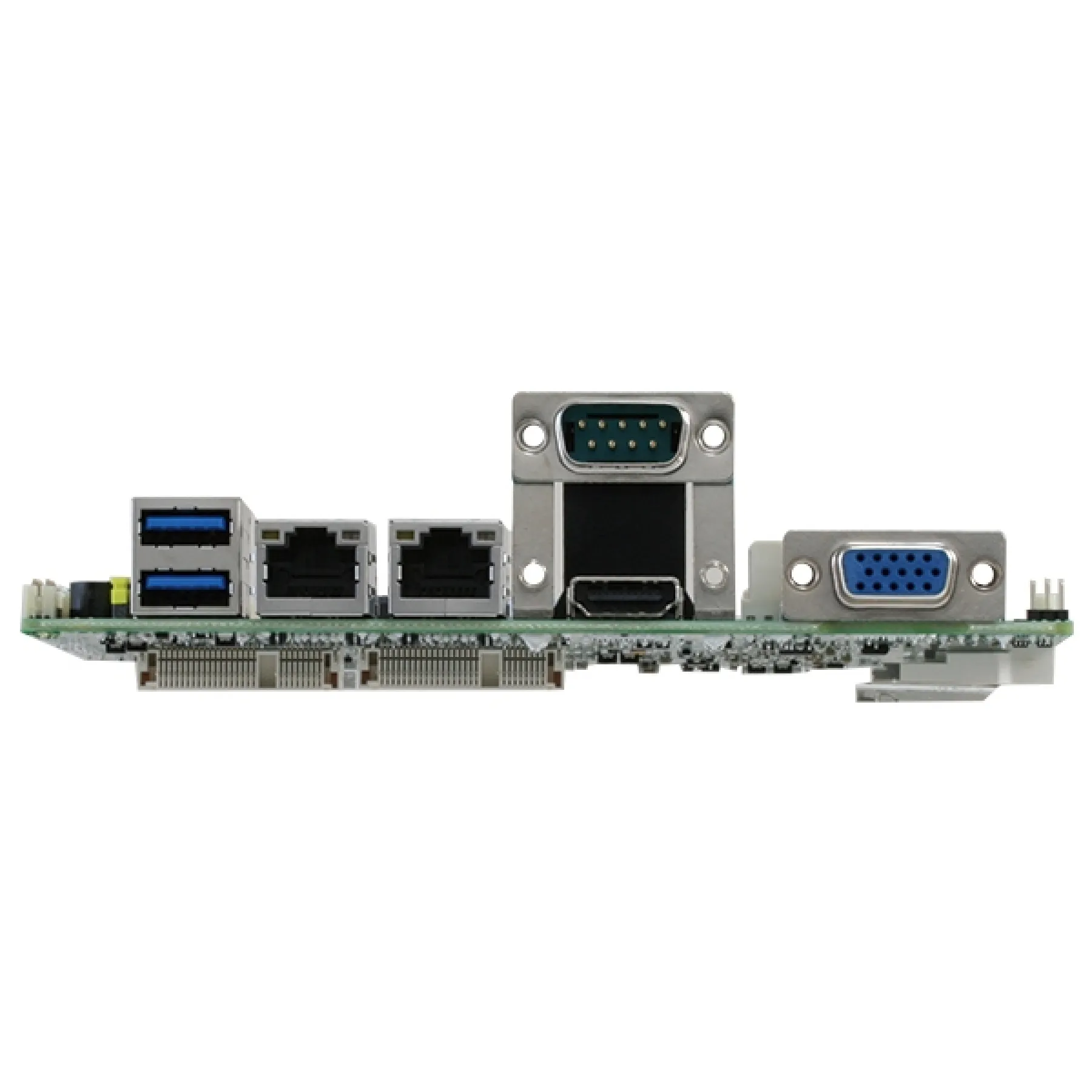

AAEON GENE-APL5-A12-F003 Intel Pentium N4200 3.5” SubCompact Board

GENE-APL5-A12-F003

Intel Pentium N4200/ Celeron N3350 Processor SoC
DDR3L 1866, Single Channel SODIMM x 1, Non-ECC (Max.8GB, up to 1600MHz)
VGA/LVDS/LVDS2 (HDMI Co-layout with LVDS2 Optional)
2 CH Audio, SATA 6.0 Gb/s x 1
Supports 8-bit Digital I/O , USB 2.0 x 4 , USB 3.2 Gen 1 x 2 , COM x 4
Mini Card x 1 (Half-size), mSATA x 1 (Full size)
DC 12V Only or +9~19V (Optional), AT/ATX Mode
Supports TPM (Optional)
4/5/8-wire Resistive Touch Screen Controller (Optional)

Choose GENE-APL5-A12 Model:

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: GENE-APL5-A12-F003

Categories: 3.5" Single Board Computers, AAEON Embedded Boards, AAEON Technology, Boards & Modules, Industrial Motherboards

Range: AAEON Technology

Details

Introducing the all-new GENE-APL5 - small, powerful, and energy efficient. Featuring the latest generation of Intel low-power, 14 nm quad-core processors, dual gigabit LAN, and USB 3.0 for an energy efficient, easy-to-deploy, fan-less PC experience. GENE-APL5 are powered by a high-performance Intel Pentium N4200, with full support for USB keyboard/mouse input, and direct output via HDMI. The GENE-APL5 is fully 4K media playback capable with on-board HDMI output, making it ideal for deployment in IoT, kiosk, digital signage, and cubicle applications. GENE-APL5 are a powerful, easy-to-use, and easy-to-manage solution suitable for a wide range of challenging deployment scenarios where size, noise, and management present difficulties.

Downloads

Datasheet (GENE-APL5) (PDF)

0.57MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Processor Type	Intel Pentium: Up to 4 Cores
Memory Type	DDR3L
COM Ports	2x RS-232/422/485, 2x RS-232
LAN Ports	2x 1GB
USB Ports	2x USB 3.2, 4x USB 2.0
Video Ports	1x VGA, 2x LVDS
Storage	1x mSATA, 1x SATA
Operating Temperature	0°C to 60°C
