GENE-ADP6-A10-0003

Name: AAEON GENE-ADP6-A10-0003 12th Gen Intel Core i5-1250PE 3.5” SubCompact Board
SKU: GENE-ADP6-A10-0003

AAEON Technology

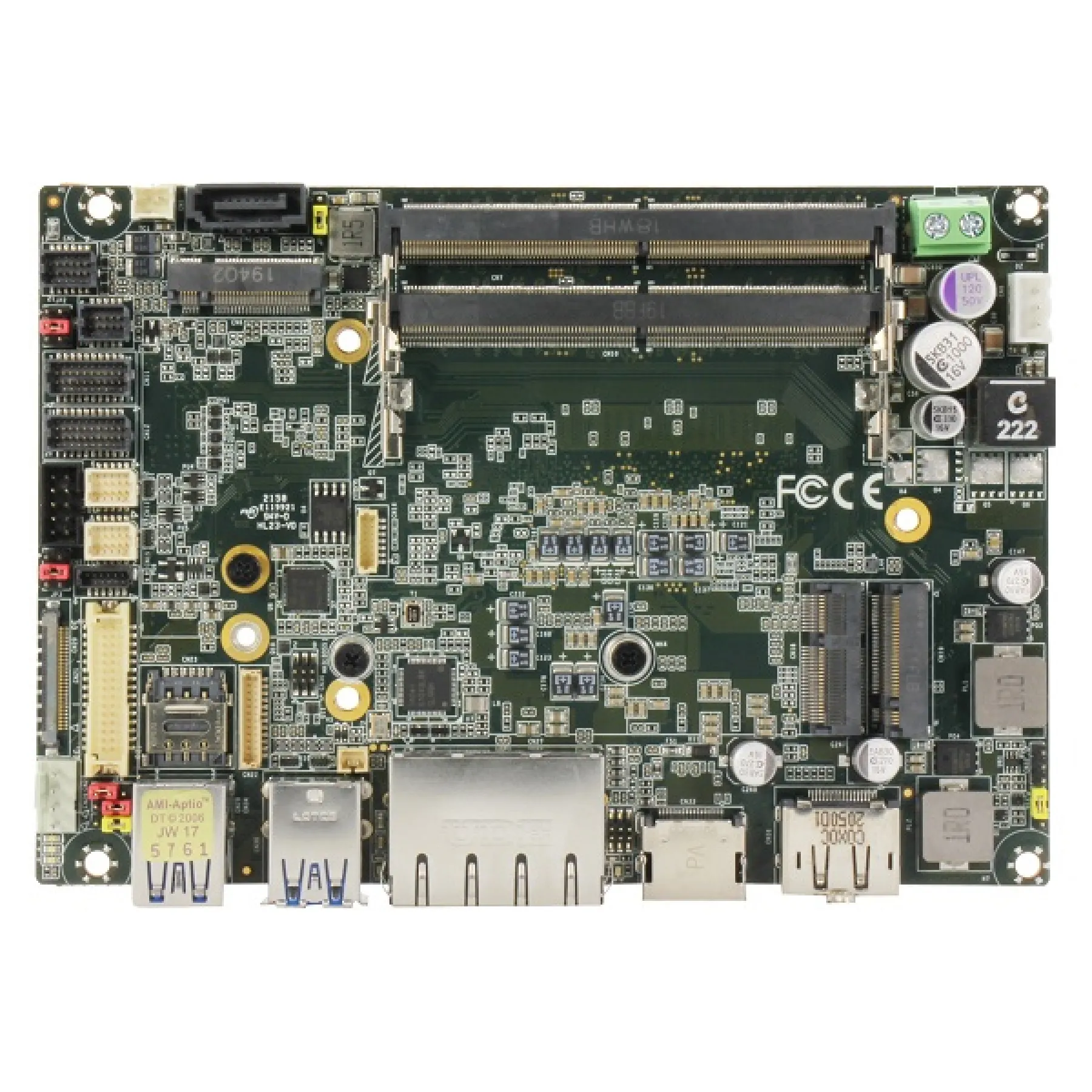

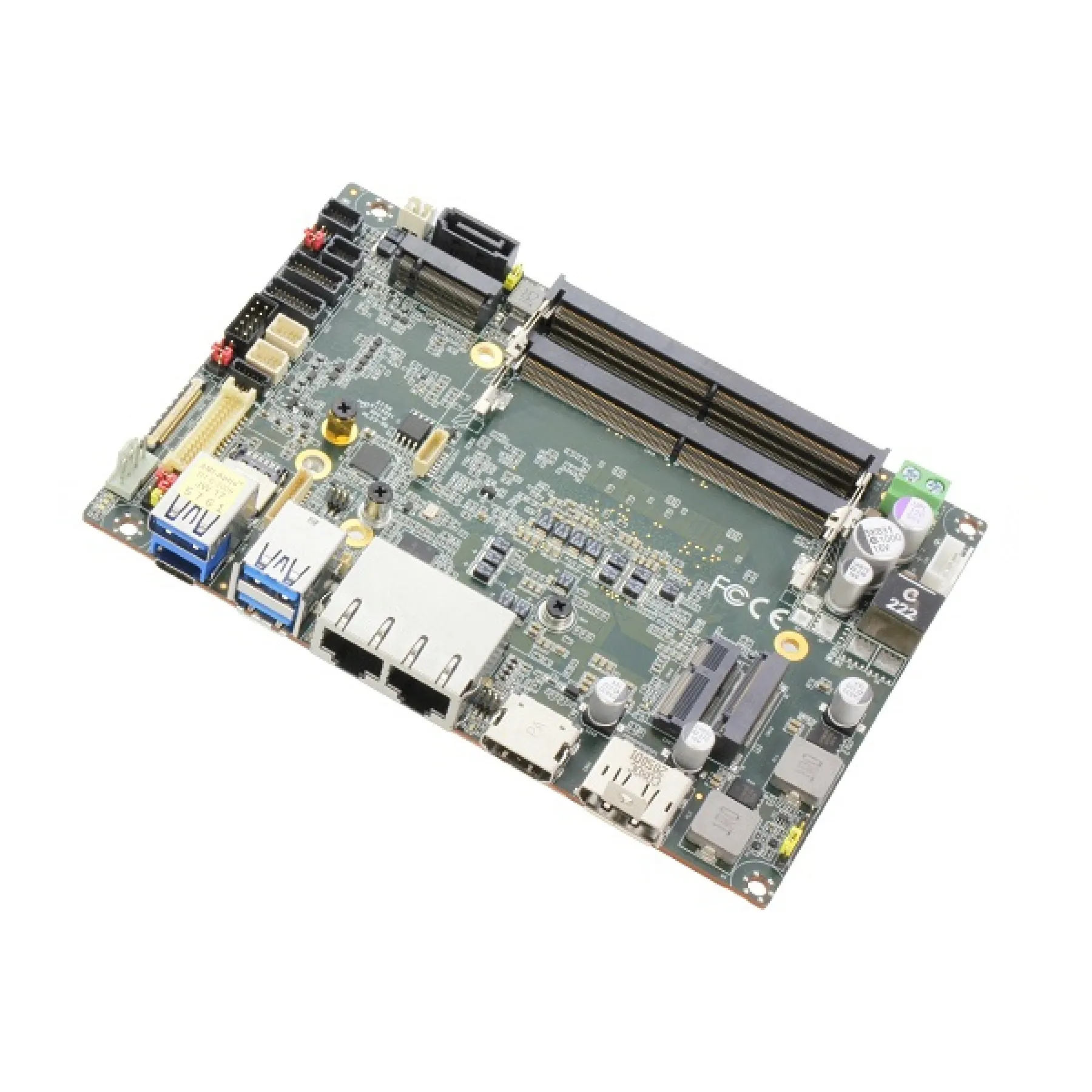

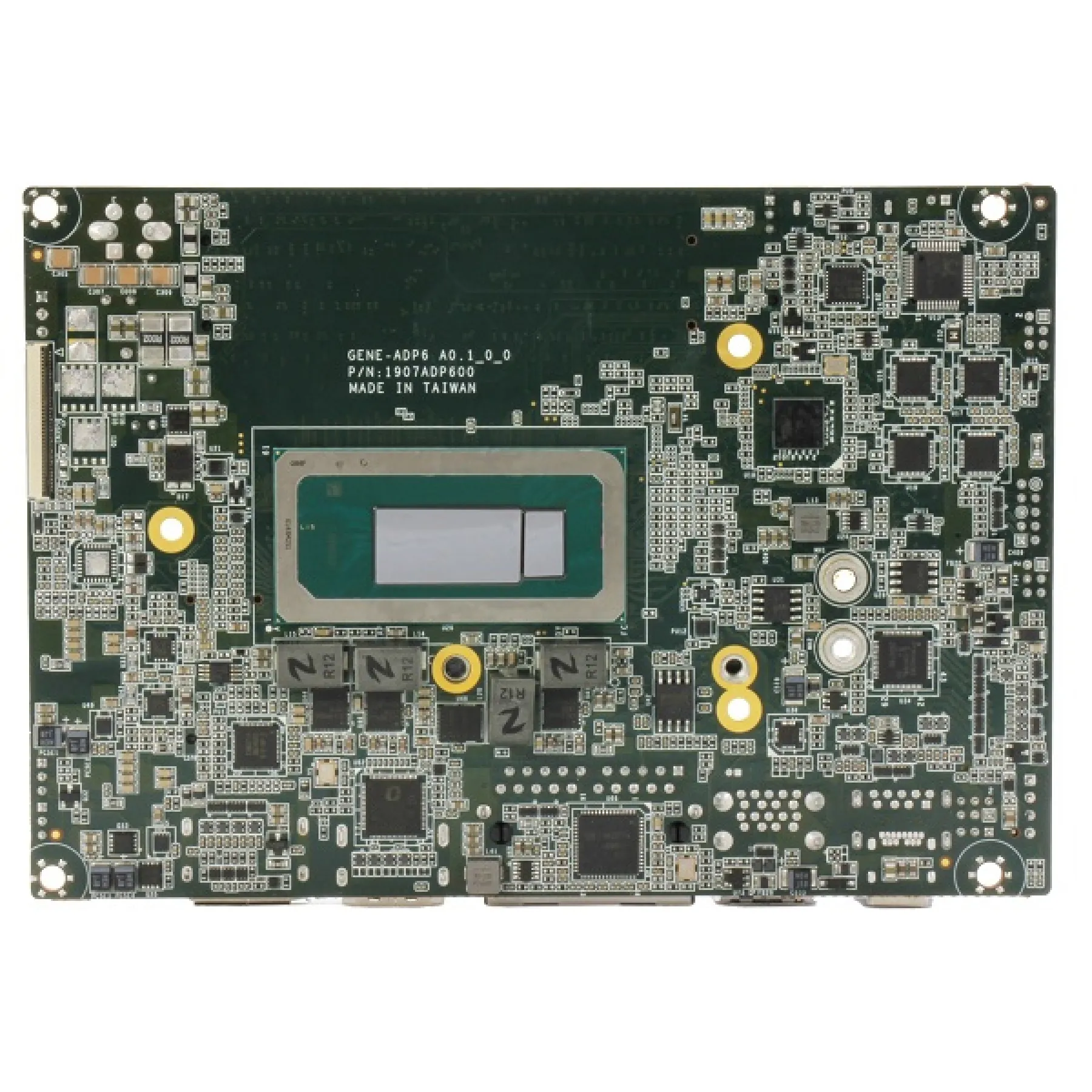

AAEON GENE-ADP6-A10-0003 12th Gen Intel Core i5-1250PE 3.5” SubCompact Board

GENE-ADP6-A10-0003

Intel Core i7/i5/i3/Celeron SoC
DDR5 4800 MHz, Dual Channel SODIMM x 2, up to 64GB
LVDS Dual Channel 18/24 bit x 1, eDP 1.4b, DP1.4a x 1, HDMI 2.1 x 1
2.5GbE x 1, GbE x 1, SATA III x 1, DIO x 8bit
USB 3.2 Gen2 x 3 (Rear I/O), USB2.0 x 4(Pin header), USB Type C x 1
RS-232/422/485 x 4
M.2 M-key 2280 x 1 (PCIe x4 Gen4)
M.2 E-Key 2230 x 1 (PCIe, USB2.0)
M.2 B-Key 3052/3042/2242 x 1 (PCIe x2, USB3.2+SATA, USB2.0), default: USB3.2+SATA
Wide DC Input 9-36V (Optional: 12V Only)

Choose GENE-ADP6 Model:

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: GENE-ADP6-A10-0003

Categories: 3.5" Single Board Computers, AAEON Embedded Boards, AAEON Technology, Boards & Modules, Industrial Motherboards

Range: AAEON Technology

Details

The GENE-ADP6 is the newest addition to AAEON's 3.5” SubCompact Board range, introducing improvements across the board to bring you superior solutions for more complex markets. Featuring substantial upgrades in expandability, visual display options, and enhanced security features, the GENE-ADP6 has the capacity to fully utilize the new Intel 12th Generation Core/Celeron CPU (formerly Alder Lake-P) for edge computing, digital signage, and machine vision applications. In addition to this, the GENE-ADP6’s support of DDR5 4800MHz offers up to 50% faster data transfer speeds and a new, more efficient power management structure.

Downloads

Datasheet (GENE-ADP6) (PDF)

0.58MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Processor Type	Intel Core: Up to 12 Cores
Memory Type	DDR5
COM Ports	4x RS-232/422/485
LAN Ports	1x 2.5GB, 1x 1GB
USB Ports	1x USB Type C, 3x USB 3.2, 4x USB 2.0
Video Ports	1x HDMI, 1x LVDS, 1x eDP, 2x DisplayPort
Storage	1x SATA
Operating Temperature	0°C to 60°C
