EPIC-BT07-A13-0007

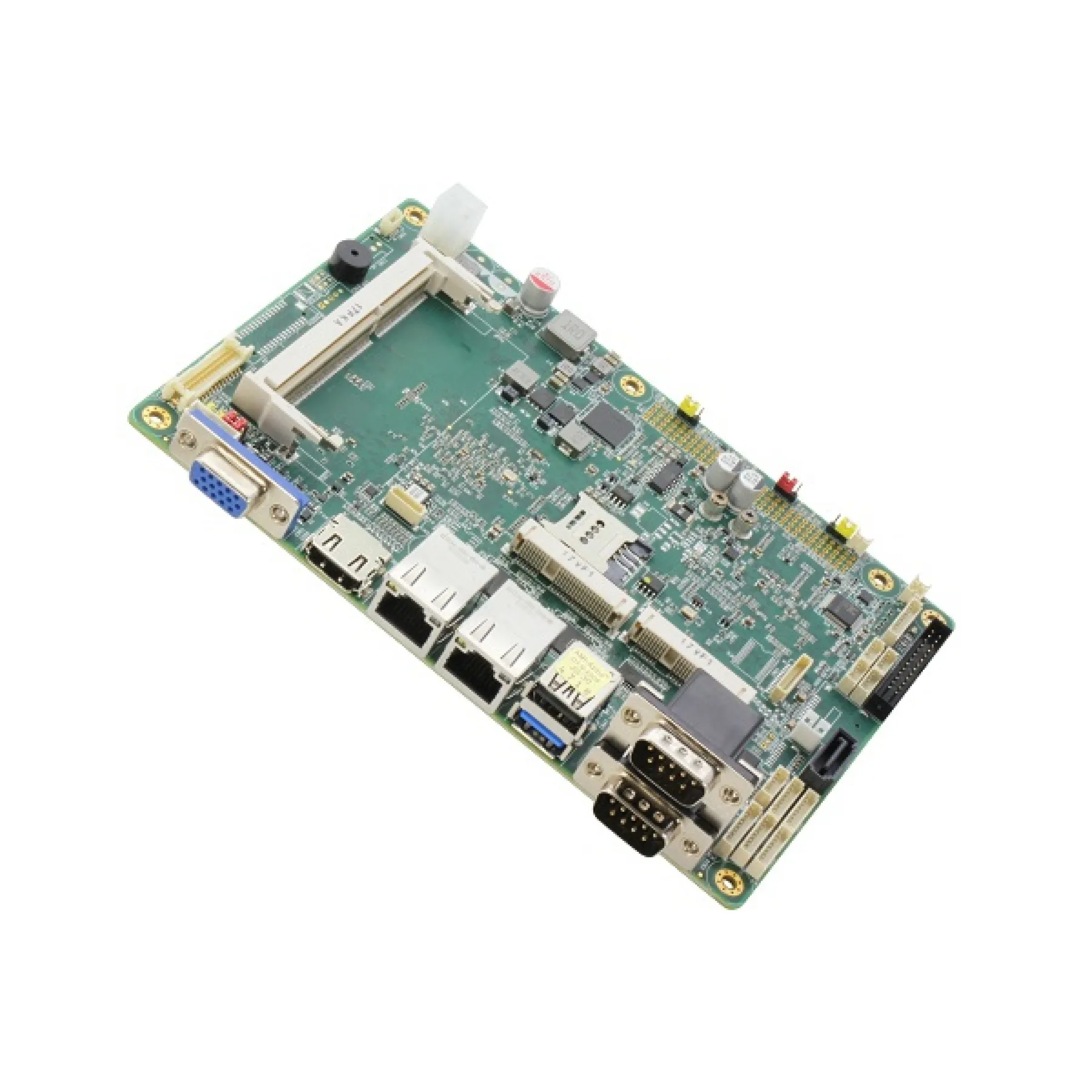

AAEON EPIC-BT07-A13-0007 Intel Celeron N2807 EPIC Board

EPIC-BT07-A13-0007

  • Onboard Intel Atom E3845/ Celeron J1900, N2807 Processor
  • DDR3L 1333MHz SODIMM x 1, Up to 8GB
  • Dual Display Configuration: VGA+ LVDS, VGA + HDMI or HDMI + LVDS
  • SATA 3.0Gb/s x 1, mSATA/ Mini-Card x 1, Micro-SD Slot x 1 (E3800 Series Only)
  • USB 3.2 Gen 1 x 1, USB2.0 x 5, RS-232 x 4, RS-232/422/485 x 2 (COM2, COM3)
  • Mini-Card x 1, SIM x 1, PCI-104 (Optional)
  • 16-bit Digital IO/LPT, SMBus x 1, I2C (Optional)
  • Audio 2CH, 2W Audio Amp., TPM (Optional), Touch Controller (Optional)
  • 9 ~ 24VDC Wide Range or 12VDC Power Input

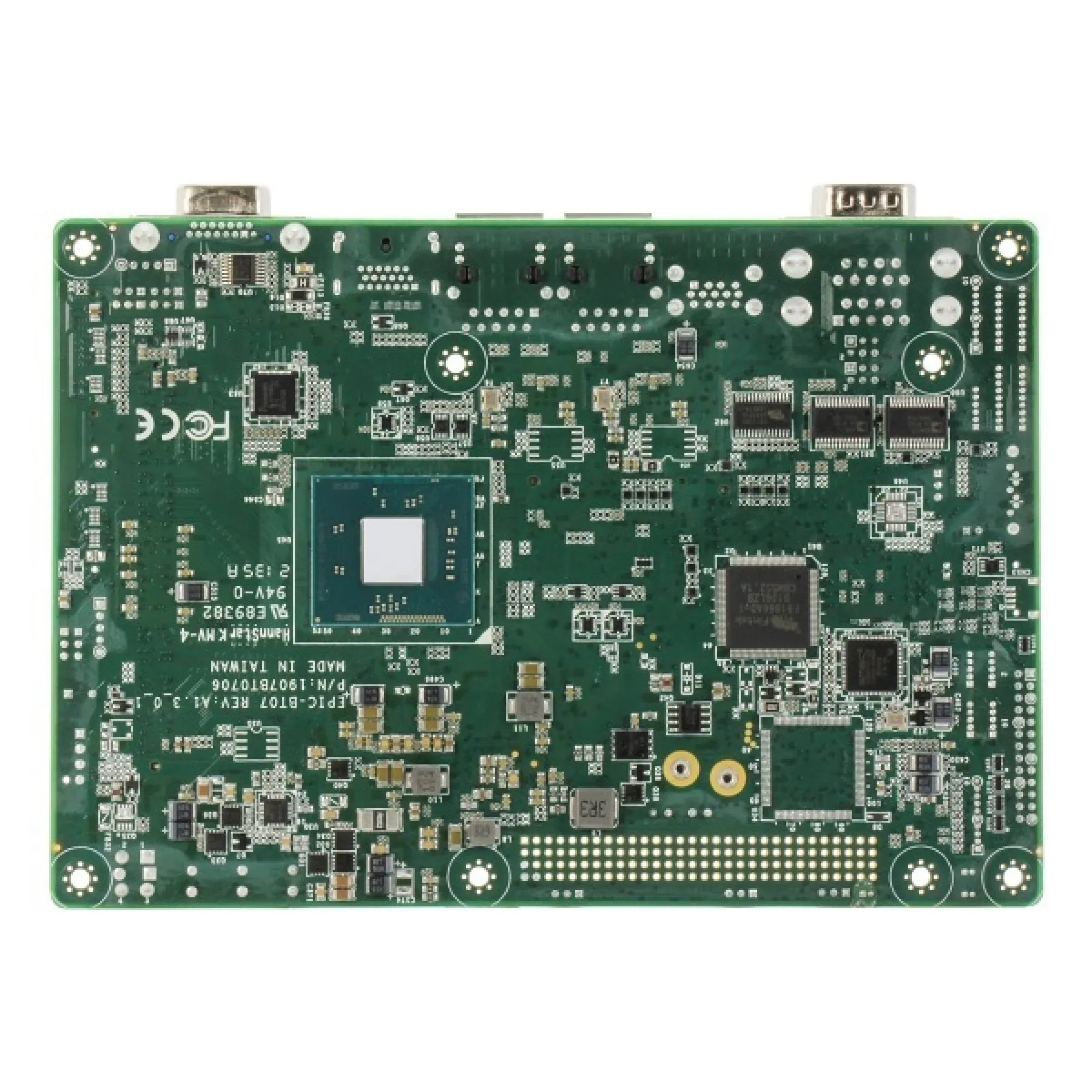

  • SoC Processor on Solder Side Design

Choose EPIC-BT07 Model:

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

The EPIC-BT07 caters to the needs of the market through six COM ports, an interface still popular among most industrial users. Other expansion interface include the PC/104 bus that allow expansions to be stacked atop on the main board, reducing the lateral area needed. The board is also capable of dual display through two of the three display interface available: LVDS, CRT, and HDMI.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Processor Type Intel Celeron: Up to 2 Cores
Memory Type DDR3L
COM Ports 2x RS-232/422/485, 4x RS-232
LAN Ports 2x 1GB
USB Ports 1x USB 3.2, 5x USB 2.0
Video Ports 1x VGA, 1x HDMI, 1x LVDS
Storage 1x mSATA, 1x SATA
Operating Temperature 0°C to 60°C
