BOXER-8221AI

Name: AAEON BOXER-8221AI NVIDIA Jetson Nano AI Edge Compact Fanless Embedded Computer
SKU: BOXER-8221AI

AAEON Technology

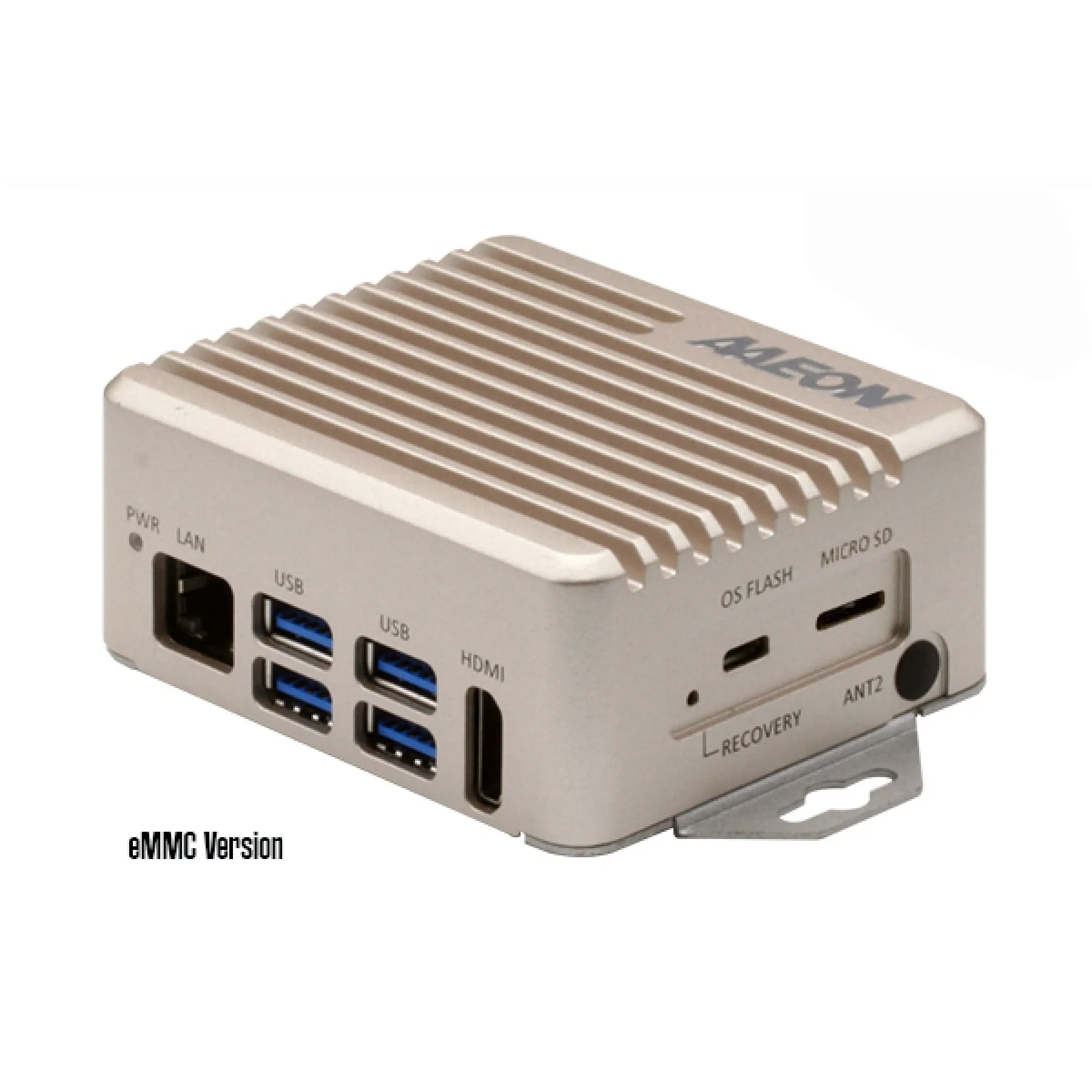

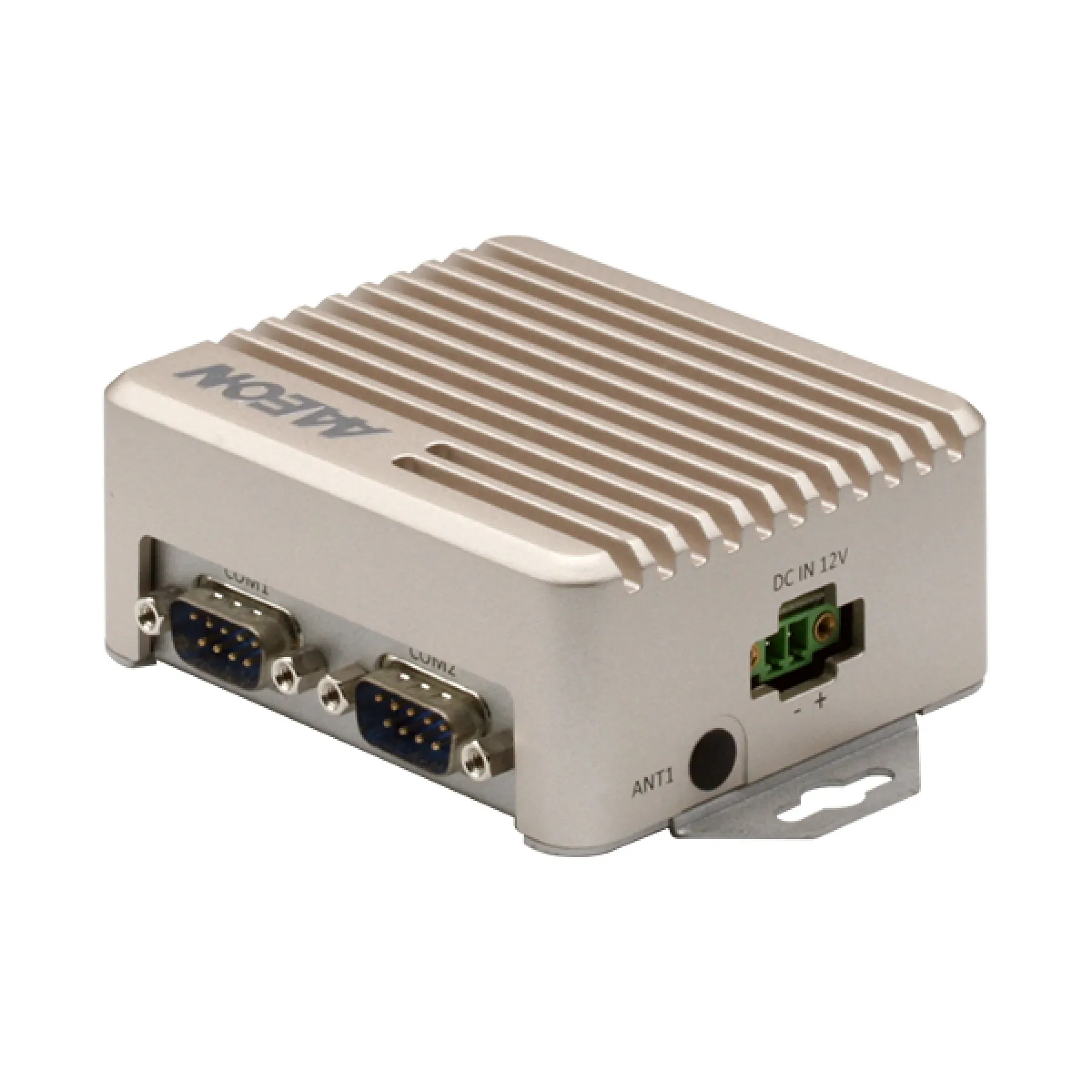

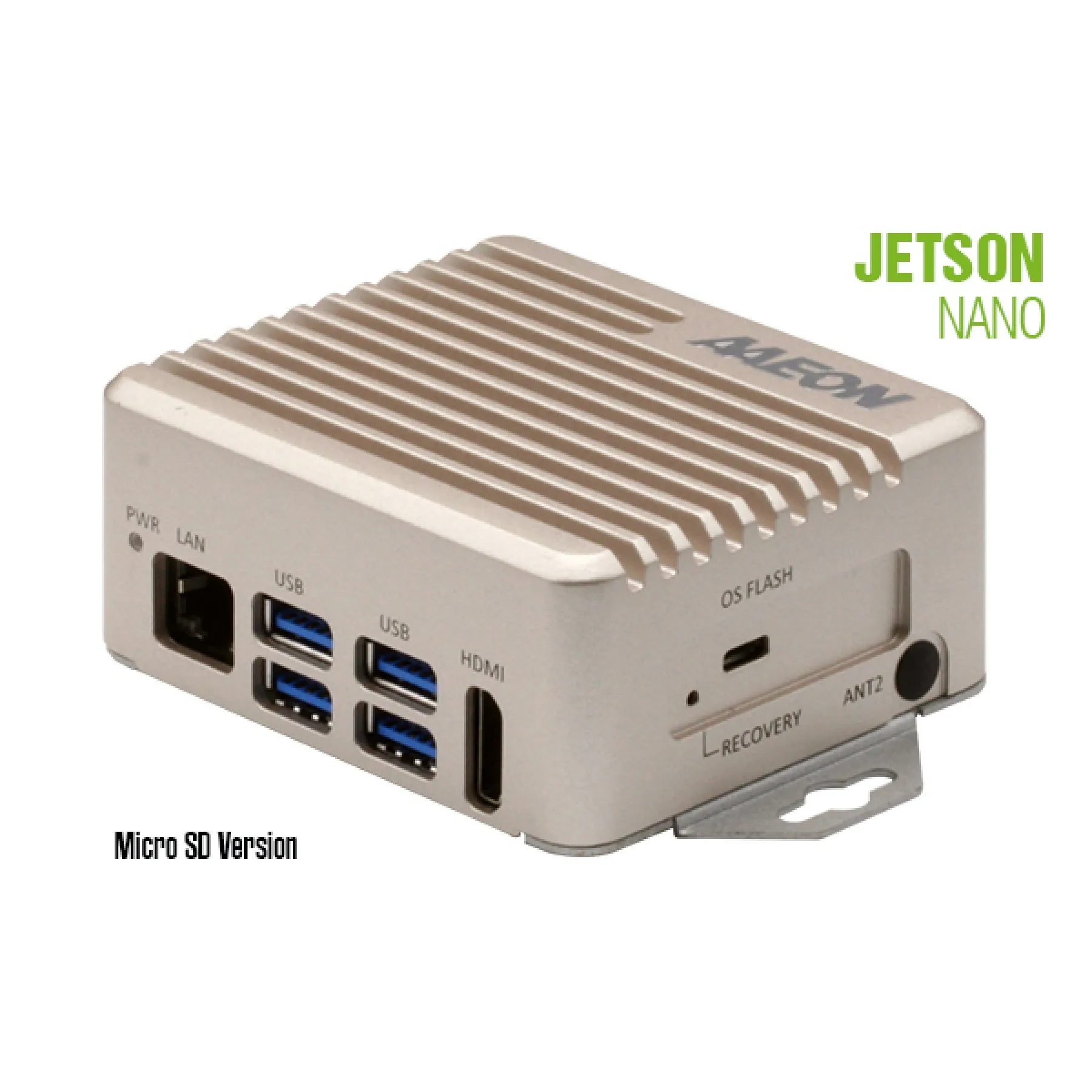

AAEON BOXER-8221AI NVIDIA Jetson Nano AI Edge Compact Fanless Embedded Computer

BOXER-8221AI

NVIDIA Jetson nano
Quad core ARM A57 Processor
4GB LPDDR4 + 16GB Micro-SD or eMMC
LAN x 1 + RS-232 x 2
12Vdc Power input

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: BOXER-8221AI

Categories: AAEON AI Solutions, AAEON Technology, Embedded Box PCs, Embedded Computers, Fanless Embedded PCs, Fanless Industrial PCs, GPU Computing, NVIDIA Jetson Nano Systems, NVIDIA Jetson Systems, Rugged AI Computers, Rugged Computers

Range: AAEON Technology

Details

The BOXER-8221AI is a compact AI Edge system powered by the NVIDIA Jetson Nano, the latest in edge computing technology from NVIDIA. The Jetson Nano SoC combines the quad-core ARM Cortex-A57 MPCore processor with NVIDIA Maxwell GPU architecture featuring 128 NVIDIA CUDA cores. This innovative design allows processing speeds up to 472 GFLOPs and is capable of operating multiple neural networks or processing several high-resolution images at the same time. The NVIDIA Jetson Nano also provides the BOXER-8221AI with 4GB RAM and 16 GB eMMC storage. With the NVIDIA Jetson Nano, the BOXER-8221AI is able to provide both performance and price suitable for entry to mid-level deployment of AI and edge computing applications. With four USB 3.2 Gen 1 ports and two COM ports, the BOXER-8221AI provides flexibility to integrate with a wide range of edge computing applications and projects. The BOXER-8221AI is designed with AAEON’s dedication to providing rugged embedded PCs for industrial use. Its fanless design ensures long reliable operation, preventing dust or other contaminants from interfering with components. The BOXER-8221AI thermal design also allows the system to operate in temperatures from -20°C up to 50°C without a loss in performance, perfect for stable operation in almost every work environment.

Downloads

Datasheet (BOXER-8221AI) (PDF)

0.4MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Processor Type	RISC, up to 4 Cores
GPU	Integrated GPU
Memory Capacity	Up to 32GB
Cooling Type	Fanless
Serial Ports (COM)	2x RS-232
USB Ports	4x USB 3.2
Ethernet Ports (LAN)	1x 1G
Wireless	Cellular, Wi-Fi
Video Ports	1x HDMI
Storage Type	1x MicroSD
Expansion Type	1x M.2
Input Voltage	12 VDC
Mounting Options	Wall-mount
Operating Temperature	Wide OT: -20°C to 50°C
Market Certifications	CE/FCC
OS Support	Linux
