BOXER-6615

AAEON BOXER-6615 Intel Pentium N3710 Fanless Embedded Box PC

BOXER-6615

  • Intel Pentium N3710 1.6 GHz
  • 6COMs: RS-232/422/485 x 2 + RS-232 x 4
  • USB 3.2 Gen 1 x 2, USB 2.0 x 2
  • VGA + HDMI Output, Support Dual View/ Simultaneous Display
  • Supports 2.5” Drive Bay x 1, mSATA
  • Supports 8 Channel DIO x 1
  • DDR3L 1600 SODIMM x 1, Memory Max. up to 8 GB
  • AAEON’s Hi-Safe Support

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

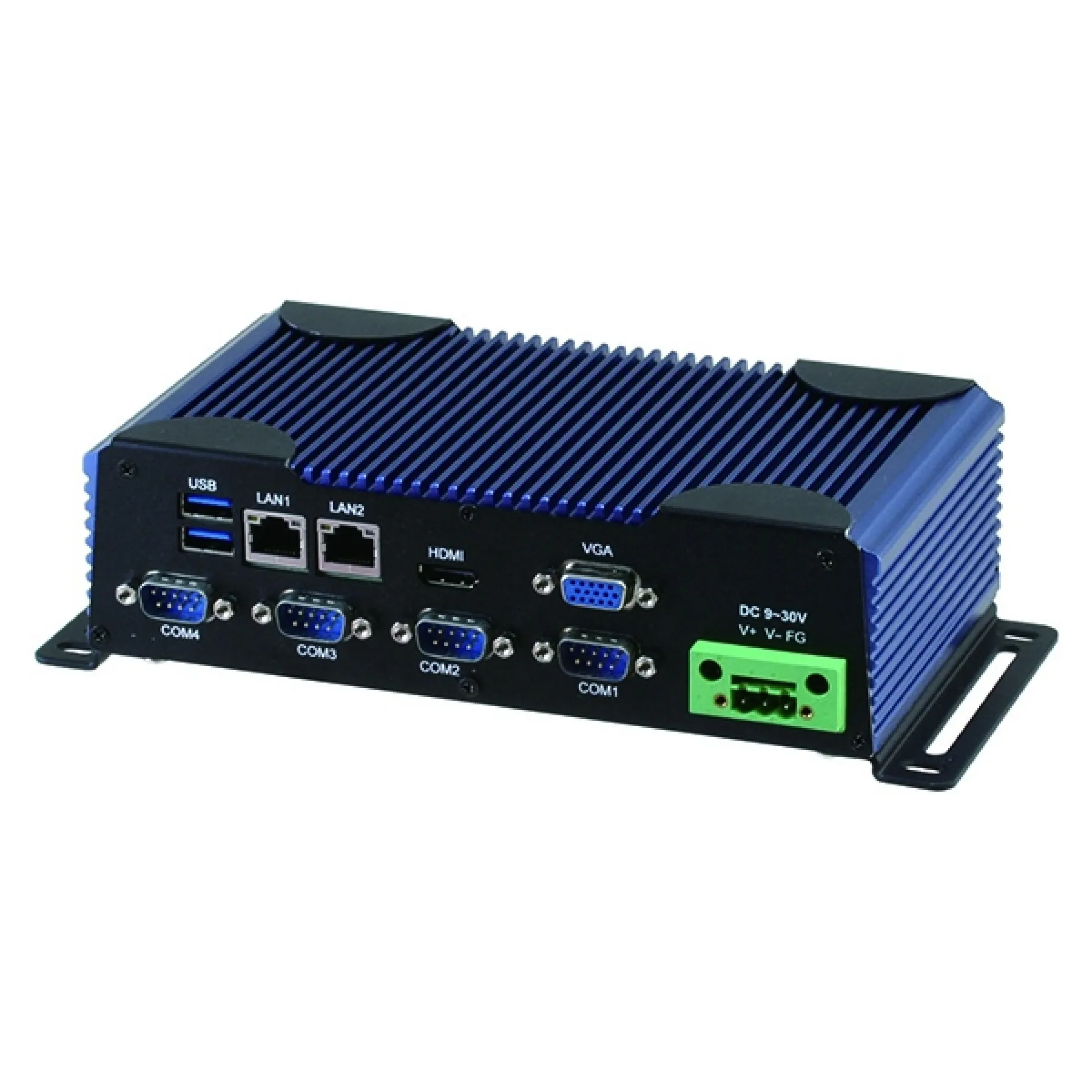

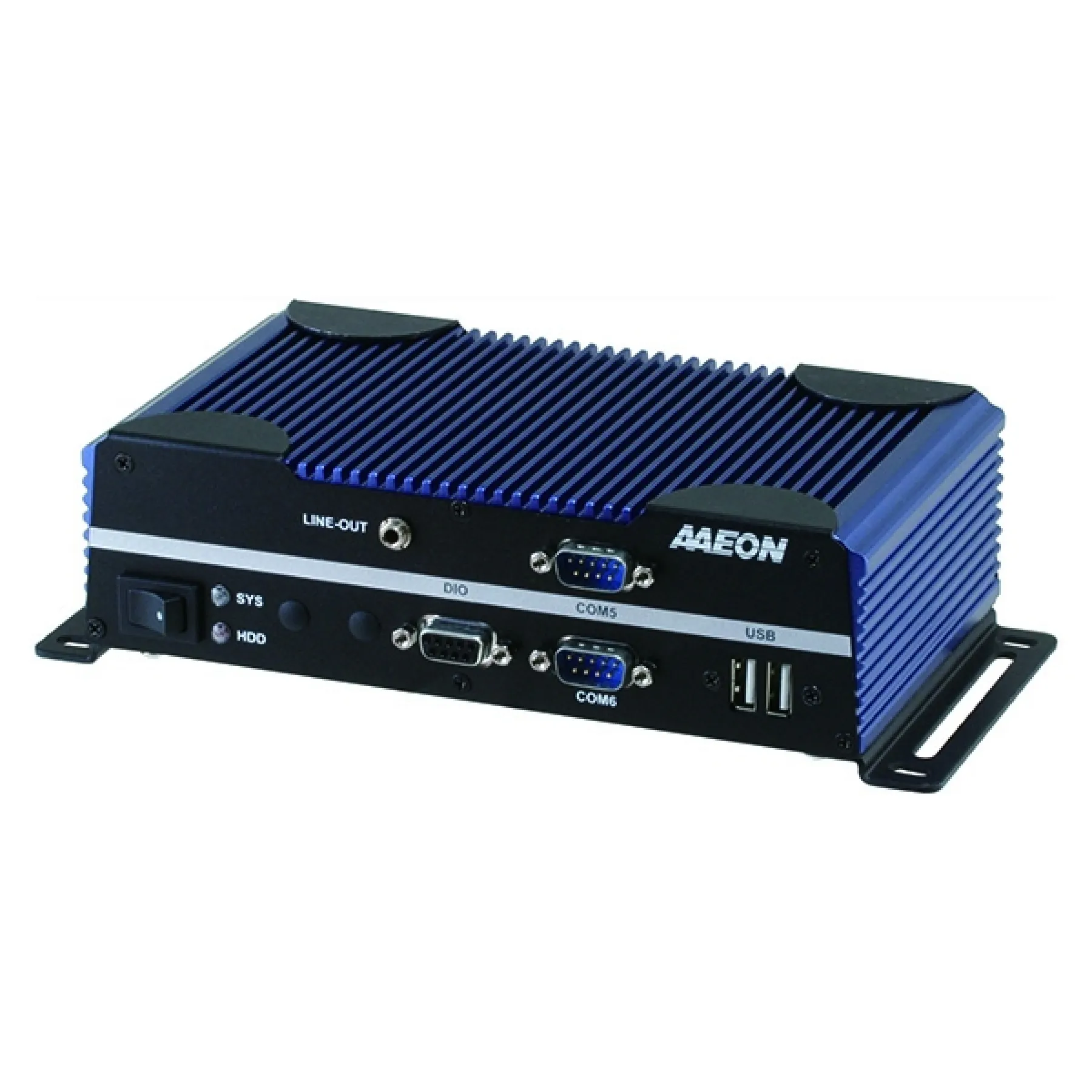

The AAEON BOXER-6615 is a fanless Embedded Box PC powered by Intel Pentium N3710 processor. The BOXER-6615 contains DDR3L, providing up to 8GB memory, alongside rich I/O including 4x USB ports, 6x COM ports and 2x LAN ports.

Downloads

Assured Systems Datasheet (PDF)

A PDF edition of this page with supporting manufacturer datasheets

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Processor Type Intel Pentium, up to 4 Cores
Memory Capacity Up to 8GB
Cooling Type Fanless
Serial Ports (COM) 2x RS-232/422/485, 4x RS-232
USB Ports 2x USB 2.0, 2x USB 3.2
Ethernet Ports (LAN) 2x 1G
Wireless Cellular, Wi-Fi
Video Ports 1x HDMI, 1x VGA
Digital I/O 8 DIO
Audio Yes
Storage Type 1x 2.5", 1x mSATA
Expansion Type 2x Mini PCI Express
Input Voltage 12 VDC, 9-30 VDC
Mounting Options DIN-mount, Wall-mount
Market Certifications CE/FCC
OS Support Linux, Windows 10
