FR CH5504S
55″ Widescreen Chassis Mount Touchscreen Monitor with LED B/L (1920×1080)
End of Life

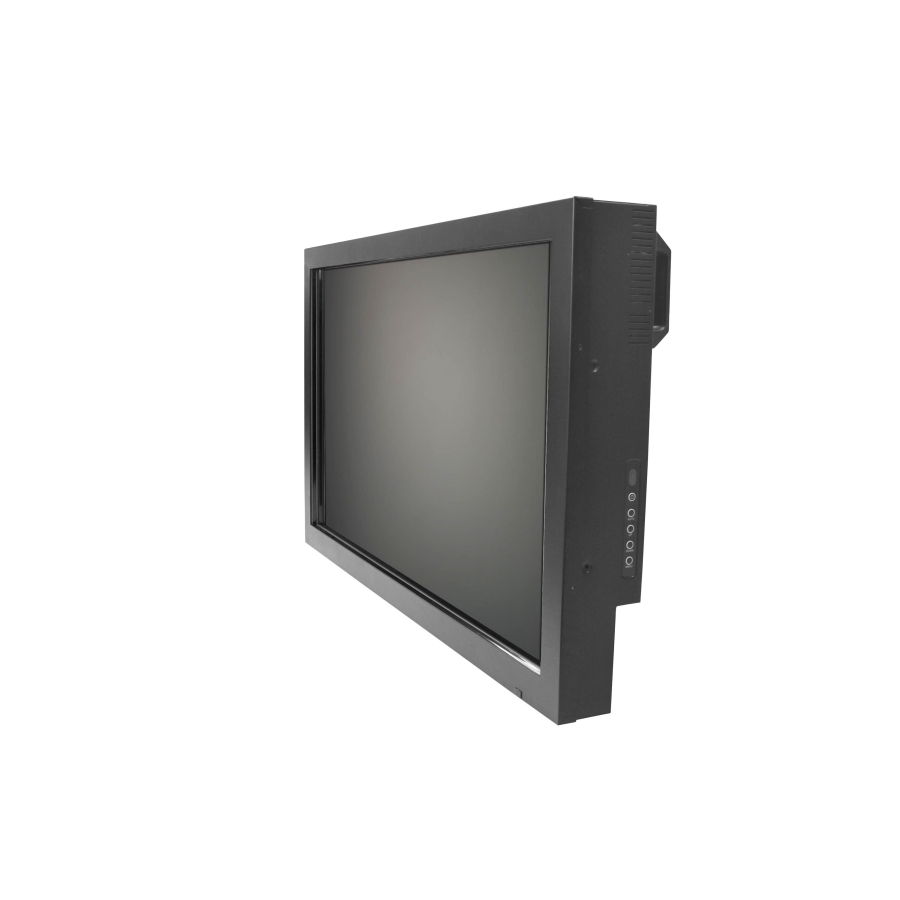

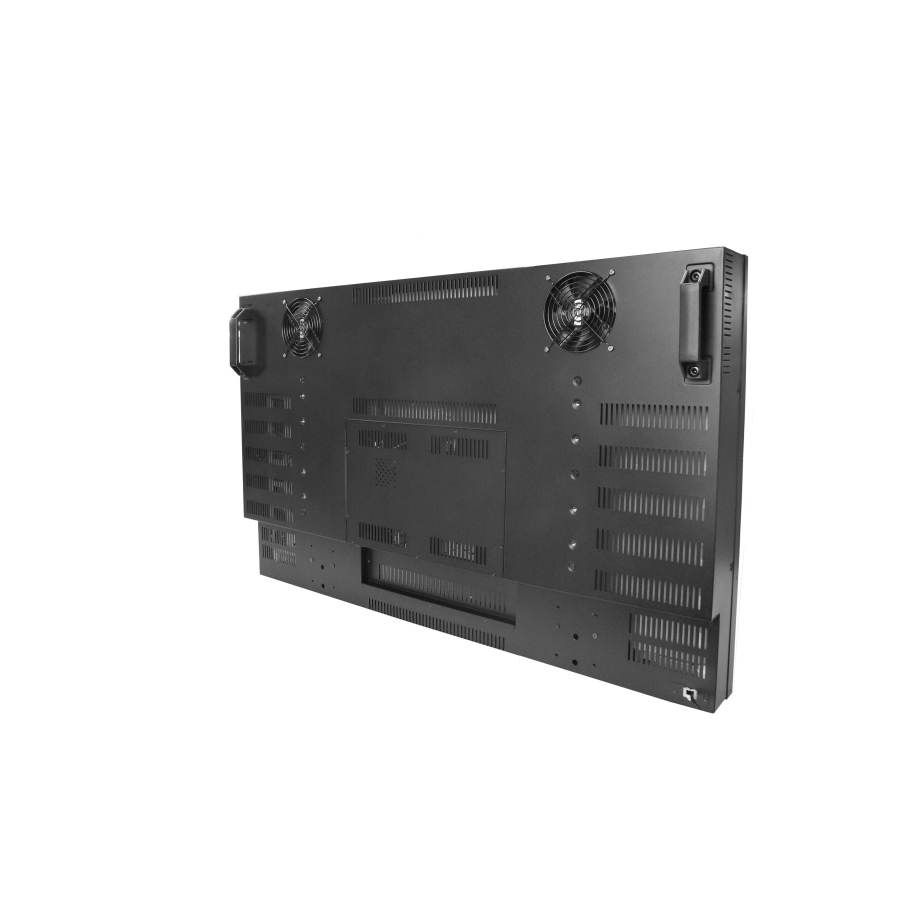

The CH5504S is a 55" widescreen chassis mount industrial LCD display. Packaged in a metal enclosure, it is designed to be mounted using the industry standard VESA fixings on the rear of chassis. By incorporating the latest LED backlight technology, it helps to increase the projected lifetime of the screen without compromising the quality or consistency of the image. The product is also available with optional touchscreen and a variety of video inputs
- Brand: Winsonic
- 55 inch LED backlit screen
- 1920 x 1080 widescreen resolution
- 450 NITS brightness
- Resistive, Capacitive, SAW or Infrared touch options
- S-Video, Composite, HDMI & DVI (On request)
- Size: 1331mm (W) x 798mm (H) x 177mm (D)
Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.
Details
The CH5504S is a 55" widescreen chassis mount industrial LCD touchscreen display. Packaged in a metal enclosure, it is designed to be mounted using the industry standard VESA fixings on the rear of chassis. By incorporating the latest LED backlight technology, it helps to increase the projected lifetime of the screen without compromising the quality or consistency of the image. The product is also available with Resistive, Capacitive, SAW or Infrared touch options and a variety of video inputs
Ordering Info
- CH5504S: 55″ Widescreen Chassis Mount LCD Touchscreen Monitor with VGA Input
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
- Viewable Image Size: 55″
- Resolution: 1920×1080
- Ratio: 16:9
- Brightness: 450cd/m
- Contrast: 4000:1
- Viewing Angle: H (-88 +88), V (-88 +88)
- Bezel: Powder Coated Steel
- Backlight: LED
- VGA: 1 x DB15
- Video Inputs: S-Video, Composite, HDMI & DVI (On request)
- Touchscreen: Resistive, Capacitive, SAW or Infrared touch options
- Power: AC Auto-Sensing 90-260V through IEC cable, (DC Optional)
| Screen Size | 51" to 60", 55" |
|---|
