OPS500-501-H

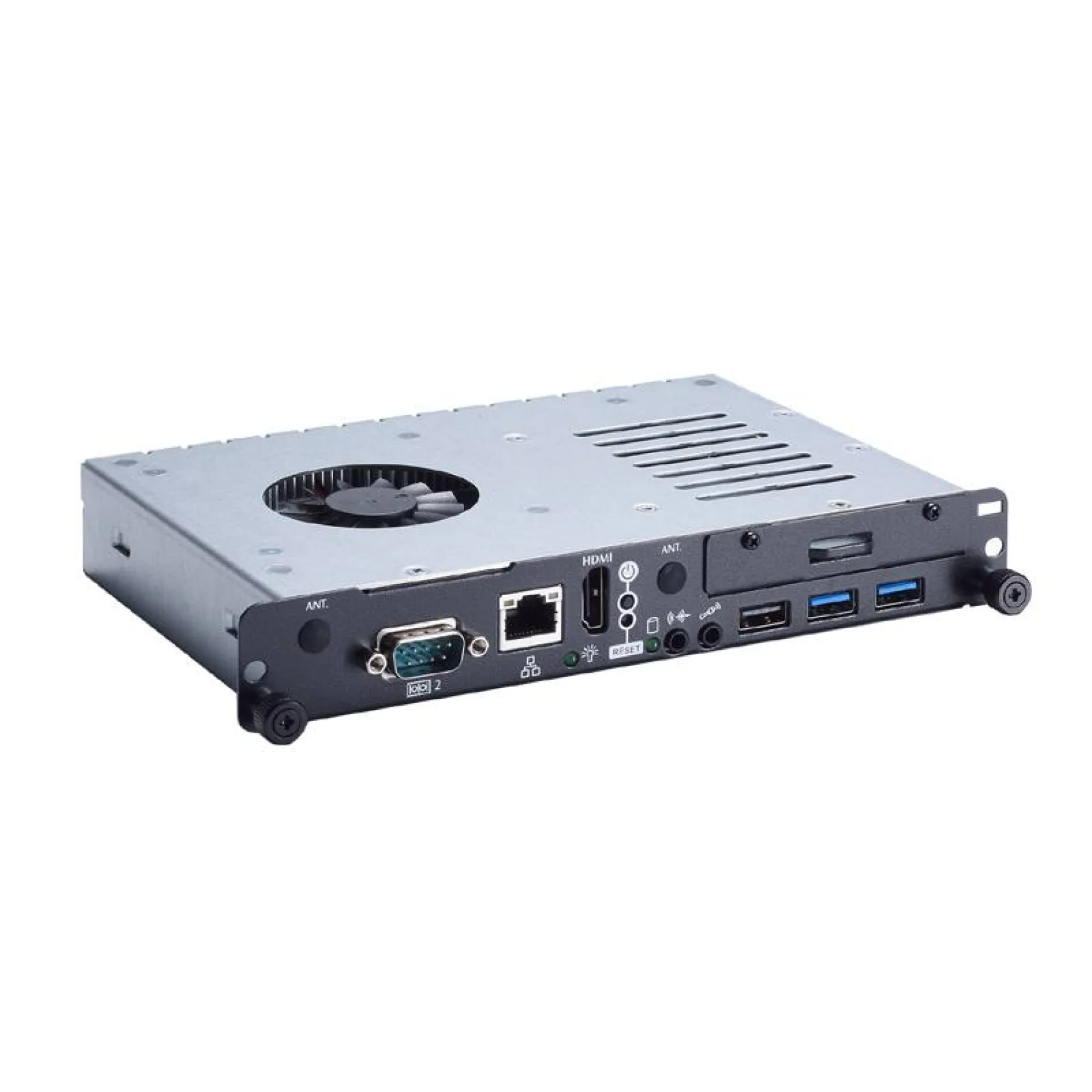

Name: Axiomtek OPS500-501-H Intel OPS System with 6th/7th Gen Intel Core Processor
SKU: OPS500-501-H

Axiomtek OPS500-501-H Intel OPS System with 6th/7th Gen Intel Core Processor

OPS500-501-H

LGA1151 Socket 4K OPS Computer with 6th Gen. Skylake / 7th Gen. Kaby Lake Intel Core or Celeron Processor, H110 Chipset, up to 16GB Memory, 3 USB Ports, 1 HDMI Port and PCI Express

Intel Open Pluggable Specification (OPS compliance)
7th/6th gen Intel Core i7/i5/i3 & Celeron processors (Kaby Lake/Skylake)
DDR4-2133/2400 SO-DIMM for up to 16GB of memory
1 x PCI Express Mini Card slot
HDMI for 2nd ultra HD display with 4K @ 60Hz resolution
Easy installation and maintenance

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: OPS500-501-H

Categories: Axiomtek, Digital Signage Computers, Digital Signage Players, Intel OPS PCs

Range: Axiomtek

Details

The OPS500-501-H from manufacturer Axiomtek is an Intel OPS compliant digital signage player based around the 6th/7th generation Intel Core processors and the game changing Intel HD530 GPU. The high performance system offers superb graphics performance via Intel's acclaimed HD530 GPU technology & DDR4 memory. The system can be installed in to any OPS compliant monitor and features 3 x USB, Gigabit Ethernet, Audio in/out, a 2nd HDMI port and optional Wi-Fi via the mini-PCIe slot. The OPS500-501-H accepts a standard 2.5" HDD/SSD which is removable by a cold swap tray.

Ordering Info

OPS500-501-H

OPS digital signage player supports socket LGA1151 Intel Core 6th/7th Gen processor

Downloads

Axiomtek OPS500-501-H Datasheet (PDF)

0.28MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

CPU	LGA1151 socket 7th/6th generation Intel® Core™ and Celeron® processors
Chipset	Intel® H110
System Memory	7th generation Intel® Core™: 1 x 260-pin DDR4-2133/2400 SO-DIMM, up to 16GB6th generation Intel® Core™: 1 x 260-pin DDR4-2133 SO-DIMM, up to 16GB
BIOS	AMI
COM	1 x RS-232
USB	2 x USB 3.0, 1 x USB 2.0
Ethernet	1 x 10/100/1000 Mbps (Intel® i219-LM)
Display	1 x HDMI 1.4b with 4K resolution
Audio	1 x Audio (Line-out & Mic-in)
JAE Connector	1 x DisplayPort, 1 x HDMI 2.0, 2 x USB 2.0, 1 x USB 3.0, 1 x Audio (Line-out), 1 x UART (TX/RX).
HRS Connector	N/A
Wi-Fi	802.11 b/g/n (optional)
Storage	1 x 2.5″ SATA HDD tray, 1 x mSATA (optional)
Expansion	1 x Full-size PCI Express Mini Card (USB + PCI Express + SATA Signal)
Power Supply	1 x 12 VDC power input (adapter available by option)
Watchdog Timer	255 levels, 1 to 255 sec.
Operating Temperature	0°C to +45°C (+32°F to +113°F) (with airflow 1.2m/s)
Dimensions (W x D x H)	200 x 119 x 30 mm (7.87” x 4.68” x 1.18”)
Weight (net/gross)	1 kg (2.21lb)/ 1.5 kg (3.3 lb)
Certifications	CE
