NISE 3600E

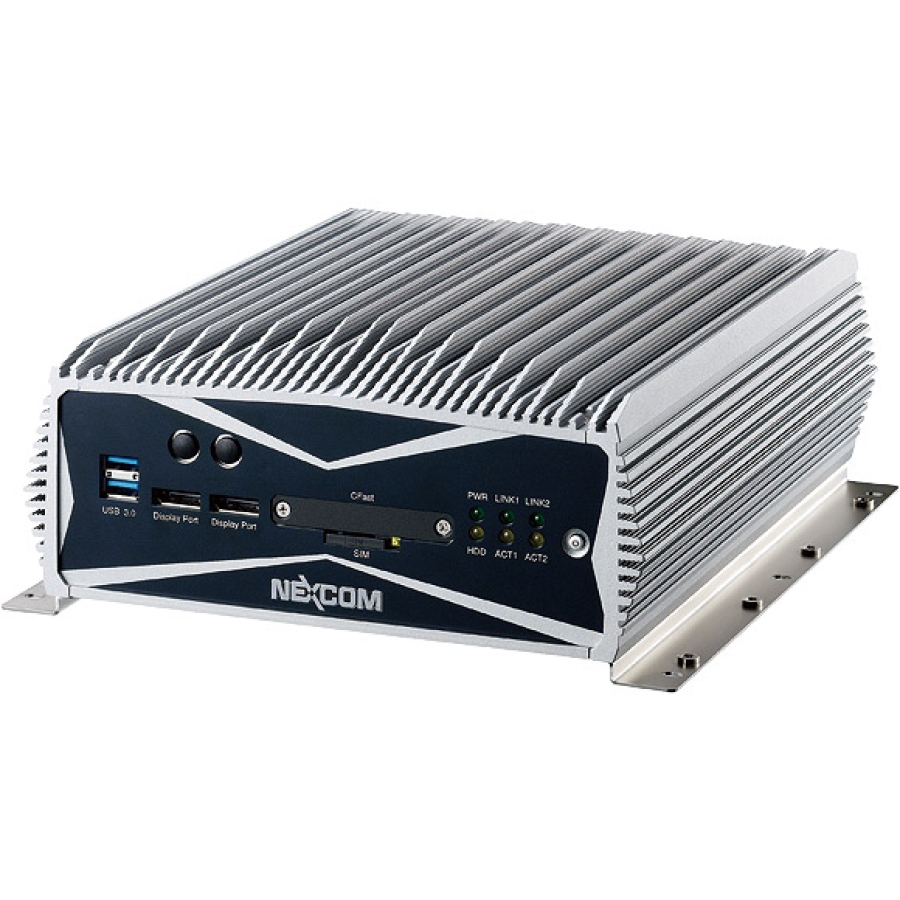

Name: Nexcom NISE 3600E 3rd Gen. Intel Core i5/i3 Industrial Fanless PC w/ 1 PCIe x4
SKU: NISE 3600E

Nexcom NISE 3600E 3rd Gen. Intel Core i5/i3 Industrial Fanless PC w/ 1 PCIe x4

End of Life

The NISE 3600E is from the latest family of high performance fanless computer systems offering 3rd generation Intel Core i5 & i3 processor support and based around the QM77 Platform Controller Hub. With the legendary build quality of the NISE computer family, these products offer the most reliable industrial computing platform on the market, along with really innovative design features such as triple display support (2 x Display Port, 1 x VGA, 1 x DVI-D) offering next generation graphics potential for applications such as optical inspection, surveillance, or image processing. The system is packed with I/O including 4 x super fast USB 3.0 ports, 2 x USB 2.0, dual Intel Gigabit Ethernet, 6 x serial ports, an externally accessible CFast socket, and SIM card holder. The NISE3600E features 1 x PCIe[x4] slot, and the NISE 3600E2 features 2 x PCIe[x4] slots, offering clients even more flexibility for add-on features including data acquisition or specialist field bus cards.

Support 3rd generation Intel Core i7/i5/i3 rPGA socket type processor
Mobile Intel QM77 PCH
Support 1x 2.5″ SATA HDD or 2x SATA DOM
1x VGA, 1x DVI-D and 2x Display port with Independent Display support
Dual Intel GbE LAN ports; Support WoL, Teaming and PXE
4x USB 3.0, 2x USB 2.0, 5x RS232 and 1x RS232/422/485
1x internal Mini-PCIe socket support Wifi or 3.5G module
1x external CFast socket, 1x SIM card socket, One PCIex4 expansion
Support +9V to 30VDC input; Support ATX power mode
One PCIe x4 expansion

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

Product Code: NISE 3600E

Categories: End of Life Products

Range: Nexcom

Details

The Nexcom NISE 3600E is from the latest family of high performance fanless computer systems offering 3rd generation Intel Core i5 & i3 processor support and based around the QM77 Platform Controller Hub. With the legendary build quality of the NISE computer family, these products offer the most reliable industrial computing platform on the market, along with really innovative design features such as triple display support (2 x Display Port, 1 x VGA, 1 x DVI-D) offering next generation graphics potential for applications such as optical inspection, surveillance, or image processing. The system is packed with I/O including 4 x super fast USB 3.0 ports, 2 x USB 2.0, dual Intel Gigabit Ethernet, 6 x serial ports, an externally accessible CFast socket, and SIM card holder. The NISE3600E features 1 x PCIe[x4] slot, and the NISE 3600E2 features 2 x PCIe[x4] slots, offering clients even more flexibility for add-on features including data acquisition or specialist field bus cards.

Ordering Info

NISE 3600E: 3rd Generation Intel Core i5/i3 Fanless System with 1 PCIe[x4] Slot
7410120002X00: 19V, 120W AC/DC power adapter

Downloads

NISE 3600E Datasheet (PDF)

0.5MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

CPU Support	Support 3rd generation Intel® Core i7/i5/i3 rPGA socket type processor– Core™ i7-3632QM, Quad Core, 2.2GHz, 6M Cache, Max Turbo Frequency 3.2 GHz– Core™ i7-3612QM, Quad Core, 2.1GHz, 6M Cache, Max Turbo Frequency 3.1 GHz– Core™ i5-3610ME, Dual Core, 2.7GHz, 3M Cache, Max Turbo Frequency 3.3 GHz– Core™ i3-3120ME, Dual Core, 2.4GHz, 3M Cache– Support three independent display with above processors Turbo-boost disabled by default
Main Memory	2x DDR3 SO-DIMM socket, supports up to 8GB DDR3/ DDR3L 1333/ 1600 SDRAM, with un-buffered and non-ECC
Display Option	Three Independent Display (only support on 3rd Generation Processor) – Two Display Port and 1x VGA – Two Display Port and 1x DVI-D Dual Independent Display– VGA and DVI-D– Display Port and VGA– Display Port and DVI-D– Display Port and Display Port

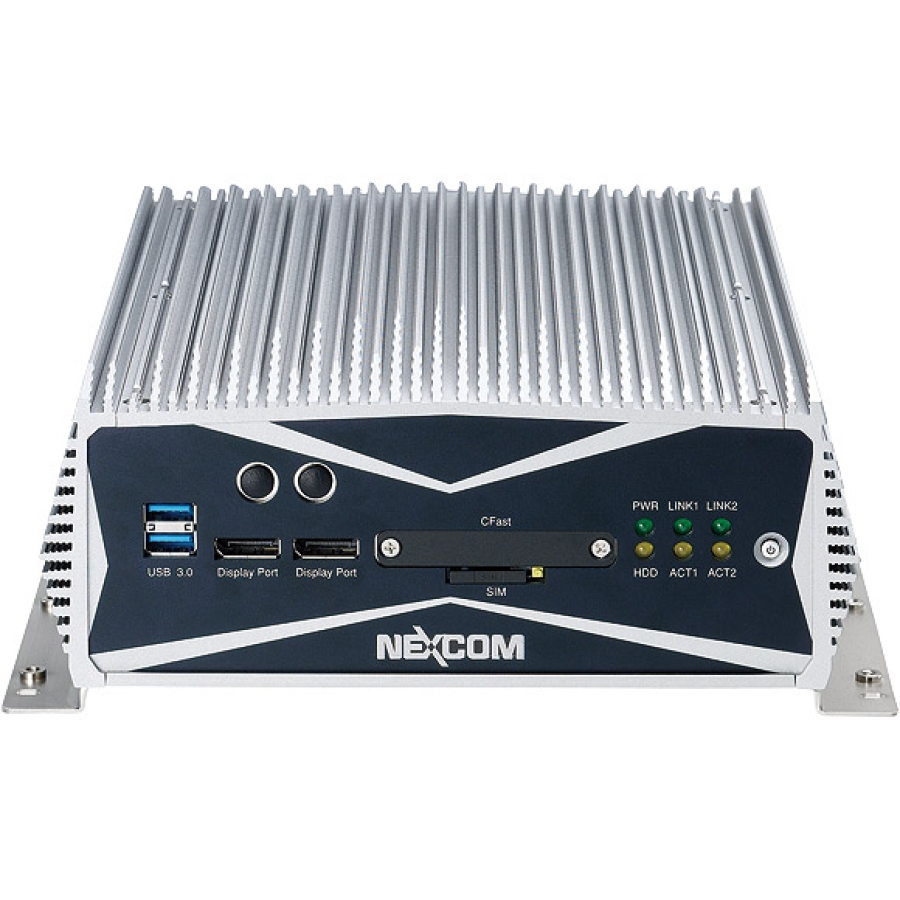

I/O Interface-Front	ATX power on/ off switch HDD Access/ Power status LEDs 2x USB3.0 ports (Blue Color) 2x Display Port (Can be converted to DVI-D or HDMI via cables) 2x Antenna holes 1x external CFast (optional) 1x SIM card socket

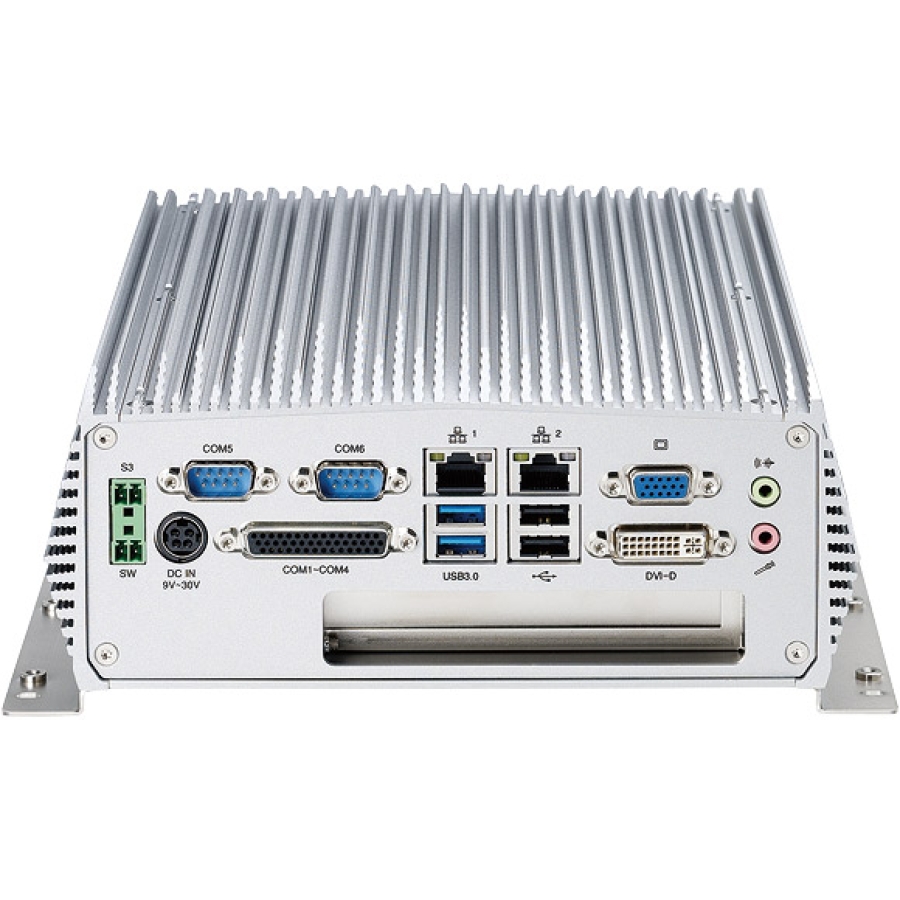

I/O Interface-Rear	2x DB9 for COM5 & COM6 (RS232) 1x DB44 Serial Port, 4x COM port– – COM2: RS232/422/485 2 x Intel® GbE LAN ports (Intel® 82574L and 82579LM); Support WoL, Teaming and PXE 2x USB2.0 ports 2x USB3.0 ports (Blue Color) 1 x DB15 VGA port 1 x DVI-D port 1 x Line-out and 1x Mic-in 2-pin Remote Power on/ off switch 9~30V DC input
Storage Device	1x CFast socket 1x 2.5” SATA HDD or 2x SATA DOM SATA DOM: support 90 degree horizontal type only
Expansion Slot	One PCIex4 Expansion Slot– Add-on card length: 169mm max– Power consumption: 10W/slot max. 1x Mini-PCIe socket (support optional WiFi or 3.5G module)
Power Requirements	ATX power mode On-board DC to DC power support from 9V to 30V DC Optional power adapter
Dimensions	215mm (W) x 272mm (D) x 93mm (H) without wall mount bracket
Construction	Aluminum Chassis with fanless design
Environment	Operating temperature:Ambient with air flow: -5°C ~ 55°CAmbient with air flow: -5°C to 50°C if using Core™ i7-3612QM(According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) Storage temperature: -20°C ~ 80°C Relative humidity: 95% at 40 degree C Shock protection: 20G, half sine, 11ms, IEC60068-2-27 Vibration protectionRandom: 0.5Grms @5~500 Hz according to IEC68-2-64Sinusoidal: 0.5Grms @5~500 Hz according to IEC68-2-64
Certifications	CE approval FCC Class A UL
OS Support Lists	Windows XP 32bits and 64bits Windows 7 32bits and 64bits Windows 8.1 32 bits and 64 bits
