FR IPM3205-QF35LO

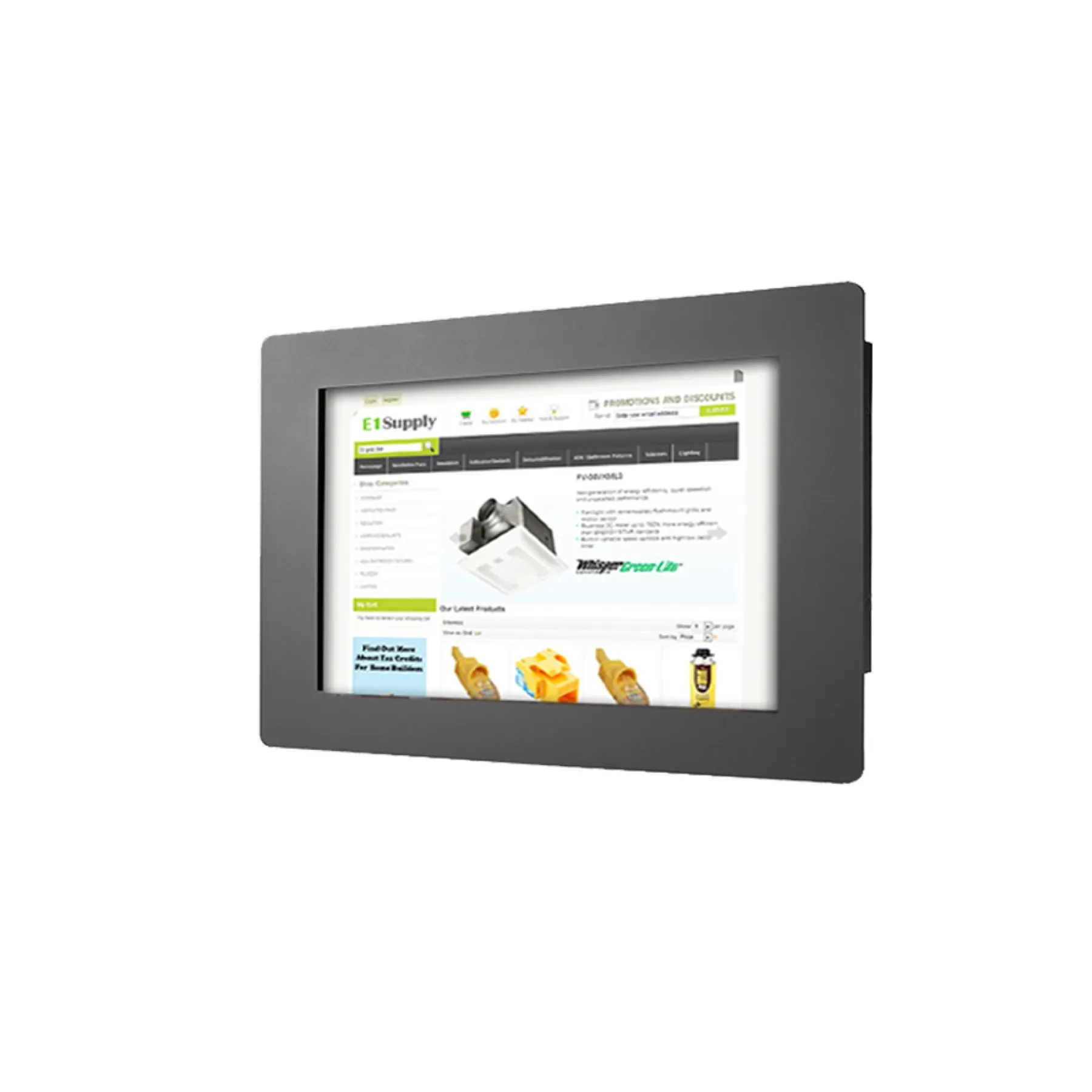

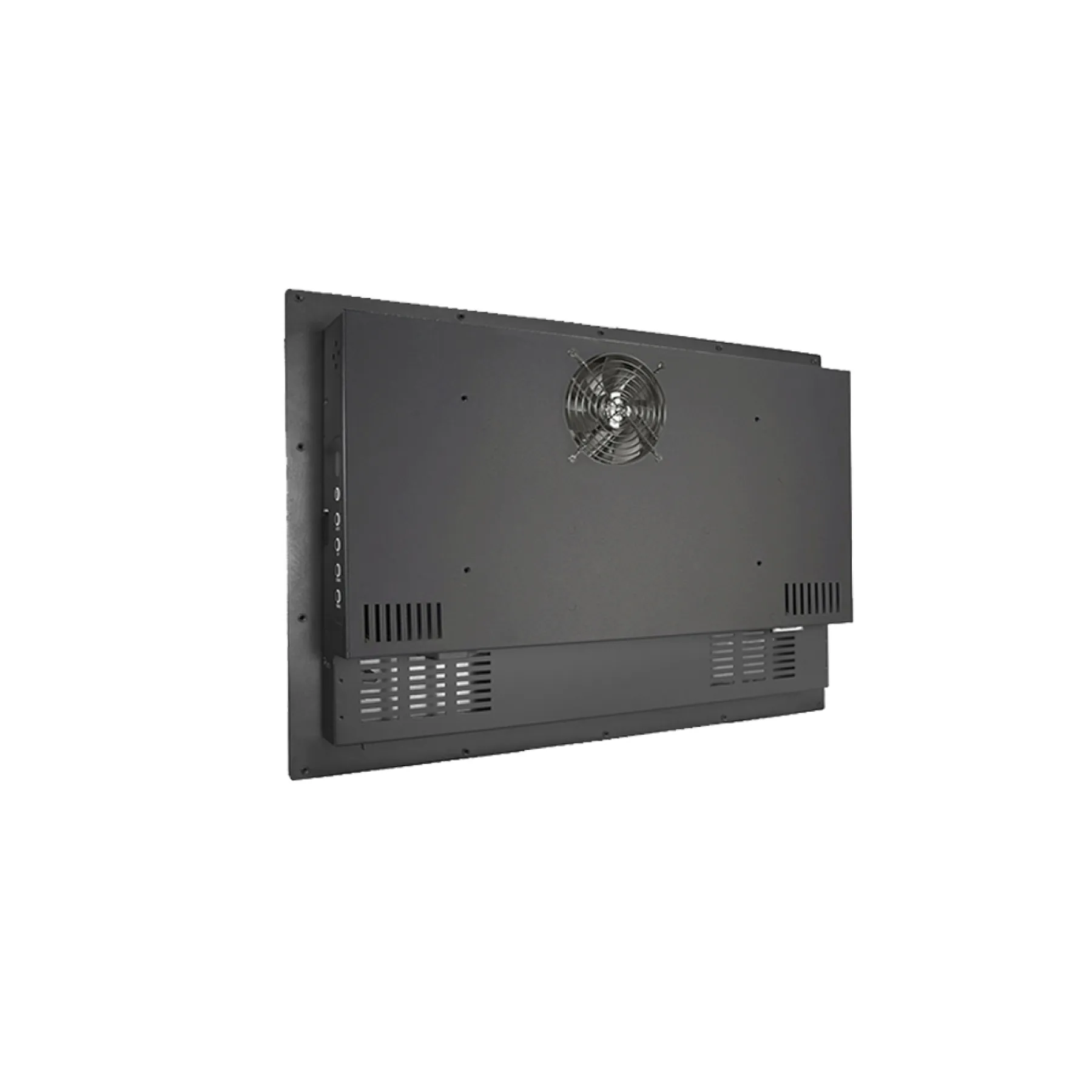

32″ 4K IP65 Panel Mount LCD Wide Viewing Angle (3840×2160)
IPM3205-QF35LO
- Brand: Winsonic
- 4k 3840 x 2160 resolution
- Wide viewing angle H.178° (- 89° ~ + 89°) , V. 178°(- 89° ~ + 89°)
- Touchscreen optional
- Size: 870mm (W) x 550mm (H) x 95mm (D)
Details
The IPM3205-QF35LO manufactured by Winsonic is a 32 inch panel mount LCD monitor with IP65 front panel protection against liquid and dust ingress and a 4K ratio of 3840x2160. The screen offers a wide viewing angle of 178° / 178°, long term stable supply with a solid design that allows simple integration into a variety of applications. The modularized mechanical design of the IPM3205-QF35LO allows for flexible configuration so you can add optional touchscreen and a variety of video inputs. Standard features include an LCD backlit screen with an anti glare, low reflection coating, 350 NITS brightness and 1 x VGA , 5 x HDMI, 1 x DP connections.Ordering Info
- IPM3205-QF35LO: 32″ IP65 protected LCD panel mount monitor. With 4K 3840 x 2160 resolution brightness of 350 nits and a wide viewing angle.
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
- Viewable Image Size: 32″
- Resolution: 3840×2160
- Ratio: 16:9
- Brightness: 350cd/m
- Contrast: 3000:1
- Viewing Angle: H.178° (- 89° ~ + 89°) , V. 178°(- 89° ~ + 89°)
- Bezel: Powder Coated Steel
- Backlight: LED
- VGA: 1 x DB15
- Video Inputs: 5 x HDMI, 1 x DP
- Touchscreen: Optional
- Power: AC Auto-Sensing 90-260V through IEC cable, (DC Optional)
| Screen Size | 31" to 40", 32" |
|---|---|
| Touch Technology | Infrared, Projected Capactive, Resistive |
| Ingress Protection | IP65 |
| Brightness | 350nit, Standard |
