W26L100-MRA1FP

Name: 26" Flat Bezel Marine Monitor (1920x1200) (DNV Approved)
SKU: W26L100-MRA1FP

Winmate

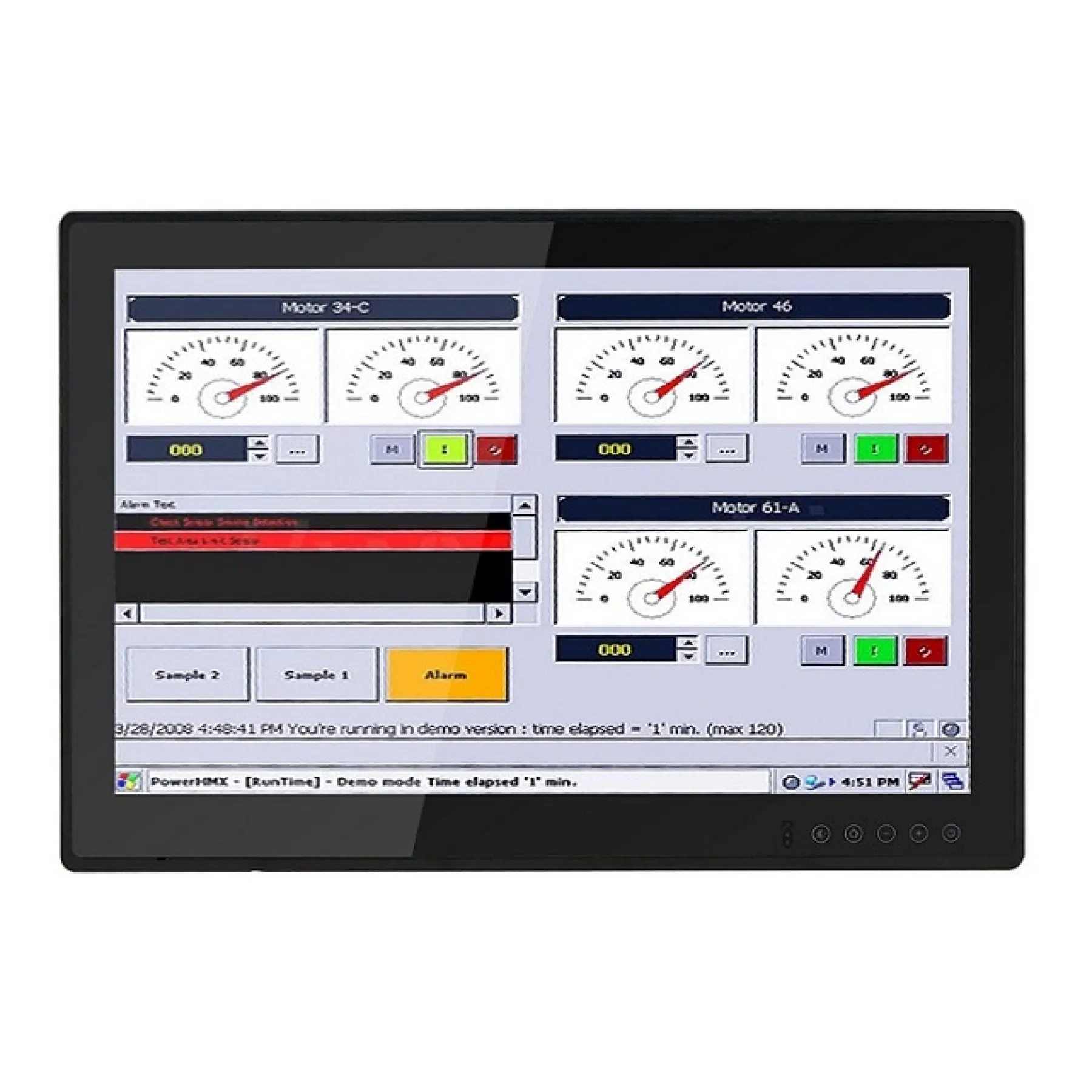

26″ Flat Bezel Marine Monitor (1920×1200) (DNV Approved)

W26L100-MRA1FP

The W26L100-MRA1FP is a 26″ Marine LCD Monitor with 1920×1200 resolution. It holds DNV 2.4 and IEC60945 certifications

Brand: Winmate
1920 x 1200 resolution
350 NITS brightness
Rugged, IP66 front bezel
Size: 621mm (W) x 432.4mm (H) x 85.5mm (D)

Product Code: W26L100-MRA1FP

Categories: Marine Monitors, Specialist Monitors, Winmate

Range: Winmate

Details

The W26L100-MRA1FP is a 26" LCD Monitor designed for use in marine bridge control applications, and holds DNV 2.4 and IEC60945 certifications. With a sleek edge to edge flat bezel design including capacitive touch keys for quick function access and display control, the crisp clear display is ideally suited to display images of charts, maps and other critical information. As standard, the monitor comes with a multi-touch projected capacitive touchscreen, however, it's also available with protective anti refelective glass, if preferred.

Ordering Info

Please call our technical sales team on 01785 87 90 50 (UK) or 0864 421 6991 (US) for advice.

Downloads

Datasheet (W26L100-MRA1FP) (PDF)

0.29MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Housing: Rugged, IP66 front bezel
Display Size: 26″
Brightness: 350cd/m2
Resolution: 1920×1200
Viewing Angle: -88~8 (H); -88~88 (V)
Controls: On/Off, Brightness Control, Power Status, OSD Control
Video Inputs: VGA, DVI-D
Touchscreen: Projected Capacitive Multi-touch, Optional AR Protective Glass
Power Input: 24V DC in with isolation (9-36VDC acceptable)
Operating Temperature: -15 to 55 degrees centigrade
Vibration: 0.7g (DNV 2.4)
Shock: 15G, 11ms duration
Certification: IEC 60945, DNV 2.4, CE, FCC

Screen Size	21" to 30", 26"
Touch Technology	Projected Capactive
Ingress Protection	IP66
Brightness	350nit, Standard
