FR 2205D-WMA0L
22″ Widescreen High Brightness LCD Monitor with LED B/L (1680×1050)
End of Life
This 22" sunlight readable LCD monitor from Winsonic is powered by a strong array of LED backlights, achieving a luminance of 1000cd/m2. The display is perfectly suited to outdoor environments, or applications where there are high ambient light conditions such as mobile, marine or digital signage.
- Brand: Winsonic
- 1680 x 1050 resolution
- 1000 NITS brightness
- Size: 520mm (W) x 358mm (H) x 65mm (D)
Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.
Details
This 22" sunlight readable LCD monitor from Winsonic is powered by a strong array of LED backlights, achieving a luminance of 1000cd/m2. The display is perfectly suited to outdoor environments, or applications where there are high ambient light conditions such as mobile, marine or digital signage. By incorporating the latest LED backlight technology, it not only helps with the projected lifetime of the product, but also helps keep power consumption levels down to a minimum, which in turn helps with heat generation, something that has been previously difficult to achieve with higher wattage CCFL backlit models. Touchscreen facility is optional and the monitor is available in a variety of formats including open frame, VESA mount chassis, panel mount and full IP66 weatherproof chassis monitor.
Ordering Info

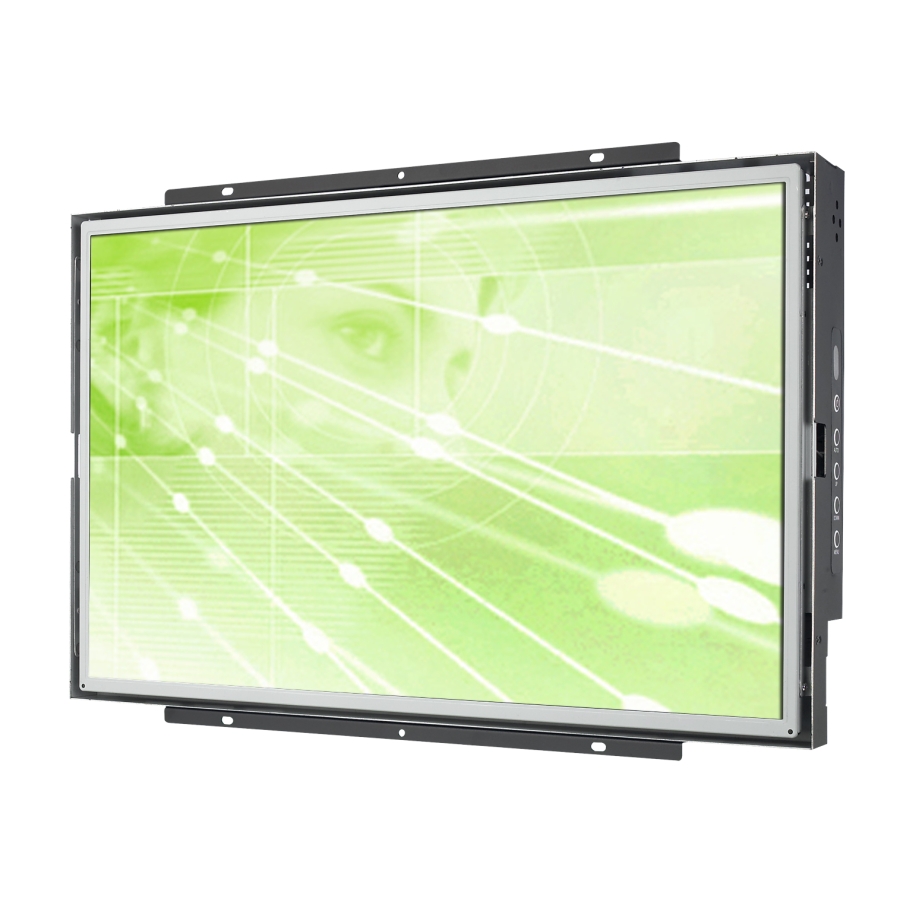

- OF2205D-WMA0L: 22″ Widescreen Open Frame Sunlight Readable LCD Monitor with VGA Input

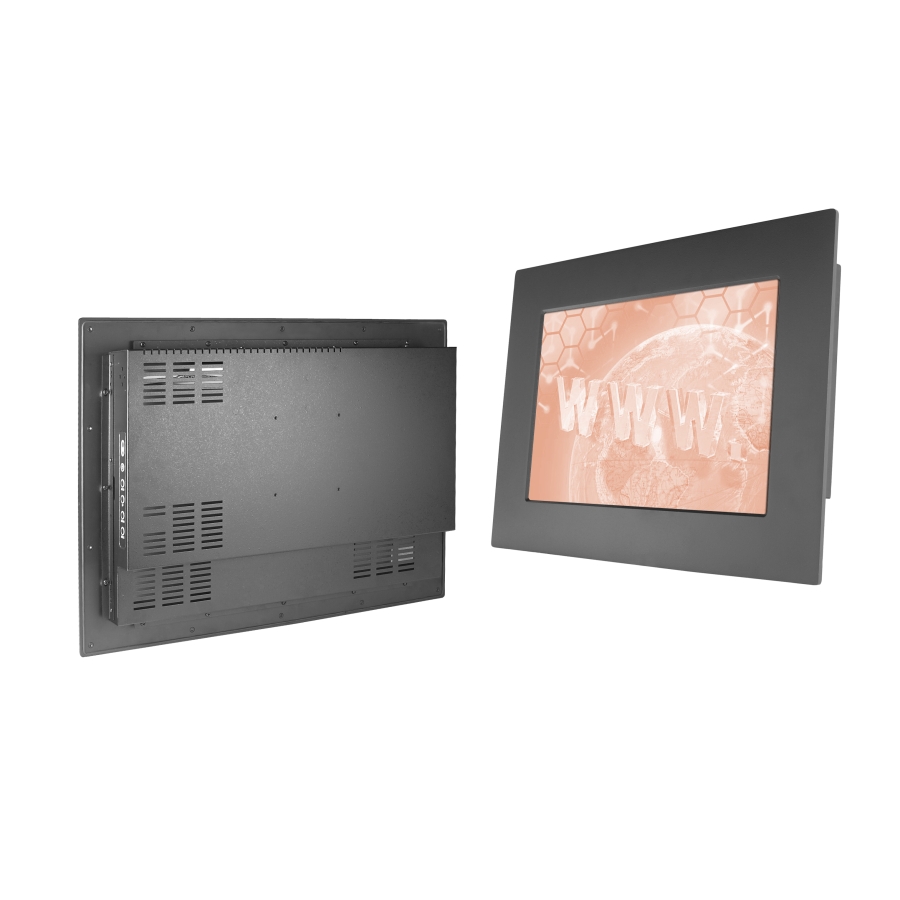

- IPM2205-WMA0L: 22″ Widescreen IP65 Front Panel Mount Sunlight Readable LCD Monitor with VGA Input

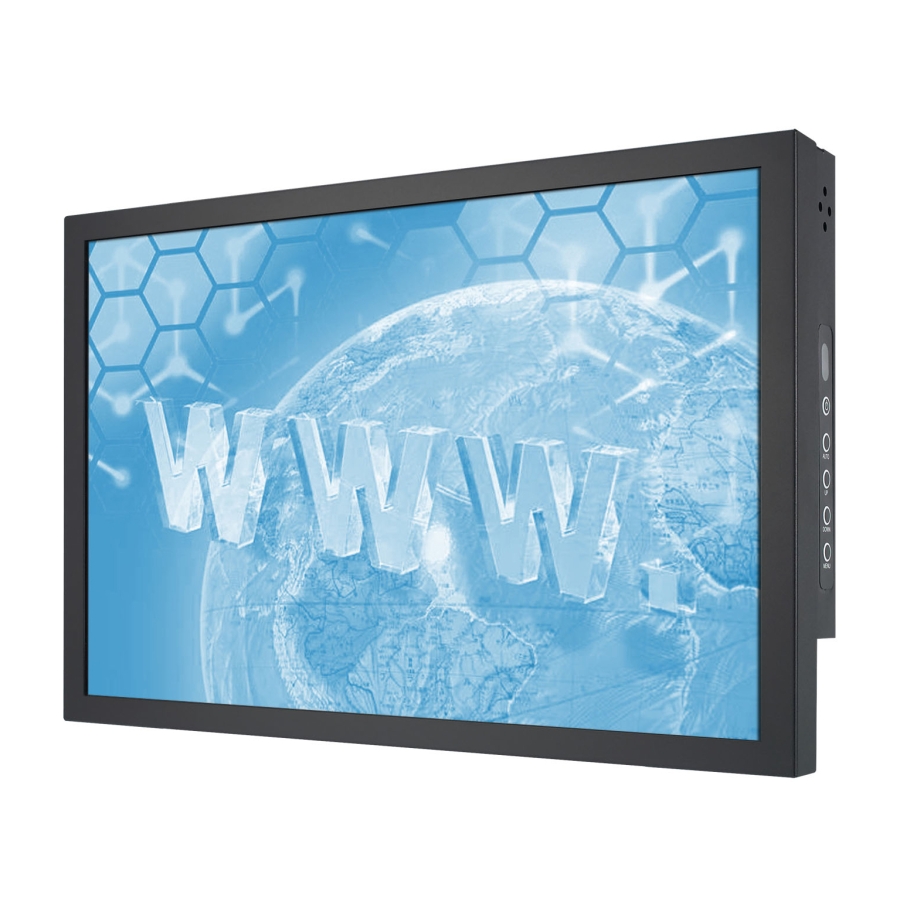

- CH2205S-WMA0L: 22″ Widescreen Chassis Mount Sunlight Readable LCD Monitor with VGA Input
- FCH2205D-WMA0L: 22″ Widescreen Fully IP66 Chassis Mount Sunlight Readable LCD Monitor with VGA Input
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
- Viewable Image Size: 22″
- Resolution: 1680×1050
- Ratio: 16:10
- Brightness: 1000cd/m
- Contrast: 700:1
- Viewing Angle: H (-85 +85), V (-80 +80)
- Mounting: Open Frame, Panel Mount, Chassis & Full IP66 Chassis Mount
- Backlight: LED
- VGA: 1 x DB15
- Video Inputs: S-Video, Composite, HDMI & DVI (On request)
- Touchscreen: Optional
- Power: See Individual Product Datasheet
| Screen Size | 21" to 30", 22" |
|---|
