Name: Arestech PPC-216 21.5" Fanless Panel PC Multi-touch with Intel Core i5-4300U CPU
SKU: PPC-216

Arestech

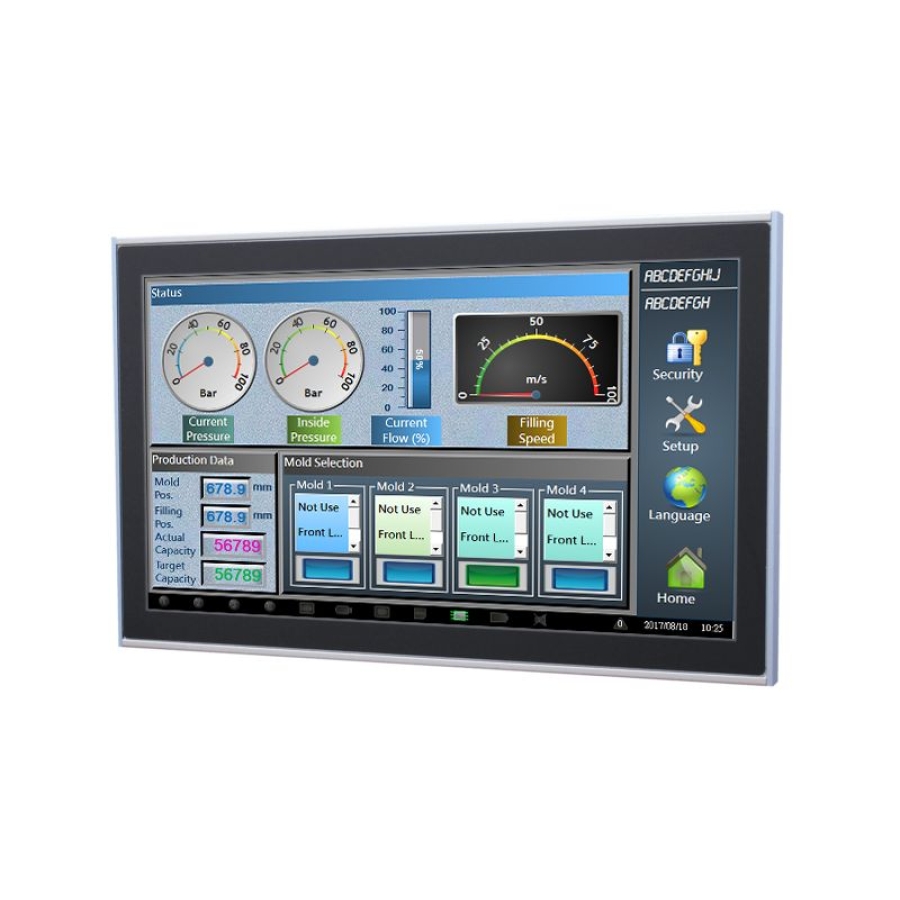

Arestech PPC-216 21.5″ Fanless Panel PC Multi-touch with Intel Core i5-4300U CPU

PPC-216

Brand: Arestech
Intel Core i5-4300U Processor
1920 x 1080 resolution
250 NITS brightness
Projected capacitive touch technology
Size: 524.3mm (H) x 323.8mm (W) x 64.9mm (D)

Product Code: PPC-216

Categories: Arestech

Range: Arestech

Details

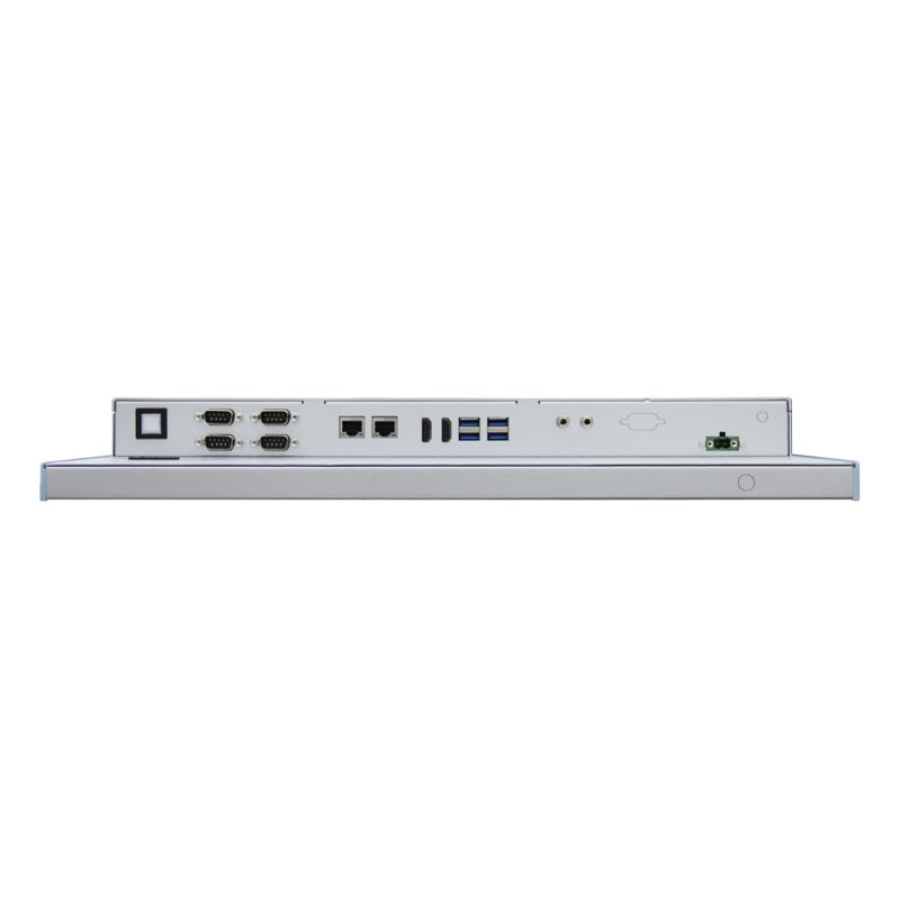

The PPC-216 from Arestech is a widescreen multi-touch panel pc, powered by the Intel Core i5-4300U Processor. Featuring an 21.5" LED panel with a HD resolution of 1920 x 1080 and a brightness of 250 NITS, this panel pc is a budget friendly option for signage, kiosk, self serve and check-in applications. I/O on the PPC-216 includes 1 x HDMI, 4 x USB 3.0, 4 x COM and 2 x LAN. Expansion is available through 2 x Mini PCIe.

Ordering Info

PPC-216 – 21.5″ Fanless Panel PC Multi-touch with Intel Core i5-4300U CPU

Downloads

Arestech PPC-216 Datasheet (PDF)

1.13MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

CPU:	Intel® Core™ i5-4300U Processor, Dual-Core up to 2.9 GHz
L2 Cache:	Intel® Smart Cache 3 MB
System Chipset:	By CPU
BIOS:	UEFI
Memory:	DDR3L 1333 MHz SDRAM, 8 GB
Socket:	1 x (204-pin SO-DIMM)
Display Panel Size:	21.5” LED Panel
Resolution:	1920 x 1080 (FHD)
Viewing Angle:	85 x 85 (H) x 80 x 80 (V)
Brightness:	250 (cd/m2)
Color Support:	16.7M
Contrast Ratio:	1000:1
Response Time:	5 (msec)
HDMI:	1.4a up to 1920 x 1200
Dual Display:	LCD + HDMI
Touchscreen:	Projected Capacitive
Surface Hardness:	7 Mohs
Transparency:	90% (±3%)
USB:	4 x USB 3.0
Serial Port:	4 x COM (2 RS-232, 2 RS-232/422/485)
Digital I/O:	Optional 8-pin Digital I/O (DB-9 connector, Option)
Expansion:	2 x Mini PCIe (1 full-size Mini PCIe or mSATA, selected by jumper setting; 1 half-size Mini PCIe)
Ethernet:	Dual GbE, 10/100/1000 Mbps
Audio Chipset:	Realtek ALC662 High Definition Audio (HD)
Storage:	mSATA: Supports either mSATA or full-size Mini PCIe, selected by jumper settingSATA II: 1 Swappable 2.5” HDD/SSD
Power Supply Voltage:	9-36 V DC input(Phoenix Connector)
Power Adapter:	AC-to-DC, 12 V @ 5 A, 60 W
Power Consumption (Typical):	2.8A @ 12V (33.6W)
Power Consumption (Max):	3.57A @ 12V (42.8W)
Battery:	Lithium 3 V / 210 mAH
Operating Temperature:	0~50o C (32~122o F) w/ 2.5” SSD
Storage Temperature:	-40~85o C (-40~185o F)
Vibration:	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
GeneralIP Protection:	IP54
Dimensions (L x W x H):	524.3 x 323.8 x 64.9 mm (20.63” x 12.75” x 2.55”)
Weight:	6.99 kg (15.41 lb)
Operating System:	Windows 7/8.1/10, WES7-E/P, WE8S
