21″ RadiForce High-Res Diagnostic Monochrome Monitor DICOM Part 14 (1536×2048)
GX340

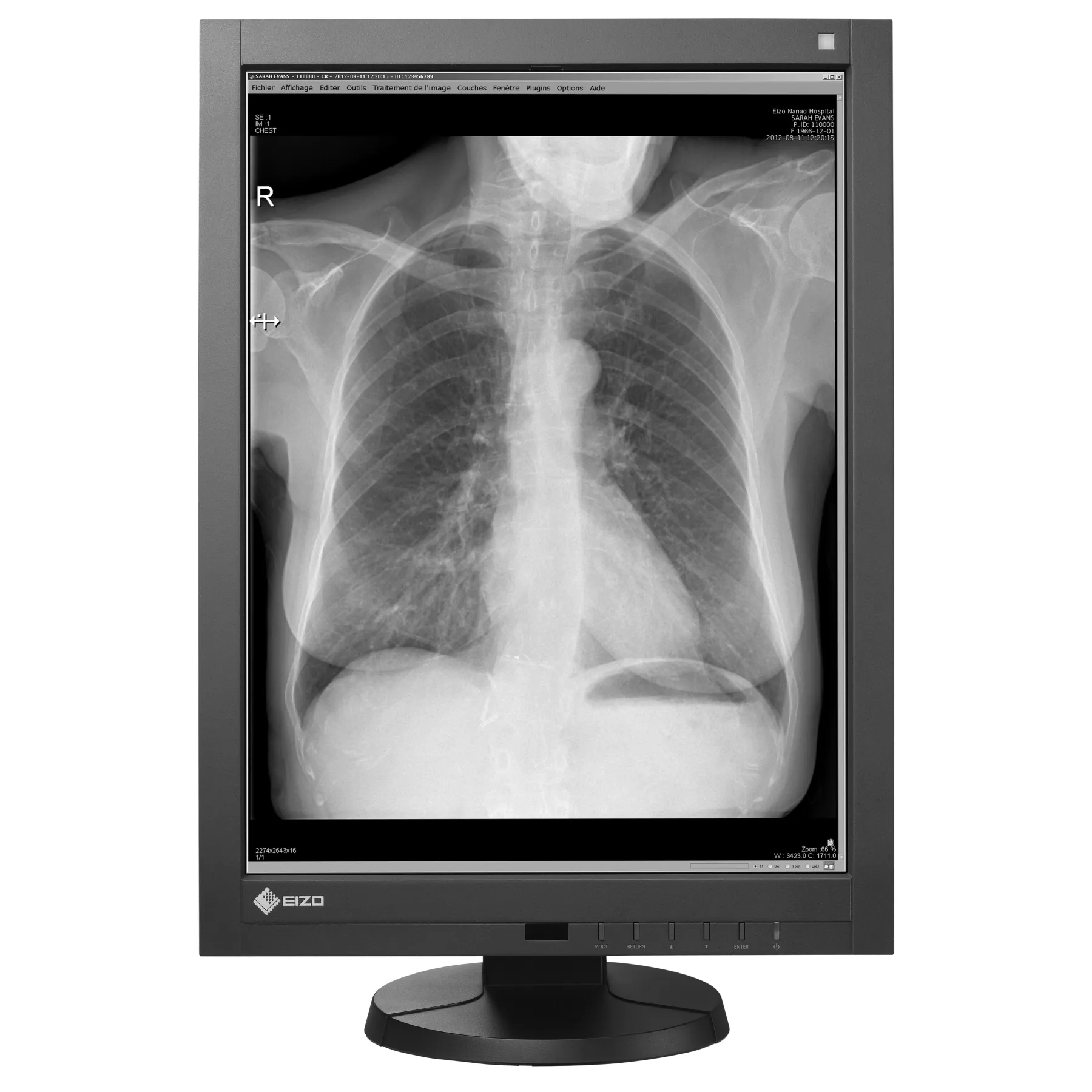

The GX340 is a 21” monochrome LCD monitor with a 3MP high resolution screen for clinical applications. Its elongated design is perfect for displaying entire chest CR images that is DICOM Part 14 compliant
- Brand: Eizo
- 1536 x 2048 resolution
- Fully compliant with DICOM Part 14
- 1200 NITS brightness
- Size: 376mm (W) x 599mm (H) x 209mm (D with stand)
Details
RadiForce is a range of medically certified displays and monitors, for monochrome and full-colour requirements. The GX340 is a 21” monochrome LCD monitor with a 3MP high resolution screen for clinical applications. Its elongated design is perfect for displaying entire chest CR images that is DICOM Part 14 compliant. Perfect as a radiology monitor it has in integrated front sensor in the front bezel to calibrate colour tones and greyscales to the DICOM Part 14 standard. As well as a CAL switch function which can be automatic dependent on settings, provides a range of modes for a variety of modalities like CR, CT and endoscope images, with a 5 year warranty and patented drift correction to ensure clerical images all the time.
Ordering Info
- GX340 – 21″ RadiForce High-Res Diagnostic Monochrome Monitor DICOM Part 14 (1536×2048)
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
- Model Variations: GX340-CL: Clear Base, GX340-CL-P: Pairing
- Cabinet Color: Black
- Type: Monochrome: (IPS)
- Backlight: LED
- Size: 54 cm / 21.3″
- Native Resolution: 1536×2048 (3:4 aspect ratio)
- Viewable Image Size (H x V): 324.8 x 433.1 mm
- Pixel Pitch: 0.2115 x 0.2115 mm
- Grayscale Tones: 10-bit (DisplayPort) : 1,024 from a palette of 16,369 tones
- 8-bit: 256 from a palette of 16,369 tones
- Viewing Angles (H / V, typical): 176° / 176°
- Brightness (typical): 1,200 cd/m2
- Recommended Brightness for Calibration: 500 cd/m2
- Contrast Ratio (typical): 1400:1
- Response Time (typical): 40 ms (on / off)
- Input Terminals DVI-D: (dual link) x 1, DisplayPort x 1
- Digital Scanning Frequency (H / V): 31 – 127 kHz / 29 – 61.5 Hz
- Frame synchronous mode: 29.5 – 30.5 Hz, 59 – 61 Hz
- USB Function: 1 upstream, 2 downstream
- Standard: USB 2.0
- Power Requirements: AC 100 – 120 V, 200 – 240 V: 50 / 60 Hz
- Maximum Power Consumption: 90 W
- Typical Power Consumption: 36 W
- Power Save Mode: Less than 1.6 W
- Power Management: DVI DMPM, DisplayPort 1.1a
- Sensor: Backlight Sensor, Integrated Front Sensor, Presence Sensor, Ambient Light Sensor
- Brightness Stabilization: Yes
- Digital Uniformity Equalizer: Yes
- Preset Modes: CAL Switch
- OSD Languages: English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
- Net Weight: 10.2 kg
- Net Weight (Without Stand): 7.5 kg
- Hole Spacing (VESA Standard): 100 x 100 mm
- Certifications & Standards: CE (Medical Device Directive), EN60601-1, UL60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, Canadian ICES-003-B, RCM, RoHS, China RoHS, WEEE, CCC, EAC, FDA 510(k) Clearance Yes (for General Radiography)
- Supplied Accessories: AC power cord, dual link signal cable (DVI-D – DVI-D), signal cable (DisplayPort – DisplayPort), USB cable, Utility Disk (RadiCS LE, ScreenManager Pro for Medical, user’s manual)
- Warranty: Five Years
| Screen Size | 21", 21" to 30" |
|---|---|
| Brightness | 1200nit, High |
