FR SA-ZJL19RF
19″ Full IP65 Stainless Steel Chassis Touchscreen Monitor
End of Life
19" TFT-LCD Full IP65 Waterproof Stainless Steel Monitor with 5-wire Resisitive Touch Screen (1280×1024)
- Brand: Kingdy
- 5-wire resistive touch technology
- 1280 x 1024 resolution
- 250 NITS brightness
- IP65 waterproof stainless steel connectors
- Size: 455mm (W) x 367.6mm (H) x 67mm (D)
Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.
SA-ZJL19RF
Details

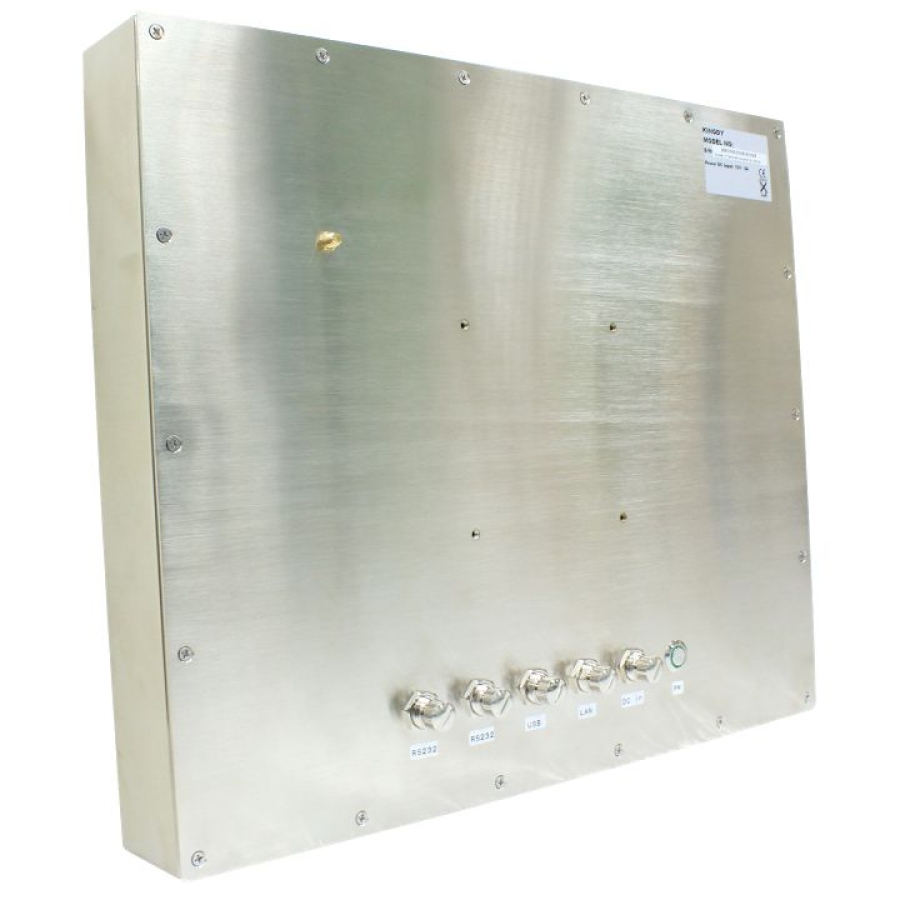

The SA-ZJL19RF is a full IP65, stainless steel chassis mount monitor with a 5-wire resistive touchscreen, which can be connected to the host PC using either a USB or serial port. The LCD touch panel is 250 nits brightness and supports 1280 x 1024 resolution. The display is housed in an attractive stainless steel chassis and is available with all IP65 waterproof stainless steel connectors and IP65-rated external power adapter as standard, making this unit ideal for applications where the work area needs to be washed down.
Ordering Info
- SA-ZJL19RF (12V): 19″ Full IP65 Stainless Steel Chassis Touchscreen Monitor
- SA-ZJL19RW (19~36V): 19″ Full IP65 Stainless Steel Chassis Touchscreen Monitor
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
- Viewable Image Size: 19″
- Resolution: 1280 x 1024
- Ratio: 5:4
- Brightness: 250cd/m
- Contrast: 1000:1
- Viewing Angle: 170/160
- Bezel: Full IP65 Stainless Steel Chassis, VESA mount 100mm x 100mm
- Backlight: LED
- VGA: 1 x DB15
- Touchscreen: 5-wire resistive (USB or RS232)
- Power: 12V DC Power Input (19 – 36V option)
| Screen Size | 11" to 20", 19" |
|---|
