GOT3187W-881-PCT

Axiomtek GOT3187W-881-PCT 18.5″ Multi Touch Panel PC, Intel 4th Gen Core CPUs

End of Life

Brand: Axiomtek
Intel Celeron J1900 Quad Core 2.42 GHz CPU
1366 x 768 resolution
300 NITS brightness
Projected capacitive touch technology
Size: 460 mm (W) x 89.5 mm (D) x 285 mm (H)

Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.

Product Code: GOT3187W-881-PCT

Categories: End of Life Products, Industrial Touchscreen Computers, IP65 Panel PCs, Panel Mount Panel PCs, Wall Mount Panel PCs

Range: Axiomtek

Details

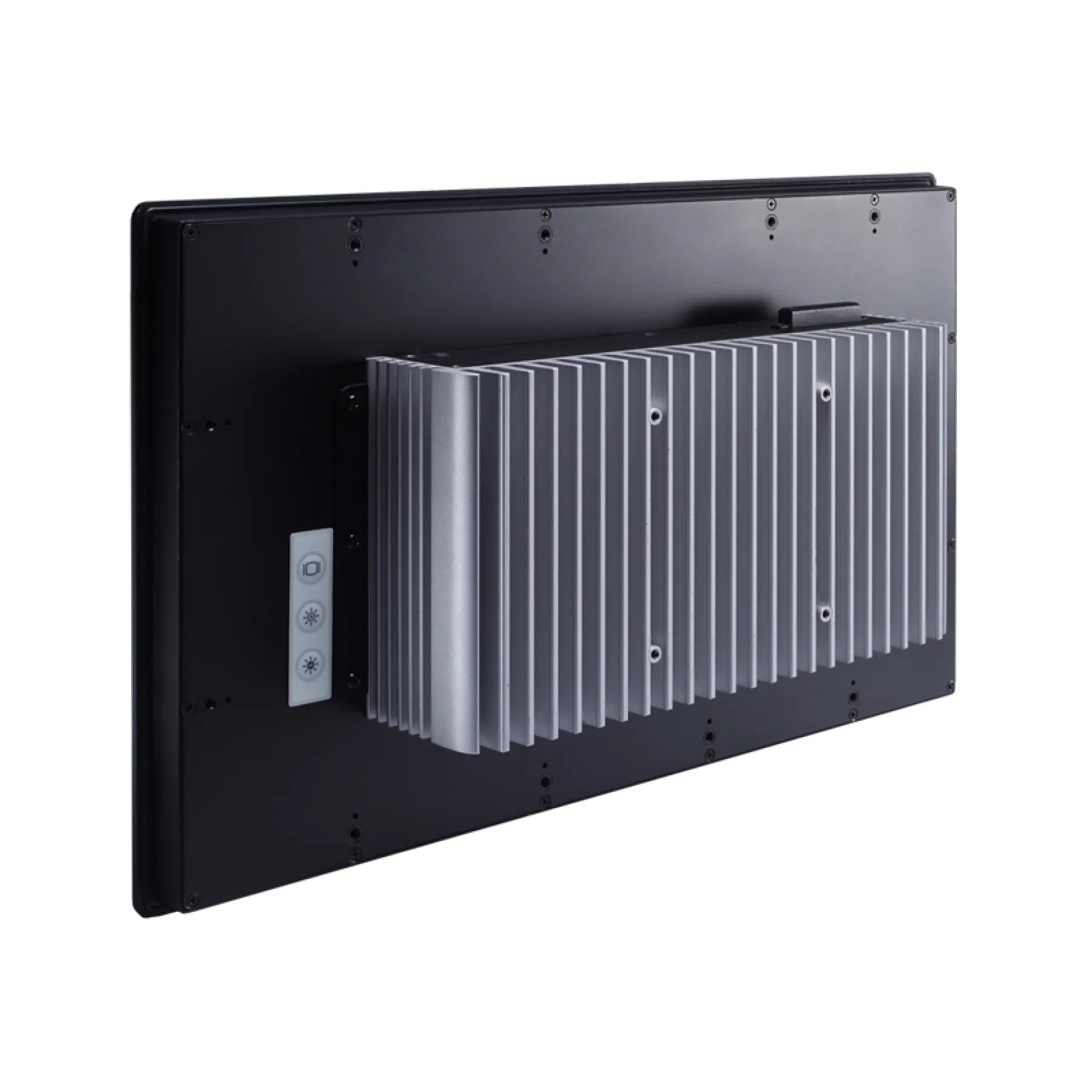

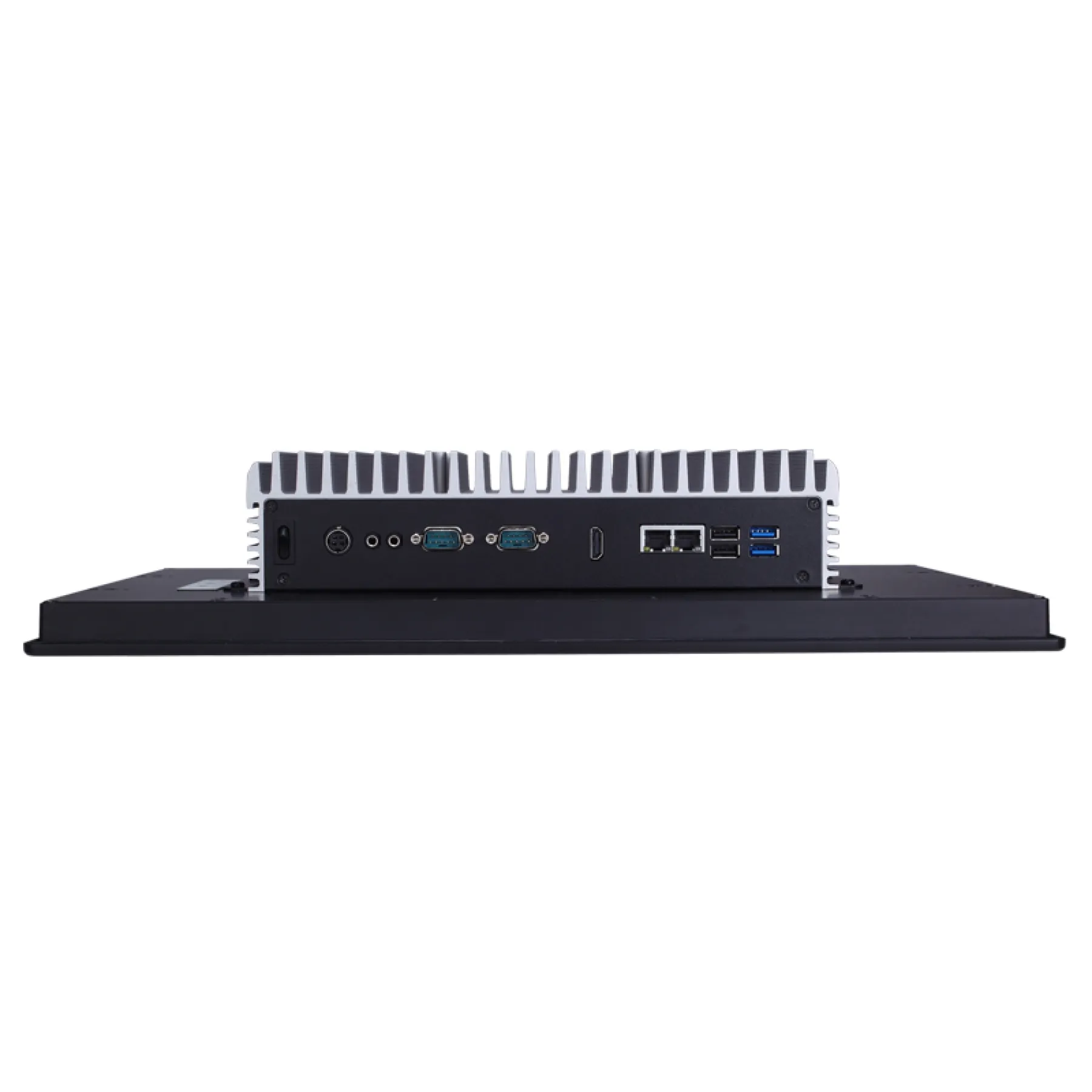

The GOT3187W-881-PCT is an 18.5” multi-touch Panel PC designed for mission critical applications. The system is based around Intel’s powerful 4th generation Core family of processors. The GOT3187W-881-PCT features an aluminium front bezel with a multi-touch projective capacitive touch sensor overlaid within a glass substrate. The system design is fanless and offers a multitude of I/O including two serial ports, four USB ports and two LAN.

Ordering Info

GOT3187W-881-PCT-NP: 18.5″ WXGA TFT Fanless PCAP multi-touch panel computer support Intel LGA1150 socket with 150W adapter

Downloads

GOT3187W-881-PCT Datasheet (PDF)

0.51MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Bezel: Aluminium IP65
Display Size: 18.5″ LCD
Resolution: 1366 x 768
Brightness: 300 NITS
Touchscreen: Projective Capacitive
CPU: Fanless design supports LGA1150 Socket 4th Generation Intel Core i7/i5/i3/Celeron processors
Memory: 1 x 204-pin SO-DIMM DDR3L up to 8 GB
Graphics: Integrated Intel HD4000/4600 Graphics
Audio: Line outSerial: 2 x RS-232/422/485
USB: 2 x USB 2.0 & 2 x USB 3.0
Ethernet: 2 x 10/100/1000Mbps
Storage: 1 x 2.5” SATA; 1 x mSATA or CFast
Expansion: 2 x Mini-PCIe slots
Operating Temperature: 0°C ~ +40°C
Power Input: 9~36V DC (power adaptor available for AC power)
Mounting: IP65 Panel Mount or VESA mount
Compliance: CE

Touch Technology	Projected Capacitive
Ingress Protection	IP65
Brightness	300nit, Standard
Resolution	1366x768, Special/Other
GPU	Integrated GPU
Memory Capacity	Up to 8GB
Cooling Type	Fanless, Yes
Serial Ports (COM)	2 Ports, 2 Ports, RS-232/422/485
USB Ports	2 Ports, 2 Ports, 4 Ports, USB 2.0, USB 3.0
Ethernet Ports (LAN)	2 Ports, 2 Ports
Wireless	Cellular, Wi-Fi
Audio	Yes
Video Ports	1x HDMI
Storage Type	1, 1, 1, 2, 2.5", CFast, mSATA
Expansion Type	2, 2, Any Expansion Type, Mini PCI Express
Input Voltage	19 VDC
Mounting Options	Desktop-stand, Panel-mount, VESA-mount, Wall-mount
Operating Temperature	0°C to 40°C, Standard
Certifications	CE/FCC
OS Support	Windows 7, Windows 8
