POF-15651-WH25L0

Name: 15.6" Intel Celeron J1900 Widescreen Open Frame Panel PC
SKU: POF-15651-WH25L0

Winsonic

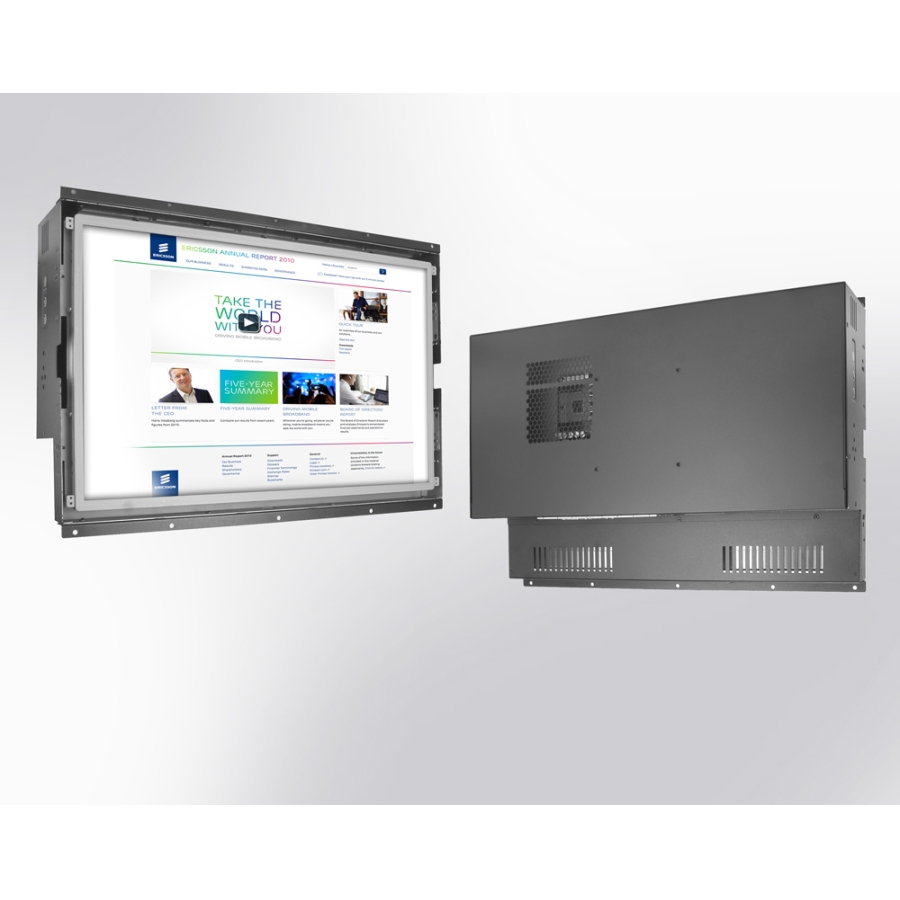

15.6″ Intel Celeron J1900 Widescreen Open Frame Panel PC

POF-15651-WH25L0

Open frame fanless widescreen industrial panel PC with Intel Celeron CPU. Resistive or Capacitive. LED backlight.

Product Code: POF-15651-WH25L0

Categories: Winsonic

Range: Winsonic

Details

The POF-15651-WH25L0 is a 15.6” fanless widescreen open frame panel PC powered by the Intel Celeron J1900 Quad Core 1.99GHz system on chip CPU. The integrated LED backlit screen comes with the option of resistive or capacitive touch. The modular mechanical housing has a depth of 93.2mm, allowing flexible configuration into OEM designs with easy maintenance thereafter. The screen offers a resolution of 1920 x 1080 HD with a brightness up to 250 nits for use in areas such as kiosk manufacture and multimedia applications. I/O specification includes 1 VGA, 1 HDMI, 4 USB, 3 COM ports and 2 ethernet LAN ports.

Ordering Info

POF-15651-WH25L0: 15.6″ Widescreen Open Frame Panel PC with Quad Core Intel Celeron J1900 1.99GHz CPU

Downloads

POF-15651-WH25L0 Datasheet (PDF)

0.11MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Bezel: Open Frame Design
Display Size: 15.6″ TFT LCD
Resolution: 1920×1080 HD
Touchscreen: Optional Resistive 5-wire or Capacitive
CPU: Intel Celeron J1900 Quad Core 1.99GHz
Memory: DDR3L up to 8Gb
Graphics: Intel HD
Audio: Mic-in, Line-out
Serial: 3 x RS-232/422/485
USB: 2 x USB 3.0, 2 x USB 2.0
Ethernet: 2 x 10/100/1000
Wi-Fi: Optional
Storage: 2 x 2.5″ SATA HDD,
Expansion: 1 x Mini-PCIe
Operating Temperature: 0 to 50 Degrees Centigrade (fanless)
Power Input: 12V DC
Compliance: CE, FCC
