15.4″ Touchscreen Widescreen Chassis Mount LCD Monitor with LED B/L (1280×800)
CH1545S

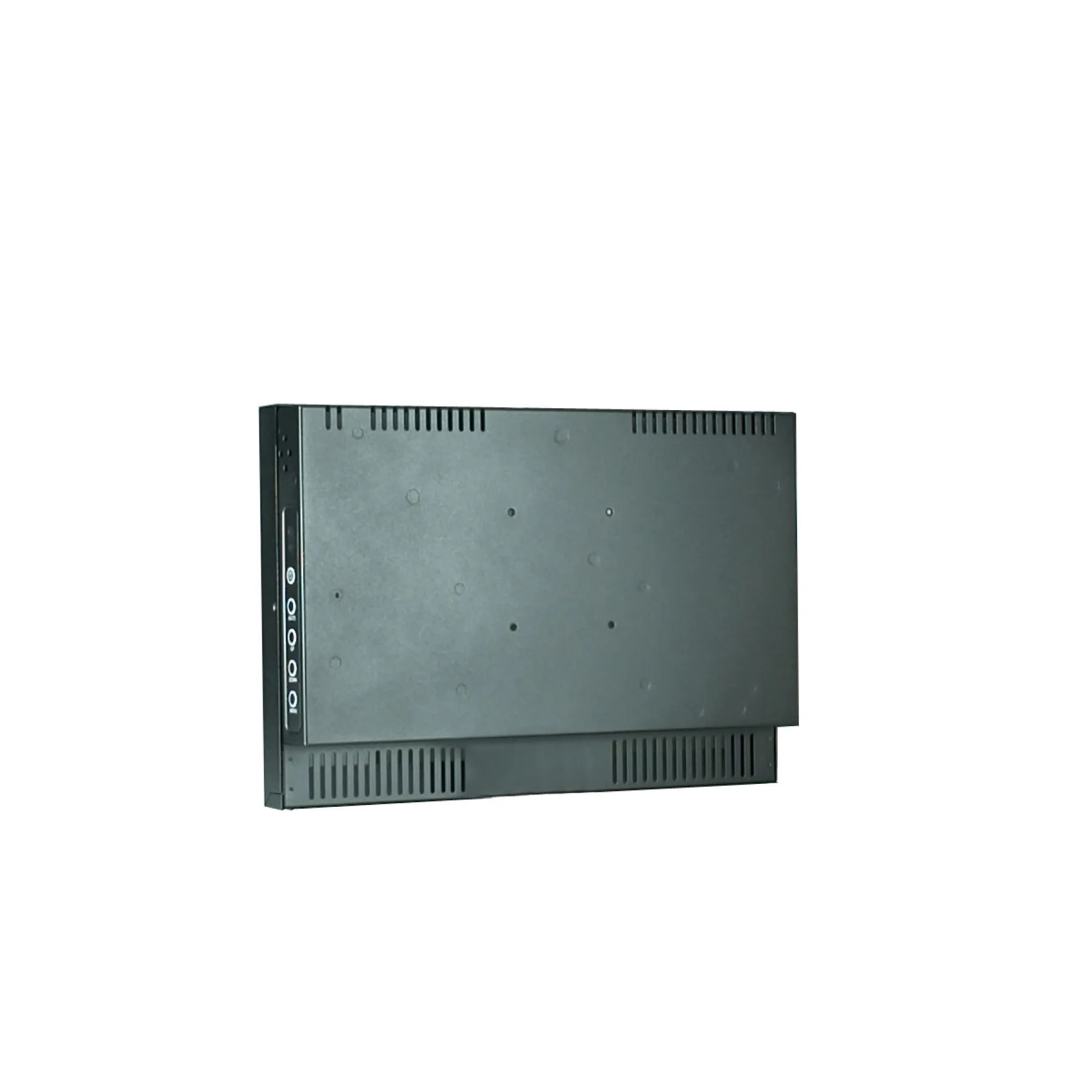

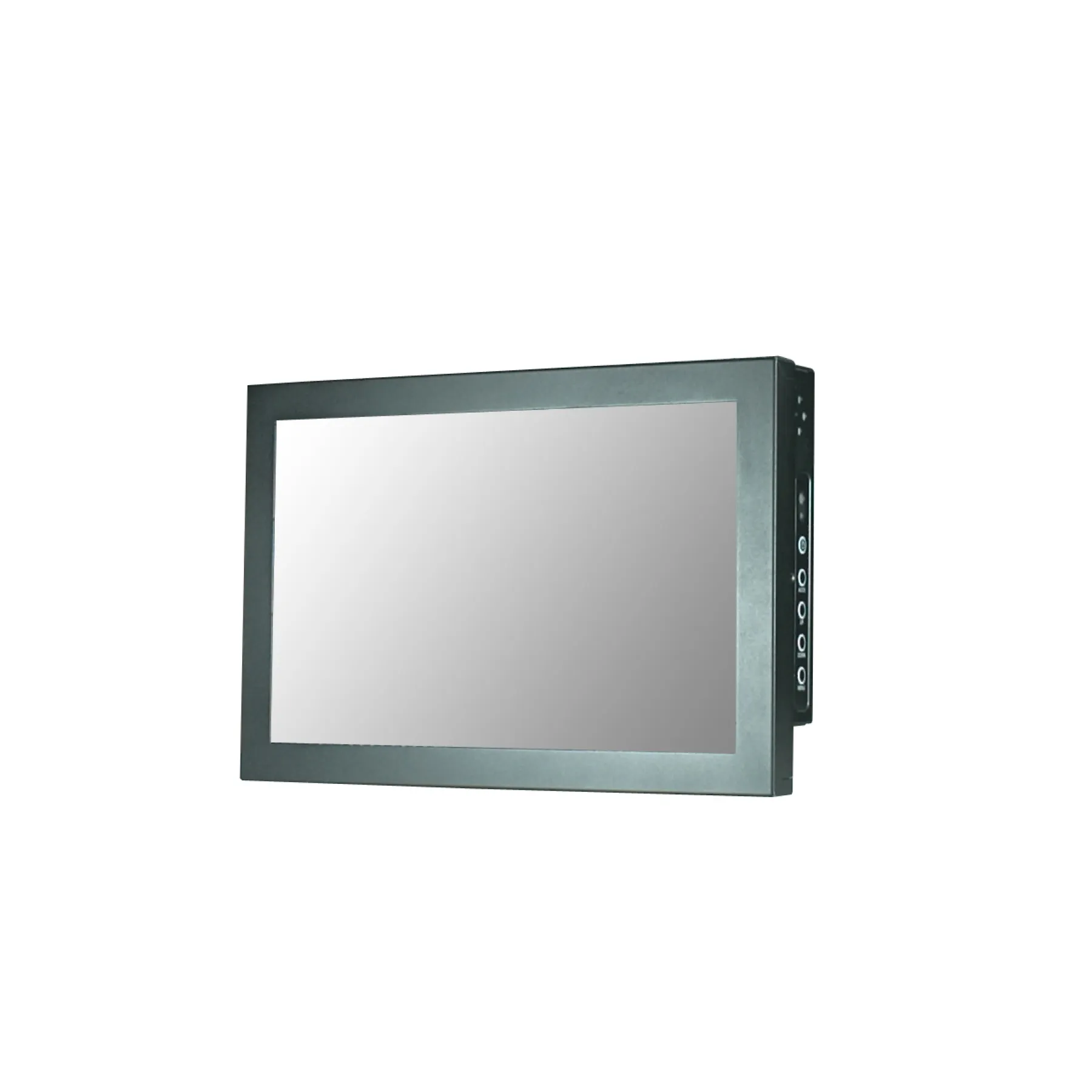

The CH1545S manufactured by Winsonic is a 15.4" widescreen chassis mount industrial LCD display. Packaged in a metal enclosure, it is designed to be mounted using the industry standard VESA fixings on the rear of chassis. By incorporating the latest LED backlight technology, it helps to increase the projected lifetime of the screen without compromising the quality or consistency of the image. The product is also available with optional touchscreen and a variety of video inputs
- Brand: Winsonic
- 15.4 inch LED backlit screen
- 1280 x 800 widescreen resolution
- 300 NITS brightness
- Resistive, Capacitive, SAW or Infrared touch options
- Variety of video inputs
- Size: 382mm (W) x 259mm (H) x 59mm (D)
Details
The CH1545S manufactured by Winsonic is a 15.4" widescreen touchscreen chassis mount industrial LCD display. Packaged in a metal enclosure, it is designed to be mounted using the industry standard VESA fixings on the rear of chassis. By incorporating the latest LED backlight technology, it helps to increase the projected lifetime of the screen without compromising the quality or consistency of the image. The product is also available with Resistive, Capacitive, SAW or Infrared touch options and a variety of video inputs
Ordering Info
- CH1545S: 15.4″ Widescreen Chassis Mount LCD Touch Monitor with VGA Input
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
- Viewable Image Size: 15.4″
- Resolution: 1280×800
- Ratio: 16:10
- Brightness: 300cd/m
- Contrast: 400:1
- Viewing Angle: H (-45 +45), V (-45 +20)
- Bezel: Powder Coated Steel
- Backlight: LED
- VGA: 1 x DB15
- Video Inputs: S-Video, Composite, HDMI & DVI (On request)
- Touchscreen: Resistive, Capacitive, SAW or Infrared touch options
- Power: AC Auto-Sensing 90-260V through IEC cable, (DC Optional)
| Screen Size | 11" to 20", 15.4" |
|---|
