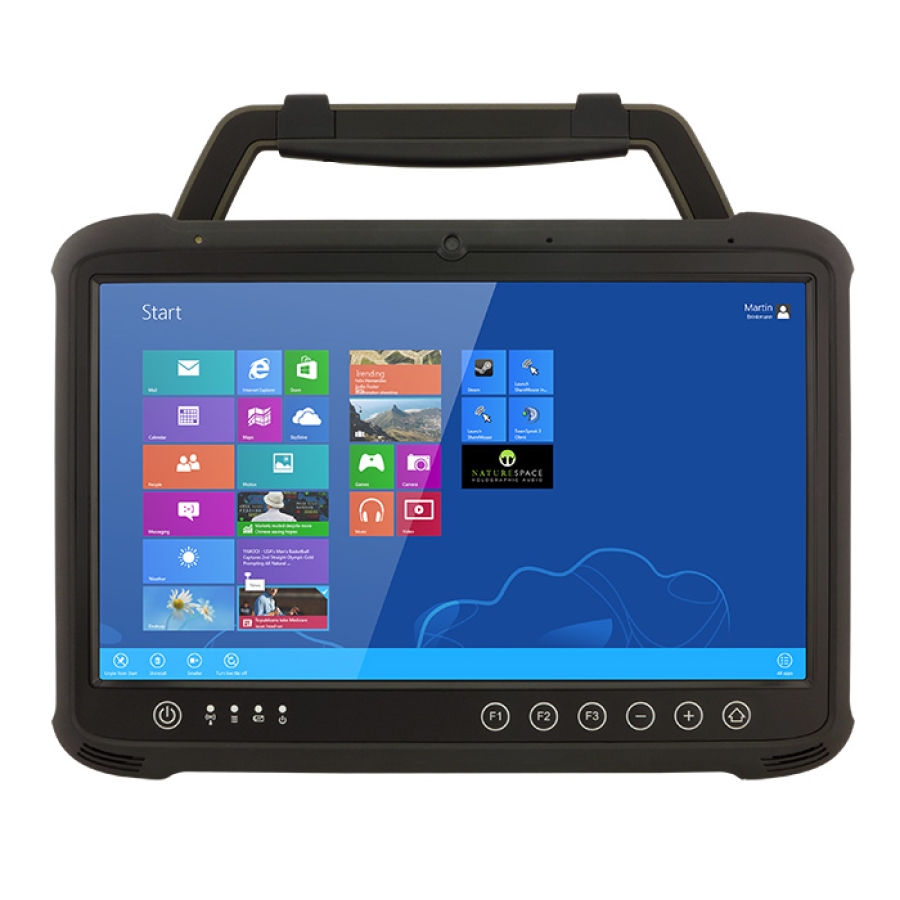

Winmate 13.3″ Ultra Rugged Windows Tablet PC with Intel Core i5 CPU
End of Life
- Brand: Winmate
- Intel Core i5-5200U Broadwell 2.2GHz (turbo to 2.7GHz) CPU
- Fanless Thermal Design
- MIL-STD-810G Certified
- Size: 338.2mm (W) x 240mm (H) x 30mm (D)
Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.
Details

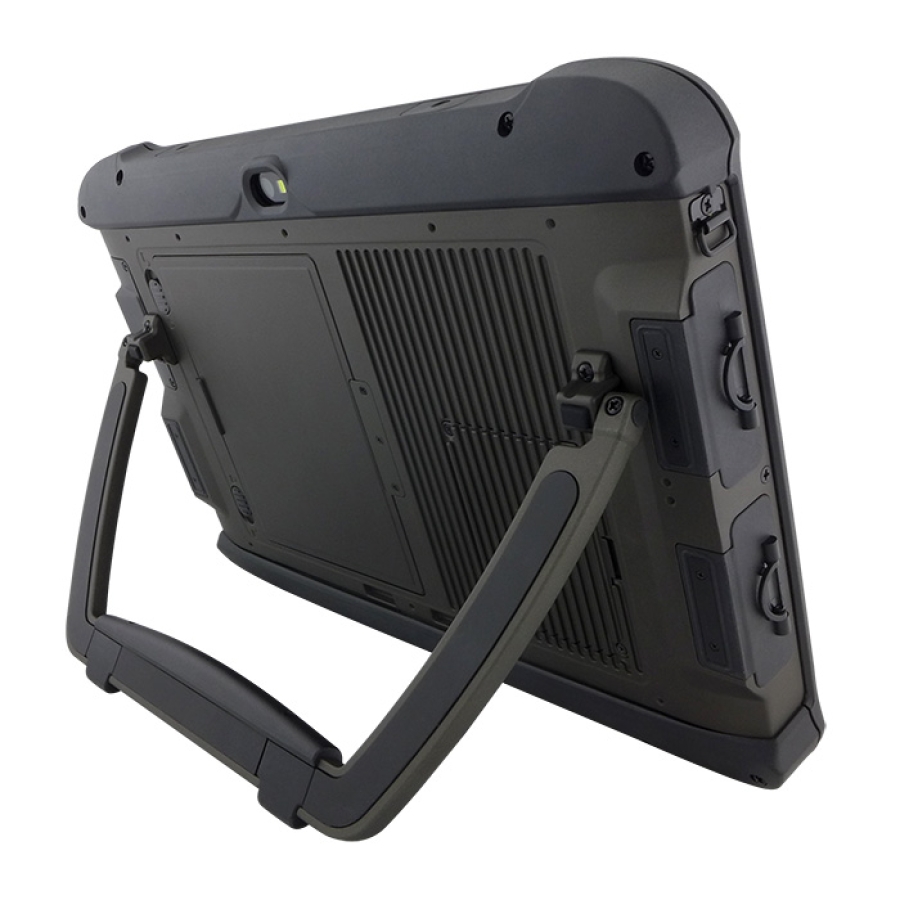

The M133W from Winmate is a fully rugged IP65 waterproof and dustproof tablet with MIL-STD-810G certification. Enclosed in magnesium alloy and chunky rubber housing, the ultra rugged design incorporates a carry handle which folds down into a kickstand, making the unit ideal for use in heavy industry environments such as quarries and building sites.

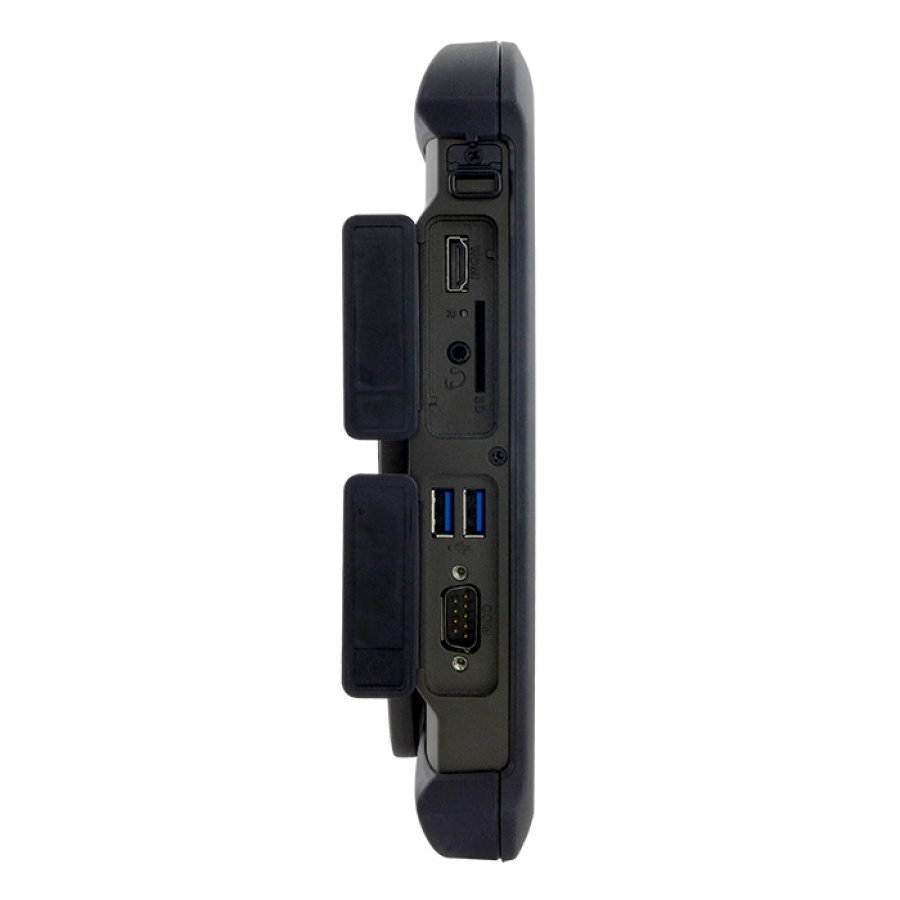

This Windows based tablet is powerful, handling processing through the Intel Core i5-5200U Broadwell 2.2GHz (turbo to 2.7GHz) CPU. Memory is via SODIMM DDR3L slot (up to 16GB) and storage can be up to 1TB with an SSD, plus there are a further 2 x internal M.2 slots. The panel itself is 13.3 inch in a resolution of 1920 x 1080 with a brightness of 350 NITS (if optical bonding is applied). The touch technology is multi-touch projected capacitive with glove, rain and stylus modes. Wireless communication is via Wi-Fi, Bluetooth 4.0 and GPS with the option of adding 4G or 3G. I/O ports on this utilitarian tablet computer are protected when not in use by rubberised flaps. The actual I/O ports include 1 x HDMI, 1 x LAN, 1 x COM, 2 x USB 3.0, 2 x USB 2.0, 1 x headphone combo, 1 x docking connector, 1 x SD Card slot and an expansion window for a smart card or barcode reader (options).
Ordering Info
- M133W 13.3 Rugged Tablet PC with Intel Core i5-5200U Broadwell 2.2GHz (turbo to 2.7GHz) Processor
- FDN133 13.3 Rugged Tablet PC with Intel Core i5-5200U Broadwell 2.2GHz (turbo to 2.7GHz) Processor (Optional M12 Connector for LAN and Power Input)
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
- 13.3-inch Tablet with 1920 x 1080 Wide Viewing-Angle Display
- Intel Core i5-5200U Broadwell 2.2GHz (turbo to 2.7GHz) Processor
- Magnesium Alloy Housing with All-Around Elastomeric Rubber
- Fanless Thermal Design
- MIL-STD-810G Certified
- IP65 Waterproof and Dust Proof
- Optional Hot-Swappable User-Replaceable Battery
- Rugged design: Anti-shock, Vibration, and Transit Drop
- With Optical Bonding for Sunlight Readability
- SOTI MobiControl compatible
| Screen Size | 11" to 20", 13.3" |
|---|
