PM12W5

Name: 12.1" Widescreen Panel Mount LCD Monitor (1280x800)
SKU: PM12W5

12.1″ Widescreen Panel Mount LCD Monitor (1280×800)

PM12W5

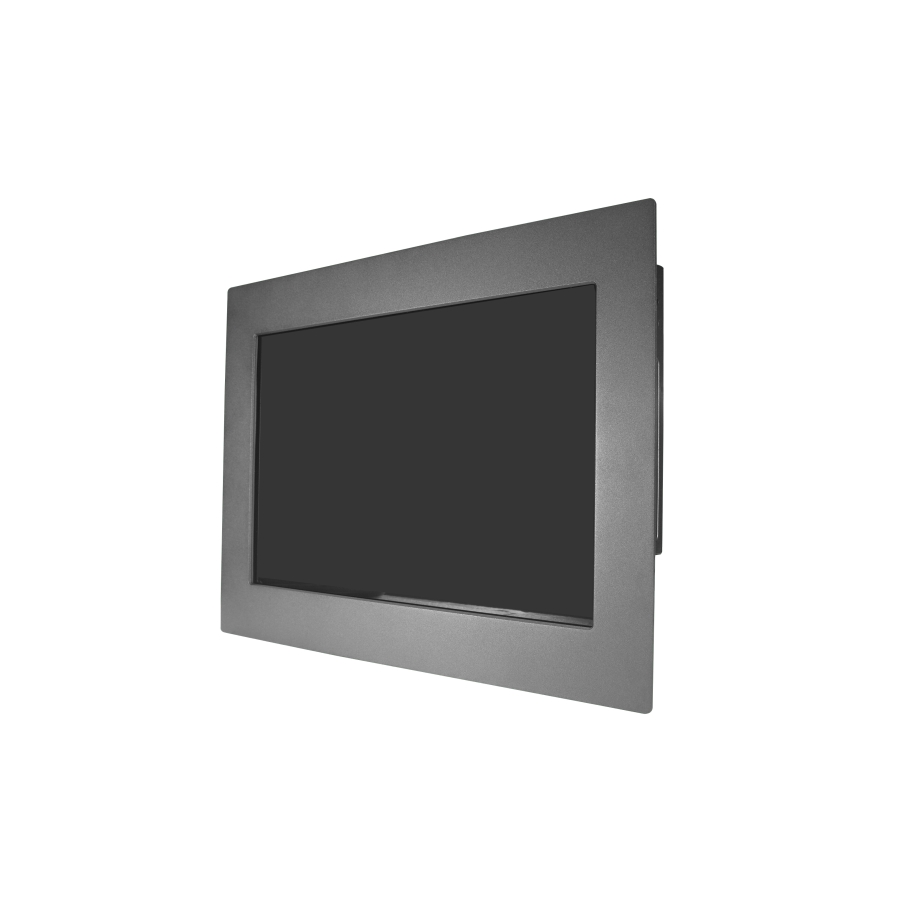

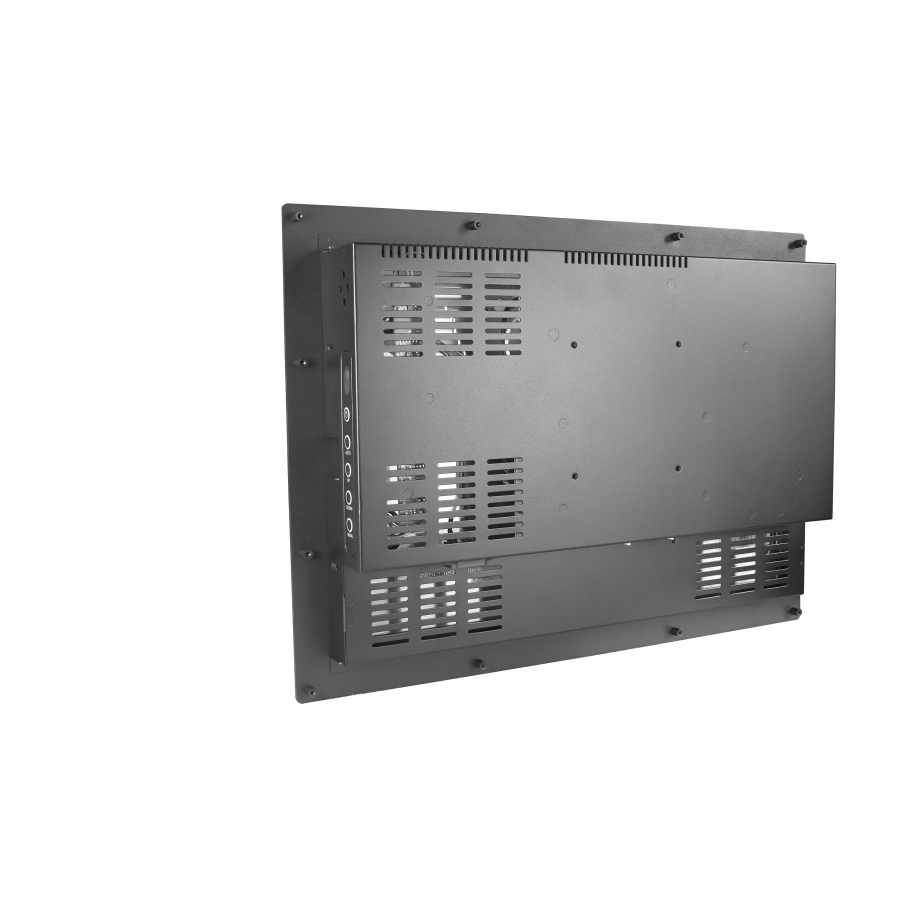

The PM12W5 from manufacturer Winsonic is a 12.1" front widescreen panel mount LCD monitor. With its sleek mechanical design it provides flexible product configuration and easy maintenance. The PM12W5 is CCFL Backlit and comes available with auto-brightness sensor that offers application in day and night. The product is available with optional touchscreen and a variety of video inputs, including a VGA connector with optional AV, SV and AV-Looping.

Brand: Winsonic
12.1 inch LCD screen
450 NITS
Optional touchscreen
1280 x 800 resolution
Size: 380mm (W) x 280mm (H) x 62mm (D)

Product Code: PM12W5

Categories: Industrial Monitors, Panel Mount Monitors, Winsonic

Range: Winsonic

Details

Ordering Info

PM12W5: 12.1″ Widescreen Panel Mount LCD Monitor (1280×800)

Downloads

PM12W5 Datasheet (PDF)

0.33MB

PM12W5 Mechanical Drawing (PDF)

0.07MB

System Integration

Please ask about how we can configure your solution

Global Operations

We deliver and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Can't Find What You Want?

Custom Design

Specification

Viewable Image Size: Wide / 12.1″
Resolution: 1280×800
Brightness: 450cd/m
Contrast: 350:1
Viewing Angle: H (-65 +64), V (-65 +50)
Bezel: Powder Coated Steel
Backlight: CCFL
VGA: 1 x (15 Pin Female D-Sub)
Video Inputs: VGA
Touchscreen: Optional
Power: 12VDC with AC Adaptor

Screen Size	11" to 20", 12.1"
