FR FCH1205S-SVGA

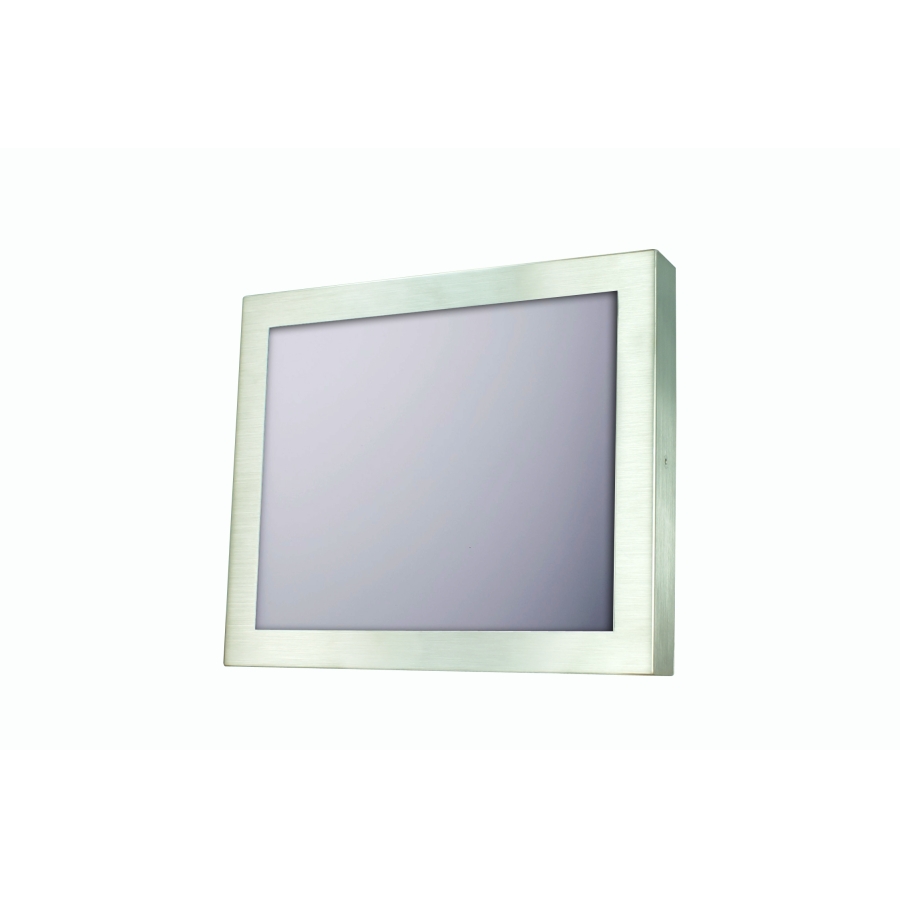

12.1″ IP66 Stainless Steel Chassis Monitor with LED B/L (800×600)
End of Life
12.1" TFT-LCD IP66 Waterproof Stainless Steel Monitor with Optional Sunlight Readable Display, Resisitive or Capacitive Touch Screen and VGA input (800×600)
- Brand: Winsonic
- Fully enclosed IP66 rated chassis
- 800 x 600 resolution
- 400 NITS brightness
- Touchscreen optional
- Size: 347mm (W) x 292mm (H) 64mm (D)
Discontinued
This product is end of life. There may still be stock available; please contact us for more information or suitable replacement solutions.
Details

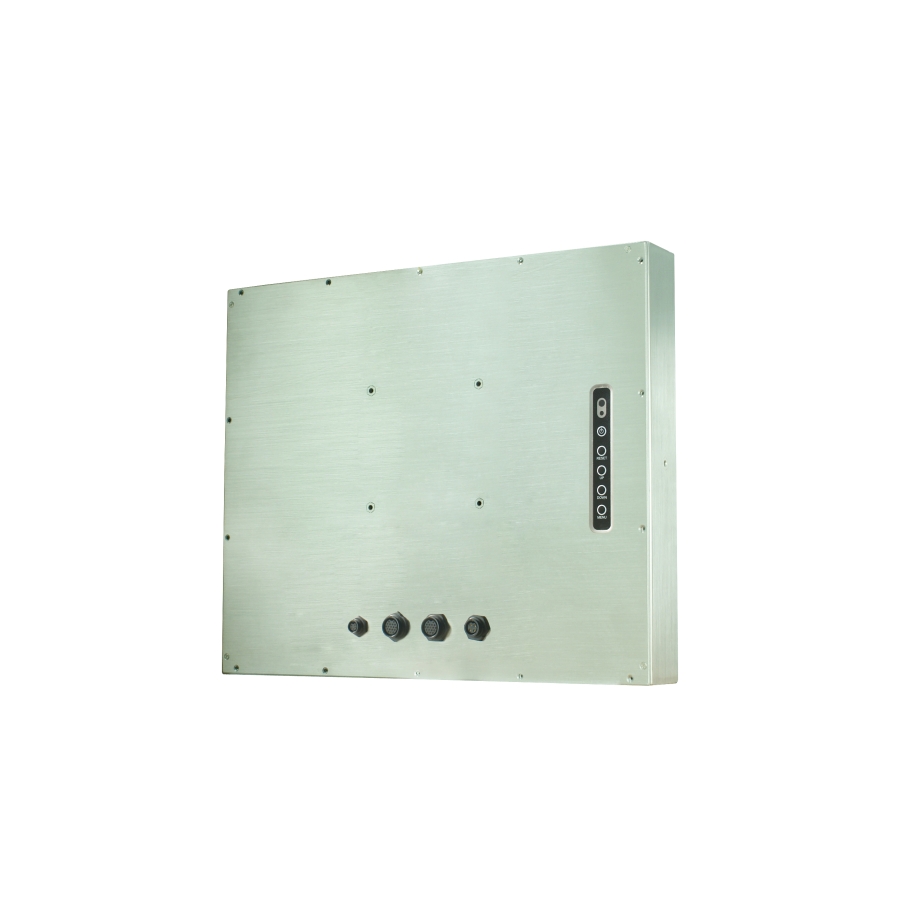

The FCH1205D-SVGA manufactured by Winsonic is a 12.1" industrial LCD monitor packaged in a fully enclosed IP66 rated chassis made from stainless steel. The product is completely sealed, six sided, making this a viable solution for harsh environments such as food & drink production. Specially designed IP rated connectors are present on the rear of the chassis along with VESA mounting holes allowing for easy installation by a variety of industry standard mounting solutions. By incorporating the latest LED backlight technology, it also helps to increase the projected lifetime of the screen without compromising the quality or consistency of the image. Optional features include sunlight readability and rugged touchscreen for simple operator functionality.
Ordering Info
- FCH1205S-SVGA: 12.1″ Full IP66 Chassis Mount LCD Monitor in Stainless Steel with VGA Input
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We deliver and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Can't Find What You Want?
Specification
- Viewable Image Size: 12.1″
- Resolution: 800×600
- Ratio: 4:3
- Brightness: 400cd/m
- Contrast: 600:1
- Viewing Angle: H (-70 +70), V (-60 +60)
- Bezel: Stainless Steel
- Backlight: LED
- VGA: 1 x DB15
- Video Inputs: S-Video, Composite, HDMI & DVI (On request)
- Touchscreen: Optional
- Power: 12VDC with AC Adaptor
| Screen Size | 11" to 20", 12.1" |
|---|
